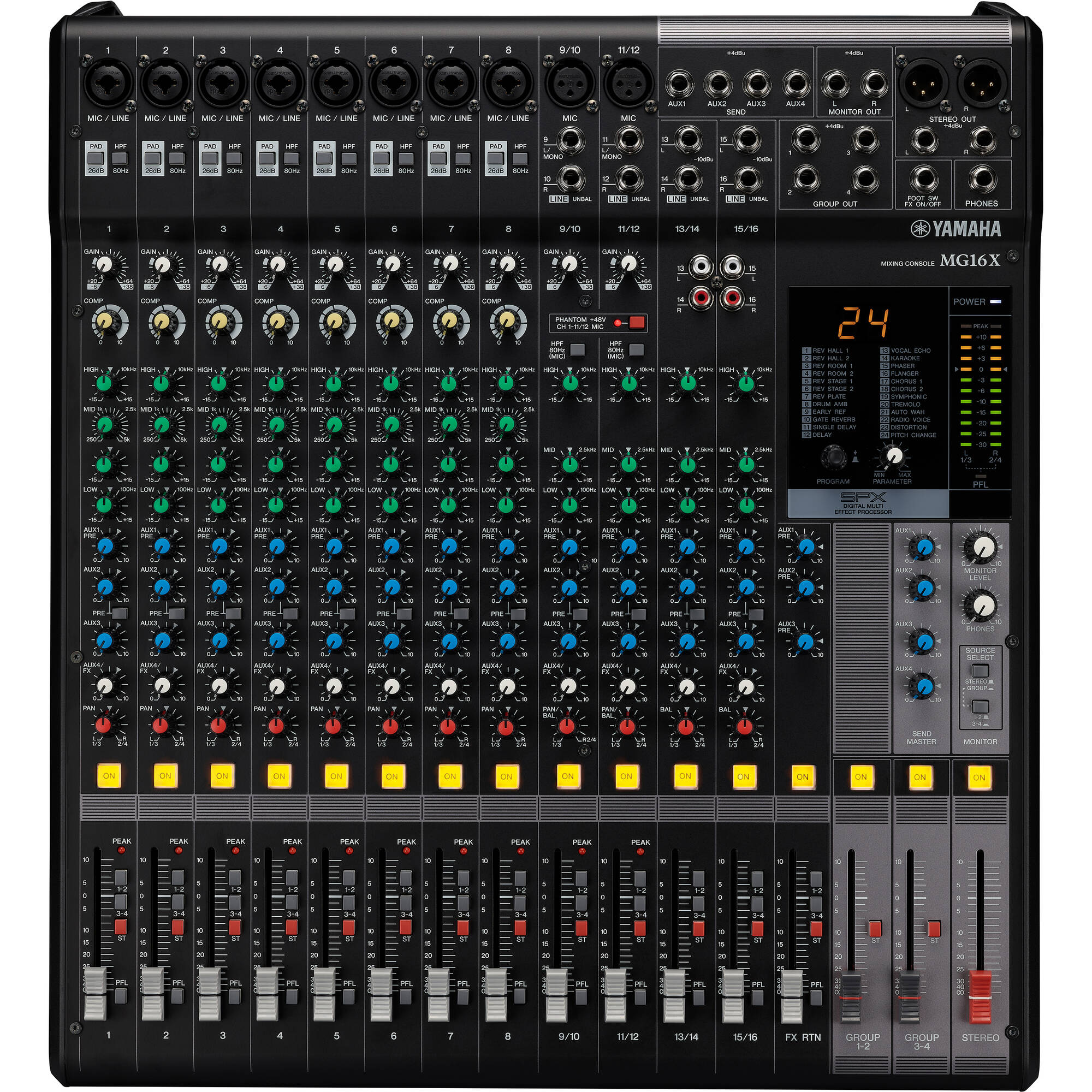

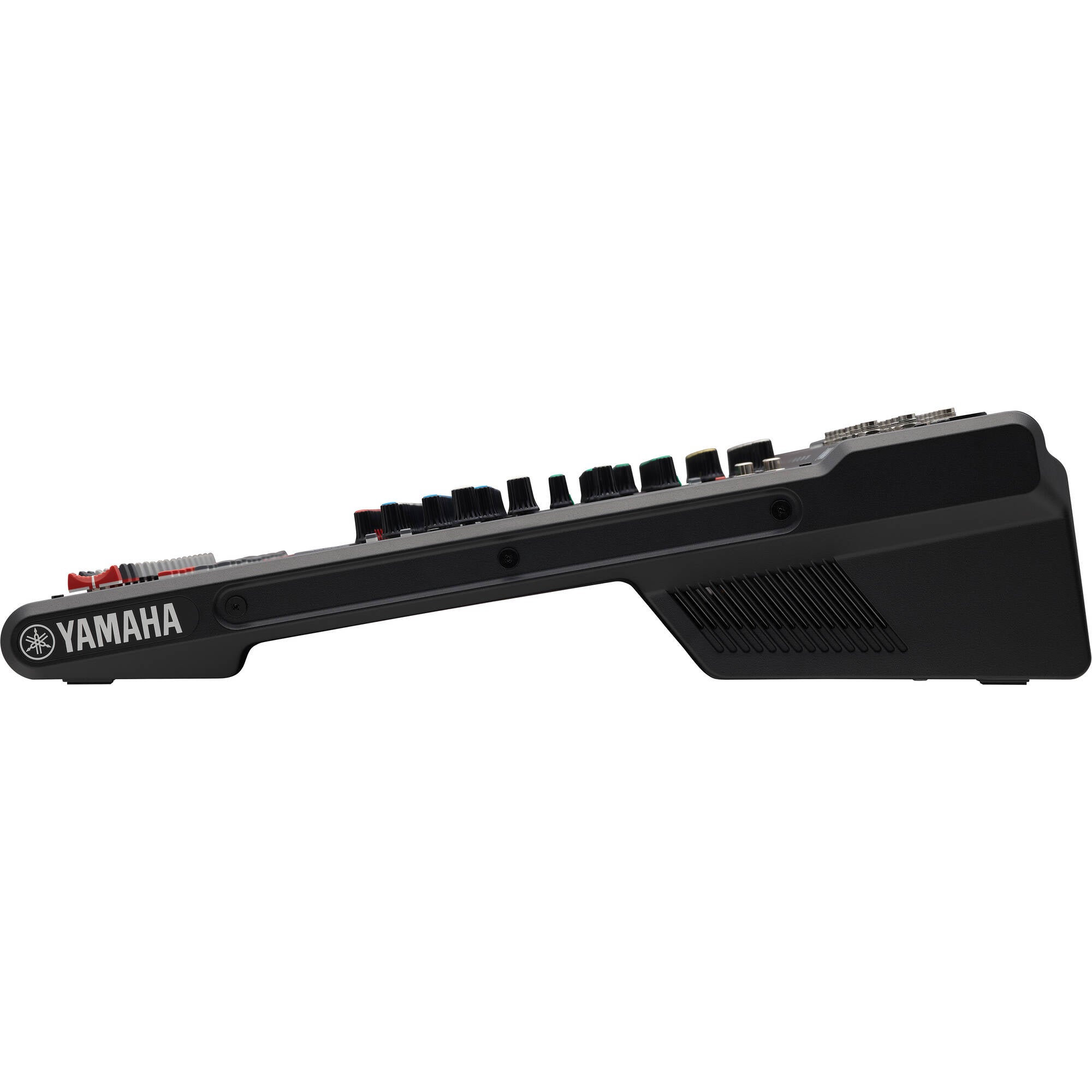

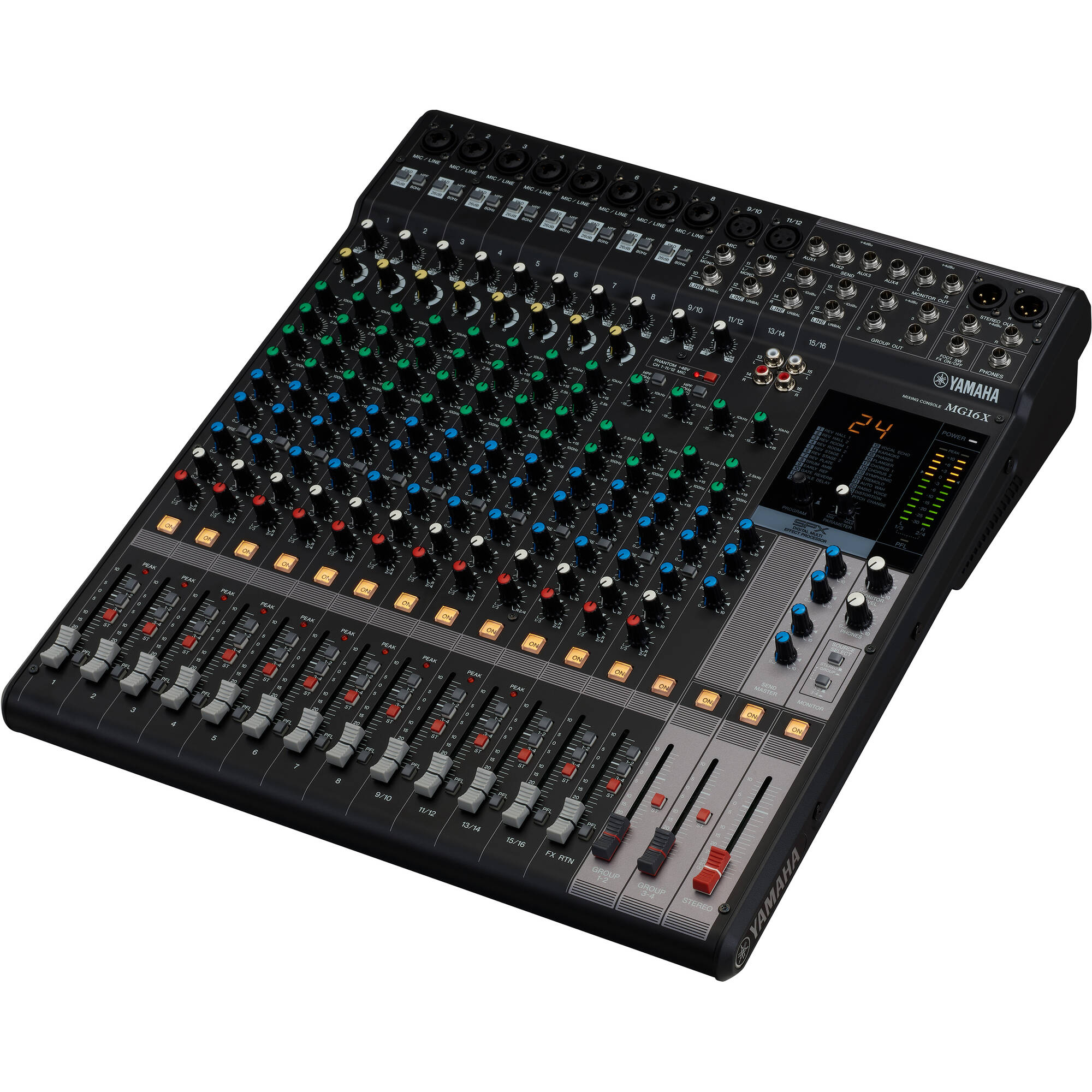

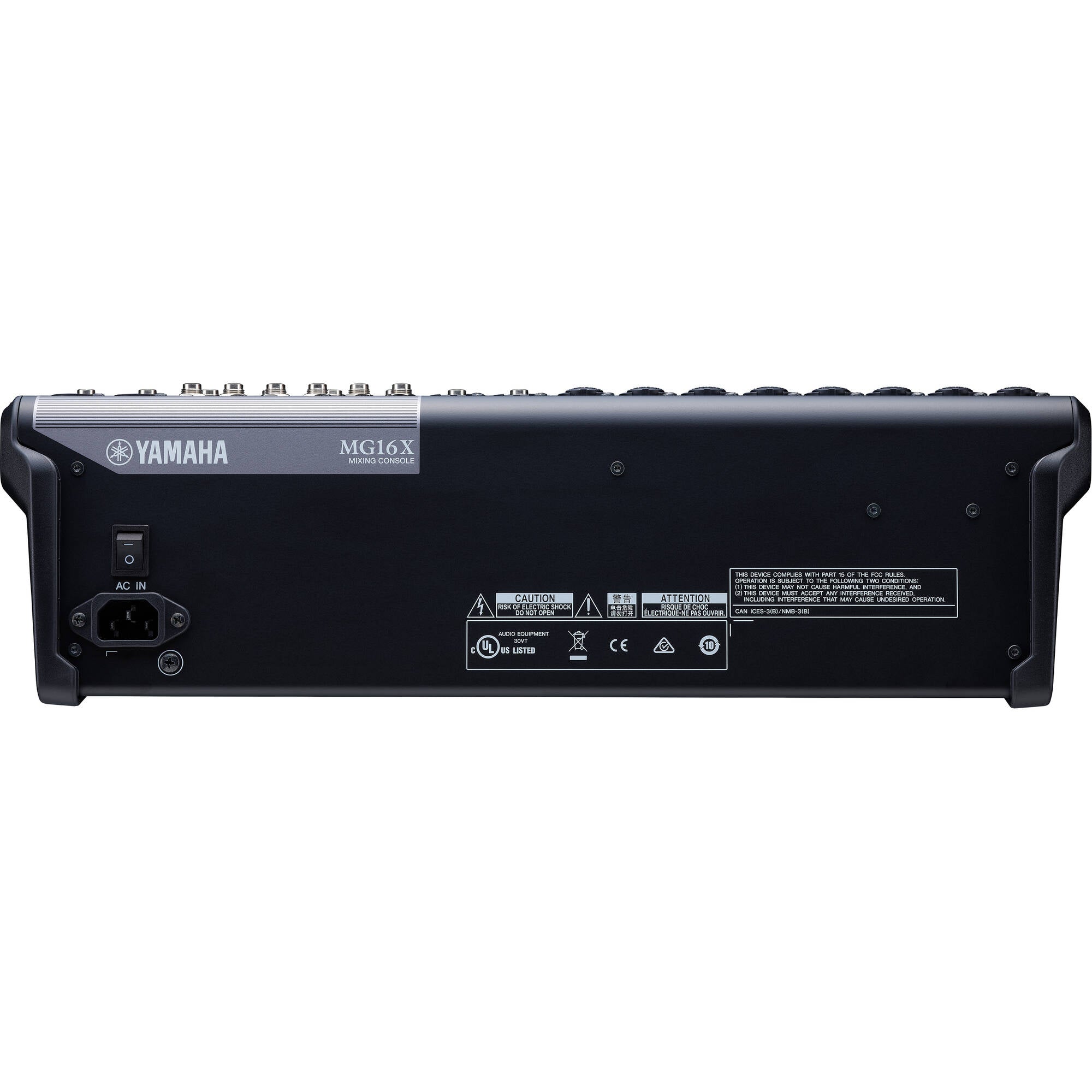

Yamaha MG16X CV 16-Channel Mixer with Effects

16-Channel Stereo Mixer with D-Pre Preamps, 24 Effect Programs, 4 Aux Sends, and 1-Knob Compressors

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Features:

• Rugged, Powder-coated steel chassis for superior durability
• Discrete Class-A microphone preamps
• Built-in SPX digital effects with 24 programs
• Switchable +48V Phantom power
• Color coded controls offer easy operation

Specifications:

• General Specifications:
• Frequency Response Input to STEREO OUT: +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min
• Total harmonic distortion (THD+N) Input to STEREO OUT: 0.03 % @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min
• Hum&Noise *1 (20 Hz to 20 kHz):
• Equivalent Input Noise: -128 dBu (Mono Input Channel, Rs: 150 Ω, GAIN knob: Max)
• Residual Input Noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
• Crosstalk (1kHz): -78dB
• Input Channels:
• Mono [MIC/LINE]: 8
• Mono/Stereo [MIC/LINE]: 2
• Stereo [LINE]: 2
• Output Channels:
• STEREO OUT: 2
• MONITOR OUT: 1
• PHONES: 1
• AUX SEND: 4
• GROUP OUT: 4
• Bus:
• STEREO: 1
• GROUP: 4
• AUX SEND: 4 (incl. FX)
• Input Channel Function:
• Pad (Mono): 26dB
• HPF (Mono, Mono/Stereo): 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
• COMP (Mono): 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
• EQ High: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• EQ Mid: Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
• EQ Low: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
• Peak LED (mono): LED turns on when post EQ signal reaches 3 dB below clipping
• Level Meter: Pre Monitor Level Meter: 2x12 -segment LED meter [PEAK, +10, +6,+3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
• Internal Digital Effect: SPX Algorithim: 24 programs
• Phantom Power Voltage: +48V
• Power Requirements: AC 100 – 240 V, 50/60 Hz
• Power Consumption: 30W
• Dimensions (W x H x D): 444 mm x 130 mm x 500 mm (17.5” x 5.1” x 19.7”)
• Net Weight: 6.8 kg (15.0 lbs.)

Includes:

• Yamaha MG16X 16-Input 4-Bus Mixer with Built-In FX
• Power Cord
• Rackmount Kit
• Limited 1-Year Warranty
