Key Features
- Cryo Treated
- Audio Grade
- Perma-Lock Terminals
- Accepts 10 to 16 Awg Wire
- Accepts 16mm Cable Diameter
- High Temp Nylon Front Housing
- Polycarbonate Rear Housing
- Stainless Hardware
Description

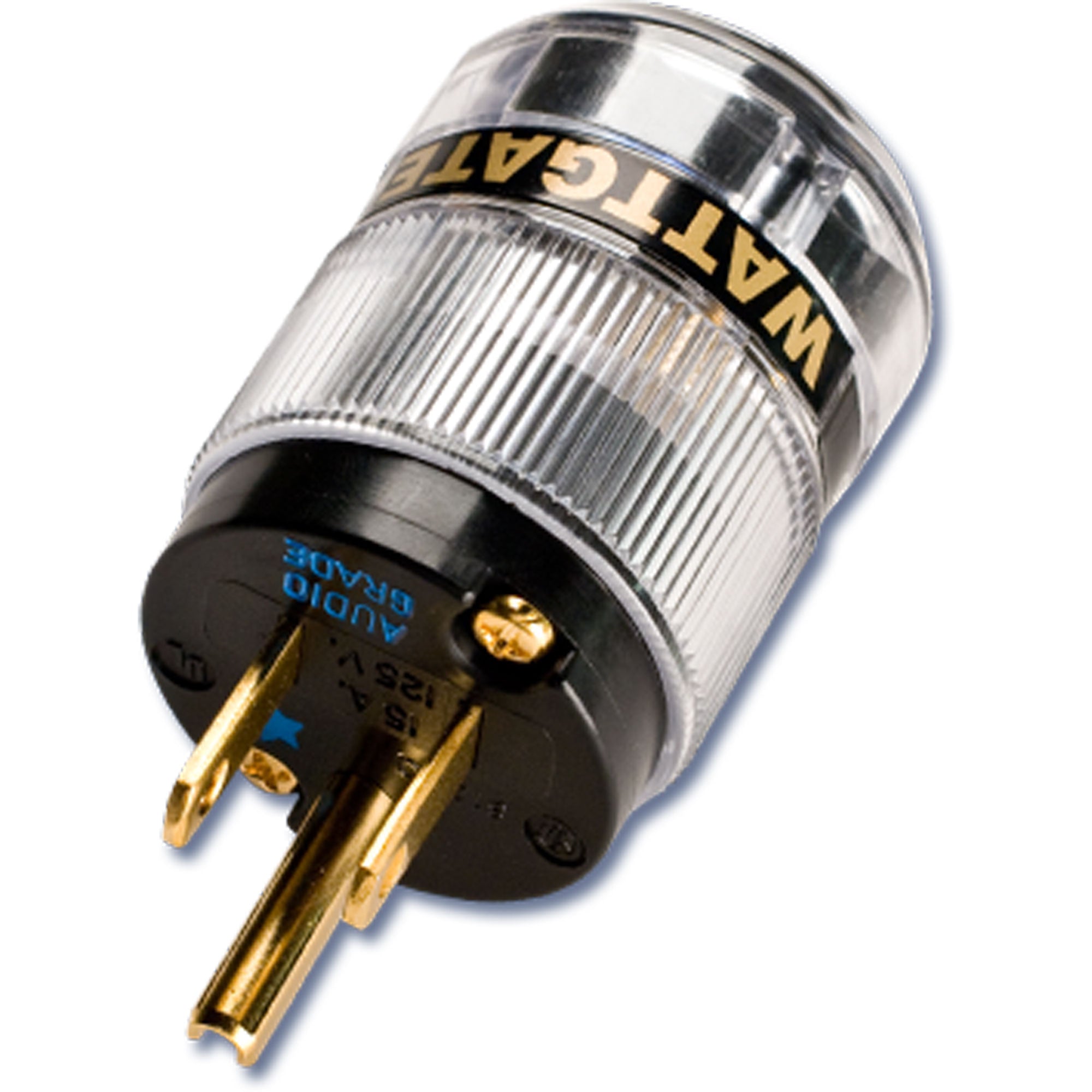

Cryo Treated Gold Plated Audio Grade Standard Edison Electrical AC Power Connector with Perma-Lock Terminals - Clear
If you are searching for a simple way to make a big improvement in your audio or home theatre system, look no further. The WattGate 330I has been designed for fast, simple installation and worry-free performance. The construction of the 330I is built to last and features an elegant polycarbonate rear housing available in either black or clear with a durable nylon-tough front housing. The 330I has been designed to be adaptable to a wide range of power cables the removable insert can accommodate cable diameters from 0.300" (7.62 mm) to 0.655" (16.63 mm).
Installation has been further simplified due to color coded, tightly-spaced, funnel shaped holes to guide the conductors into the unique Perma-Lock terminals. The Perma-Lock terminals work in the following way: As the terminal screw tightens down on the contact tang, it compresses the wire underneath the tang, causing the screw to exert an upwards lift of the collar overleaf. This lifting action "locks up" the threads screws. Stress relieving of the terminals is virtually eliminated. Heat cycling and vibration cannot loosen the screw.
The real secret behind the 330I lies with the contact elements themselves. Super thick contact tangs are used along with a three-layer plating process: Oxygen free copper plating, electroless nickel, and finally 24k gold plating dramatically improves conductivity and prevents corrosion. Plugs are 125V, 15 amp and can accept up to10 gauge wire.
Wattgate Cryo Treated Products
After ten years of researching cryogenic technology, we now cryogenically treat our Wattgate line of products in house. Years of testing different methods and processes within the cryogenic field have led us to develop our own optimized approach.
Our method of Deep Cryogenic Treatment(DCT) is of the indirect or dry type. A specially optimized cycling method is employed to achieve maximum benefit for our products. With the indirect or dry process the parts are never subject to direct contact with liquid nitrogen, avoiding thermal shock to the materials. The process takes between four and five days to complete. We have truly enjoyed the sonic results of this process, we think you will too.
Look for the Cryo Treated logo to be sure that you are getting Cryo Treated Wattgate products.
Features:
- Cryogenically treated
- Super thick contact tangs
- Three-layer 24k gold plating process
- Instantly provides superior performance over conventional plugs
Specifications:
- ★ Audio Grade
- Perma-lock terminals
- Accepts 10 to 16 awg wire
- Accepts 16mm cable diameter
- Glass filled high temperature nylon front housing
- Polycarbonate rear housing
- Stainless hardware
- Wattgate Three Layer Plating Process*
- 15A/125VAC
- *WATTGATE Three Layer Plating Process
- 1. Oxygen free copper plating - improves conductivity
- 2. Electroless nickel plating - necessary to prevent the leeching of the copper through the pure gold layer
- 3. 24k gold plating - improves conductivity
