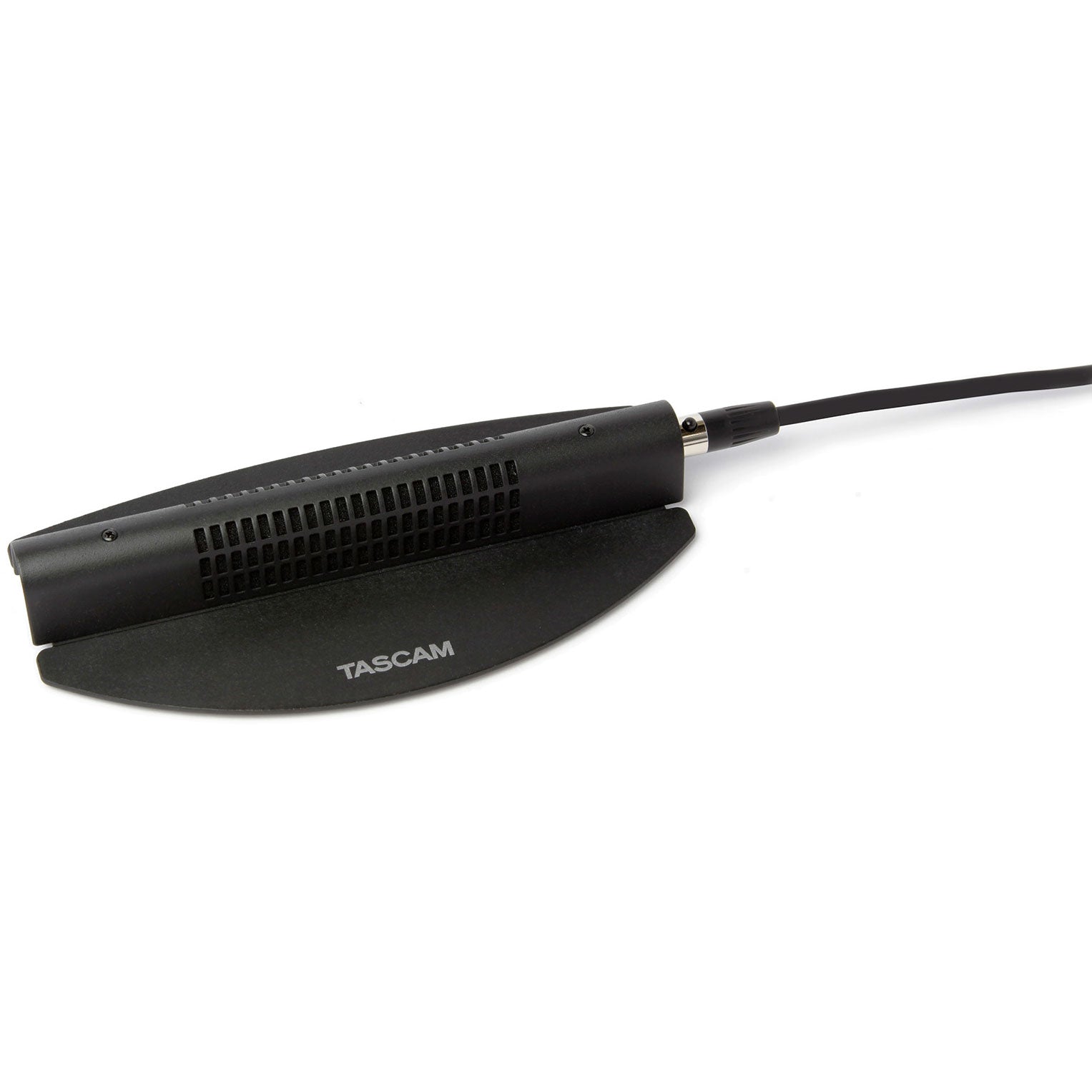

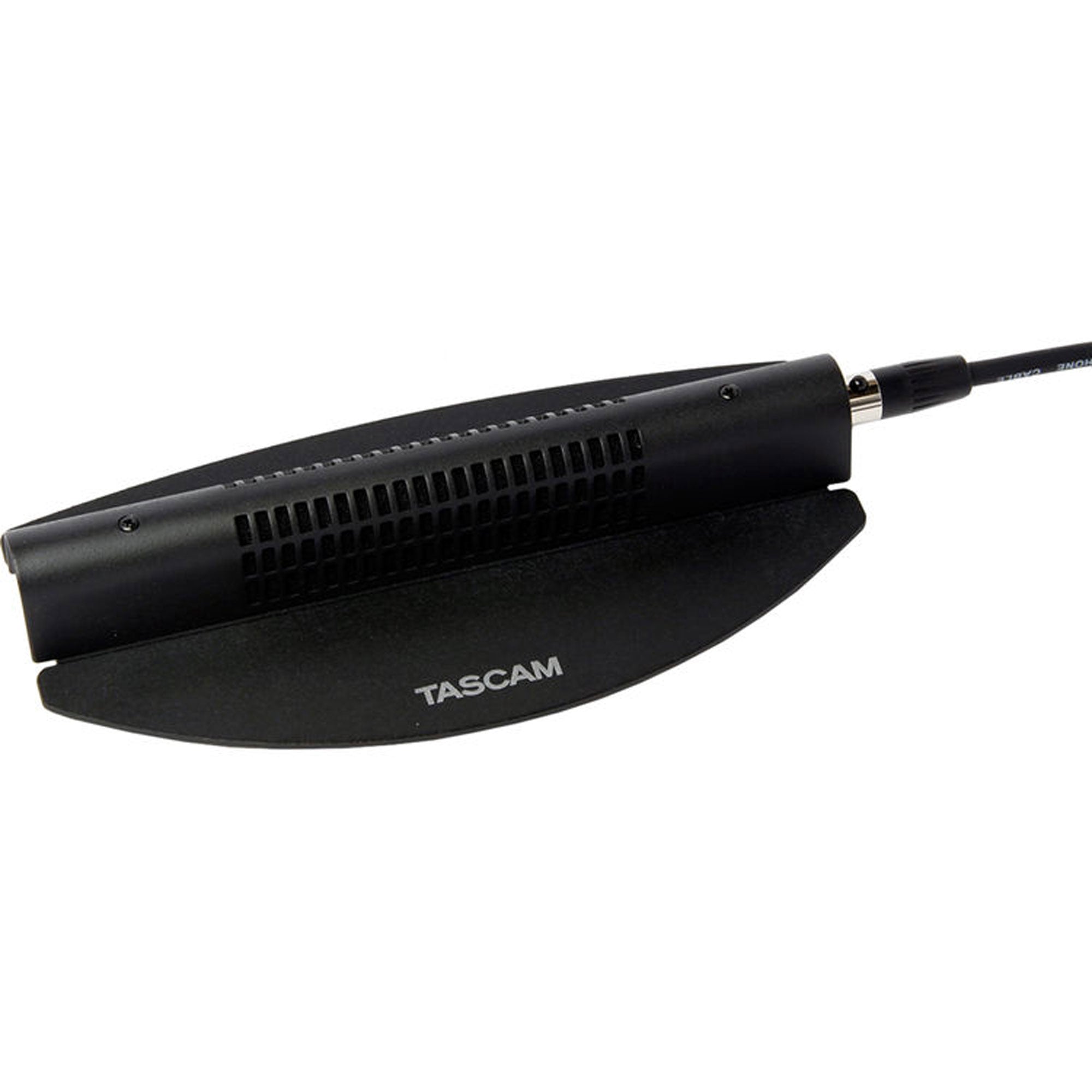

Tascam TM-90BM Boundary Condenser Microphone

Start Your Live Talk Show Right Away

Perfect for meeting rooms, podcasts film production and studio work. the TASCAM TM-90BM Boundary Microphone provides a low profile option for many common audio recording tasks. Designed primarily for tabletop use, the TM-90BM captures sound by way of a hemispherical pickup pattern and is a great way to capture recordings of podcast groups or meeting attendees without having to bother with multiple mics and submixers. The TM-90BM may also be placed on floors or walls to capture drum kits, acoustic pianaos, guitar, percussion and more.

One way to improve the experience of viewers watching live streaming online is to ensure you're podcasting with a clear and high-quality audio. To improve your audio sound, the quality of your microphone is just as important as other audio gears you choose for sound improvement.

However, despite this, using standard condenser microphone may not be the best choice in circumstance where it requires multiple mics for guests in talk shows. In addition to this, these mics may be seen all the time in the entire video.

The TM-90BM is a boundary condenser microphone and is perfect for talk shows with a group of guests. It allows you to capture multiple voices simply by placing the microphone on a table, so you can record the conversation in high quality audio without the clutter of too many microphones. Of course, online streaming isn't the only place this mic can come in handy. The TM-90BM can be used in many other ways as well, including audio recordings for meeting minutes.

Experience the difference in quality for your next talk show with this discrete yet powerful microphone.

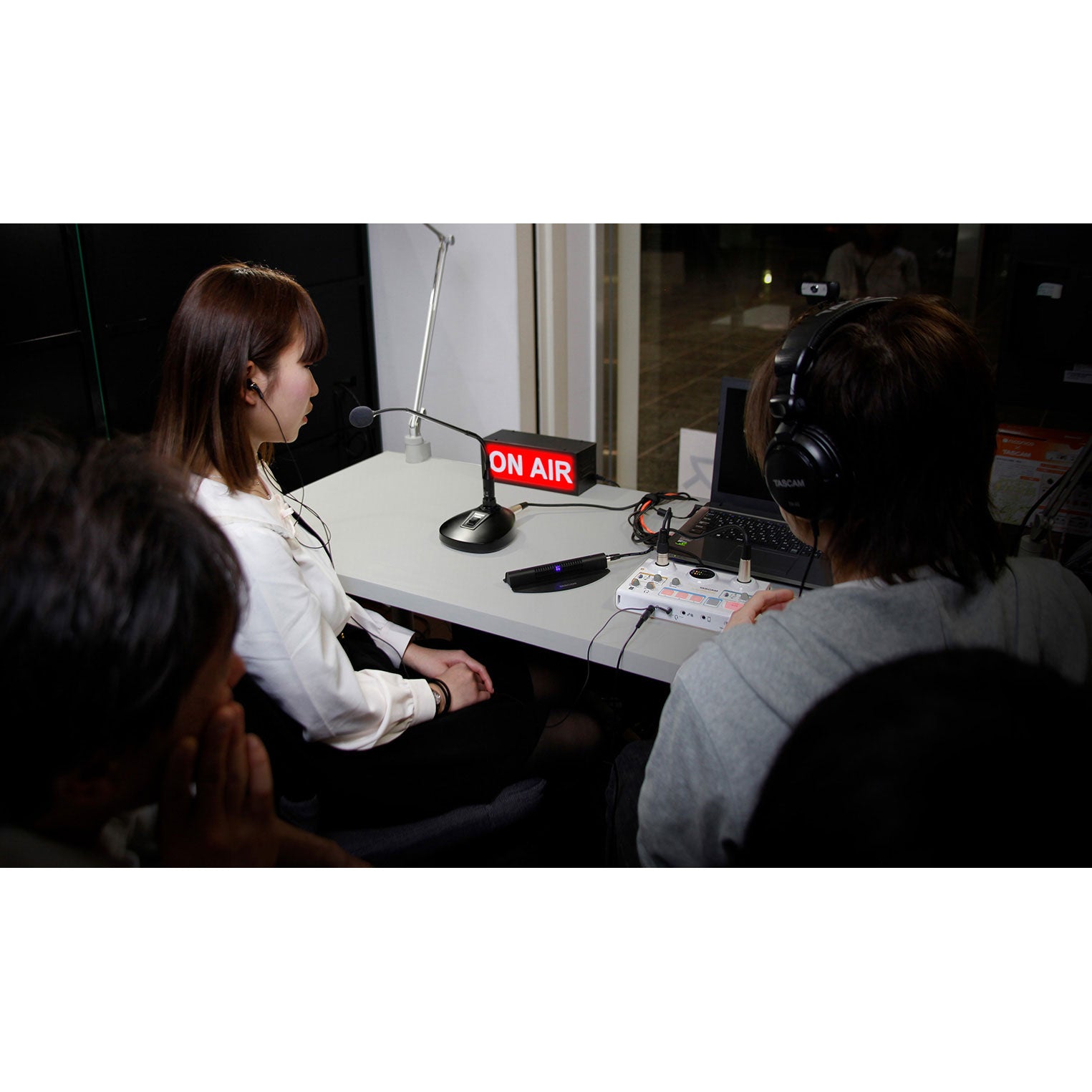

Pocasting talk shows with guests

In online podcasting, talk shows often include invited guests. With the TM-90BM, all you have to do is place the mic on a center table, supply it with phantom power, and you're ready to go. Even in situations in which multiple guests are involved in a conversation, you can still record everyones' voices clearly with only one unit of TM-90BM instead of preparing extra microphones for each guest.

If you set up a TM-95GN for another MC host, you'll have everything you need to facilitate and record a top quality talk show.

Recording conversation during a meeting

Transcribing meeting minutes demands clear audio to record content accurately. While supplying each participant in the meeting with their own microphone might be ideal, setting up an massive audio system would be difficult and costly. Using the TM-90BM means you can cut back on the number of microphones needed while still ensuring clear recordings. Its flat and compact design also prevents distraction by the presence of microphones for guests and will therefore be able to proceed the meeting efficienctly.

Features:

Broad coverage for a variety of applications

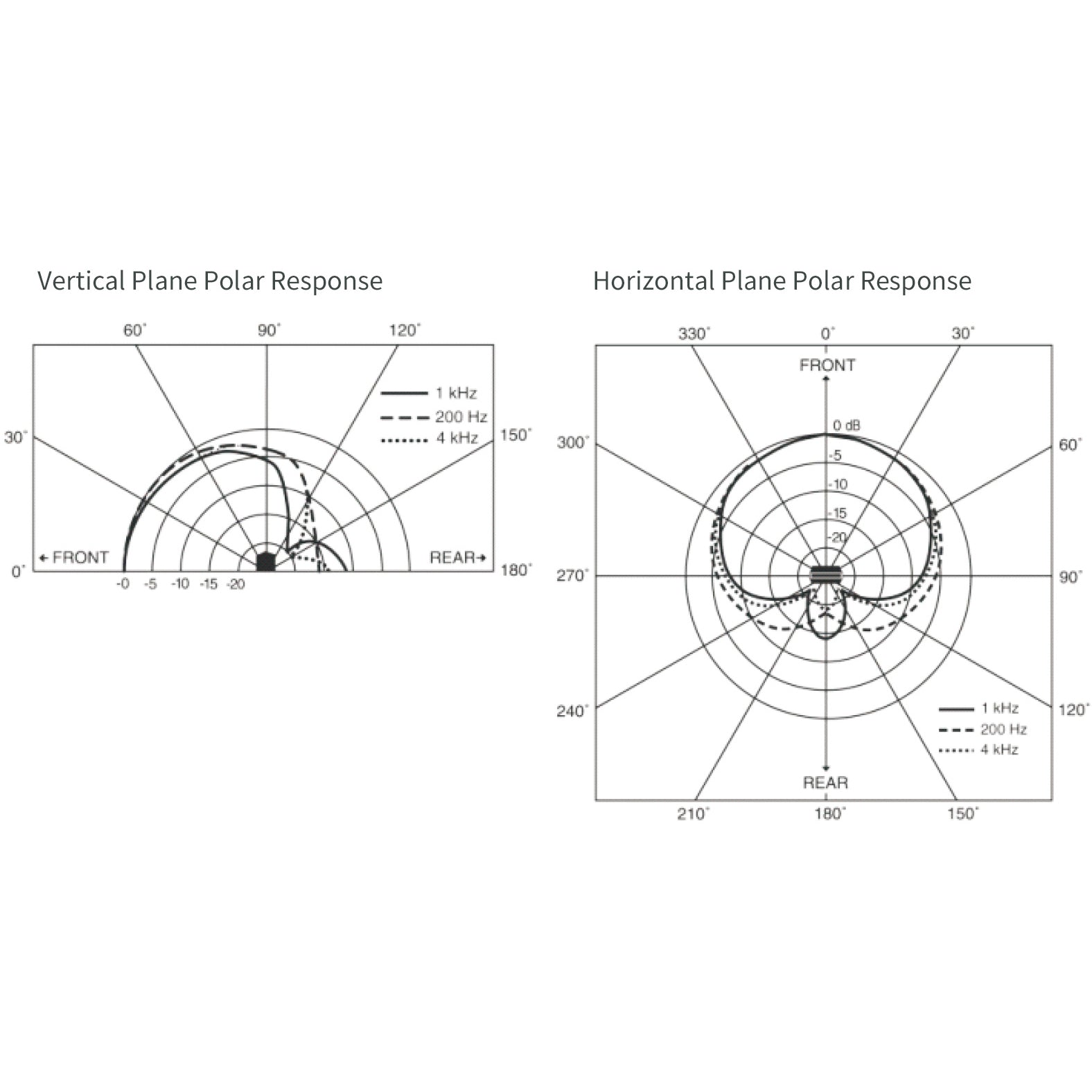

While the TM-90BM does feature a hemispherical pickup patter on the Horizontal plane, it is also a uni-directional condenser mic on the vertical plane, and should be positioned with the TASCAM logo facing the audio source. And being a condenser microphone, the TM-90BM requires Phantom power which can be supplied remotely from your mixer, Mic preamp or audio interface as well as through the use of an on-board dry-cell battery.

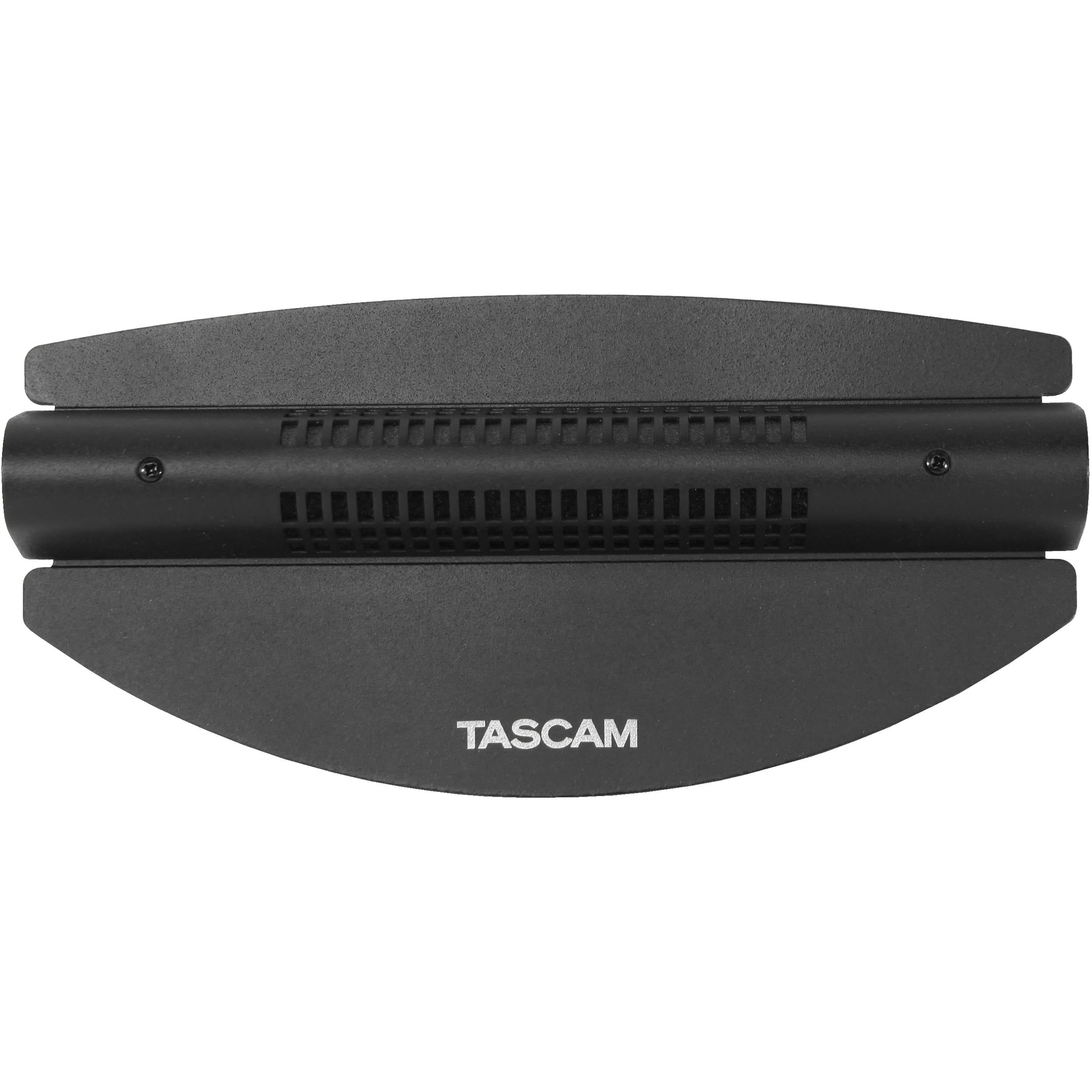

Low Profile Design

While the TM-90BM does feature a hemispherical pickup patter on the Horizontal plane, it is also a uni-directional condenser mic on the vertical plane, and should be positioned with the TASCAM logo facing the audio source. And being a condenser microphone, the TM-90BM requires Phantom power which can be supplied remotely from your mixer, Mic preamp or audio interface as well as through the use of an on-board dry-cell battery.

Proven High Sound Pressure Design for capturing loud sounds (up to 140dB SPL)

The TM-90BM is able to easily handle louder sound sources making it an ideal choice for use as a room mic when recording drums and percussion.

Bass Tilt Switch to customize low frequency response

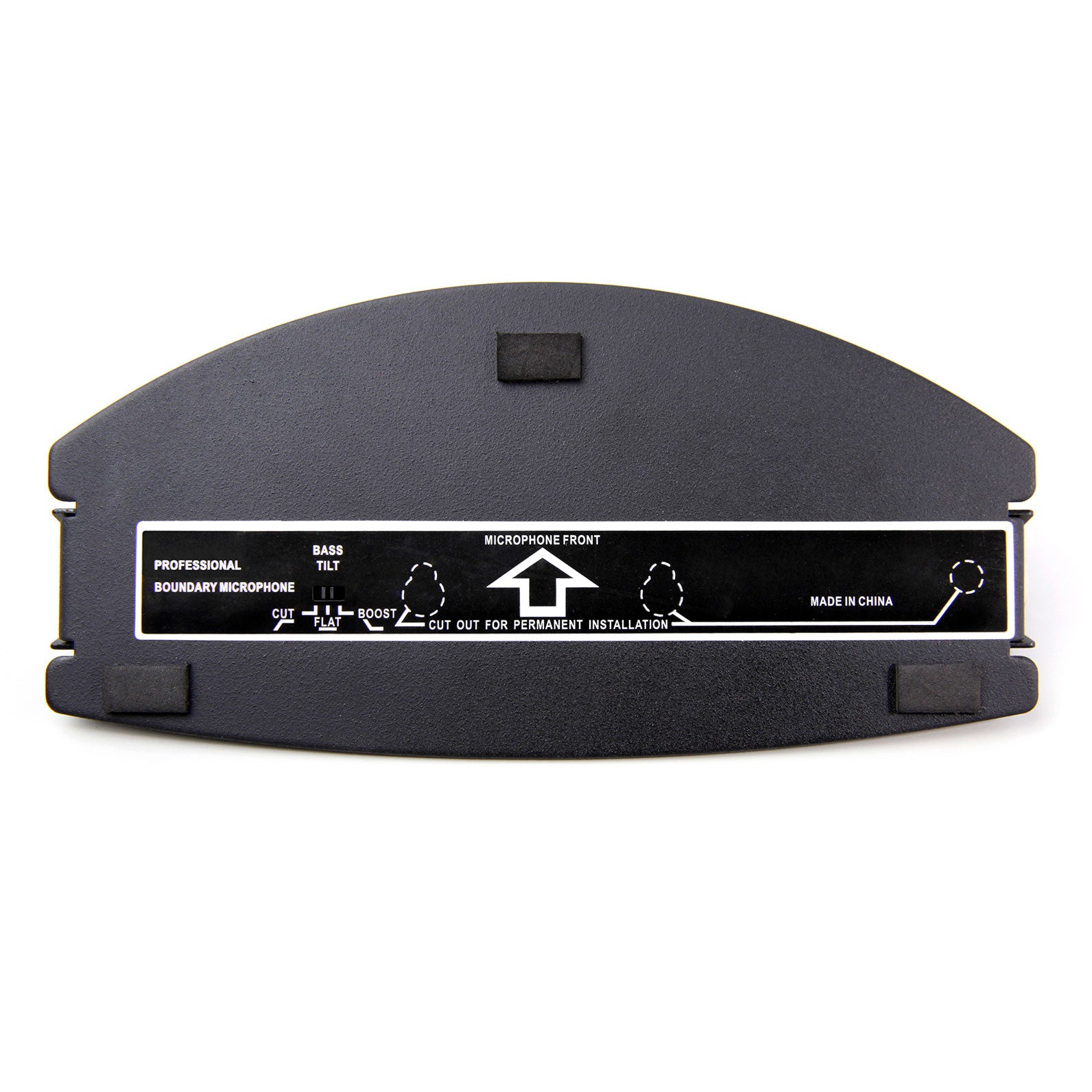

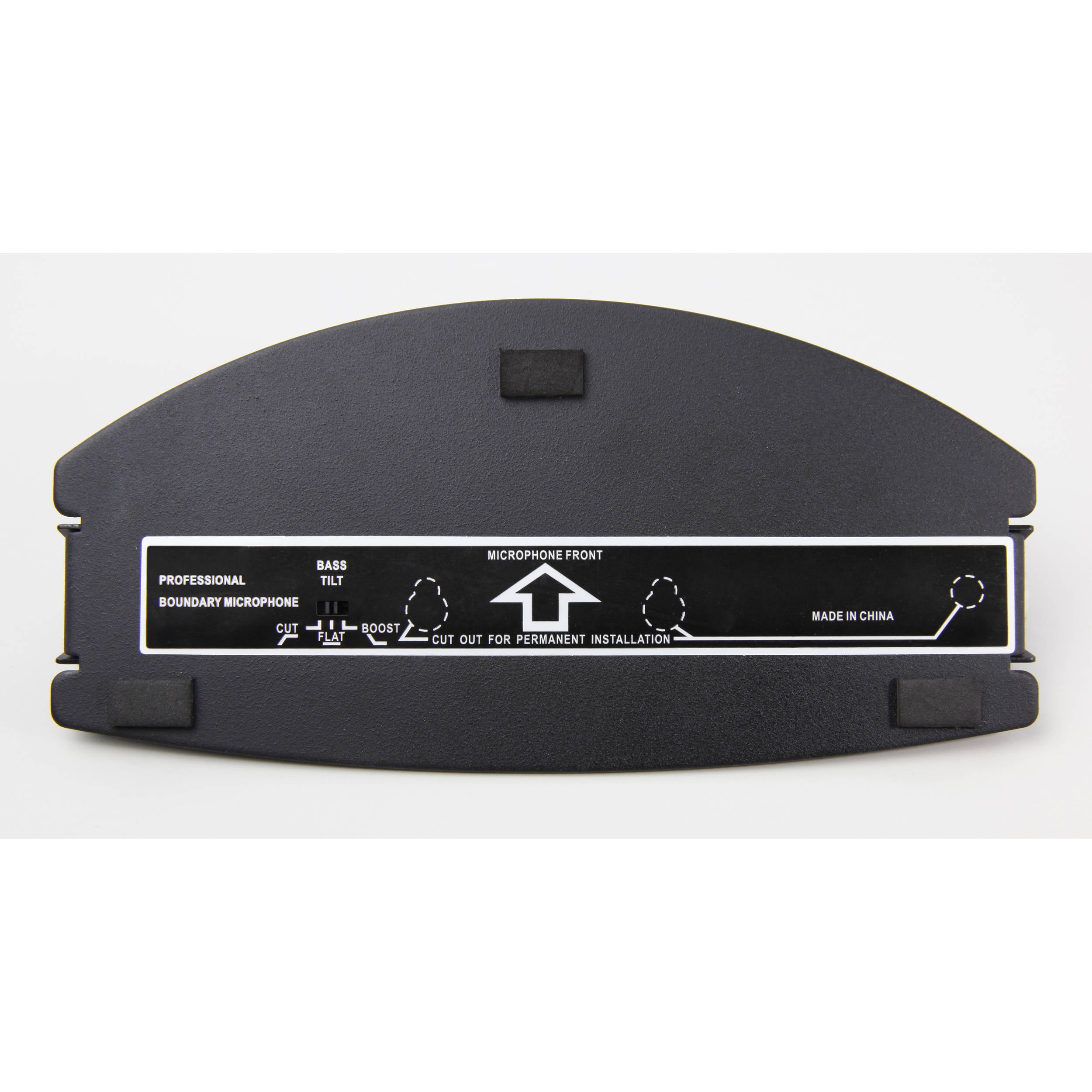

When capturing voices in a room, low frequencies may cause unwanted rumble or make speech difficult to understand. To address this, the TM-90BM features a unique BASS TILT switch mounted on the bottom of the unit. This switch can also be used to subtly boost the low end when recording musical instruments to add a welcome warmth and fullness to the sound.

Specifications:

• Model: Back-electret condenser microphone
• Directivity: Half Super Cardioid (Unidirectional)

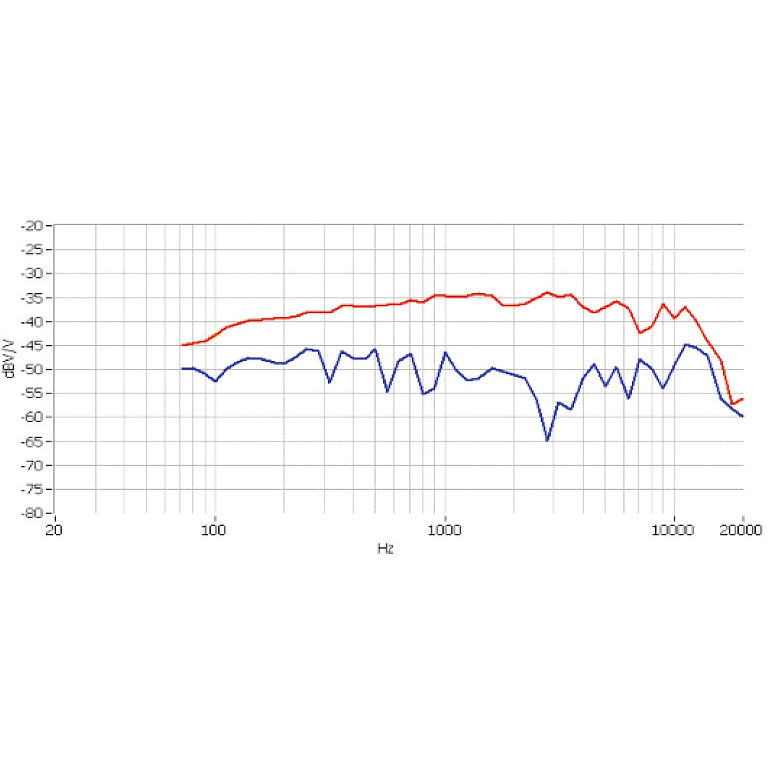

• Frequency response: 50Hz to 18,000Hz
• Output impedance: 150Ω
• Load impedance: > 1kΩ
• Sensitivity: -35dB ±3dB (0dB=1V/Pa at 1kHz)
• Max SPL: 140dB (at 1kHz=1% THD)
• S/N ratio: 68dB
• Connector: 3 pin XLR, Male (dedicated patch cable) × 1
• Phantom power: 9V to 52V
• Dimensions (W×H×D): 6.7" × 0.94" × 3.2" / 170 × 24 × 81.5 mm
• Weight: 9.2 oz. / 260 g (excluding cable)

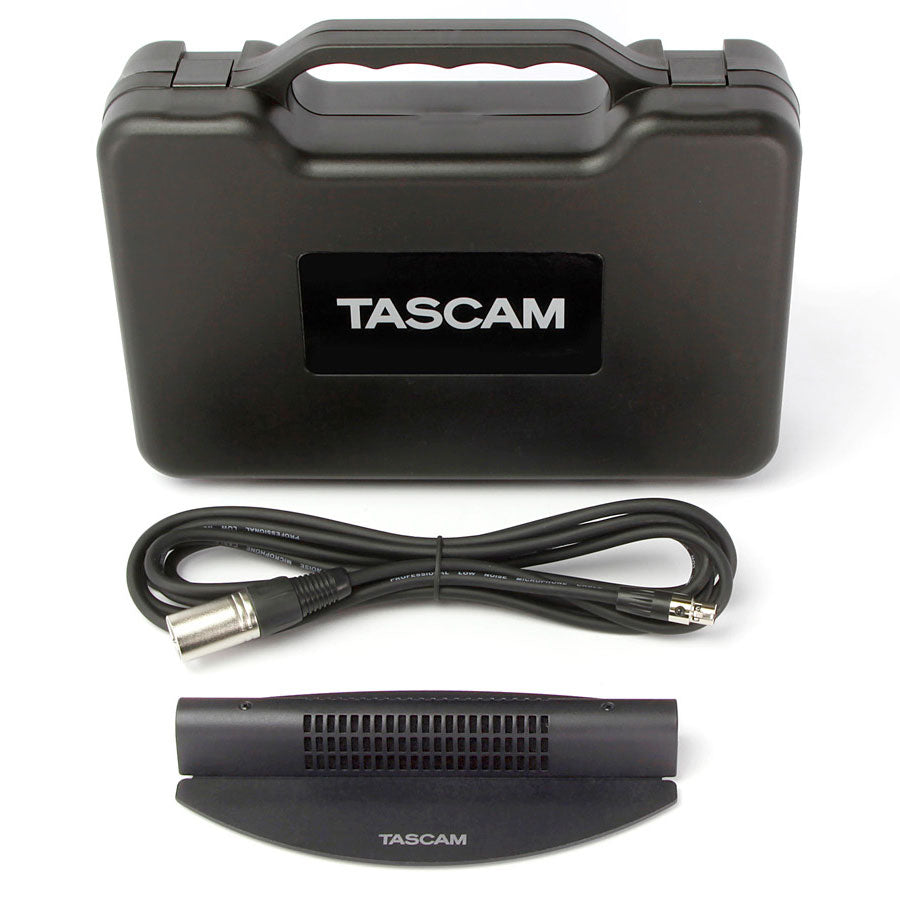

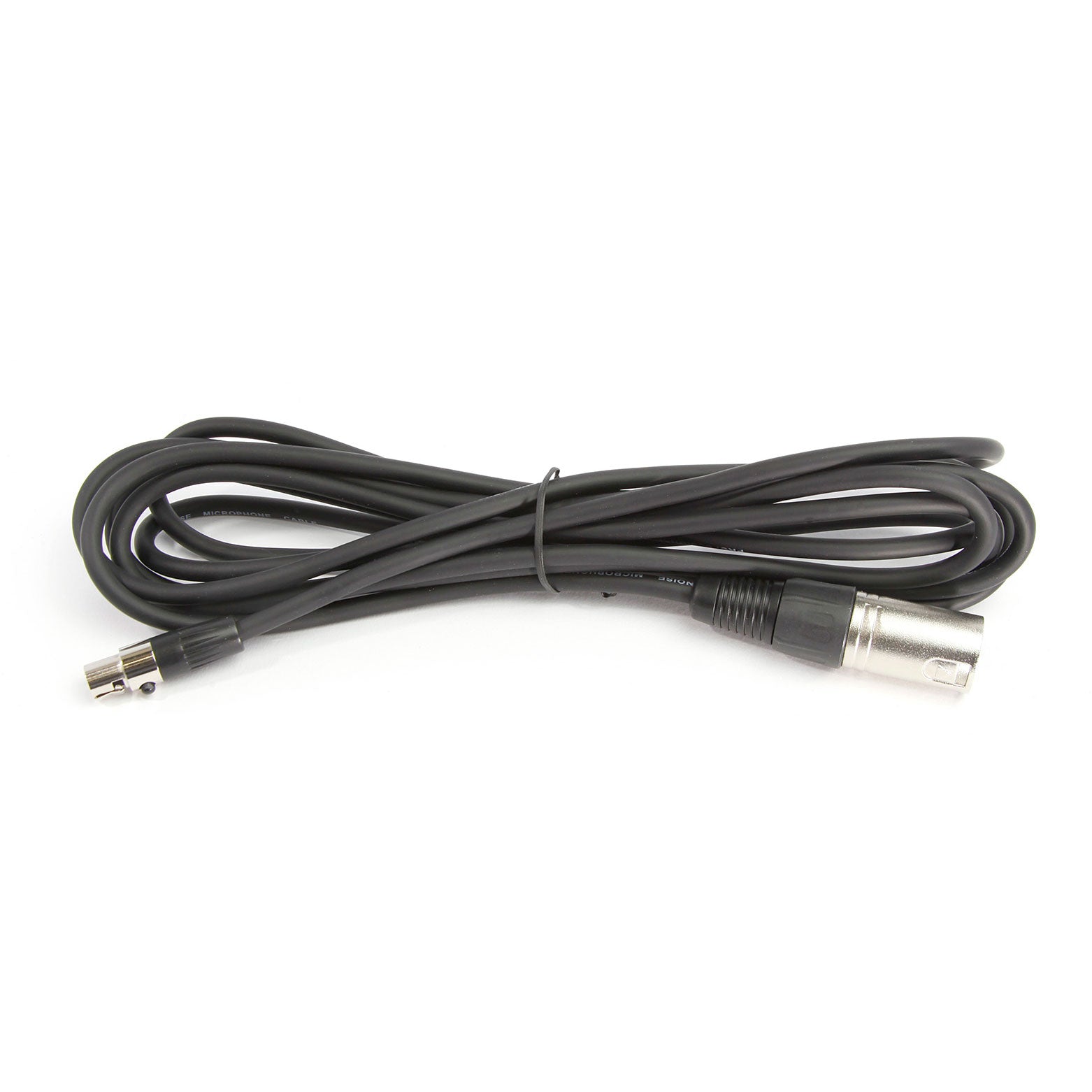

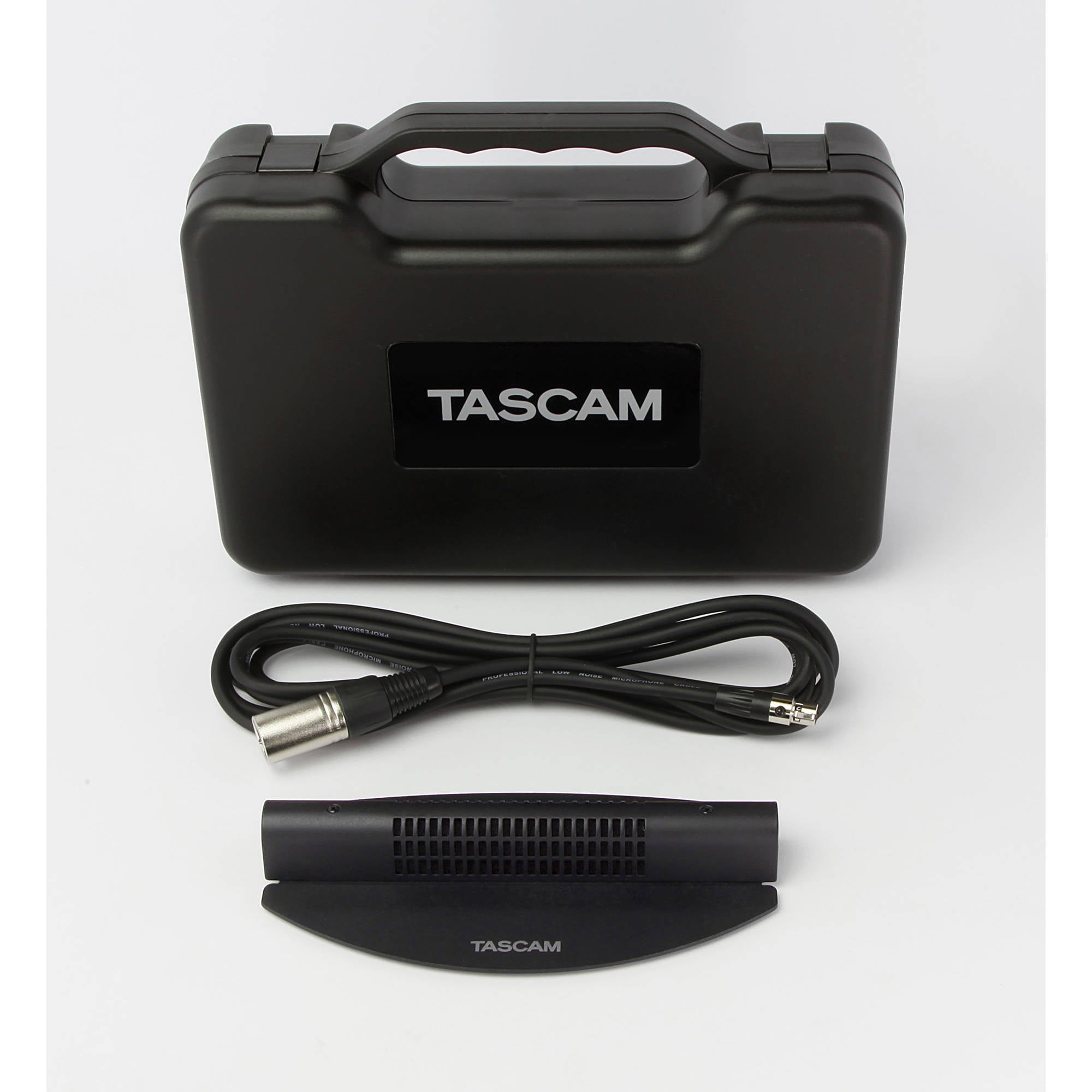

• Accessories: Hard carry case, Dedicated patch cable (converted, 9.5 ft. / 2.9 m)
