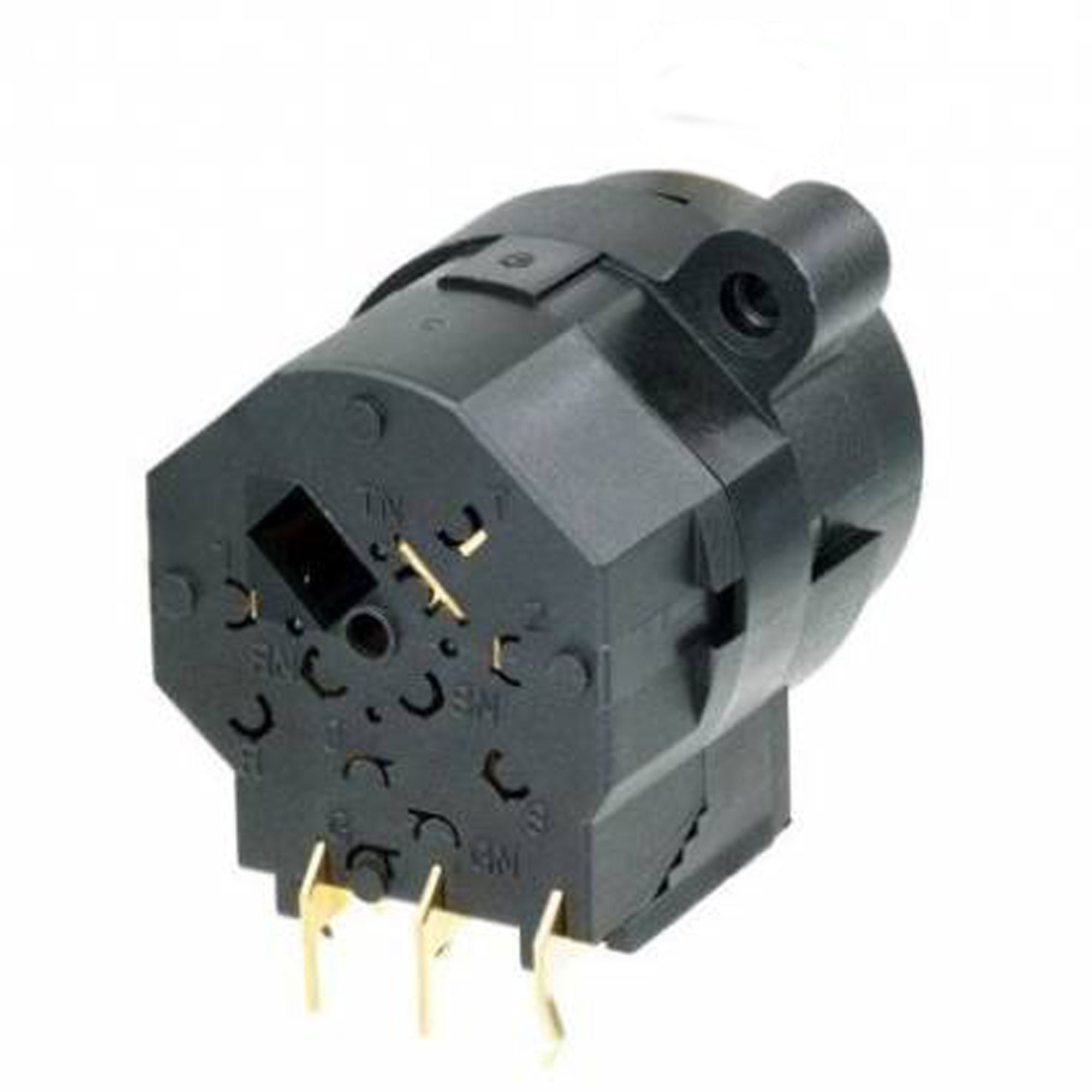

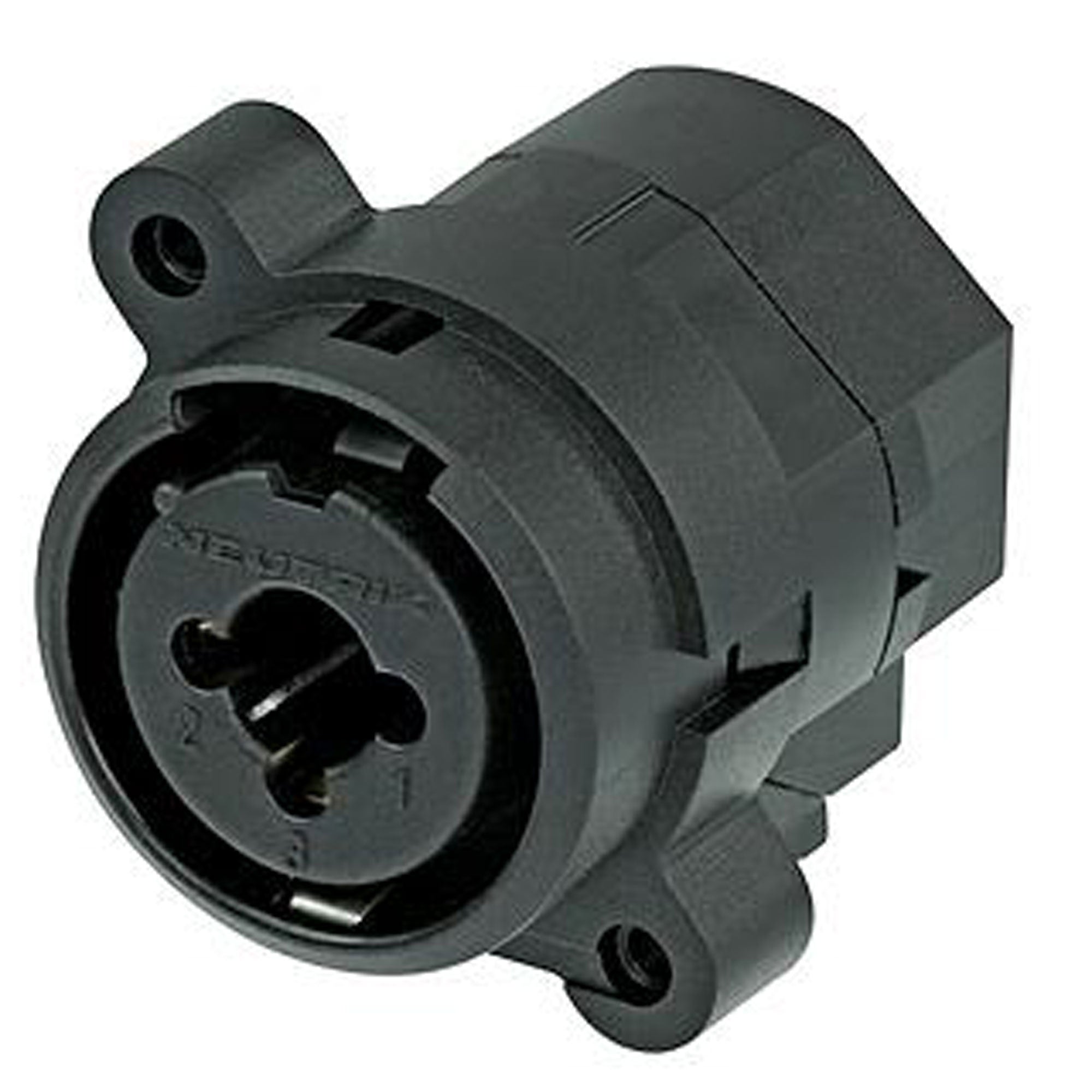

Neutrik NCJ5FI-H-0 Combo XLR & 1/4" Mono Jack, Latchless (Horizontal PCB, Box of 100)

Save $21.00
NeutrikSKU: WB NTK NCJ5FIH0BOX

Price:
Sale price$374.00 Regular price$395.00
Stock:
Out of Stock, But We'll Ship It Fast!

Key Features

  • Combined XLR and 1/4" Jack
  • Horizontal PCB Mount
  • Latchless with Retention Spring
  • Balanced or Line Level Inputs
  • Saves Space
  • Combines 2 Connectors in One Housing
  • Very Low Conductor Capacitance
  • Suitable for Digital Audio
  • Full Box of 100 Connectors

Description

Combination Female 3-Pin XLR Receptacle and 1/4" Mono Jack, Horizontal PCB Mount, Retention Spring - Full Box of 100 Connectors

3 pole XLR female receptacle with 1/4" mono jack without switching contact, horizontal PCB mount, Retention spring.

XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.

Specifications:

  • Product:
  • Title: NCJ5FI-H-0
  • Connection Type: Combo
  • Gender: female
  • Electrical:
  • Contact resistance: < 10 m&ohm; (XLR)
  • Contact resistance: < 20 m&ohm; (jack)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 G&ohm; (initial)
  • Rated current per contact: 7,5 A (XLR)
  • Rated current per contact: 7,5 A (Jack)
  • Rated voltage: < 50 V
  • Mechanical:
  • Insertion force: ≤ 25 N
  • Withdrawal force: ≤ 25 N
  • Lifetime: > 1000 mating cycles
  • Locking force: > 20 N separating force
  • Panel thickness: max. 7 mm 0.27"
  • Wiresize:
  • Mounting direction: Rear mounting
  • Material:
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Bronze (CuSn6)
  • Insert: PA66
  • Locking element: Steel Ck67
  • Environmental:
  • Flammability: UL 94 V-0
  • Temperature range: -30°C to +80°C
