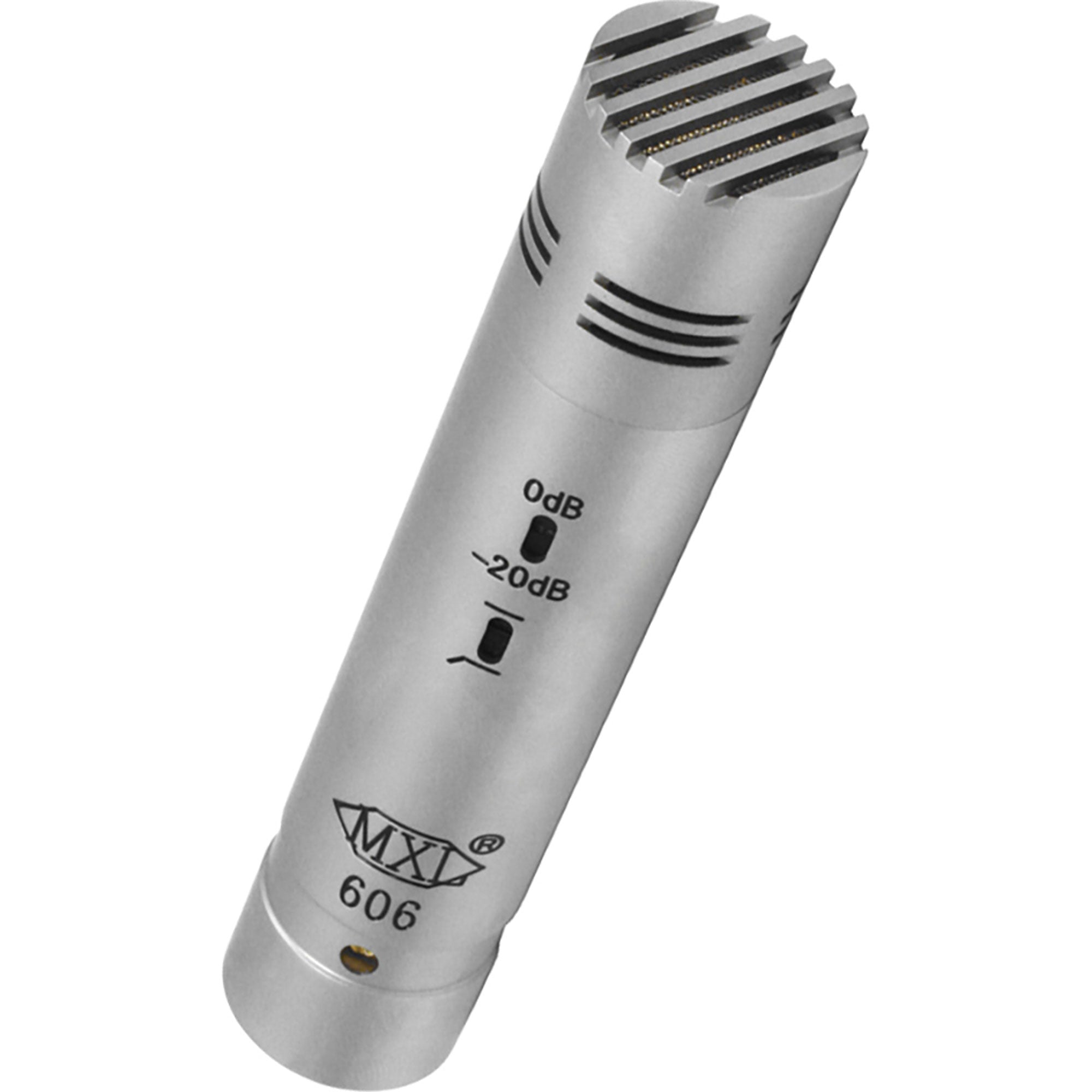

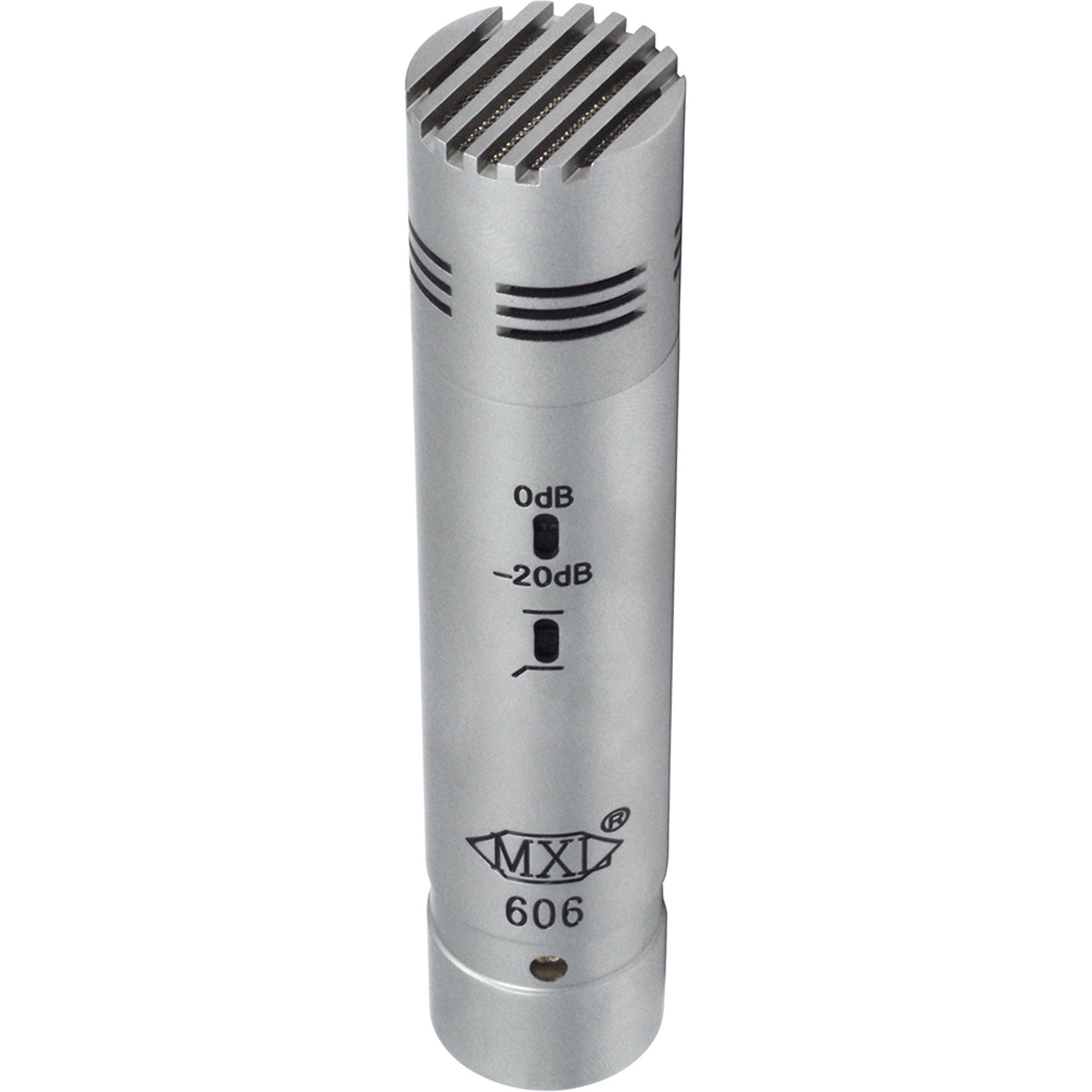

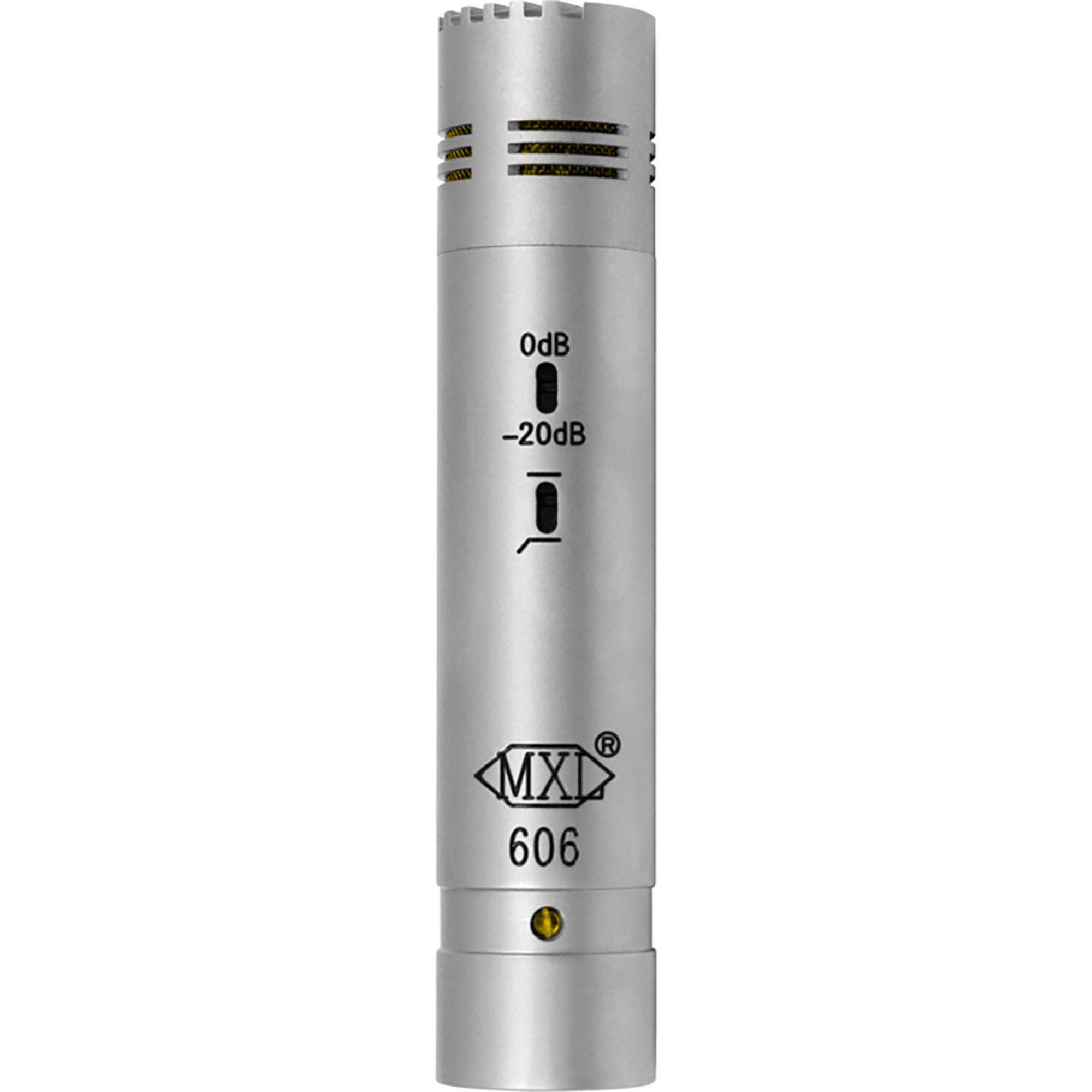

MXL 606 Condenser Instrument Microphone

Small Diaphragm Condenser Instrument Microphone

The MXL 606 instrument microphone delivers the sound you are looking for when recording snare drums, high-hat cymbals, acoustic guitars, pianos, percussion, stringed instruments and more. Using transformerless FET circuitry and a gold sputtered diaphragm capsule provides a clean and clear tone. The 606 also features a -20 dB switchable attenuation pad, low-frequency roll-off, and an interchangeable omnidirectional capsule for versatility in any recording application.

Features:

• Designed for snare drums, yet useful for all instruments
• -20db pad for higher SPL recording
• High-pass filter for removing unwanted low frequencies
• Extremely small footprint and easy to place
• 3-year warranty

Specifications:

• Type: Pressure gradient condenser mic
• Diaphragm: Gold-sputtered, 6 micron
• Capsule Size: 22mm/.87 in.
• Frequency Response: 30Hz - 20kHz
• Polar pattern: Cardioid/Omnidirectional
• Sensitivity: 15 mV/Pa
• Output Impedance: 150 ohms
• Equivalent noise: 17 dB (A-weighted IEC 268-4)
• S/N Ratio: 77 dB (Ref. 1 Pa A-weighted)
• Max SPL for .5% THD: 137 dB
• Power Requirements: 48V phantom power (+/- 4V)
• Size: 110mm x 23mm/4.3 in. x 0.89 in
• Weight: 0.25 lbs/113g
• Metal Finish: Silver

Includes:

• MXL H-03 Hard Mount Mic Stand Adapter

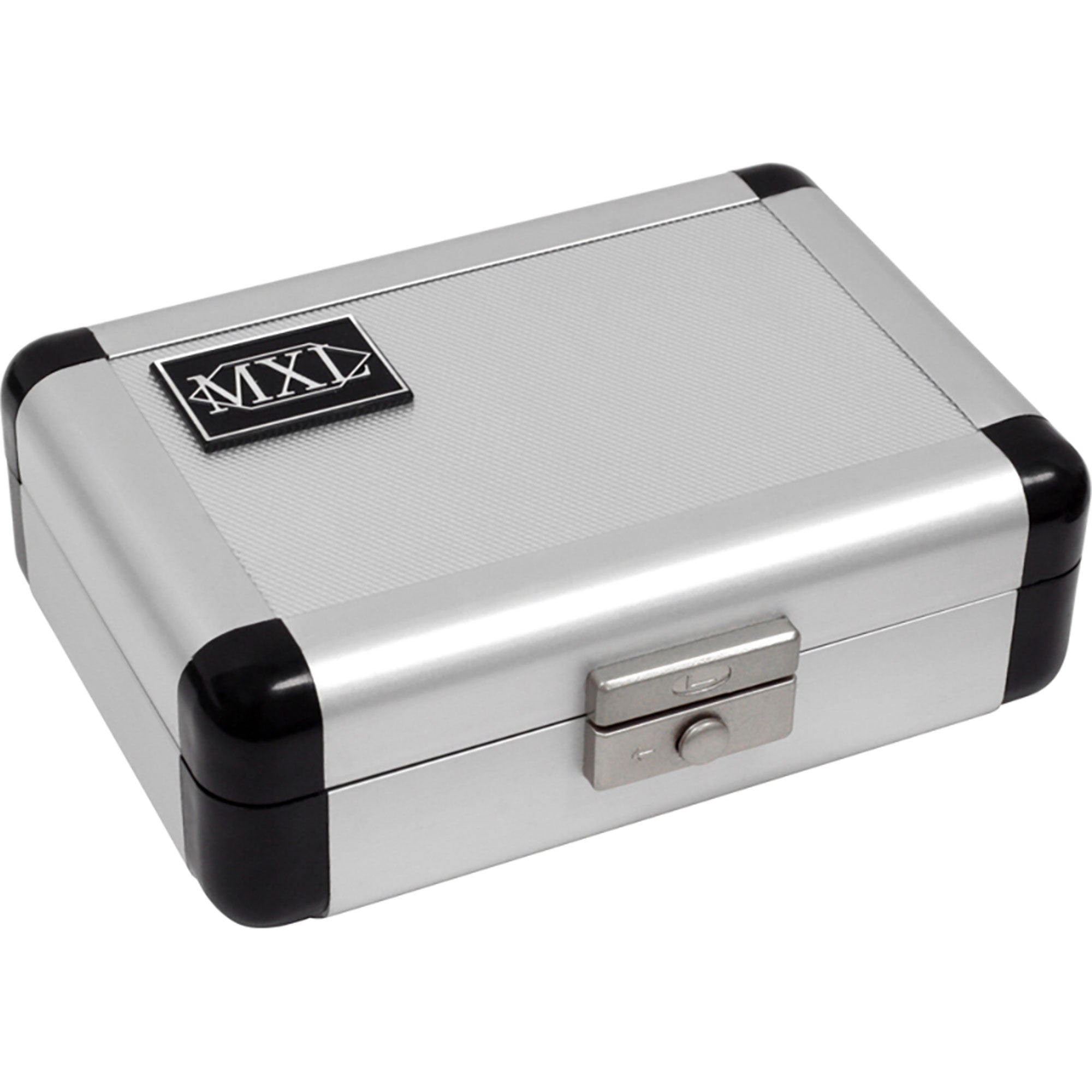

• MXL 606 Mic Case Aluminum Carrying Case
