Description

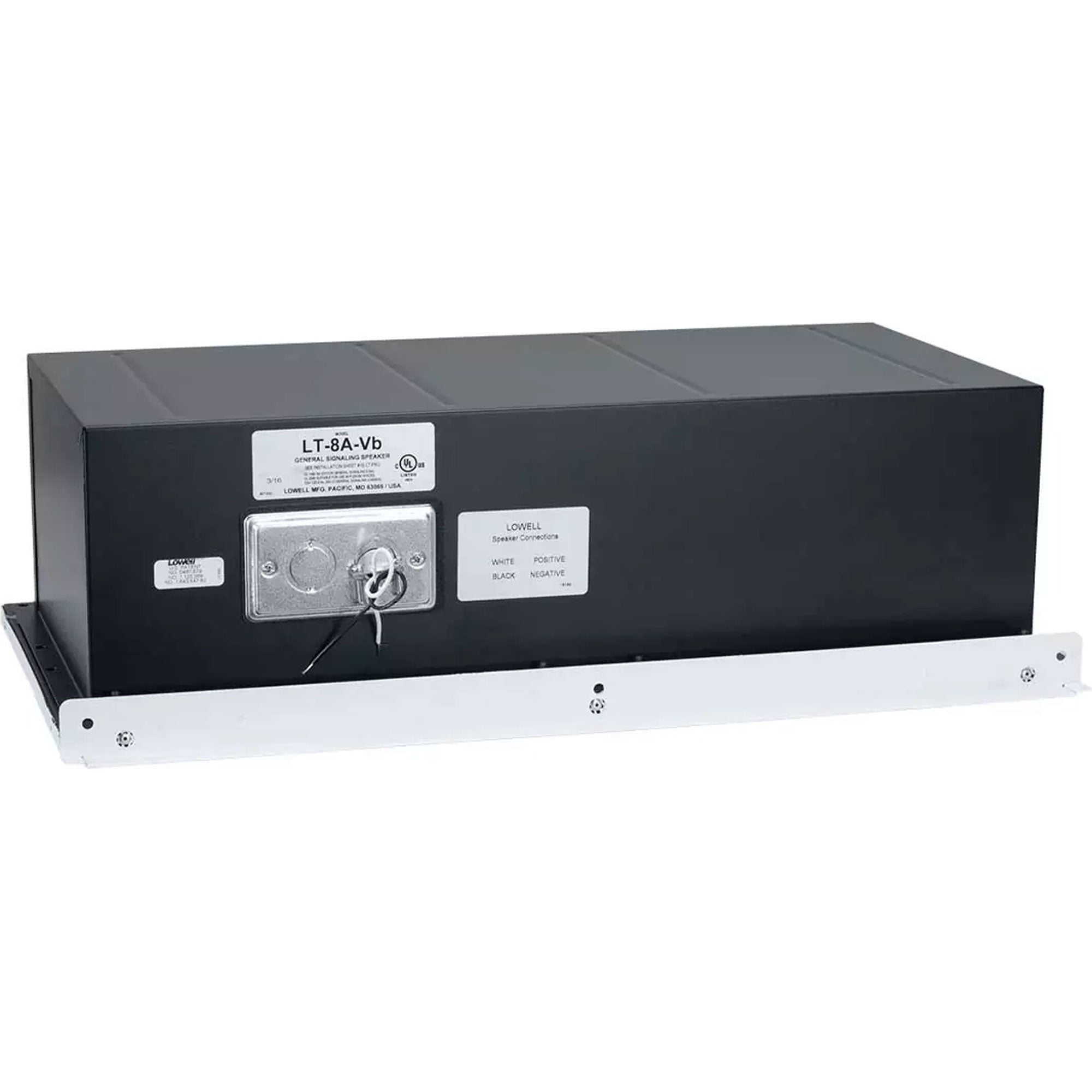

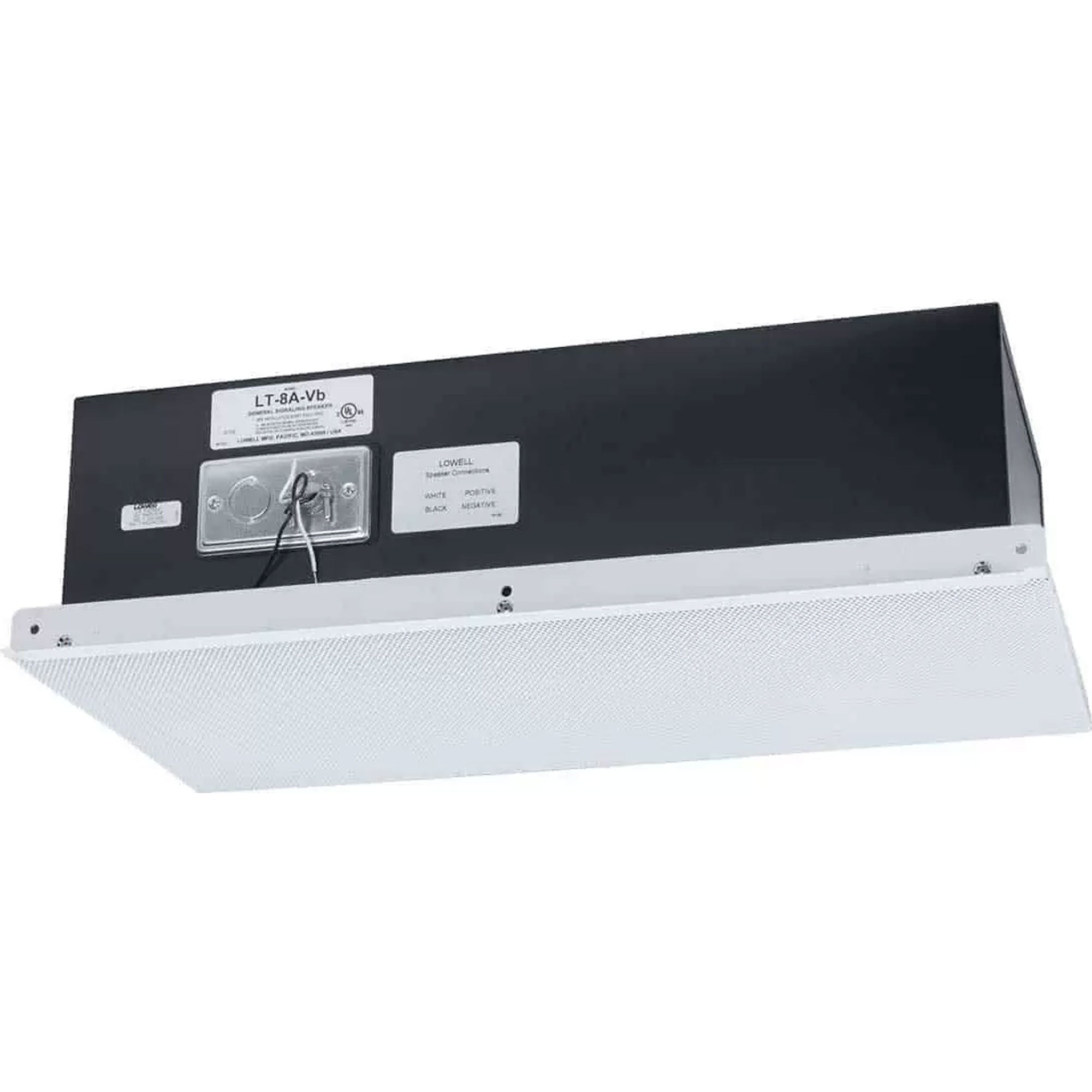

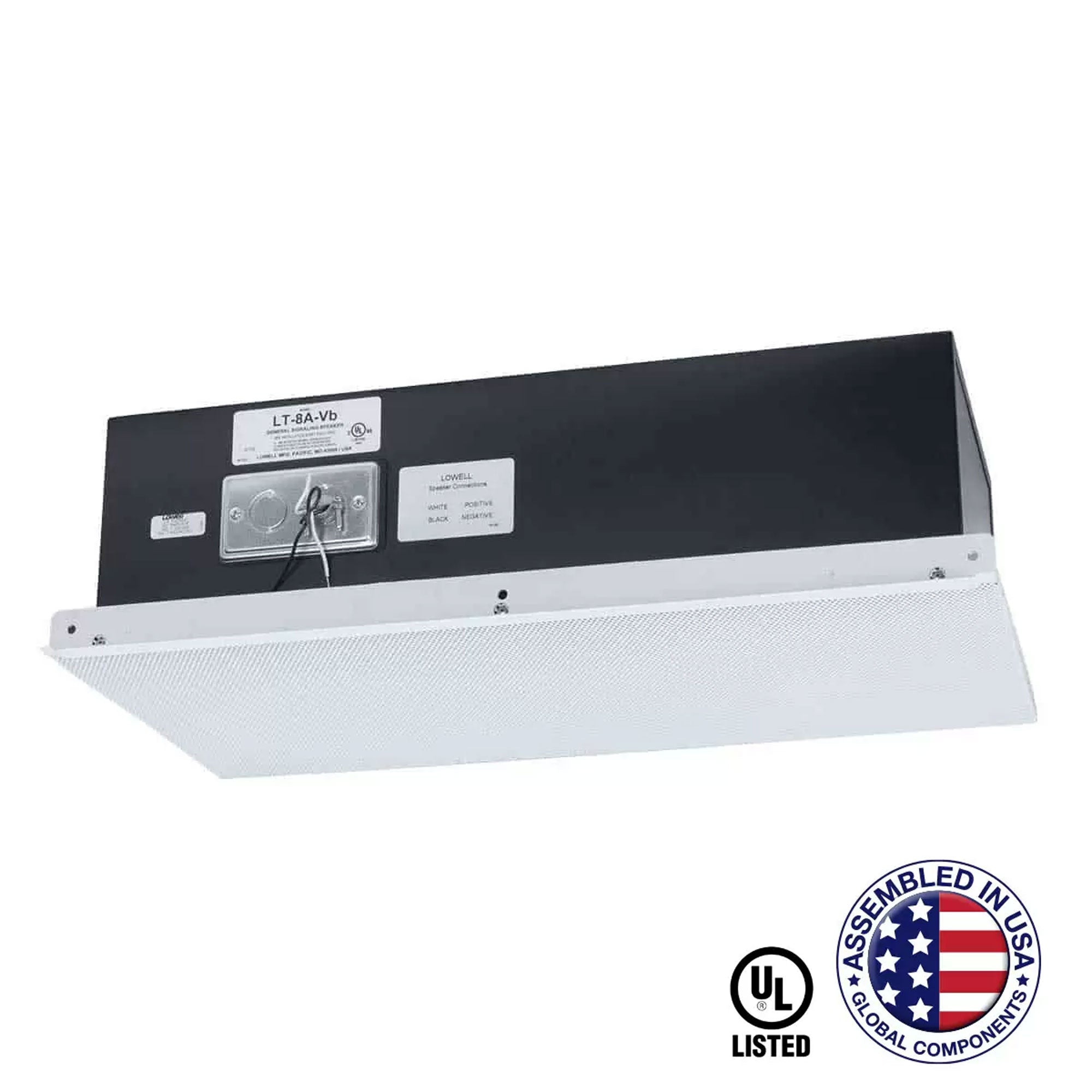

8" Lay-in Tile Speaker System with Volume Backbox, 8 Ohm
The LT pro-series provides quality performance in an easy installation for suspended ceiling applications, offering smooth musical sound reproduction for restaurants, lobbies and similar venues. System includes factory-wired speaker (optional transformer) mounted to (1 x 2 or 2 x 2) fine perforation grille and 0.8 cu.ft. acoustic backbox. The LT is shipped ready-to-install and does not require speaker cut-outs in the ceiling tile. 1 x 2 Assembly: is supported by the T-Bar grid and includes an integral T-Bar support (US patent no's. 7,120,269; D467,579 and 7,643,647) for fast installation when replacing half of a non-tegular 2 x 2 tile or one-fourth of a non-tegular 2 x 4 tile. System includes speaker assembly mounted to 1 x 2 subplate with white grille, integral T-Bar, and pre-mounted (0.8 cu.ft.) volume backbox with acoustic lining for extended low frequency performance. Speaker leads exit backbox through metal clamp for fast connection. (Splice connecting wires, push them inside enclosure and tighten the clamp.) 2 x 2 Assembly': is designed to replace a standard 2 x 2 ceiling tile and is supported by the T-bar grid. System includes factory-wired speaker assembly mounted to 2 x 2 subplate with white grille and mounted (0.8 cu.ft.) acoustic backbox that is offset to allow fit around plenum obstructions.
Features:
- Speaker: model 8A50 8" 50W coaxial speaker engineered to provide excellent power handling and smooth sound reproduction.
- Grille: fine-perforation pattern grille, designed to provide maximum free-air space for excellent sound transmission, while maintaining an unobtrusive appearance in tile ceilings. The 1 x 2 grille includes an integral two-foot T-bar to support neighboring nontegular ceiling tile. The 2 x 2 grille replaces a single 2 x 2 ceiling tile. White powder epoxy finish.
- Backbox: 0.8 cu.ft. volume backbox (Vb) with acoustic lining. Black powder epoxy finish.
- Transformer selection:
- - TLM870: 70V with taps at 1, 2, 4, 8W (4-8 ohm)
- - TLM3270A: 70V with taps at 8, 16, 32W (4-8 ohm)
