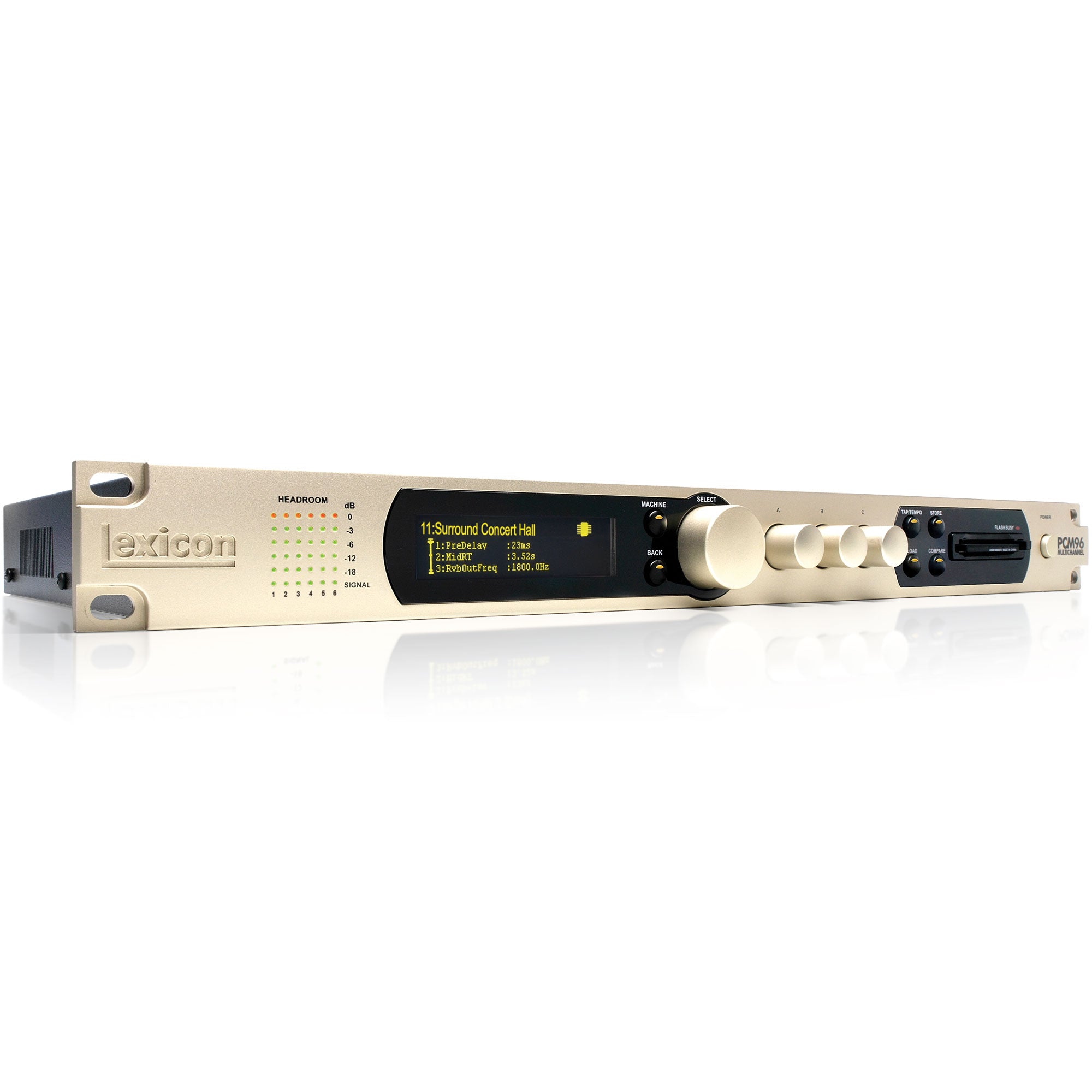

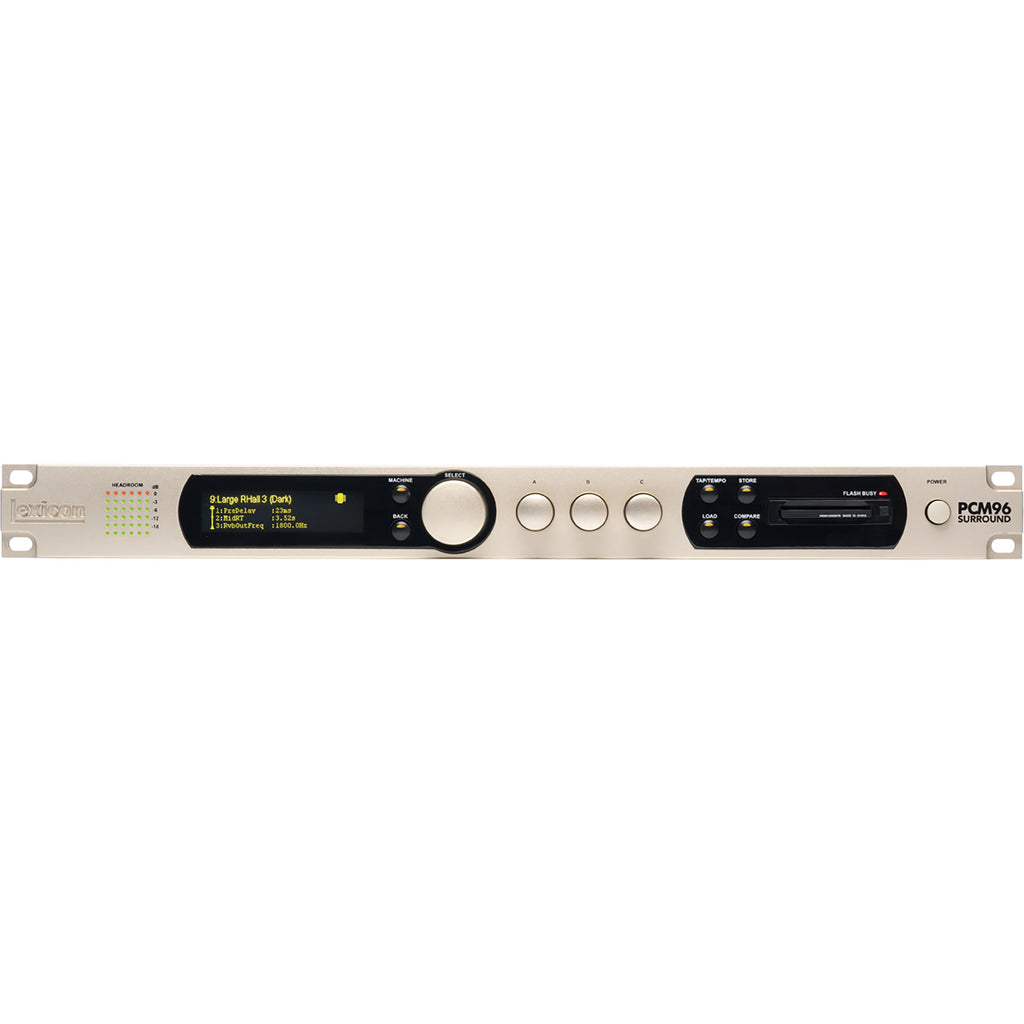

Lexicon PCM96SUR-D Surround Reverb/Effects Processor with Digital I/O

Studio Standard Parallel Stereo and Surround Reverb/Effects Processor with Digital I/O

Studio Standard Parallel Stereo and Surround Reverb/Effects Processor
Building on the success of the PCM96, the new PCM96 Surround offers more presets, more configuration options, and more inputs and outputs. The PCM96 Surround gives you industry standard reverbs and effects, with tremendous flexibility. Use the PCM96 Surround as a plug-in with your DAW, or keep it connected to your mixing board. Either way, you have a multitude of configuration options to choose from, without having to move any cables.

The PCM96 Surround is availble with either 6 XLR Stereo AES inputs and outputs, or 2 DB25 6-channel analog I/O and 1 DB25 6-channel digital I/O. Both versions also feature MIDI, Wordclock, Ethernet, and FireWire.

Specifications:

• Analog Audio Inputs - Analog & Digital Model (PCM96SUR-A)
• Connectors: One, 25-pin Dsub Female Connector
• Impedance: 20k Ohm, balanced
• Level (for 0dBFS): +4dBu mode: +20dBu max
• -10dBu mode: +8.2dBu
• Freq Response @96k: 20Hz - 22kHz, +/-.15dB
• 20Hz - 46kHz +/-.5dB
• A/D Conversion: 24 bits
• A/D Dyn Range: 112dB unweighted, 115dB A-weighted
• THD: <0.002% 20 -> 20kHz @ +4dBu
• Crosstalk @ 1Khz: <-75dB at 20 -> 20k with a +20dBu input signal
• Analog Audio Outputs - Analog & Digital Model (PCM96SUR-A)
• Connectors: One, 25-pin Dsub Female Connector
• Impedance: 30 Ohm, electronically balanced
• Level (at 0dBFS): +4dBu mode: +20dBu max
• -10dBu mode: +8.2dBu
• Freq Response @96k: 20Hz - 22kHz, +/-.15dB
• 20Hz - 46kHz +/-.5dB
• D/A Conversion: 24 bits
• D/A Dyn Range: 112dB unweighted, 115dB A-weighted
• THD: <0.002% 20 -> 20kHz @ +4dBu
• Crosstalk @ 1Khz: <-75dB at 20 -> 20k with a +20dBu input signal
• Digital Audio I/O - Analog & Digital Model (PCM96SUR-A)
• Connectors: One, 25-pin Dsub Female Connector

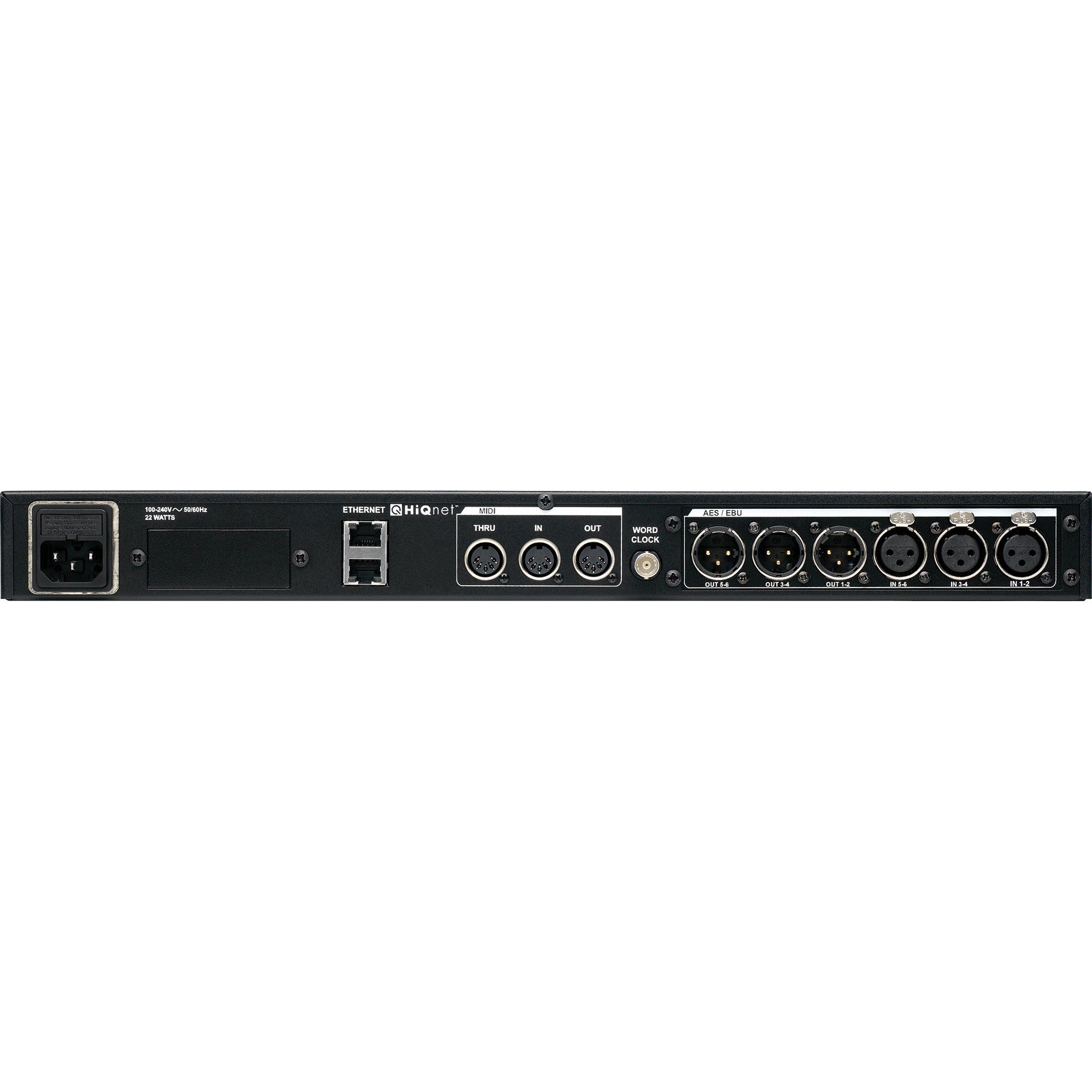

• Digital Audio I/O - Digital Model (PCM96SUR-D)
• Connectors: 6, XLR AES/EBU
• FireWire Ports
• Format: FireWire (400Mb)
• Word Size: 24 bits
• Sample Rates
• Internal: 44.1kHz, 48kHz, 88.2kHz, 96kHz
• Accuracy: within +/-50ppm
• External: 44.1kHz, 48kHz, 88.2kHz, 96kHz
• Lock Range: +/-2% of nominal
• Synchronization
• TTL Word Clock Input: 75 Ohm, BNC
• Clock Jitter
• Intrinsic: Exceeds AES3 Amendment 1
• Jitter Gain: Exceeds AES3 Amendment 1
• Control Interface
• MIDI: In/Out/Thru
• Storage Media
• Memory Card: Compact Flash Type I Can
• hold up to 2048 user presets
• Internal Storage
• Internal non-volatile Flash: Can hold 1024 user presets.
• Environment
• Operating: 15 to 35 C
• Storage: -30 to 70 C
• Humidity: 75% relative humidity max
• General
• Rack Units: 1U
• Dimensions: 19.0" W x 1.75" H x 16" D
• 483mm x 44.5mm x 406.4mm
• Weight: 14.25 lbs
