Description

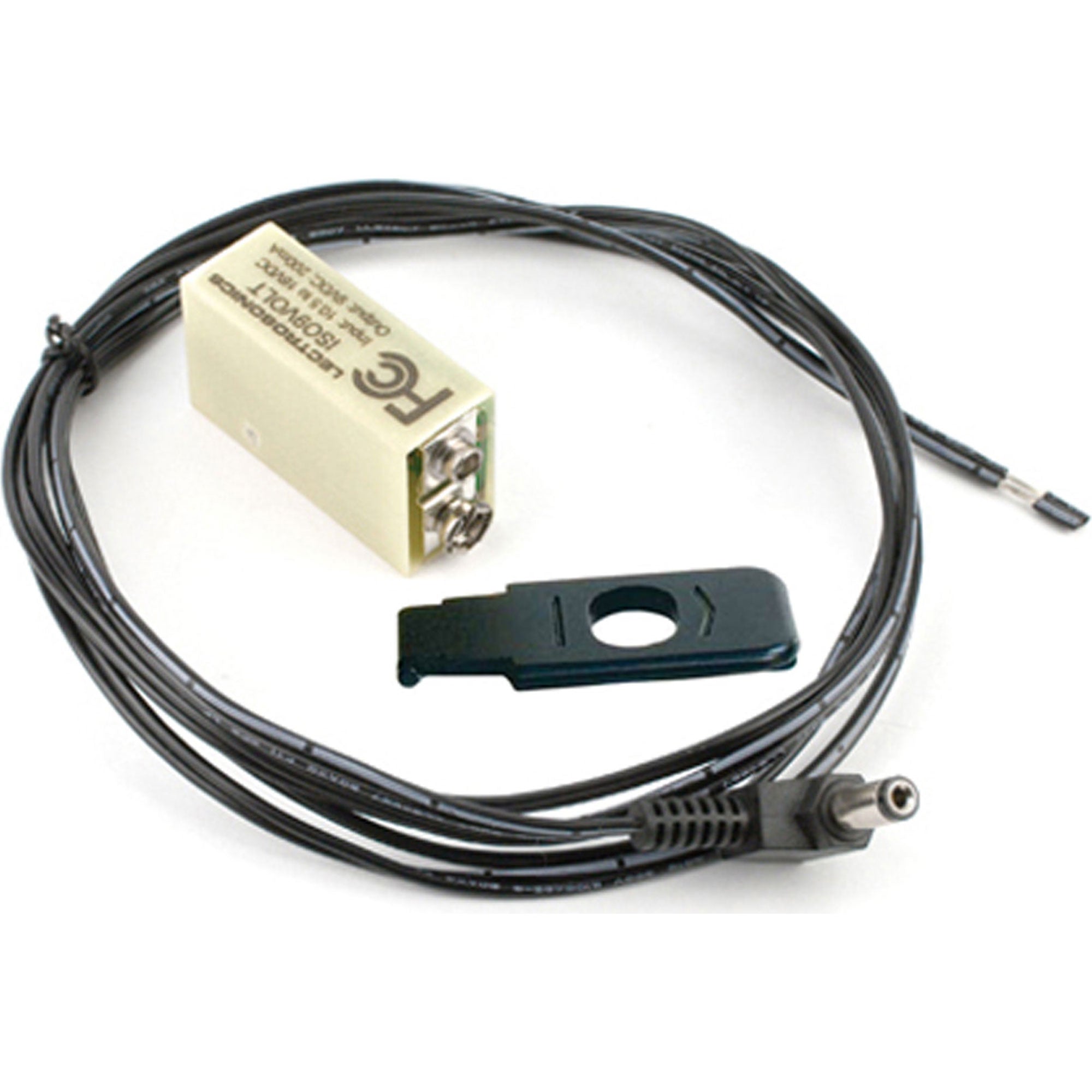

Isolated battery eliminator ISO9VOLT above with M-style door for M and UM style transmitters. Door has machined hole to clear power plug.

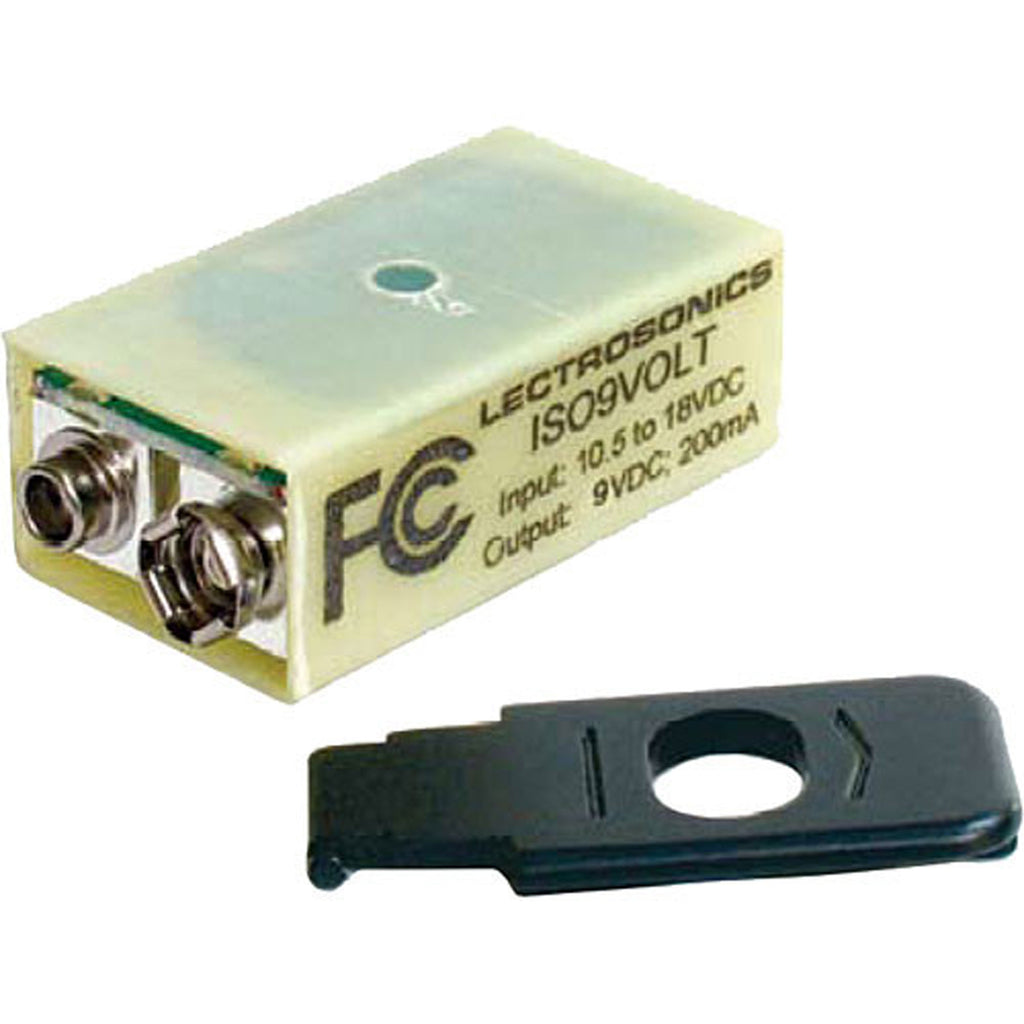

The ISO9VOLT battery eliminator allows Lectrosonics wireless transmitters with hinged battery doors designed for 9 volt batteries to be operated from external power sources. 10 to 18 volt DC is converted to regulated 9 volt DC to power the transmitter at the battery terminals inside the battery compartment. The modified door exposes the connector for the external power source yet still operates with regular dry cell batteries. The unit can supply up to 200 mA to work with the 250 mW transmitters. It is fused and protected from reverse polarity.
The unique design isolates the power ground from the audio ground in the transmitter allowing the unit to be used in "bag systems" common in field production. When the mixer, receivers and wireless transmitters in a bag are powered by a common battery, a ground loop is often created which can cause high frequency noise (whining or hiss) in the audio. The external DC is run through a low drop out 12 volt regulator, then passed on to a DC/ DC converter that produces an 800kHz square wave. The square wave is passed through a transformer, rectified and then passed through a low dropout 9 volt regulator to produce the final DC power presented on the battery contacts.
