Key Features
- Noise Filtration
- Surge Protection
- 9 Total Outlets
- 15 Amp Rating
- Protection OK Indicator
- Wall Wart Spacing Indicator
Description

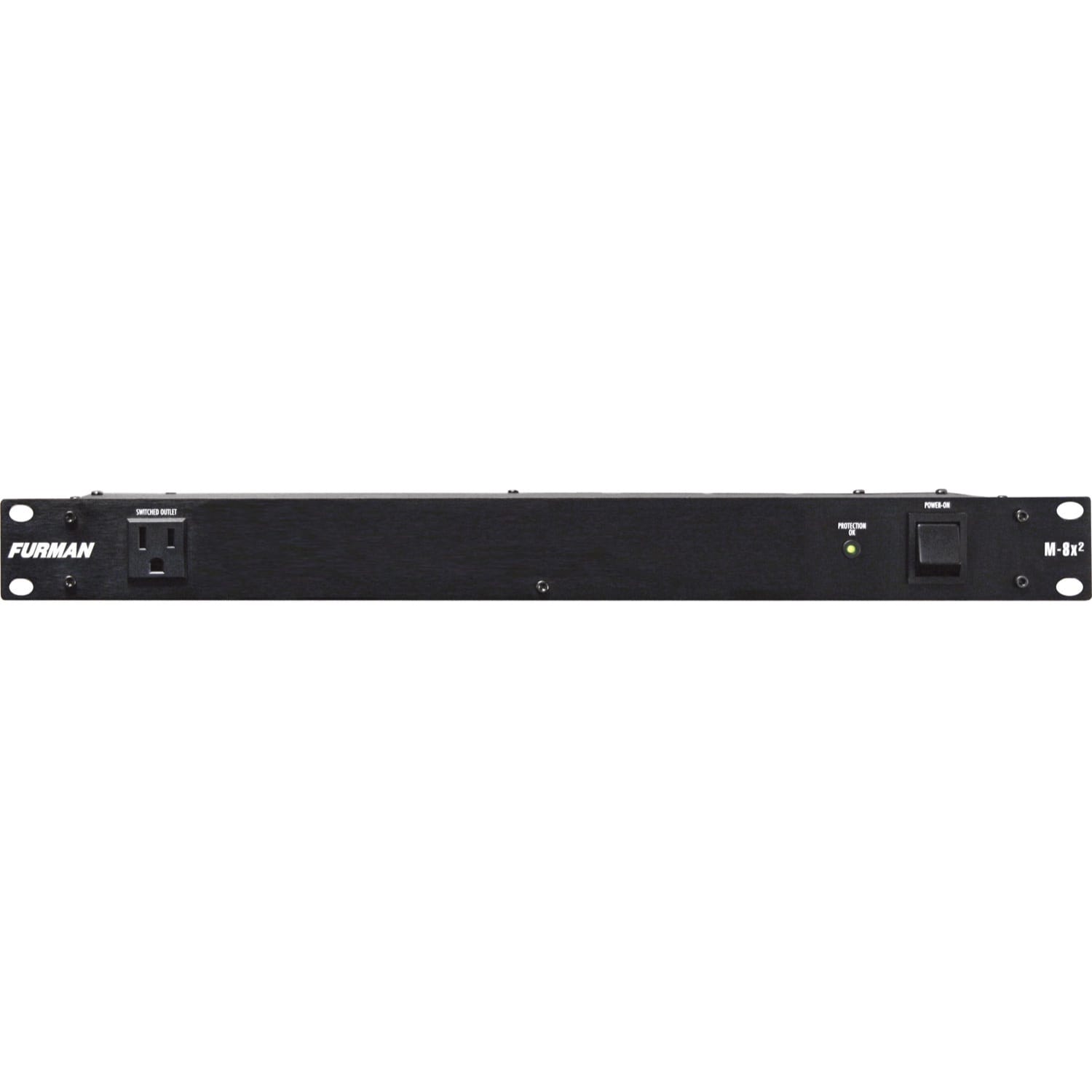

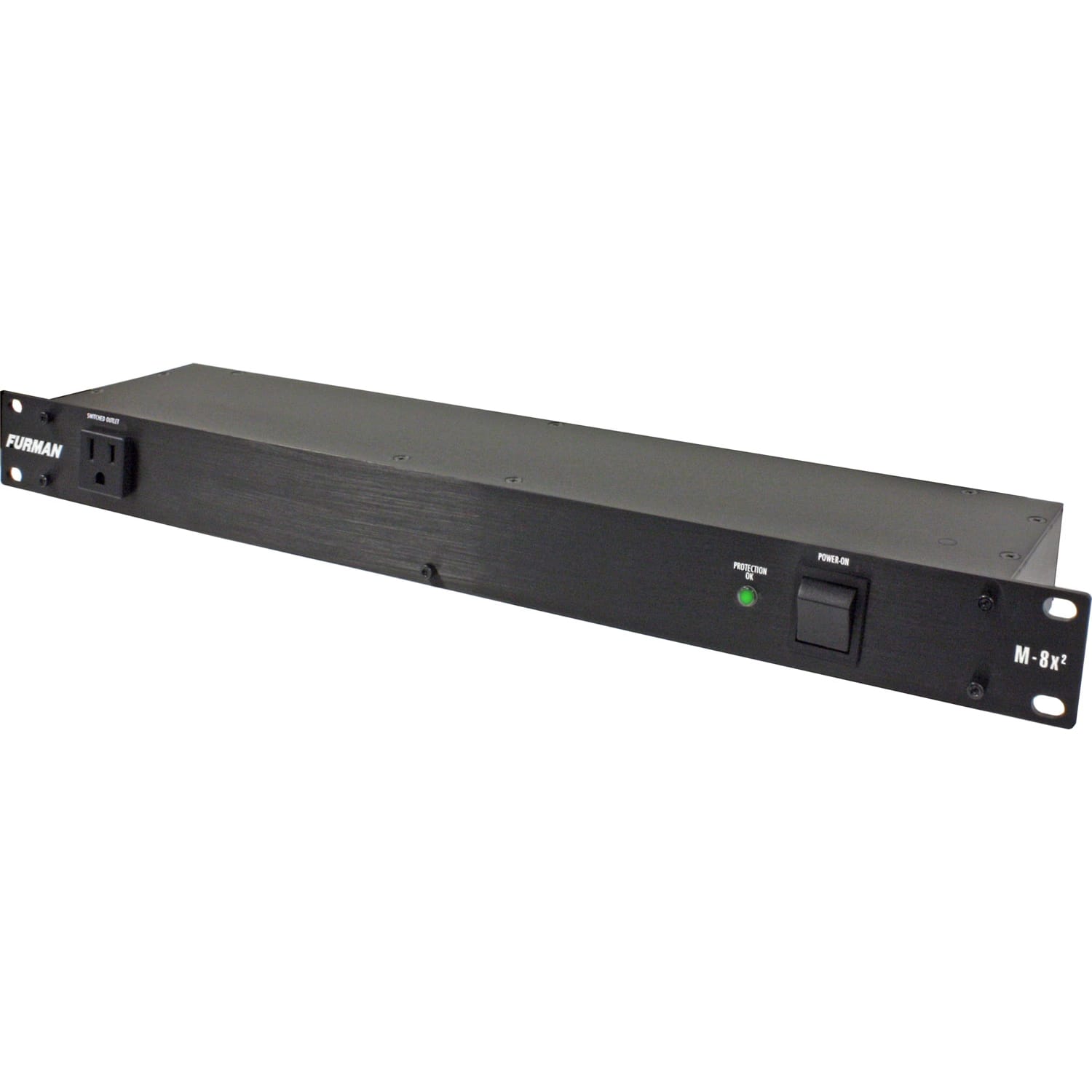

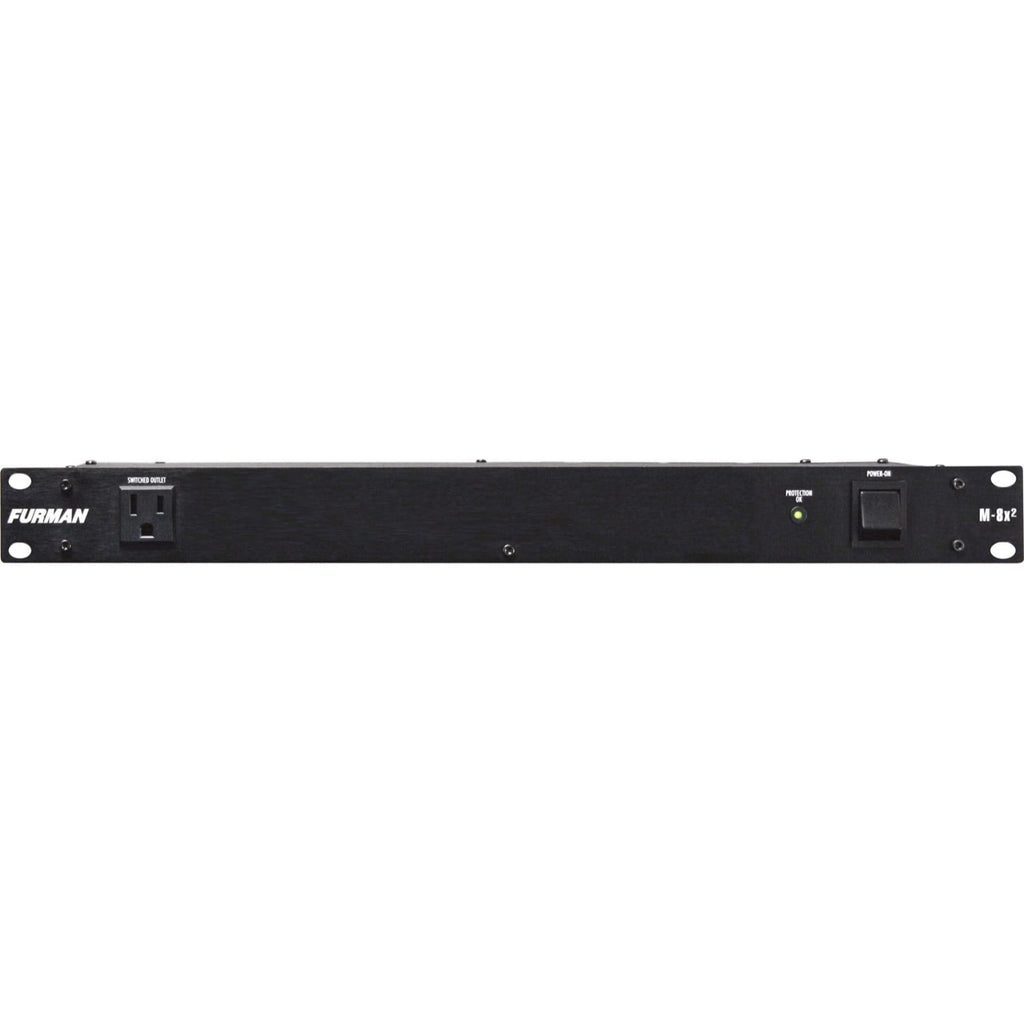

8 Outlet Power Conditioner & Surge Protector, 1 Rack Space
A Merit Series Power Conditioner is the perfect low-cost AC power solution for any rack mount system. Install an M-8x2 in to the top slot of your rack, and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load. The M-8x2 is designed for applications where lights are not required.
Features:
-
Noise Filtration
AC noise filtering to reduce radio frequency and electromagnetic interference (RFI/EMI) -
Surge Protection
Spike & surge protection ensures equipment stays safe and your power stays clean -
9 Total Outlets
8 rear panel outlets and 1 front panel outlet -
15 Amp Rating
15 amp rating, with circuit breaker -
"Protection OK" Indicator
Front panel indicator LED lets you know that your equipment is being protected -
Wall Wart Spacing Indicator
Rear outlets have been spaced to accommodate even the bulkiest of wall warts and adapters
Specifications:
- Maximum Output Current: 15 amps
- Line Cord: 6 ft., captive, 14 AWG, with 3-conductor Edison plug
- Operating Voltage: 120VAC 60Hz
- Spike Protection Mode: Line to neutral
- Energy Dissipation: 170 joules
- Peak Impulse Current: 12,000 amps
- Maximum Continuous Opterating Voltage: 130 VAC RMS
- Let Through Voltage (@ 125 amps, 8/20uS waveform) 400 volts
- Noise Attenuation: Transverse mode: Greater than 23dB, 200Khz to 10 Mhz
- Dimensions: 1.75" H x 19" W x 3.75" D
- Weight: 4.9 lbs.
- Safety Agency Listing: cTUVus
- Warranty: Merit Series units are protected by a limited three year warranty covering defects in materials and workmanship.
