Key Features
- 10" High-Excursion Woofer
- 150W Power Handling
- Ported Enclosure for Extended Bass
- 70 V, 100 V, or 8 Ω Use
- Includes Tile Bridge & Mounting Ring
- Sold in Pairs
Description

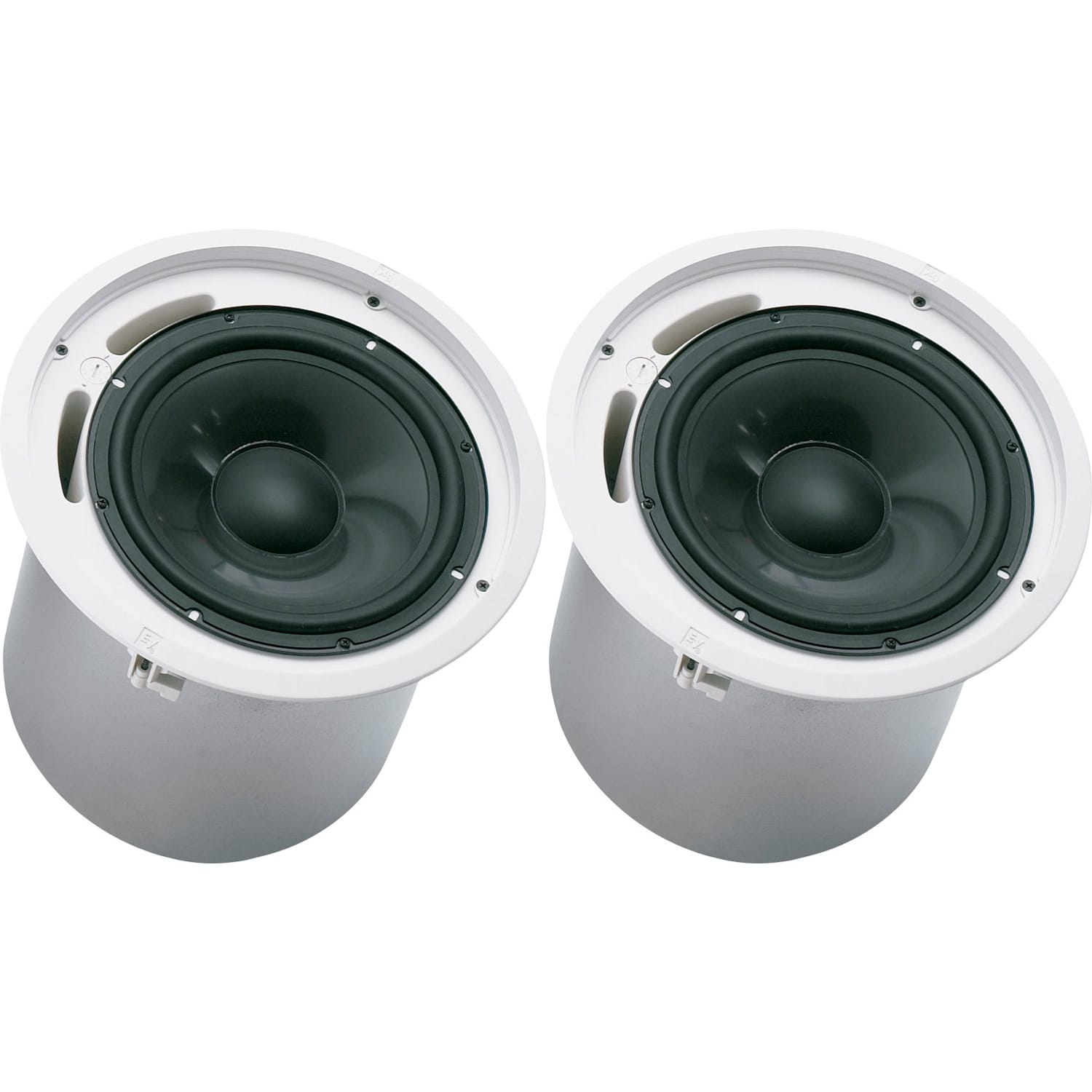

EVID Series Compact and Powerful Ceiling Subwoofer (Pair)
The EVID C10.1 packs a large, 10" subwoofer in a tuned, high-performance enclosure to give amazing low-frequency performance down to 45 Hz. The C10.1 is one of the only quick-mount, ceiling, TRUE subwoofers available on the market.
Features:
- Designed for Commercial Sound/Life Safety, and other applications.
- 10" subwoofer in tuned high performance enclosure
- Low-frequency performance down to 45 Hz
- Flexible installation
- Four-point mounting system
- Mounting support ring and tile installations included
- No additional accessories needed for most installations
Specifications:
- Chassis Size: 254 mm (10")
- Color: White
- Diameter (Max): 320 mm (12.6")
- Speaker Type: Ceiling Speakers
- Speaker Type: Subs
- Transformer: Yes
- Transformer Taps (Transformer Version Only): (7.5 - 70 V only), 15, 30, 60
- Frequency Response (-10 dB): 45 - 180 Hz
- Sensitivity 1 W/1 m: 94 dB
- Max. SPL/1m (calc): 122 dB
- System Power Handling (Continuous/Program/Peak): 150 Watts
- Flying: No
- Outdoor: No
- Height: 303 mm (11.93")
- Weight Net: 7 kg (15.43 lbs)
Details
- Manufacturer: Electro-Voice
- MPN: F.01U.117.589
- Model Number: EVID C10.1
- UPC: 800549416177
