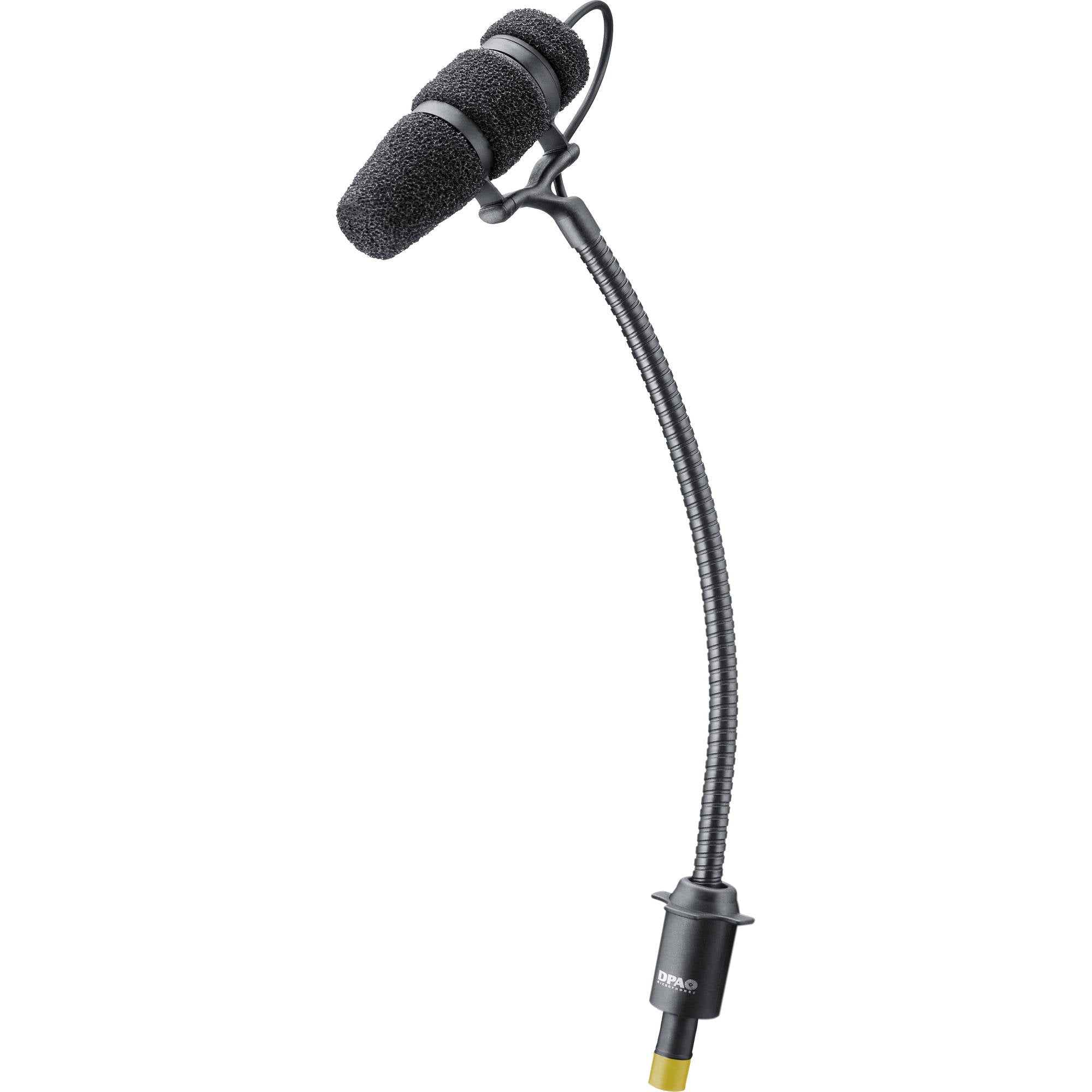

DPA d:vote Core 4099 Instrument Microphone (Extreme SPL, Drum Clip)

d:vote Core 4099 Supercardioid Instrument Microphone for Extreme SPL with Clip for Drum

Drum

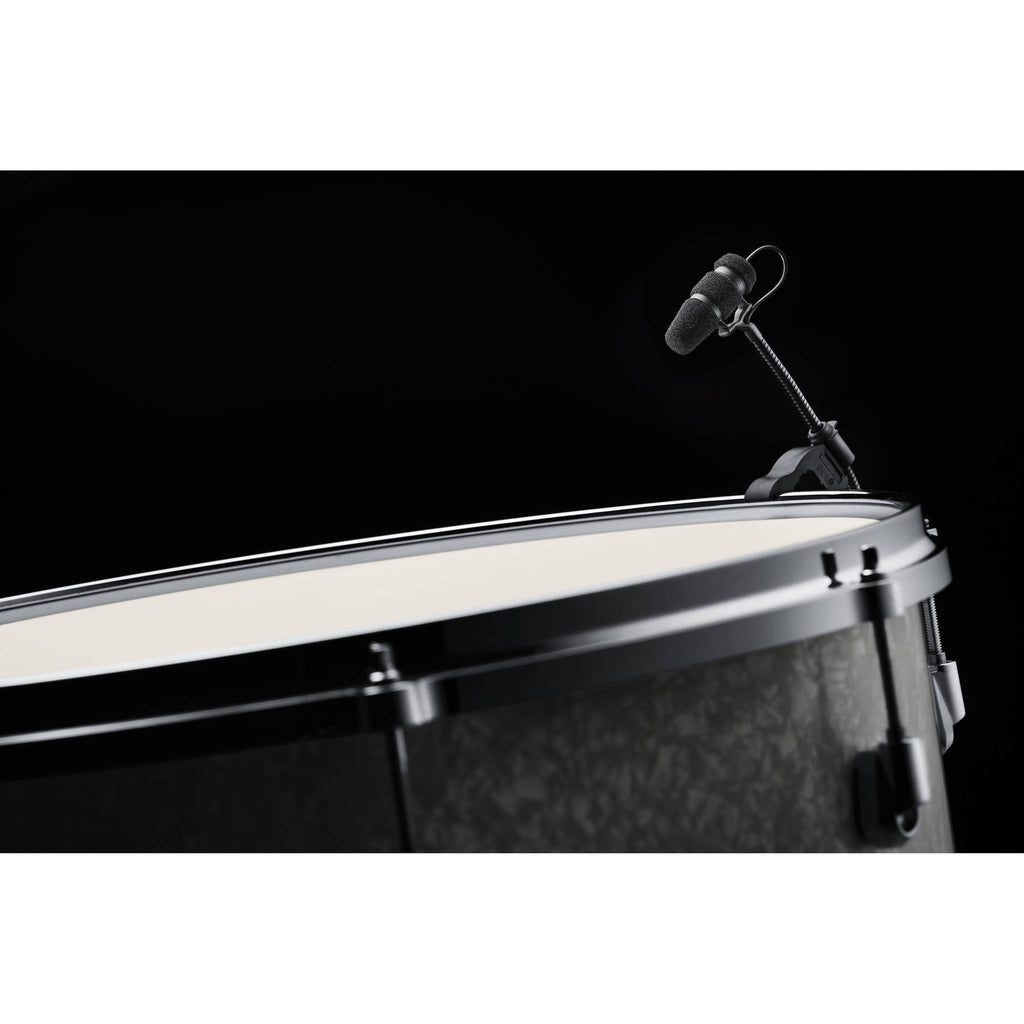

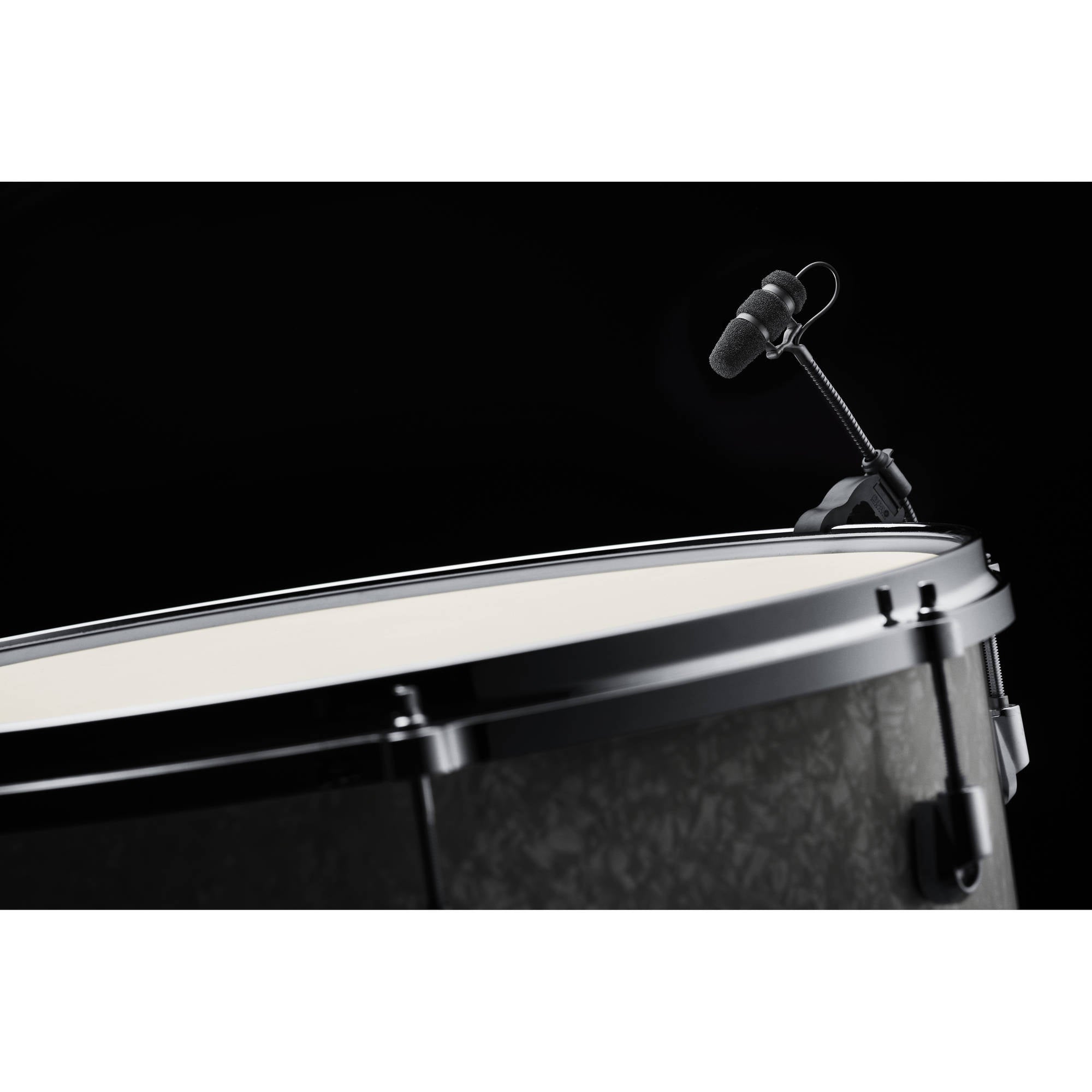

The d:vote CORE 4099 for Extreme SPL perfectly captures the booming sounds of drums and percussion instruments. Users will appreciate how gently this condenser mic adheres to their prized instrument. The mic can be easily positioned to fit different types of drums. The flexible gooseneck can be positioned at different angles to allow a variety of sound nuances. The mic is elegant, lightweight, unobtrusive and designed to stay out of the way during performances.

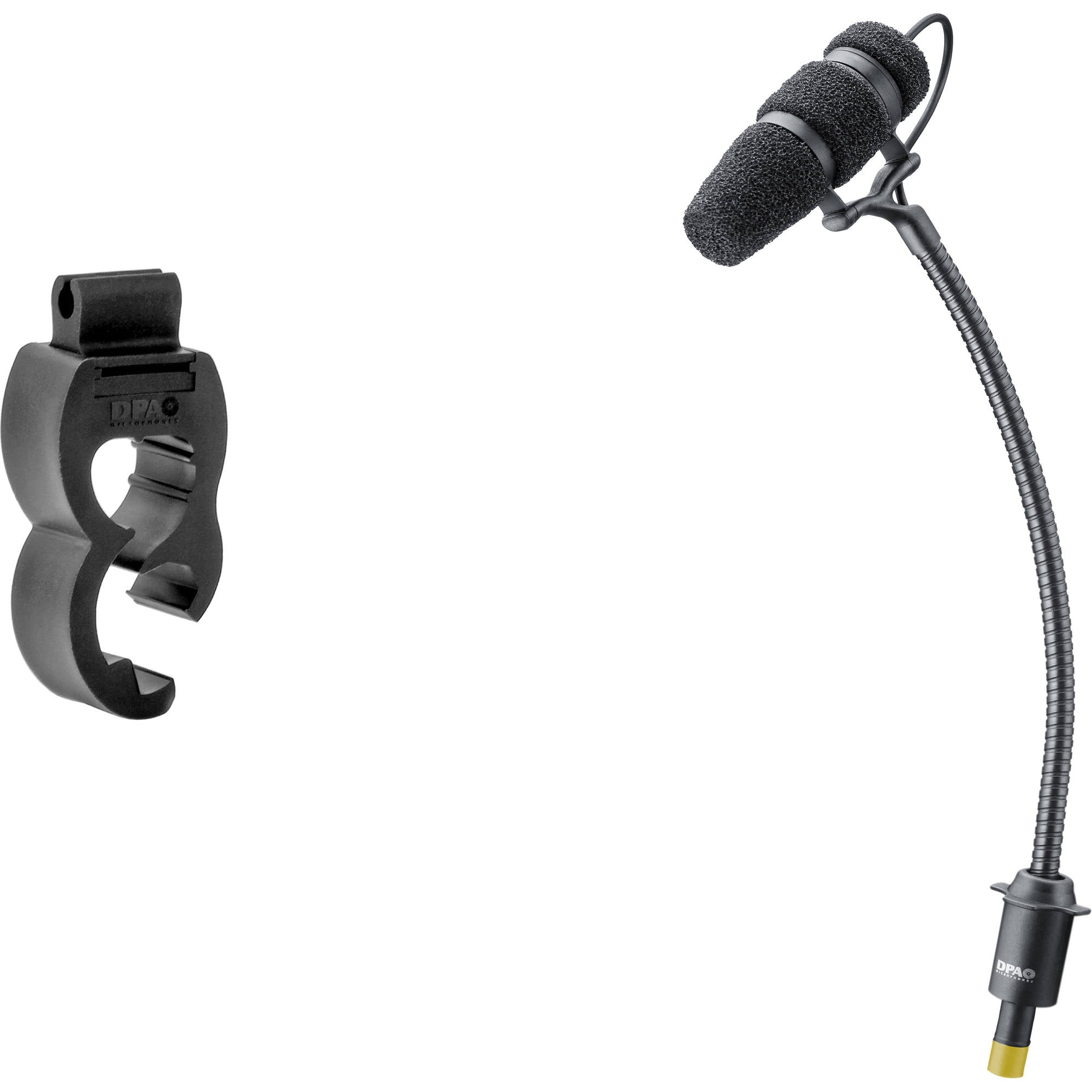

The mounting mechanism makes it easy to move the mic between instruments. The d:vote CORE 4099D Instrument Microphone for Drum includes a revolutionary '90° ' system which provides a wide range of mounting options.

By detaching the clip from the gooseneck and re-mounting it turned 90°, the number of mic positions is doubled. This mic can easily be combined with a wide variety of accessories. For the bass drum, the d:vote VC4099 Clip fits perfect on the rim.

Choose a d:vote CORE 4099D Instrument Microphone for Drum (4099-DC-2-201-D) for your drum kit and add a VC4099 clip for your bass drum.

Now with CORE by DPA technology

The d:vote is already the recognized standard for this type of microphone and the CORE version adds just another layer of sound quality that further distances this mic from its competitors. d:vote CORE 4099 brings more clarity and details to your music, across the entire dynamic range. Anyone looking for the very highest sound quality should choose CORE - every musician, live sound engineer and anyone else who takes pride in quality audio.

CORE by DPA is a powerful new technology at the heart of DPA miniature microphones. We've minimized distortion. From pianissimo to forte, you will experience increased clarity and openness. Learn more about CORE by DPA.

From the piano to guitar; strings to woodwinds; brass to percussion, the d:vote Series sounds equally impressive on them all. This one microphone model can beautifully reinforce an entire orchestra. You can move the mic to another instrument; just make sure you have the right type of clip to mount it correctly.The award-winning d:vote series gives you a much more natural sound than any clip-on microphone or pickup. This condenser microphone rejects unwanted noise and accurately captures the true voice of your acoustic instrument.

Features:

• CORE by DPA technology inside
• Supercardioid condenser microphone
• Handles high SPLs
• Superior gain-before-feedback
• Flexible and easy mounting
• Gentle and easy to mount on the instrument
• Detachable cable and a versatile gooseneck extender

Specifications:

• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Effective frequency response: 20 Hz - 20 kHz
• Frequency range, ± 2 dB, at 20 cm (7.9 in): 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 2 mV/Pa; -54 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 28 dB(A) re. 20 μPa (max. 31 dB(A))
• Total harmonic distortion (THD): < 1% up to 137 dB SPL peak
• Dynamic range: Typ. 109 dB
• Max. SPL, peak before clipping: 152 dB
• Output impedance: From MicroDot: 30 - 40 &ohm;. From DAD4099/DAD6001-BC: 100 &ohm;
• Cable drive capability: Up to 300 m (984 ft) with DAD4099 or DAD6001-BC XLR Adapter
• Output balance principle: Signal balanced with DAD4099 or DAD6001-BC XLR Adapter
• Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD4099 or DAD6001-BC XLR Adapter
• Power supply (for full performance): Min. 5 V to max. 50 V through DPA adapter for wireless systems
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD4099 or DAD6001-BC XLR Adapter
• Connector: MicroDot
• Color: Black
• Weight: 28 g (0.95 oz)
• Microphone diameter: 5.4 mm (0.21 in)
• Microphone length: 45 mm (1.8 in)
• Cable length: 1.8 m (5.9 ft)
• Cable diameter: 1.6 mm (0.06 in) / 2.2 mm (0.09 in)
• Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099 or DAD6001-BC XLR adapter)
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
• Gooseneck length: 140 mm (5.5 in)
