Key Features
- 25% Shorter Than Standard XLR
- True Heavy Duty Construction
- Knurled Shoulders for Maximum Grip
- Quick and Easy Assembly
- Chuck Type Strain Relief
- Color Coding: Yes with Optional Screws
Description

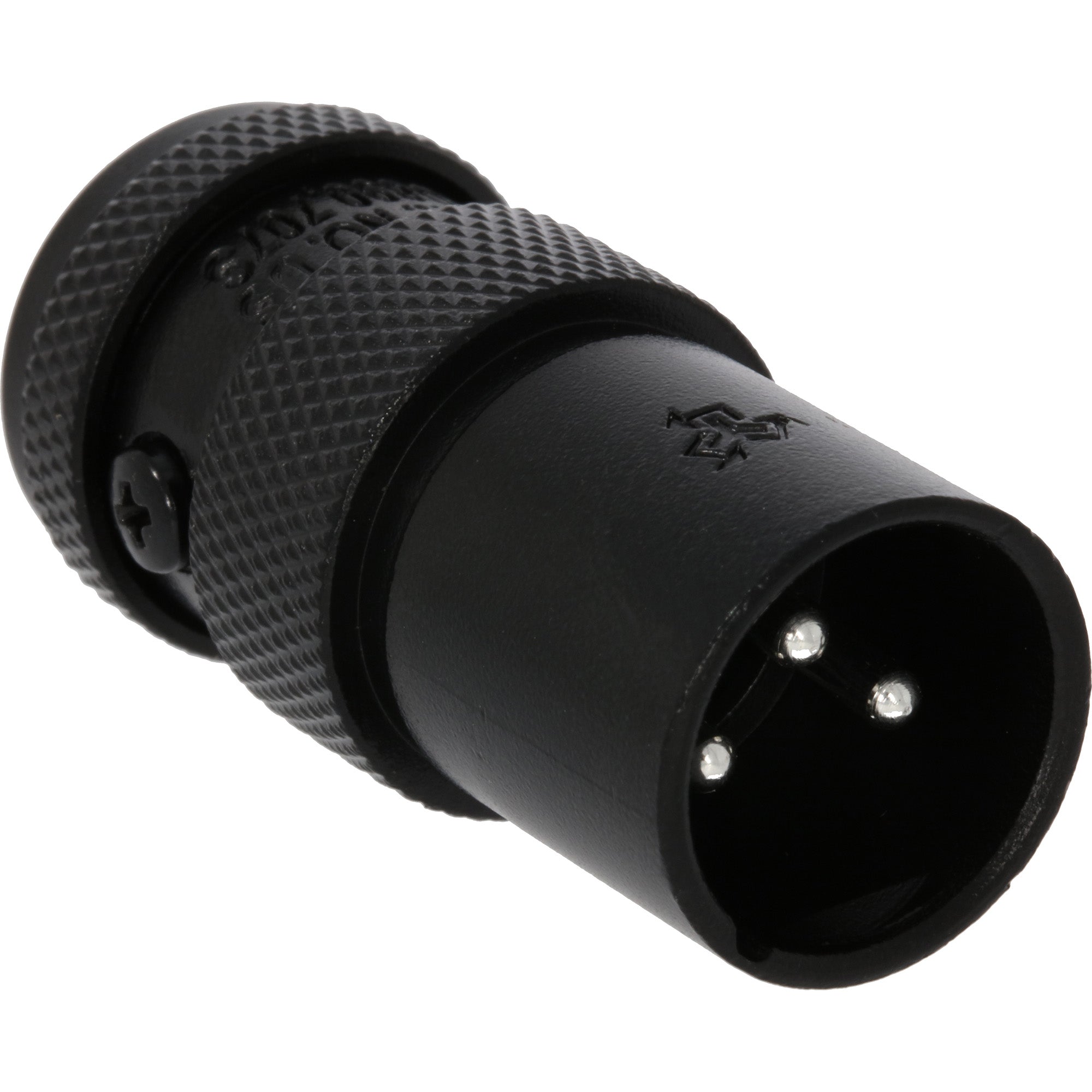

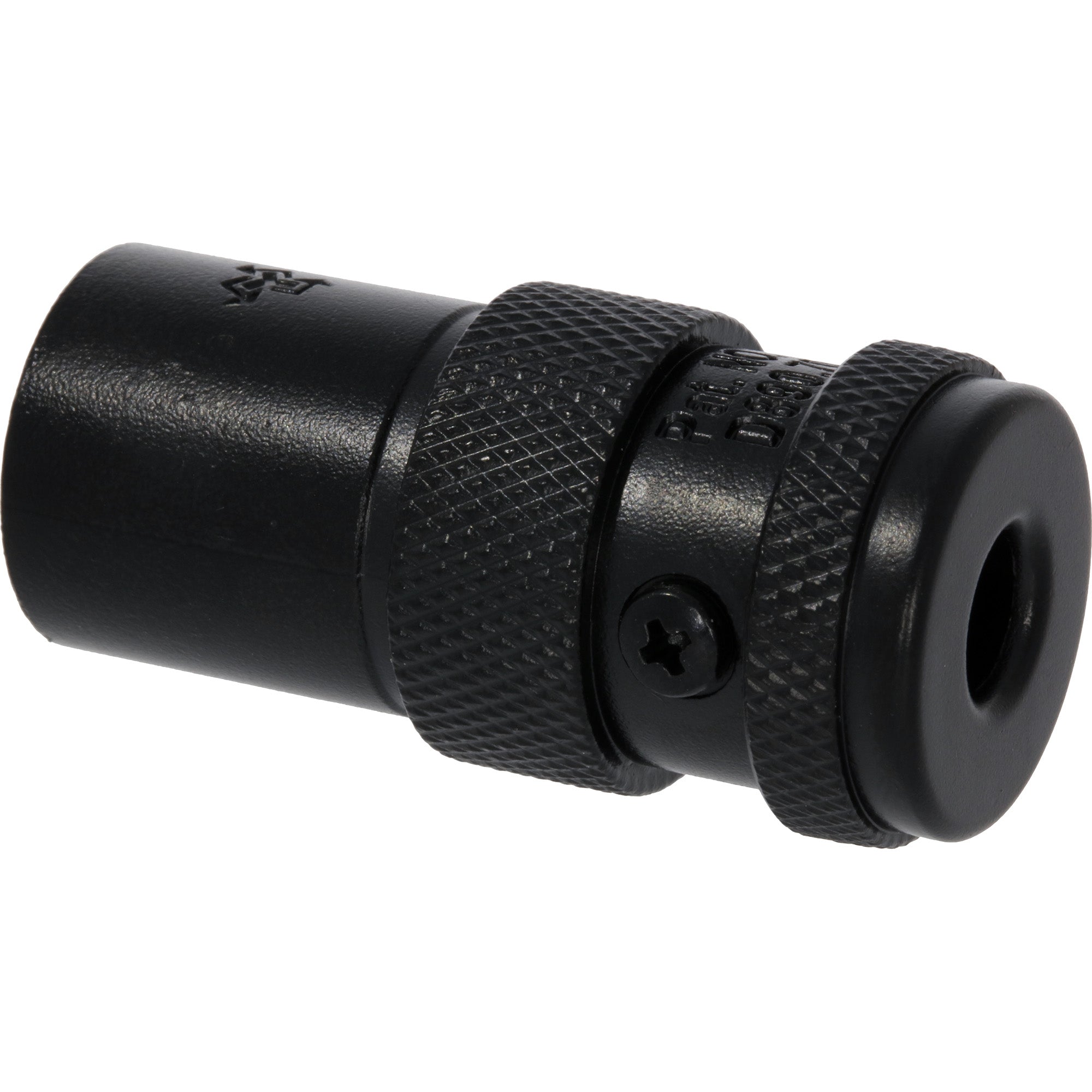

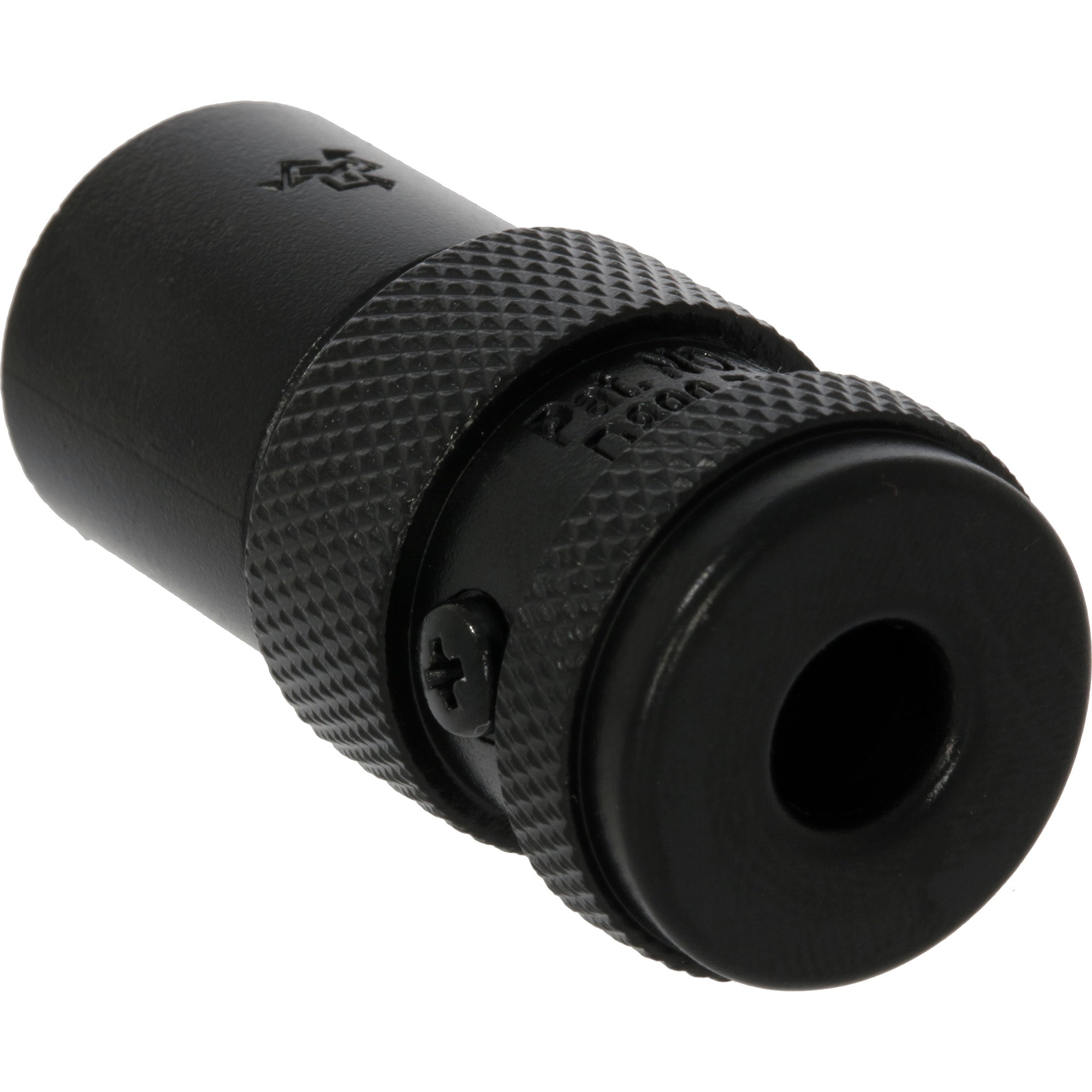

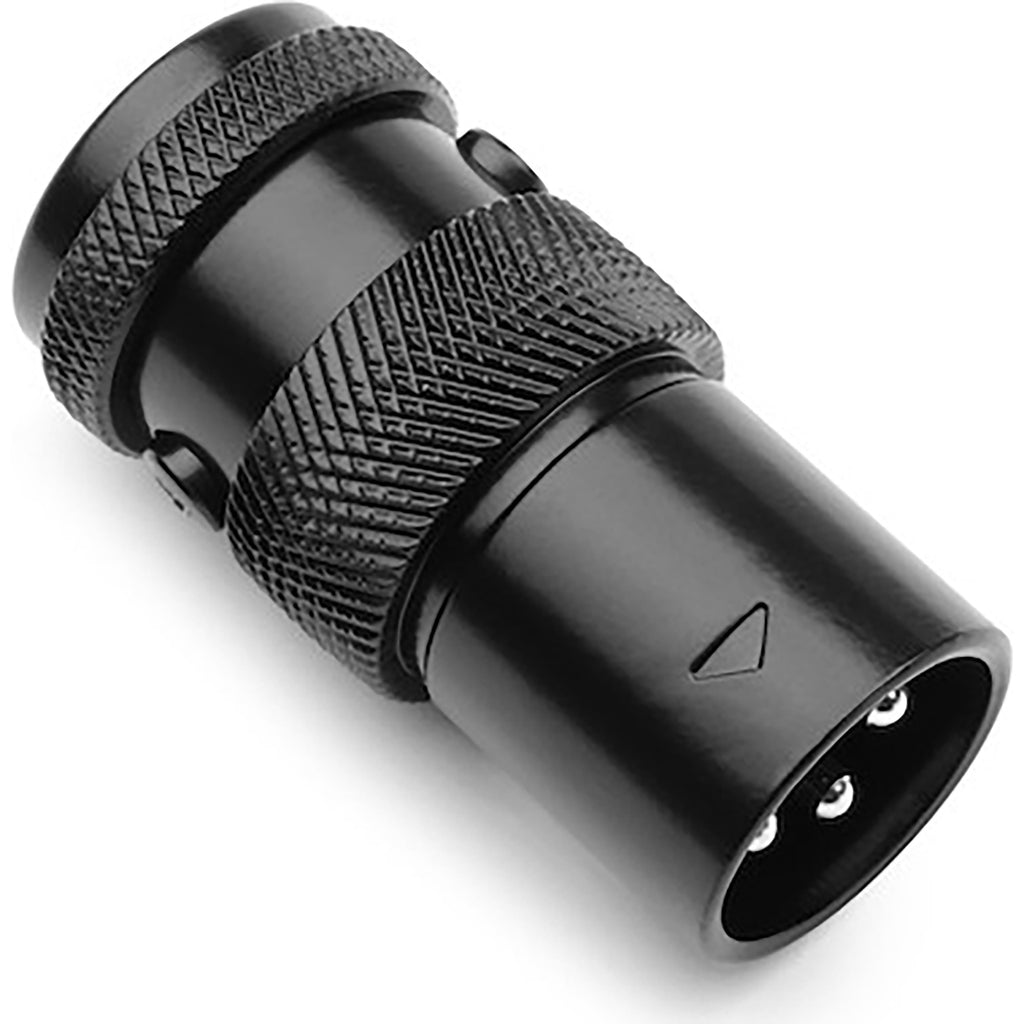

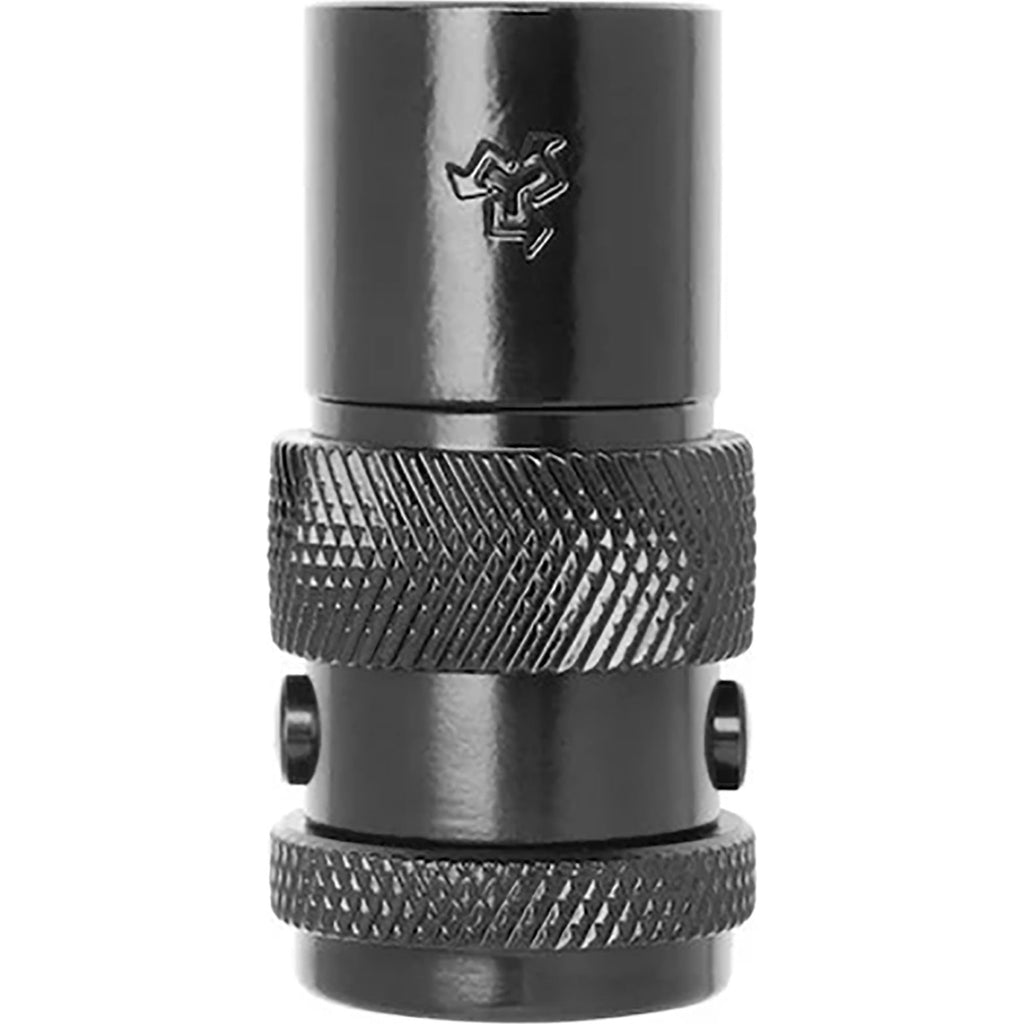

True Heavy Duty Compact 3-Pin Male XLR Cable End Connector for Cables up to 6.2mm OD - Black.
SPX-FBK is the female variant of the SPX-MBK.
SPX-MBK is a 3-PIN male XLR connector unlike anything else on the market. Built equally for studio and stage applications, SPX-MBK/FBK is designed to deliver high performance, maximum reliability and unmatched functionality in a small package. It's the perfect solution for low clearance situations and/or when a true heavy duty connector is required.
SquarePlug offers the most comprehensive range of low profile audio connectors in the industry. The product line consists of 11 different models, set to cover virtually every possible application where low profile balanced and unbalanced audio cabling is required. Besides the obvious small form factor competitive advantage, SquarePlug connectors provide a set of functionalities not found elsewhere, such as:
An improved strain relief design preventing any axial AND lateral cable movements, thus keeping the solder joints completely stress-free.
An elegant cable identification/tracing system built around a set of colored screws - 2 screws per connector, 10 different colors - that can be retrofitted on all SP connectors. 55 distinct combinations can be built this way.
SquarePlugs are protected by domestic and foreign patents.
CHOOSING THE RIGHT CONNECTOR
| CABLE TYPE ' | UNBALANCED / MONO | UNBALANCED / MONO | UNBALANCED / MONO | BALANCED / STEREO |
| CABLE DIAMETER ' | 3.8 — 4.6 MM | 4.8 — 5.8 MM | 5.8 — 6.5 MM | 4.5 — 6.2 MM |
| SP400 / 400BK | ◉ | |||
| SP500 / 500BK | ◉ | |||
| SP600 / 600BK | ◉ | |||
| SP550-S / 550-SBK | ◉ | |||
| SPS4 / 4BK | ◉ | |||
| SPS5 / 5BK | ◉ | |||
| SPS6M / 6MBK | ◉ | |||
| SPS6-S / 6-SBK | ◉ | |||
| SPS7-S / 7-SBK | ◉ | |||
| SPX-MBK | ◉ | |||
| SPX-FBK | ◉ |
POPULAR CABLES COMPATIBILITY CHART
| ◉ | TIGHT OR CLOSE-TO-TIGHT FIT |
| ◎ | LOOSE FIT |
| ✕ | NO FIT |
| — | NOT APPLICABLE |
| CABLE ' | SP400 / 400BK | SP500 / 500BK | SP600 / 600BK | SP550-S / 550-SBK | SPS4 / 4BK | SPS5 / 5BK | SPS6M / 6MBK | SPS6-S / 6-SBK | SPS7-S / 7-SBK |
| BELDEN 1865A | ◉ | ◎ | ◎ | — | ◉ | ◎ | ◎ | — | ◉ |
| BELDEN 8218 | ◉ | ◎ | ◎ | — | ◉ | ◎ | ◎ | — | ◉ |
| CANARE GS4 | ◉ | ◎ | ◎ | — | ◉ | ◎ | ◎ | — | ◉ |
| CANARE GS6 | ✕ | ◉ | ◎ | — | ✕ | ◉ | ◎ | — | ✕ |
| MOGAMI 2314 | ◉ | ◎ | ◎ | — | ◉ | ◎ | ◎ | — | ◉ |
| MOGAMI 2319 | ✕ | ◉ | ◎ | — | ✕ | ◉ | ◎ | — | ✕ |
| MOGAMI 2524 | ✕ | ✕ | ◉ | — | ✕ | ✕ | ◉ | — | ✕ |
| MOGAMI 2552 | — | — | — | ◉ | — | — | — | ◉ | — |
| PRO CO 120SM | ✕ | ◉ | ◎ | — | ✕ | ◉ | ◎ | — | ✕ |
Features:
- 25% shorter than the standard XLR design
- All-metal THD - True Heavy Duty - construction built to withstand the rigors of daily abuse and touring
- Ergonomic design featuring knurled shoulders for maximum grip strength
- Secure cable clamping provided by a chuck type strain relief that allows higher pull-out force
- Quick and easy assembly using only 4 parts and no screws. Side screws for color coding only
- Retrofittable cable identification/tracing system via a proprietary set of color coded screws common to both the 1/4"" and XLR connectors. SquarePlug is the only brand that provides such a unique and elegant solution to ID/trace any type of cable assembly through 55 distinct combinations
Specifications:
- Type: Male XLR
- Length: 44.70 mm | 1.76 in
- Length When Connected: 30.7 mm | 1.20 in
- Diameter: 22 mm | 0.87 in
