Key Features
- For Pro Audio Applications
- Gold Contacts for Best Conductivity
- Robust Egonomic Design
- Standard HEX Crimp Cable Clamp
- Colored Sleeves Available
Description

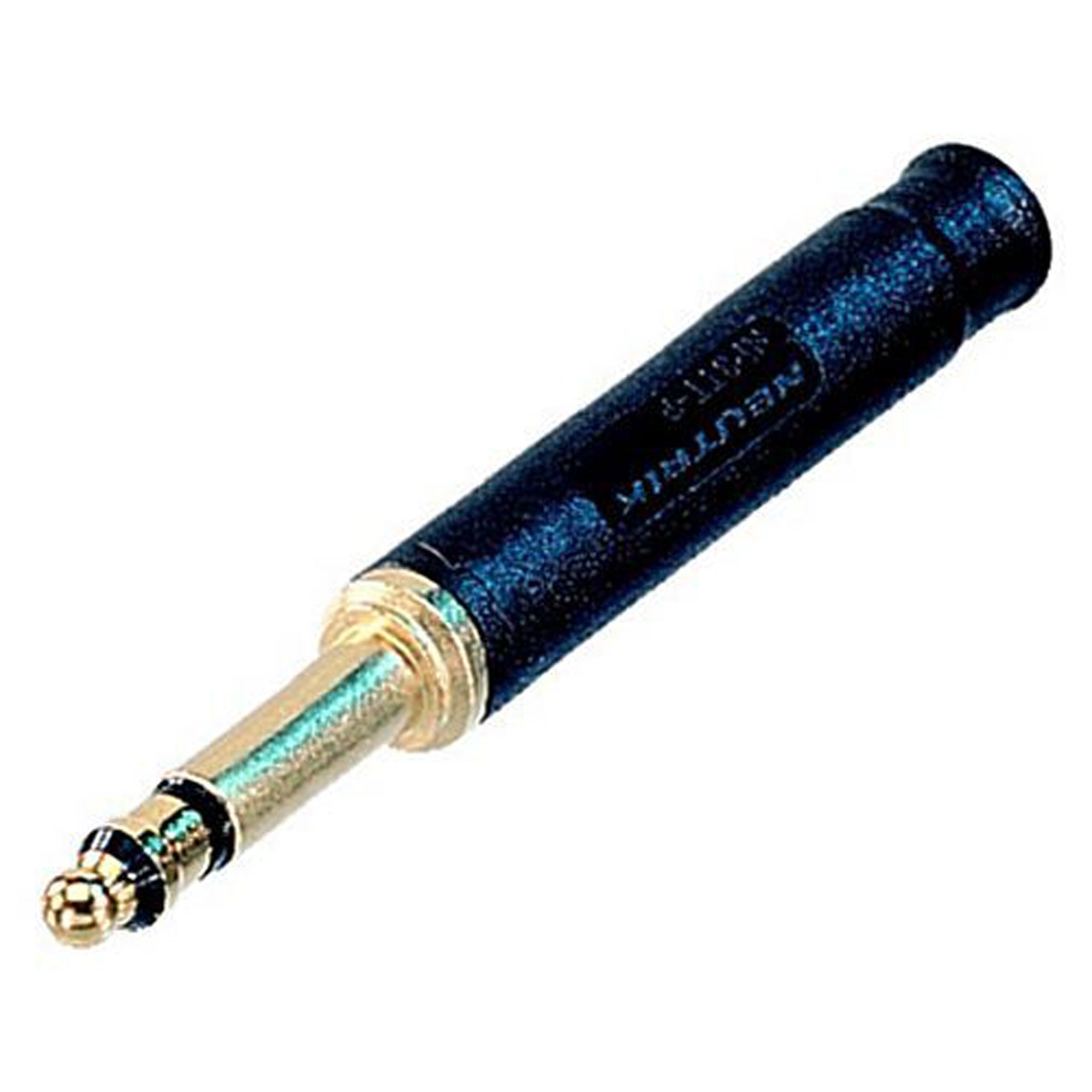

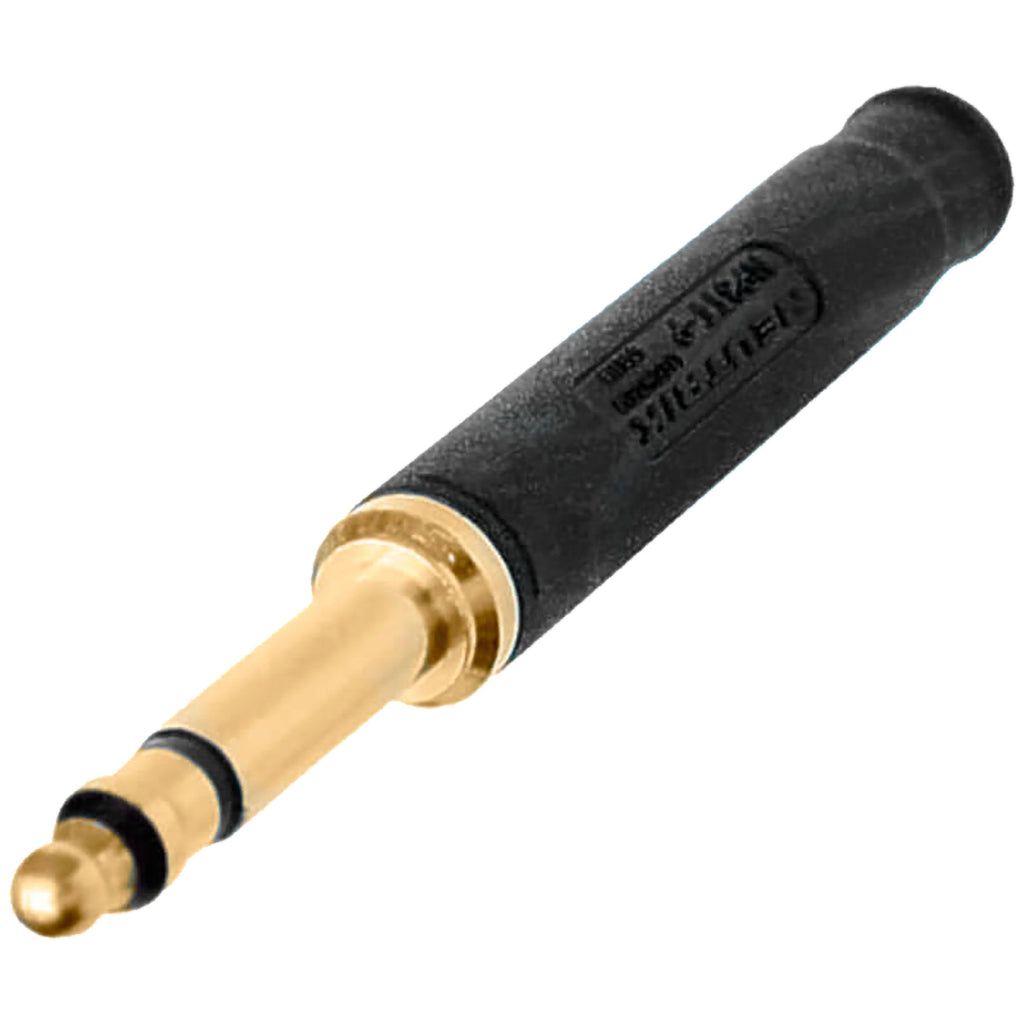

4.4mm (0.173") Tiny Telefone Plug Bantam Type, Solder and Crimp Terminations, Black Plastic Housing, Gold Contacts
4.4 mm (0.173") tiny telefone plug bantam type, solder termination for T+R, hex crimp of S with a standard RG58 crimp tool, black plastic housing, gold contacts. Ideal use with TT patch panels.
Features
- Designed for pro audio applications
- Gold contacts guarantee best conductivity
- Robust egonomic design - long-lasting and depenable
- Standard HEX crimp cable clamp for shield termination and cable retention
- Colored sleeves available for coding and marking
Specifications
- Product:
- Title: NP3TT-P-AU-B
- Connection Type: Plug
- Gender: male
- Electrical:
- Contact resistance: depends on mating connector mΩ
- Dielectric strength: 1 kVdc
- Insulation resistance: > 2 GΩ (initial)
- Rated current per contact: depends on mating connector A
- Rated voltage: < 50 V
- Mechanical:
- Cable O.D.: 4 - 4.8 mm
- Crimp size: 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
- Lifetime: > 1000 mating cycles
- Wiresize: 0,25 mm²
- Wiresize: 24 AWG
- Wiring: Solder contacts
- Material:
- Bushing: Polyacetal (POM) + PU
- Contact plating: 0.2 µm Au TRIBOR
- Contacts: Bronze (CuSn6) (Tip)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Brass (CuZn39Pb3)
- Shell plating: Polyamide (6 30% GR) (black)
- Environmental:
- Standard compliance: MIL-P-642/13
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20 °C to +65 °C
