Mogami W2944 Console Cable (Green, By the Foot)

Mogami SKU: MOG W2944GREEN
MPN: W2944-05
Price:
$0.39
Stock:
508 In Stock & Ready to Ship

Make it a bundle

Custom Cable 20 Feet of Mogami W2944 Green Wire Image 1
Custom Cable 20 Feet of Mogami W2944 Green Wire
$7.80
Custom Cable 16 Feet of Mogami W2944 Green Wire Image 1
Custom Cable 16 Feet of Mogami W2944 Green Wire
$6.24
Custom Cable 15 Feet of Mogami W2944 Green Wire Image 1
Custom Cable 15 Feet of Mogami W2944 Green Wire
$5.85
Custom Cable 30 Feet of Mogami W2944 Green Wire Image 1
Custom Cable 30 Feet of Mogami W2944 Green Wire
$11.70
Custom Cable 7 Feet of Mogami W2944 Green Wire Image 1
Custom Cable 7 Feet of Mogami W2944 Green Wire
$2.73
Custom Cable 11 Feet of Mogami W2944 Green Wire Image 1
Custom Cable 11 Feet of Mogami W2944 Green Wire
$4.29
Custom Cable 14 Feet of Mogami W2944 Green Wire Image 1
Custom Cable 14 Feet of Mogami W2944 Green Wire
$5.46
Custom Cable 50 Feet of Mogami W2944 Green Wire Image 1
Custom Cable 50 Feet of Mogami W2944 Green Wire
$19.50
Custom Cable 35 Feet of Mogami W2944 Green Wire Image 1
Custom Cable 35 Feet of Mogami W2944 Green Wire
$13.65
Custom Cable 24 Feet of Mogami W2944 Green Wire Image 1
Custom Cable 24 Feet of Mogami W2944 Green Wire
$9.36
Custom Cable 17 Feet of Mogami W2944 Green Wire Image 1
Custom Cable 17 Feet of Mogami W2944 Green Wire
$6.63
Custom Cable 10 Feet of Mogami W2944 Green Wire Image 1
Custom Cable 10 Feet of Mogami W2944 Green Wire
$3.90

Key Features

  • 2-Conductor, 26AWG
  • Small Diameter Cable
  • Flexible & Easy to Use
  • Spiral Shield
  • Sold by the Foot
  • Shipped in a Continuous Length

Description

Compact console cable for organized studio wiring

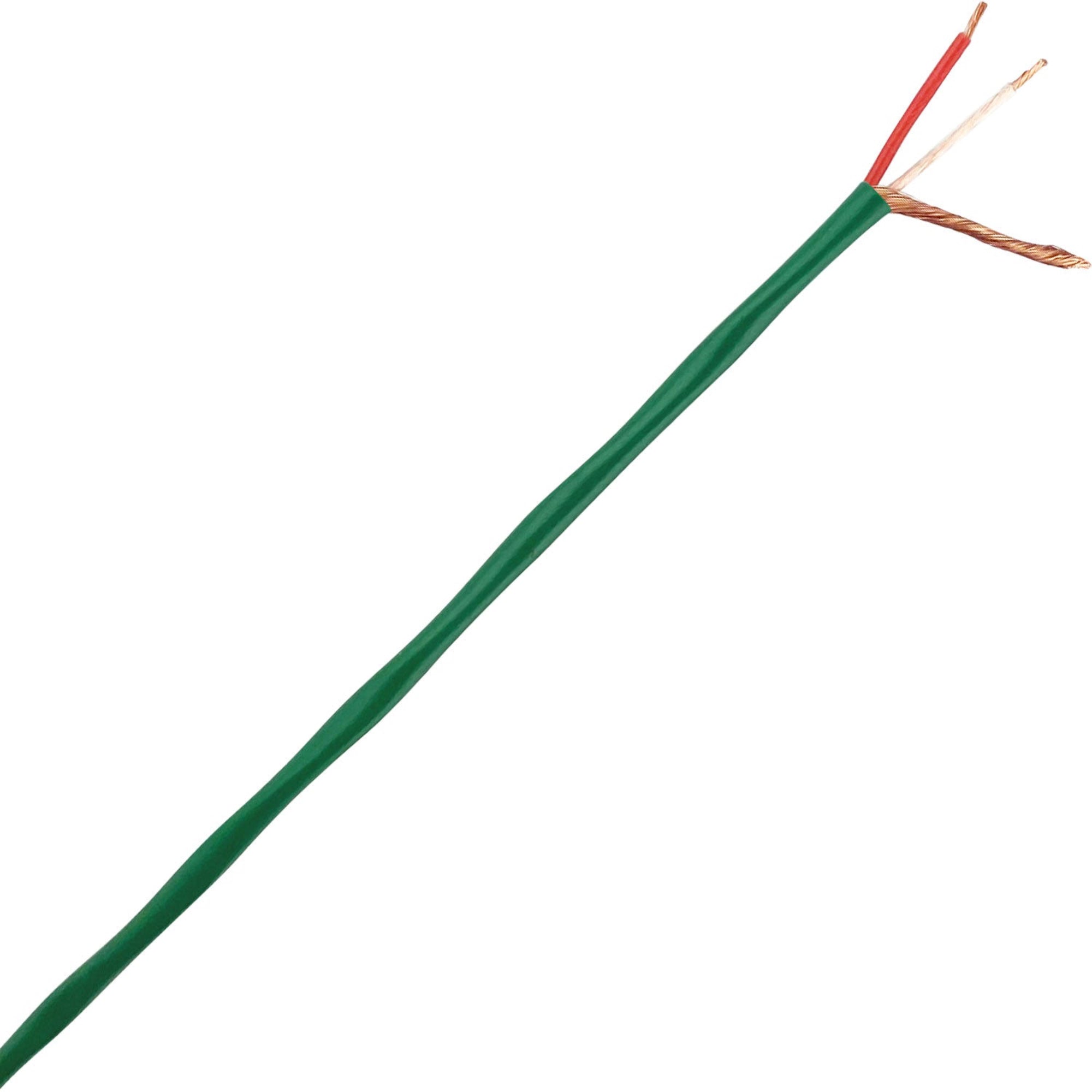

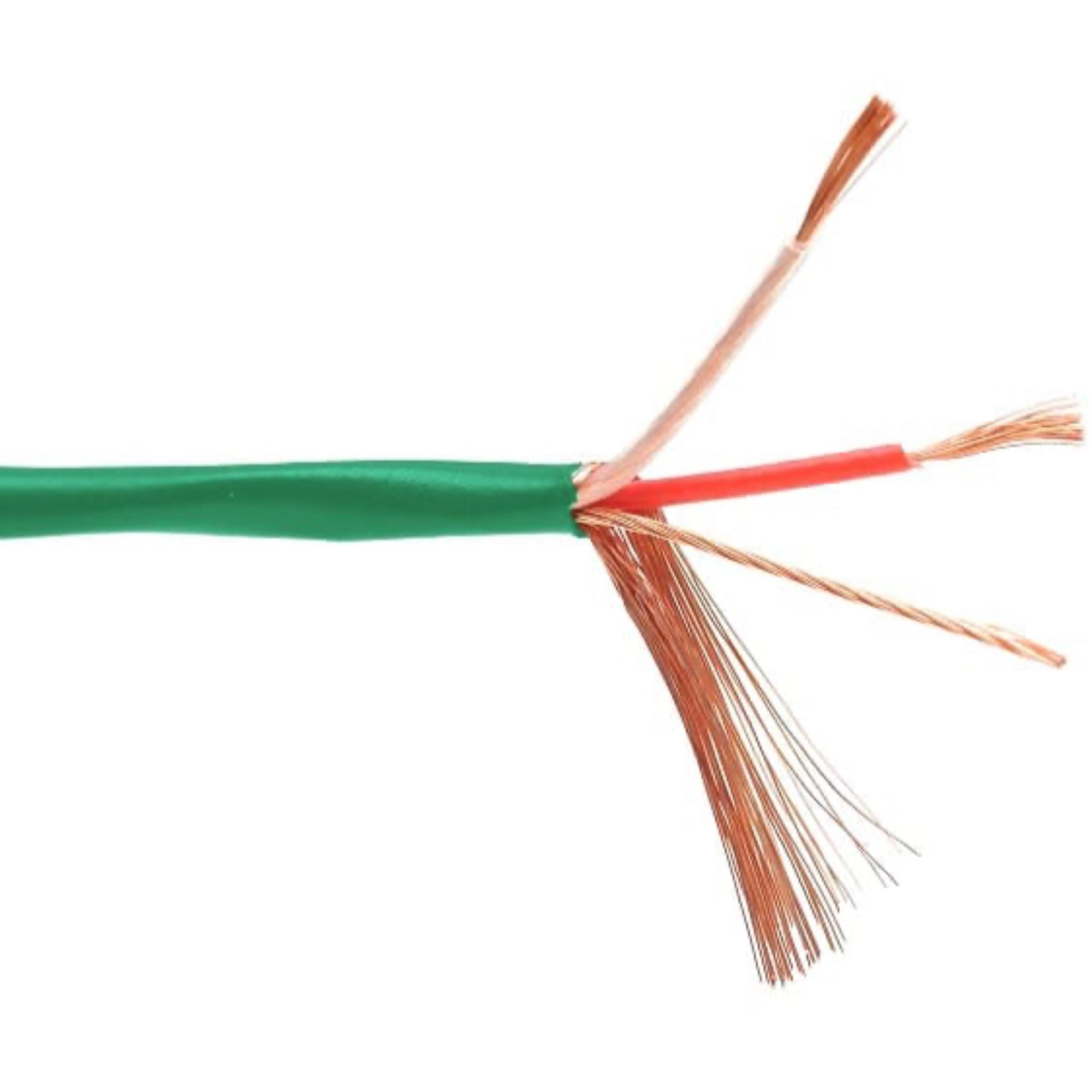

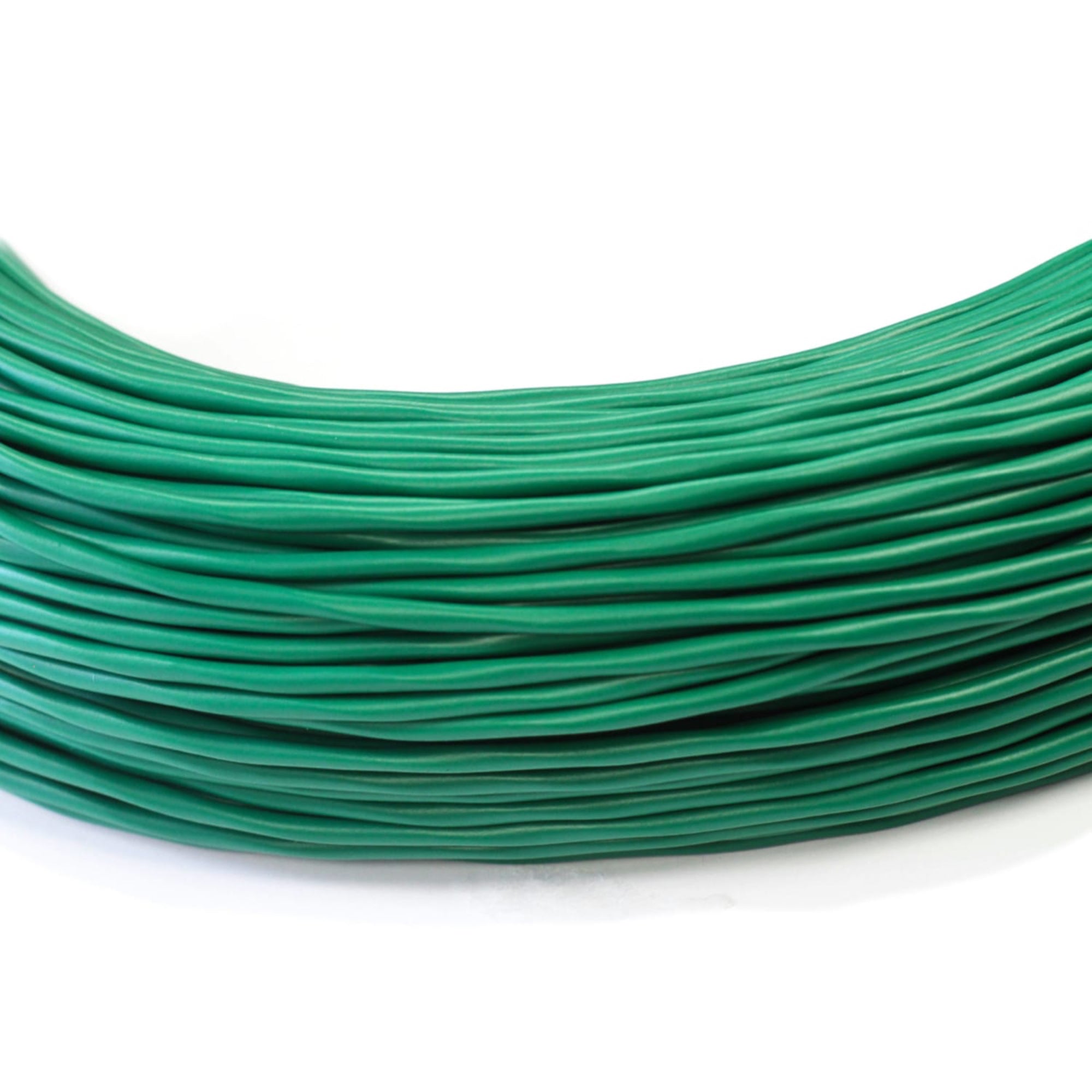

Mogami W2944 Green is a compact, two-conductor console cable for mixing consoles, rack panels, and studio equipment. Two 26 AWG NEGLEX oxygen-free copper conductors, a served spiral shield, and a separate drain wire fit inside a flexible 2.5 mm PVC jacket. Use jacket colors to identify channels, signal paths, or equipment groups.

Ordering by the foot

Sold by the foot in a continuous length. A quantity of 25 is one 25-foot piece. This is unterminated bulk cable; connectors are not included. Allow extra length for routing, service loops, and termination.

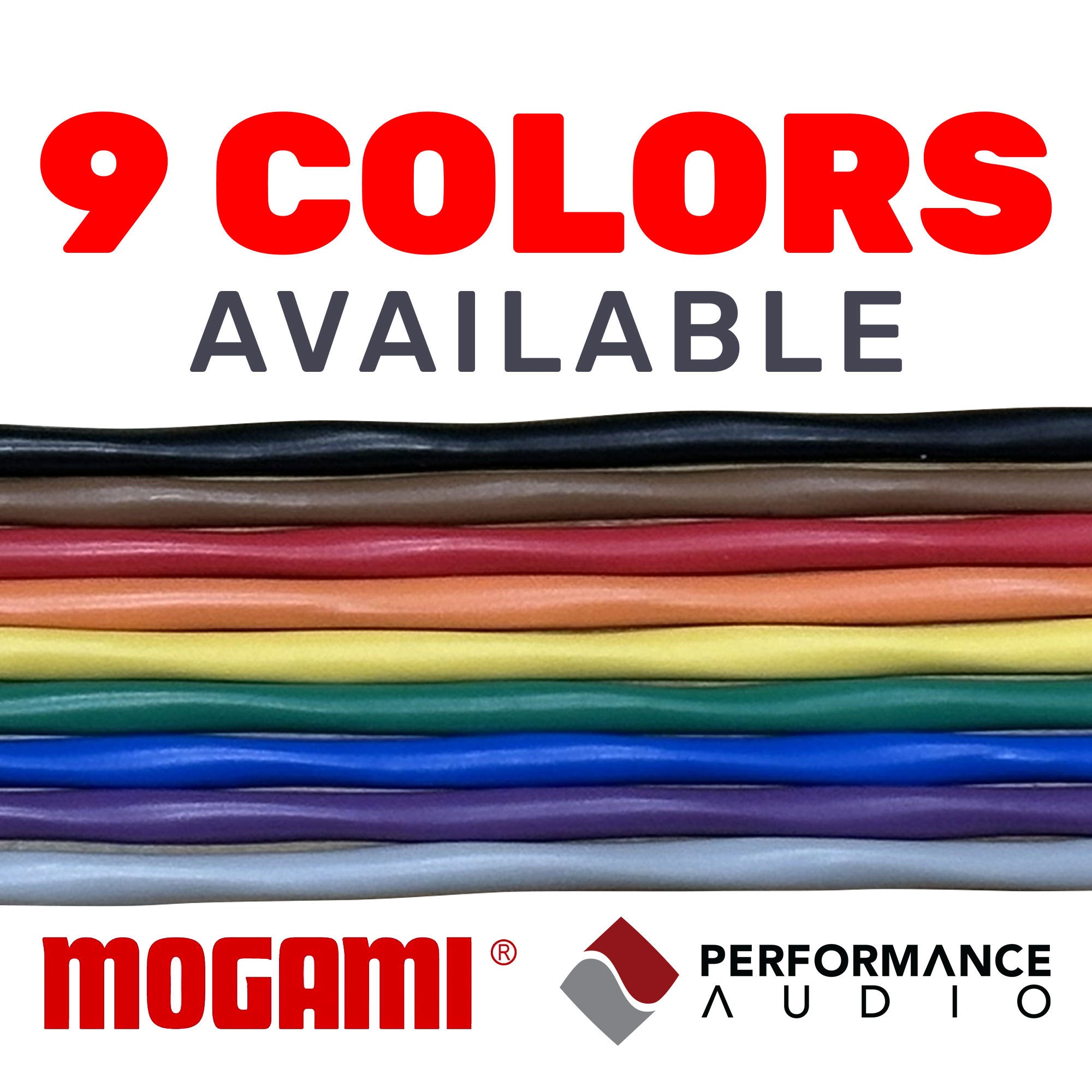

Choose your jacket color

Plan your wiring and connectors

For conventional balanced audio wiring, use the two insulated conductors for the signal pair and terminate the shield/drain according to the connected equipment's requirements. Red and Clear insulation identifies the conductors at each end.

Choose terminals that accept 26 AWG conductors and strain relief that securely grips the small 2.5 mm jacket. A connector designed for larger microphone cable may not hold it properly. Secure the jacket rather than relying on solder joints for support, and test continuity and shorts before use.

Construction features

  • Finely stranded NEGLEX OFC conductors.
  • XLPE insulation helps resist shrink-back during soldering.

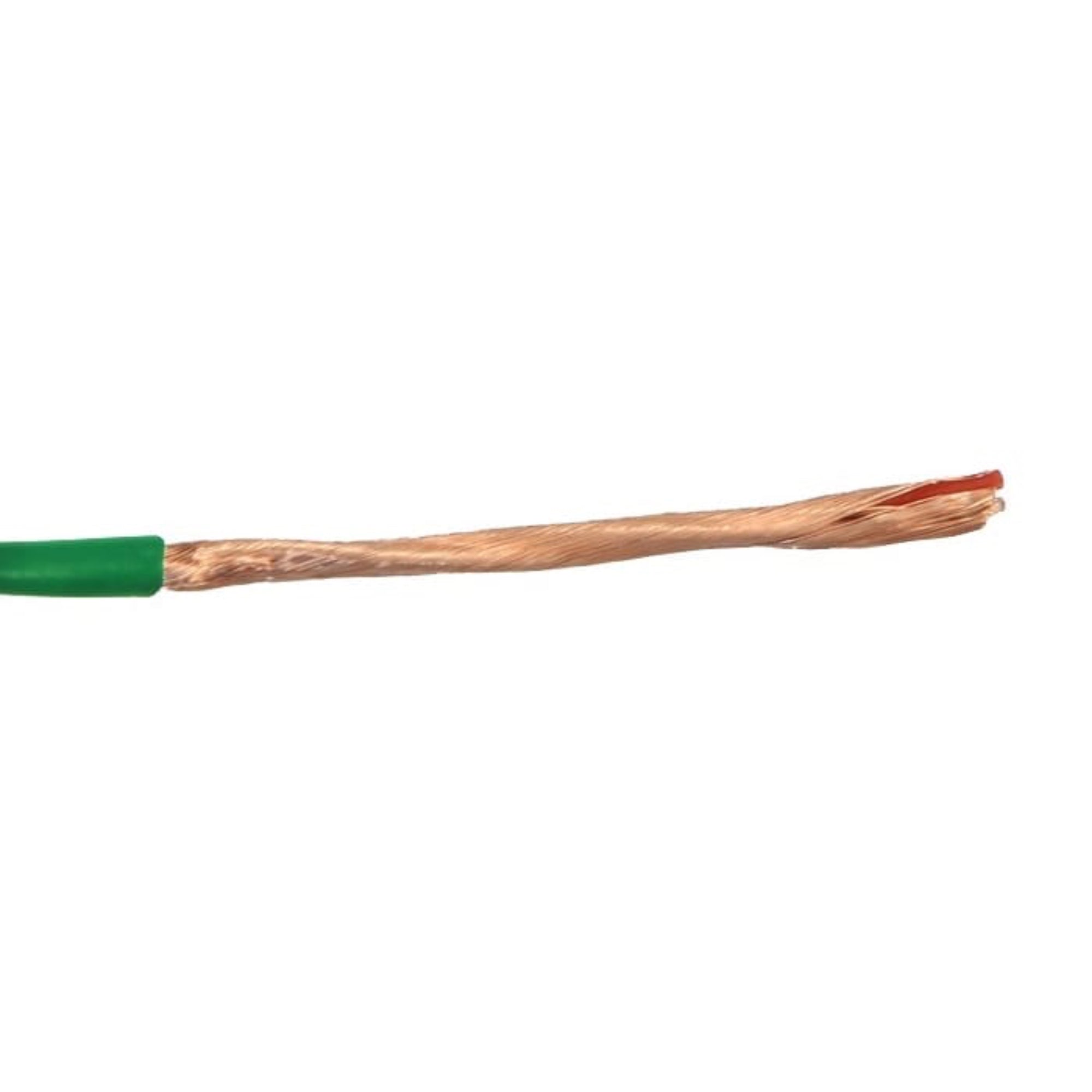

  • Served spiral shield and separate drain wire for convenient preparation and termination.
  • Small-diameter, flexible construction for space-conscious equipment wiring.
  • Same core configuration as Mogami's EZID multi-microphone snake cable series.
  • Multiple jacket colors for visual identification.

Construction specifications

  • Model: W2944
  • Jacket color: Green
  • Insulated conductors: 2
  • Conductor stranding: 30/0.08 mm OFC
  • Conductor cross-section: 0.15 mm² (26 AWG)
  • Insulated conductor diameter: 1.0 mm (0.039 inch)
  • Insulation: XLPE (cross-linked polyethylene)
  • Conductor colors: Red and Clear
  • Drain wire: 7/0.18A; 0.18 mm² (25 AWG)
  • Served shield: Approximately 58/0.10A
  • Jacket diameter: 2.5 mm (0.098 inch)
  • Jacket material: PVC
  • Reference weight: 2.5 kg per 200 m roll

Electrical and mechanical characteristics

  • Inner-conductor DC resistance at 20°C: 0.13 Ω/m (0.040 Ω/ft)
  • Shield DC resistance at 20°C: 0.035 Ω/m (0.011 Ω/ft)
  • Capacitance at 1 kHz, 20°C, partial value K0: 130 pF/m (40 pF/ft)
  • Capacitance at 1 kHz, 20°C, partial value K1: 12 pF/m (3.7 pF/ft)
  • Inductance between conductors at 1 kHz, 20°C: 0.6 µH/m (0.18 µH/ft)
  • Listed electrostatic noise: 20 mV maximum
  • Listed electromagnetic noise: 0.1 mV maximum

Noise figures are cable specification values, not a guarantee of noise levels in a completed installation.

Standard roll lengths

Manufacturer reference roll lengths: 50 m (164 ft), 100 m (328 ft), and 200 m (656 ft). This listing is priced and ordered by the foot, not by the roll.

Details
  • Manufacturer:  Mogami
  • MPN: W2944-05
  • Model Number: W2944 Green
