Mogami W2944 Console Cable (Black, By the Foot)

Mogami SKU: MOG W2944BLACK
MPN: W2944-00
Price:
$0.39
Stock:
853 In Stock & Ready to Ship

Make it a bundle

Custom Cable 4 Feet of Mogami W2944 Black Wire Image 1
Custom Cable 4 Feet of Mogami W2944 Black Wire
$1.56
Custom Cable 21 Feet of Mogami W2944 Black Wire Image 1
Custom Cable 21 Feet of Mogami W2944 Black Wire
$8.19
Custom Cable 20 Feet of Mogami W2944 Black Wire Image 1
Custom Cable 20 Feet of Mogami W2944 Black Wire
$7.80
Custom Cable 45 Feet of Mogami W2944 Black Wire Image 1
Custom Cable 45 Feet of Mogami W2944 Black Wire
$17.55
Custom Cable 14 Feet of Mogami W2944 Black Wire Image 1
Custom Cable 14 Feet of Mogami W2944 Black Wire
$5.46
Custom Cable 6 Feet of Mogami W2944 Black Wire Image 1
Custom Cable 6 Feet of Mogami W2944 Black Wire
$2.34
Custom Cable 23 Feet of Mogami W2944 Black Wire Image 1
Custom Cable 23 Feet of Mogami W2944 Black Wire
$8.97
Custom Cable 24 Feet of Mogami W2944 Black Wire Image 1
Custom Cable 24 Feet of Mogami W2944 Black Wire
$9.36
Custom Cable 50 Feet of Mogami W2944 Black Wire Image 1
Custom Cable 50 Feet of Mogami W2944 Black Wire
$19.50
Custom Cable 22 Feet of Mogami W2944 Black Wire Image 1
Custom Cable 22 Feet of Mogami W2944 Black Wire
$8.58
Custom Cable 11 Feet of Mogami W2944 Black Wire Image 1
Custom Cable 11 Feet of Mogami W2944 Black Wire
$4.29
Custom Cable 10 Feet of Mogami W2944 Black Wire Image 1
Custom Cable 10 Feet of Mogami W2944 Black Wire
$3.90

Key Features

  • 2-Conductor, 26AWG
  • Small Diameter Cable
  • Flexible & Easy to Use
  • Spiral Shield
  • Sold by the Foot
  • Shipped in a Continuous Length

Description

Compact console cable for organized studio wiring

Mogami W2944 Black is a compact, two-conductor console cable for custom wiring in mixing consoles, rack panels, and studio equipment. Two 26 AWG NEGLEX oxygen-free copper conductors, a served spiral shield, and a separate drain wire fit inside a flexible 2.5 mm PVC jacket, making it useful where space and cable organization matter.

Choose different jacket colors to identify channels, signal paths, or equipment groups without changing the W2944 cable construction.

Ordering by the foot

Sold by the foot and shipped in a continuous length. Enter the total number of feet you need: a quantity of 25 is one 25-foot piece. This is unterminated bulk cable; connectors are not included. Allow extra length for routing, service loops, and termination.

Choose your jacket color

Plan your wiring and connectors

The two insulated conductors and shield support custom balanced audio wiring when terminated for the connected equipment. For a conventional balanced connection, use the two insulated conductors for the signal pair and terminate the shield/drain according to the equipment's wiring requirements. The Red and Clear insulation helps identify the conductors at each end.

Check that your connector terminals accept 26 AWG conductors and that the cable entry and strain relief can securely grip the small 2.5 mm jacket. A connector designed for a larger microphone cable may not hold this cable properly. Secure the jacket rather than relying on the solder joints for mechanical support, and test continuity and shorts before use.

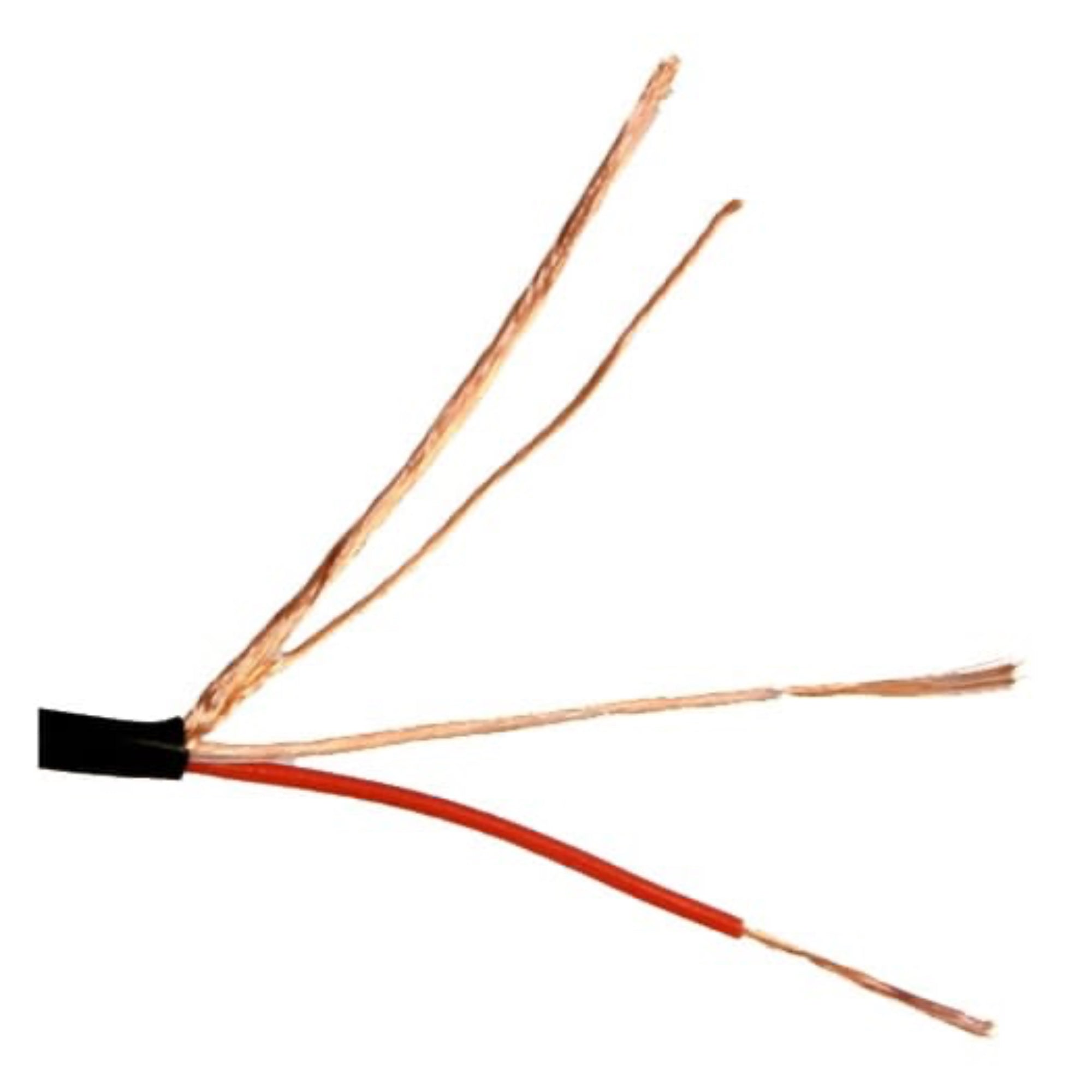

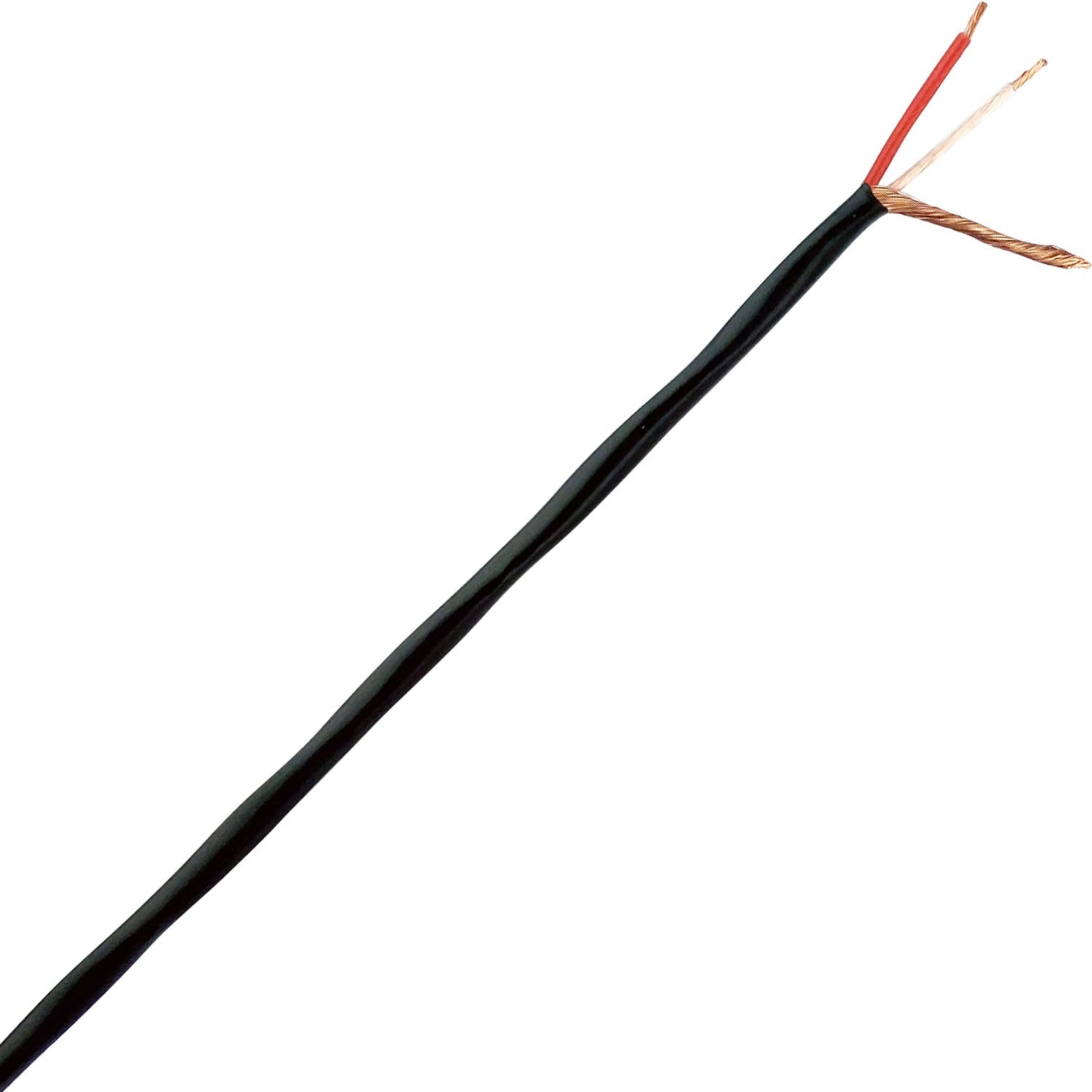

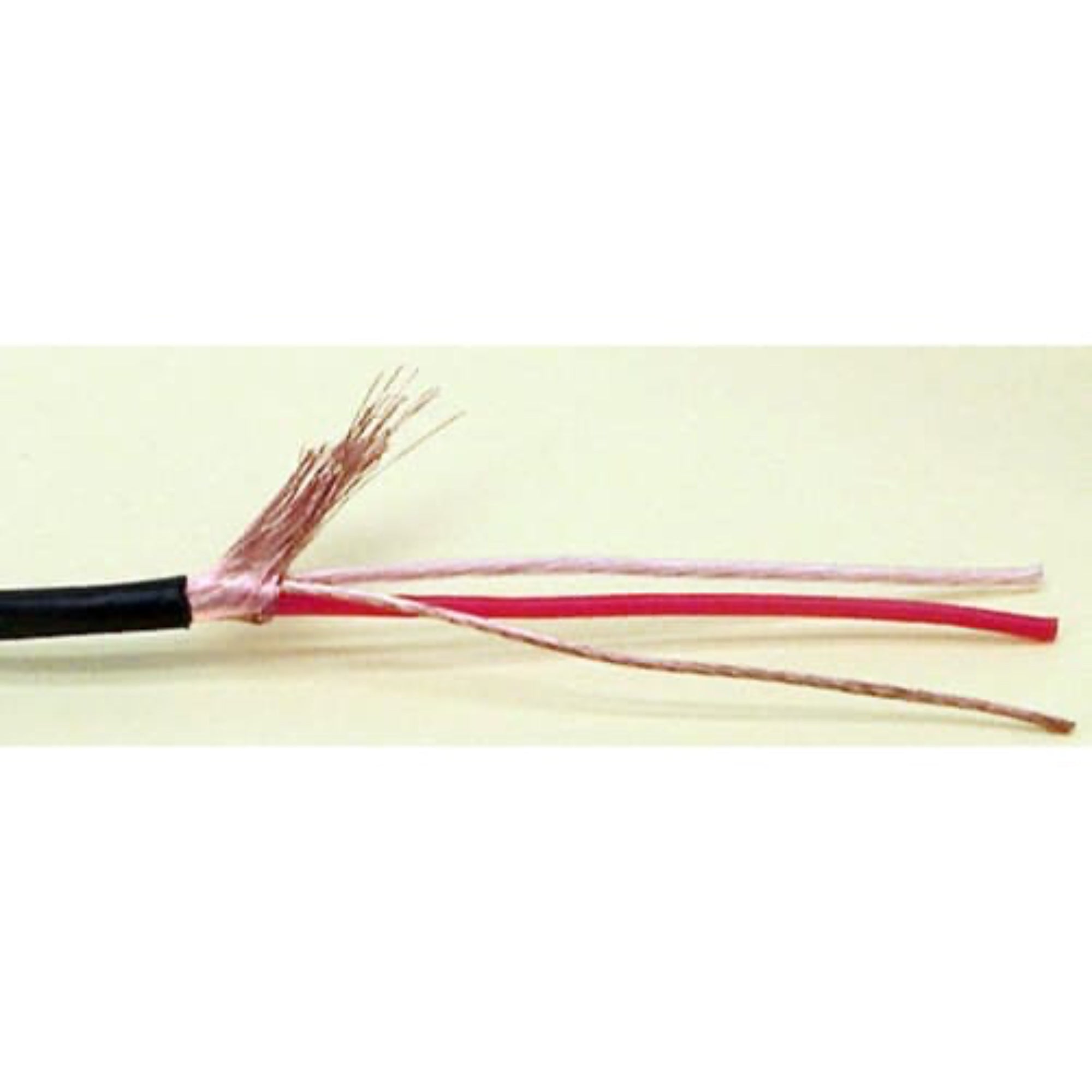

Construction features

  • Two finely stranded 26 AWG NEGLEX OFC conductors.
  • XLPE (cross-linked polyethylene) insulation helps resist shrink-back during soldering.
  • Served spiral shield for straightforward preparation and termination.
  • Separate drain wire for convenient shield connections.
  • Small-diameter, flexible construction for space-conscious equipment wiring.
  • Same core configuration as Mogami's EZID multi-microphone snake cable series.
  • Multiple jacket colors for visual identification.

Construction specifications

  • Model: W2944
  • Jacket color: Black
  • Insulated conductors: 2
  • Conductor stranding: 30/0.08 mm OFC
  • Conductor cross-section: 0.15 mm² (26 AWG)
  • Insulated conductor outside diameter: 1.0 mm (0.039 inch)
  • Insulation: XLPE (cross-linked polyethylene)
  • Insulated conductor colors: Red and Clear
  • Drain wire construction: 7/0.18A
  • Drain wire cross-section: 0.18 mm² (25 AWG)
  • Served shield construction: Approximately 58/0.10A
  • Overall jacket diameter: 2.5 mm (0.098 inch)
  • Jacket material: PVC
  • Reference weight: 2.5 kg per 200 m roll

Electrical and mechanical characteristics

  • Inner-conductor DC resistance at 20°C: 0.13 Ω/m (0.040 Ω/ft)
  • Shield DC resistance at 20°C: 0.035 Ω/m (0.011 Ω/ft)
  • Capacitance at 1 kHz, 20°C, partial value K0: 130 pF/m (40 pF/ft)
  • Capacitance at 1 kHz, 20°C, partial value K1: 12 pF/m (3.7 pF/ft)
  • Inductance between conductors at 1 kHz, 20°C: 0.6 µH/m (0.18 µH/ft)
  • Listed electrostatic noise: 20 mV maximum
  • Listed electromagnetic noise: 0.1 mV maximum

Noise figures are cable specification values, not a guarantee of noise levels in a completed installation.

Standard roll lengths

Manufacturer reference roll lengths are 50 m (164 ft), 100 m (328 ft), and 200 m (656 ft). This listing is priced and ordered by the foot, not by the roll.

Details
  • Manufacturer:  Mogami
  • MPN: W2944-00
  • Model Number: W2944 Black
