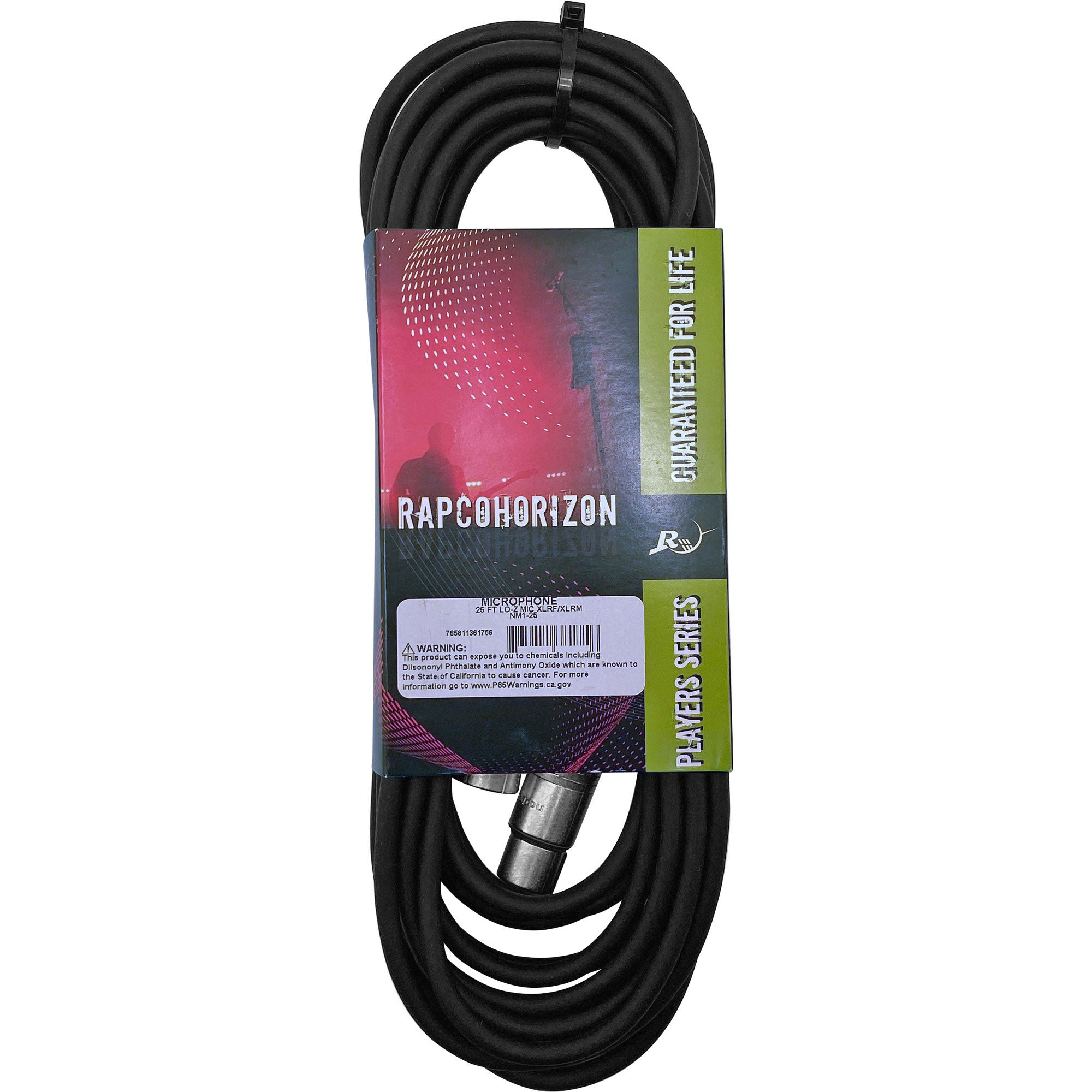

RapcoHorizon NM1-25 Microphone Cable with Neutrik XLR Connectors (25')

RapcoHorizon SKU: HOR NM125
MPN: NM1-25 UPC: 765811361756
Price:
$23.90
Stock:
123 In Stock & Ready to Ship

Make it a bundle

QSC K12.2 K.2 Series 12" 2-Way 2000W Complete Powered Loudspeaker Essentials Bundle Image 1
QSC K12.2 K.2 Series 12" 2-Way 2000W Complete Powered Loudspeaker Essentials Bundle
$1,249.79
0 Reviews
Sennheiser MKE600 Shotgun Microphone Location Recording Kit (Savings Bundle) Image 1 8% OFF
Sennheiser MKE600 Shotgun Microphone Location Recording Kit (Savings Bundle)
$410.31 $375.62
-$34.69
Sennheiser MKH416-P48 Basic Bundle Shotgun Mic with Windshield and Cables Image 1 14% OFF
Sennheiser MKH416-P48 Basic Bundle Shotgun Mic with Windshield and Cables
$1,334.75 $1,147.28
-$187.47
Rode NTG2 Dual-Power Shotgun Microphone (Power Bundle) Image 1 16% OFF
Rode NTG2 Dual-Power Shotgun Microphone (Power Bundle)
$583.86 $489.52
-$94.34
Rode VideoMic Pro Directional On-Camera Shotgun Microphone (Ultimate Bundle) Image 1 11% OFF
Rode VideoMic Pro Directional On-Camera Shotgun Microphone (Ultimate Bundle)
$553.91 $491.36
-$62.55
Rode Procaster Broadcast-Quality Dynamic Microphone (Complete Podcasting Interview Bundle) Image 1 6% OFF
Rode Procaster Broadcast-Quality Dynamic Microphone (Complete Podcasting Interview Bundle)
$999.58 $937.25
-$62.33
Rode Procaster Broadcast-Quality Dynamic Microphone (Complete Podcasting Bundle) Image 1 6% OFF
Rode Procaster Broadcast-Quality Dynamic Microphone (Complete Podcasting Bundle)
$504.79 $474.62
-$30.17
1 Reviews
QSC K8.2 K.2 Series 8" 2-Way 2000W Complete Powered Loudspeaker Essentials Bundle (Pair) Image 1
QSC K8.2 K.2 Series 8" 2-Way 2000W Complete Powered Loudspeaker Essentials Bundle (Pair)
$1,959.96
0 Reviews
Rode NTG3B Shotgun Microphone Location Recording Kit (Black, Ultimate Bundle) Image 1 26% OFF
Rode NTG3B Shotgun Microphone Location Recording Kit (Black, Ultimate Bundle)
$1,398.26 $1,040.06
-$358.20
Rode NTG3B Shotgun Microphone Location Recording Kit (Black, Savings Bundle) Image 1 5% OFF
Rode NTG3B Shotgun Microphone Location Recording Kit (Black, Savings Bundle)
$779.36 $739.71
-$39.65
Rode NTG3B Shotgun Microphone Location Recording Kit (Black, Power Bundle) Image 1 11% OFF
Rode NTG3B Shotgun Microphone Location Recording Kit (Black, Power Bundle)
$1,019.36 $902.62
-$116.74
Rode NTG3B Condenser Shotgun Microphone with WS7 Windshield and 25' Cable Bundle (Black) Image 1 5% OFF
Rode NTG3B Condenser Shotgun Microphone with WS7 Windshield and 25' Cable Bundle (Black)
$779.36 $739.71
-$39.65

Key Features

  • 25 ft. (7.6 m) Cable Length
  • Neutrik XX Series XLR Connectors
  • Heavy Duty PVC Jacket
  • Flexible Yet Durable
  • Very Low Cable Memory
  • Individually Tested

Description

RapcoHorizon NM1-25, 25-foot balanced XLR microphone cable

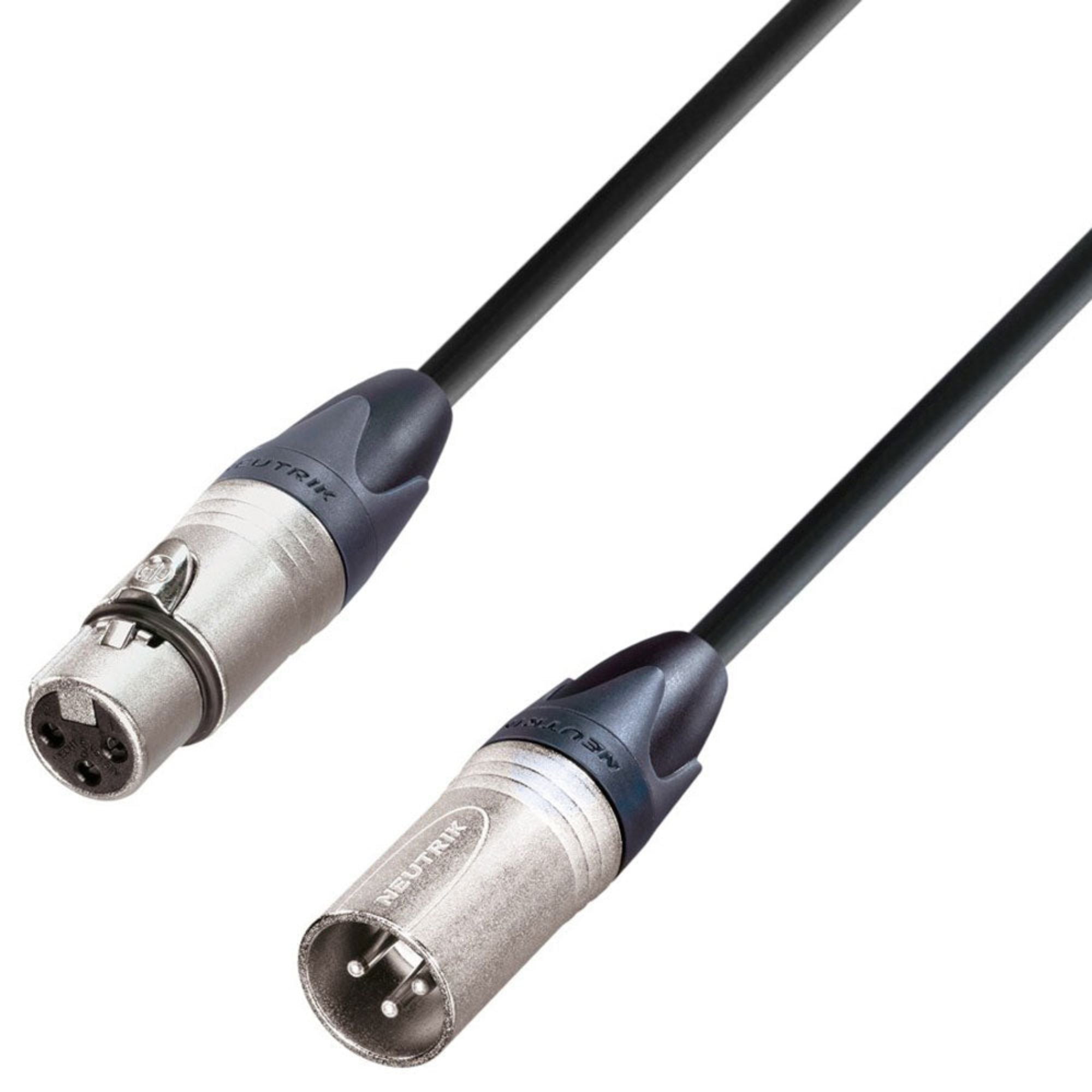

The RapcoHorizon NM1-25 is a finished 25-foot balanced microphone cable with a Neutrik 3-pin XLR female connector at one end and a Neutrik 3-pin XLR male connector at the other. Two 24-AWG copper conductors, a spiral copper shield and a flexible matte PVC jacket make it a practical connection for compatible microphones and balanced analog audio equipment.

Other lengths with Neutrik XLR connectors: 1 ft · 2 ft · 3 ft · 6 ft · 10 ft · 15 ft · 50 ft · 75 ft · 100 ft.

Check connections and routing

For a typical microphone connection, the cable's female XLR end mates with the microphone's male XLR output, and the male cable end mates with the mixer, preamp or interface's female XLR input. Check both devices for compatible 3-pin XLR connections and signal requirements before ordering. Matching connector shapes alone do not establish electrical compatibility.

This cable carries one balanced mono analog audio signal, not a stereo pair. It is a microphone/interconnect cable, not a speaker cable or a purpose-specified digital AES/EBU or DMX cable. Allow enough length for the actual routing path, connector access and a little service slack, rather than measuring only the straight-line distance.

Construction and handling

The MIC1.K cable uses two 24-AWG bare copper center conductors and a bare annealed copper serve shield with listed 95% coverage. The flexible, low-memory matte PVC jacket helps with routing and coiling. Shielding supports noise control but cannot guarantee the elimination of hum or interference in every system.

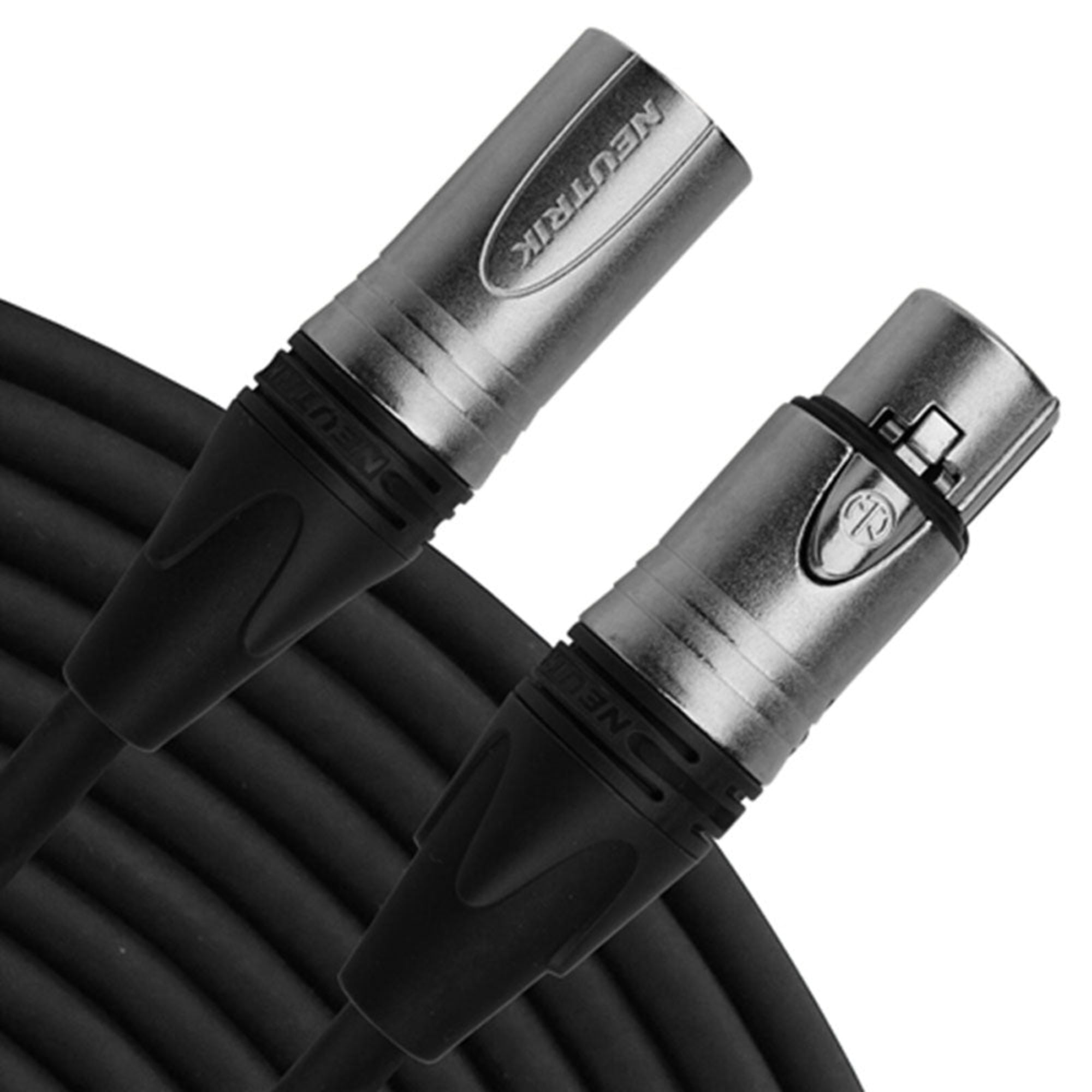

The listed connectors are Neutrik NC3FXX and NC3MXX-style 3-pin XLR connectors with silver contacts. Grip the connector body when disconnecting rather than pulling on the cable, and release the XLR latch where applicable.

Features

  • One finished 25-foot male-to-female 3-pin XLR cable.
  • Neutrik XLR connectors with silver contacts.
  • Two 24-AWG copper signal conductors.
  • Bare copper serve shield for flexibility and shielding.
  • Listed 95% shield coverage.
  • Flexible, durable, low-memory matte PVC jacket.
  • Individually tested for performance and quality.

Specifications

  • Model: NM1-25.
  • Length: 25 feet.
  • Connections: 3-pin XLR female to 3-pin XLR male.
  • Cable: MIC1.K.
  • Conductor gauge: Two 24-AWG conductors.
  • Shield: Bare annealed copper serve.
  • Shield coverage: 95%.
  • Jacket: Matte PVC.
  • Cable outside diameter: 0.230 inch.
  • Listed capacitance: 21 pF/ft at 1 kHz.
  • Conductor-to-shield capacitance: 37 pF/ft at 1 kHz.
  • Nominal characteristic impedance: 70 Ω.
  • DC resistance at 20°C: 23 Ω/1,000 ft.

Other configurations

The broader cable series is offered in other lengths, colors and connector brands, with other lengths available upon request. Those options are separate configurations, not automatically included with this NM1-25 listing. Confirm the required configuration and availability before ordering an alternative.

Details
  • Manufacturer:  RapcoHorizon
  • MPN: NM1-25
  • Model Number: NM1-25
  • UPC: 765811361756
