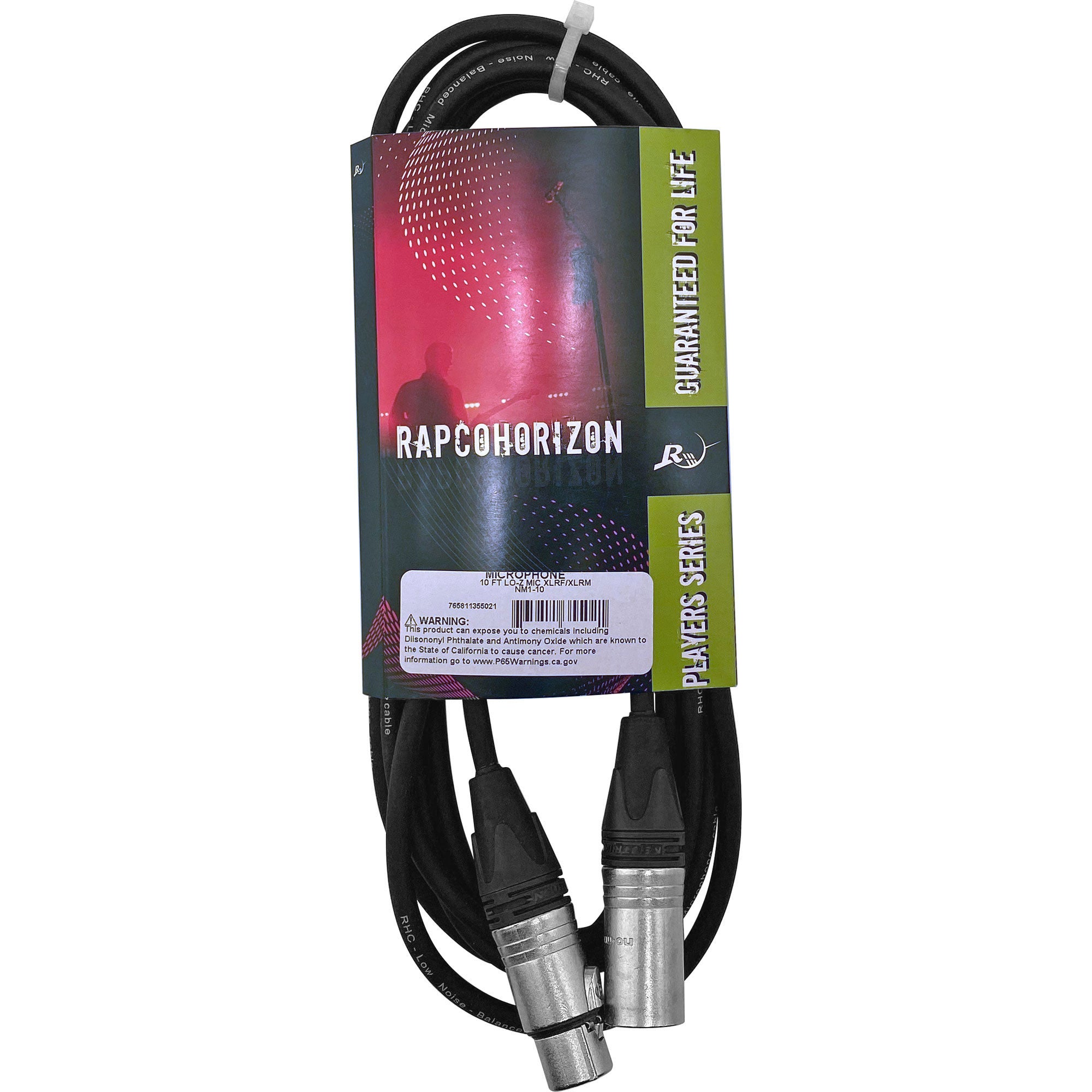

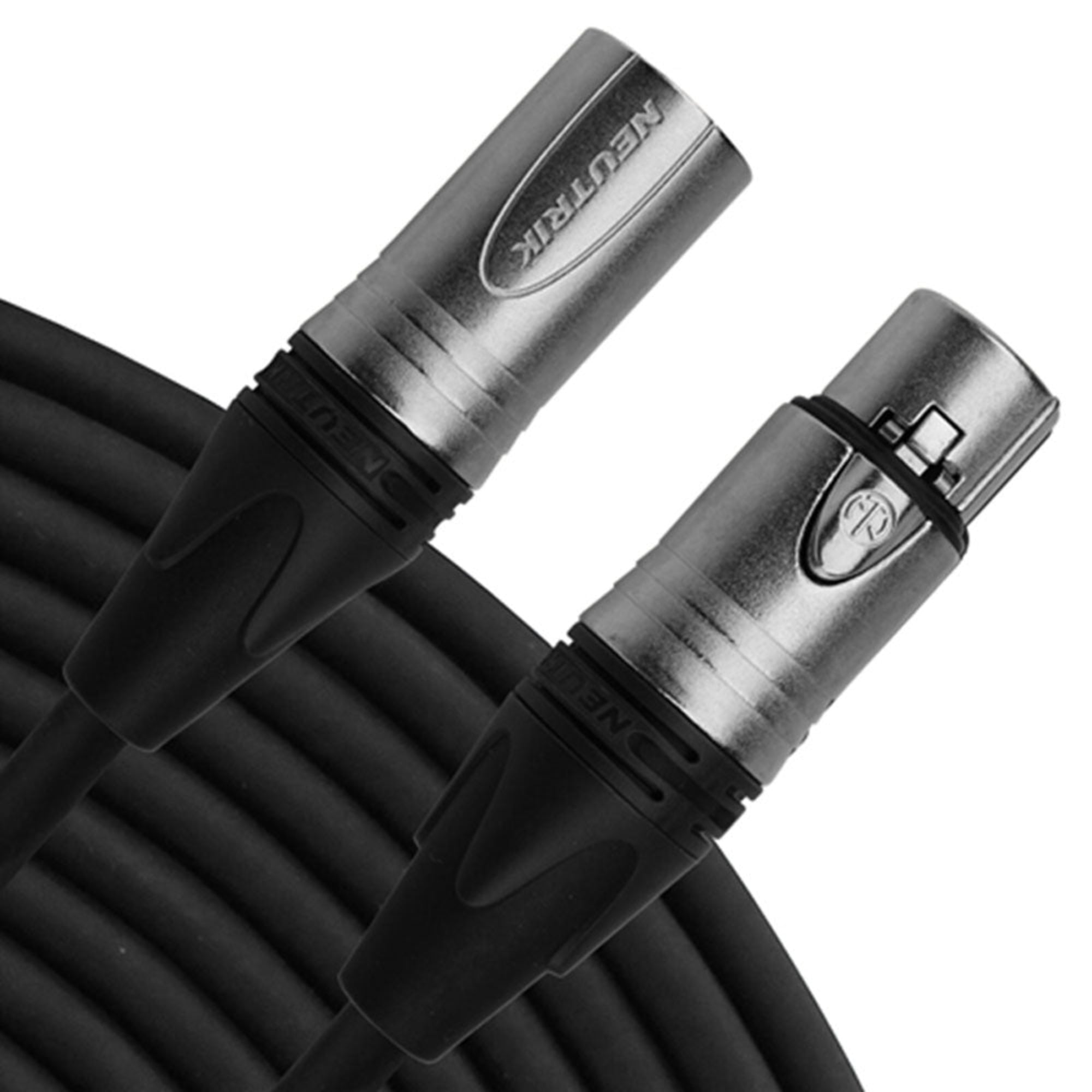

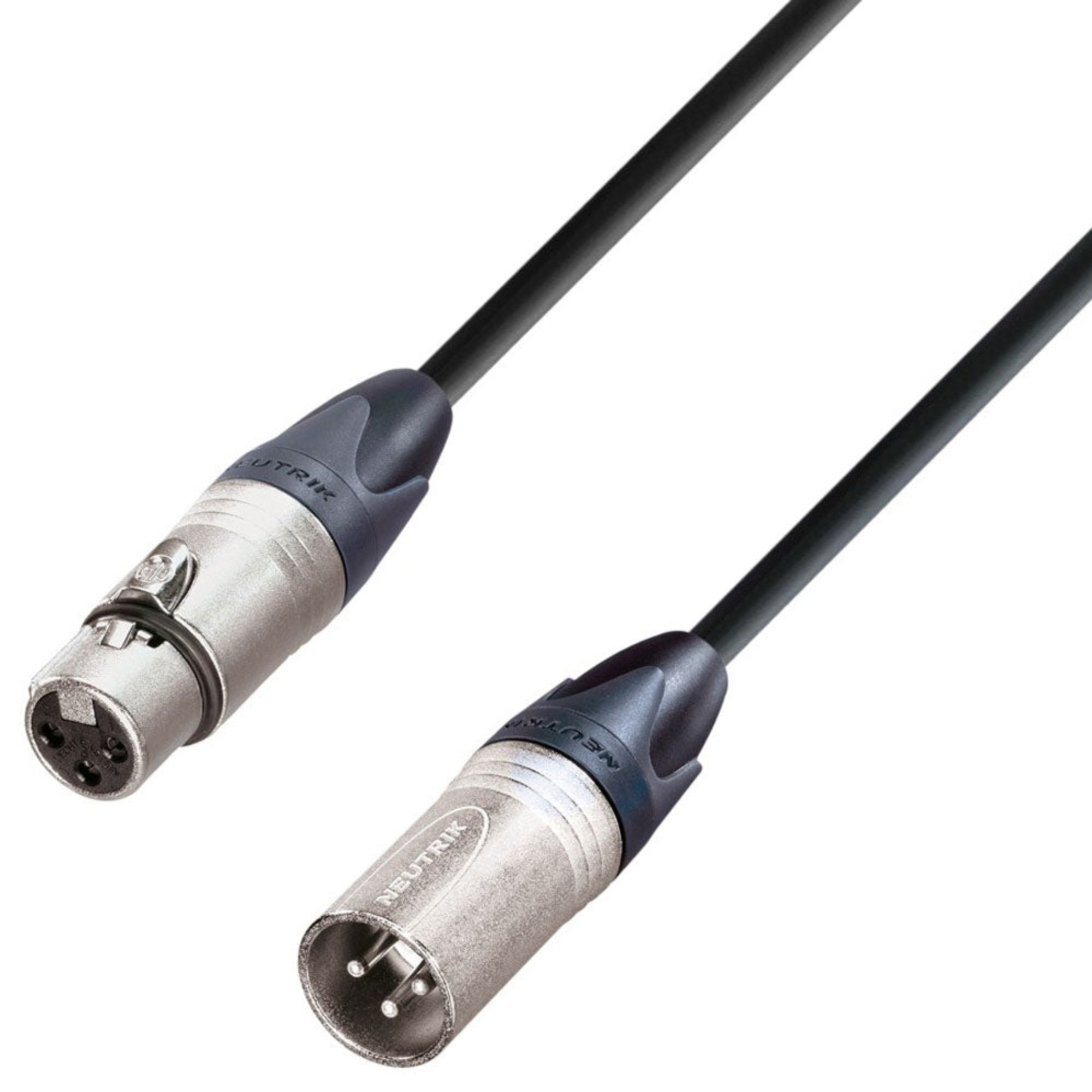

RapcoHorizon NM1-10 Microphone Cable with Neutrik XLR Connectors (10')

RapcoHorizon SKU: HOR NM110
MPN: NM1-10 UPC: 765811355021
Price:
$20.71
Stock:
60 In Stock & Ready to Ship

Make it a bundle

Rode RODECaster Pro II Ultimate 2-Person Podcasting Kit with PodMics, Broadcast Arms & Headphones Image 1 11% OFF
Rode RODECaster Pro II Ultimate 2-Person Podcasting Kit with PodMics, Broadcast Arms & Headphones
$1,305.01 $1,159.75
-$145.26
Rode RODECaster Pro II Ultimate 1-Person Podcasting Kit with SM7B Mic, Broadcast Arm & Headphones Image 1 10% OFF
Rode RODECaster Pro II Ultimate 1-Person Podcasting Kit with SM7B Mic, Broadcast Arm & Headphones
$1,309.50 $1,178.70
-$130.80
Rode RODECaster Pro II Ultimate 4-Person Podcasting Kit with PodMics, Broadcast Arms & Headphones Image 1 10% OFF
Rode RODECaster Pro II Ultimate 4-Person Podcasting Kit with PodMics, Broadcast Arms & Headphones
$1,896.03 $1,699.86
-$196.17
Rode RODECaster Pro II Ultimate 1-Person Podcasting Kit with PodMic, Broadcast Arm & Headphones Image 1 12% OFF
Rode RODECaster Pro II Ultimate 1-Person Podcasting Kit with PodMic, Broadcast Arm & Headphones
$1,009.50 $889.70
-$119.80
Rode RODECaster Duo Ultimate 2-Person Podcasting Kit with SM7B Mics, Boom Arms & Headphones Image 1 3% OFF
Rode RODECaster Duo Ultimate 2-Person Podcasting Kit with SM7B Mics, Boom Arms & Headphones
$1,705.01 $1,659.97
-$45.04
Rode RODECaster Duo Ultimate 1-Person Podcasting Kit with SM7B Mic, Boom Arm & Headphones Image 1 4% OFF
Rode RODECaster Duo Ultimate 1-Person Podcasting Kit with SM7B Mic, Boom Arm & Headphones
$1,109.50 $1,068.03
-$41.47
Rode RODECaster Duo Ultimate 1-Person Podcasting Kit with RE20 Mic, Boom Arm & Headphones (Black) Image 1 7% OFF
Rode RODECaster Duo Ultimate 1-Person Podcasting Kit with RE20 Mic, Boom Arm & Headphones (Black)
$1,159.50 $1,077.03
-$82.47
Rode RODECaster Duo Ultimate 2-Person Podcasting Kit with PodMics, Boom Arms & Headphones Image 1 5% OFF
Rode RODECaster Duo Ultimate 2-Person Podcasting Kit with PodMics, Boom Arms & Headphones
$1,105.01 $1,047.97
-$57.04
Rode RODECaster Duo Ultimate 1-Person Podcasting Kit with PodMic, Boom Arm & Headphones Image 1 6% OFF
Rode RODECaster Duo Ultimate 1-Person Podcasting Kit with PodMic, Boom Arm & Headphones
$811.89 $762.03
-$49.86
Shure SM7B Dynamic Vocal Microphone Broadcasting Bundle (Cloudlifter) Image 1 3% OFF
Shure SM7B Dynamic Vocal Microphone Broadcasting Bundle (Cloudlifter)
$665.51 $645.94
-$19.57
Shure SM7B Microphone with Podcasting Ultimate Bundle Image 1 16% OFF
Shure SM7B Microphone with Podcasting Ultimate Bundle
$1,743.51 $1,458.35
-$285.16
Rode RODECaster Pro II Ultimate 4-Person Podcasting Kit with SM7B Mics, Broadcast Arms & Headphones Image 1 8% OFF
Rode RODECaster Pro II Ultimate 4-Person Podcasting Kit with SM7B Mics, Broadcast Arms & Headphones
$3,096.03 $2,855.86
-$240.17

Key Features

  • 10 ft. (3.0 m) Cable Length
  • Neutrik XX Series XLR Connectors
  • Heavy Duty PVC Jacket
  • Flexible Yet Durable
  • Very Low Cable Memory
  • Individually Tested

Description

RapcoHorizon NM1-10, 10-foot balanced XLR microphone cable

The RapcoHorizon NM1-10 is a finished 10-foot balanced microphone cable with Neutrik 3-pin XLR female and male connectors with silver contacts. Two 24-AWG copper conductors, a spiral copper shield and a flexible matte PVC jacket provide a practical connection for compatible microphones and balanced analog audio equipment.

Other lengths with Neutrik XLR connectors: 1 ft · 2 ft · 3 ft · 6 ft · 15 ft · 25 ft · 50 ft · 75 ft · 100 ft.

Check connections and routing

The female cable end mates with a typical microphone's male XLR output; the male cable end mates with a mixer, preamp or interface's female XLR input. Check both devices' signal requirements. This carries one balanced mono analog signal, not a stereo pair, and is not a speaker cable or purpose-specified AES/EBU or DMX cable. Allow length for routing, connector access and service slack.

Construction and handling

MIC1.K cable uses bare copper conductors and a bare annealed copper serve shield with 95% coverage. Its flexible, low-memory matte PVC jacket helps routing and coiling. Shielding supports noise control without guaranteeing elimination of hum or interference. The listed connector types are Neutrik NC3FXX and NC3MXX-style. Release the latch where applicable and grip the connector body, not the cable, when disconnecting.

Features

  • Finished 10-foot male-to-female 3-pin XLR cable with Neutrik silver-contact connectors.
  • Two 24-AWG copper conductors and flexible copper serve shield.
  • 95% shield coverage.
  • Flexible, durable, low-memory matte PVC jacket.
  • Individually tested for performance and quality.

Specifications

  • Model: NM1-10; length: 10 feet.
  • Cable: MIC1.K; conductors: two 24 AWG.
  • Shield: bare annealed copper serve, 95% coverage.
  • Jacket: matte PVC; outside diameter: 0.230 inch.
  • Listed capacitance: 21 pF/ft at 1 kHz.
  • Conductor-to-shield capacitance: 37 pF/ft at 1 kHz.
  • Nominal characteristic impedance: 70 Ω.
  • DC resistance at 20°C: 23 Ω/1,000 ft.

Other configurations

The broader series offers other lengths, colors and connector brands; additional lengths are available upon request. These are separate configurations. Confirm the required configuration and availability before ordering an alternative.

Details
  • Manufacturer:  RapcoHorizon
  • MPN: NM1-10
  • Model Number: NM1-10
  • UPC: 765811355021
