Evidence Audio ESP-RA-S Tiny Pancake Right-Angle 1/4" TS Mono Cable Plug (4mm Cable)

Compact soldered TS plug for pedalboard patch cables

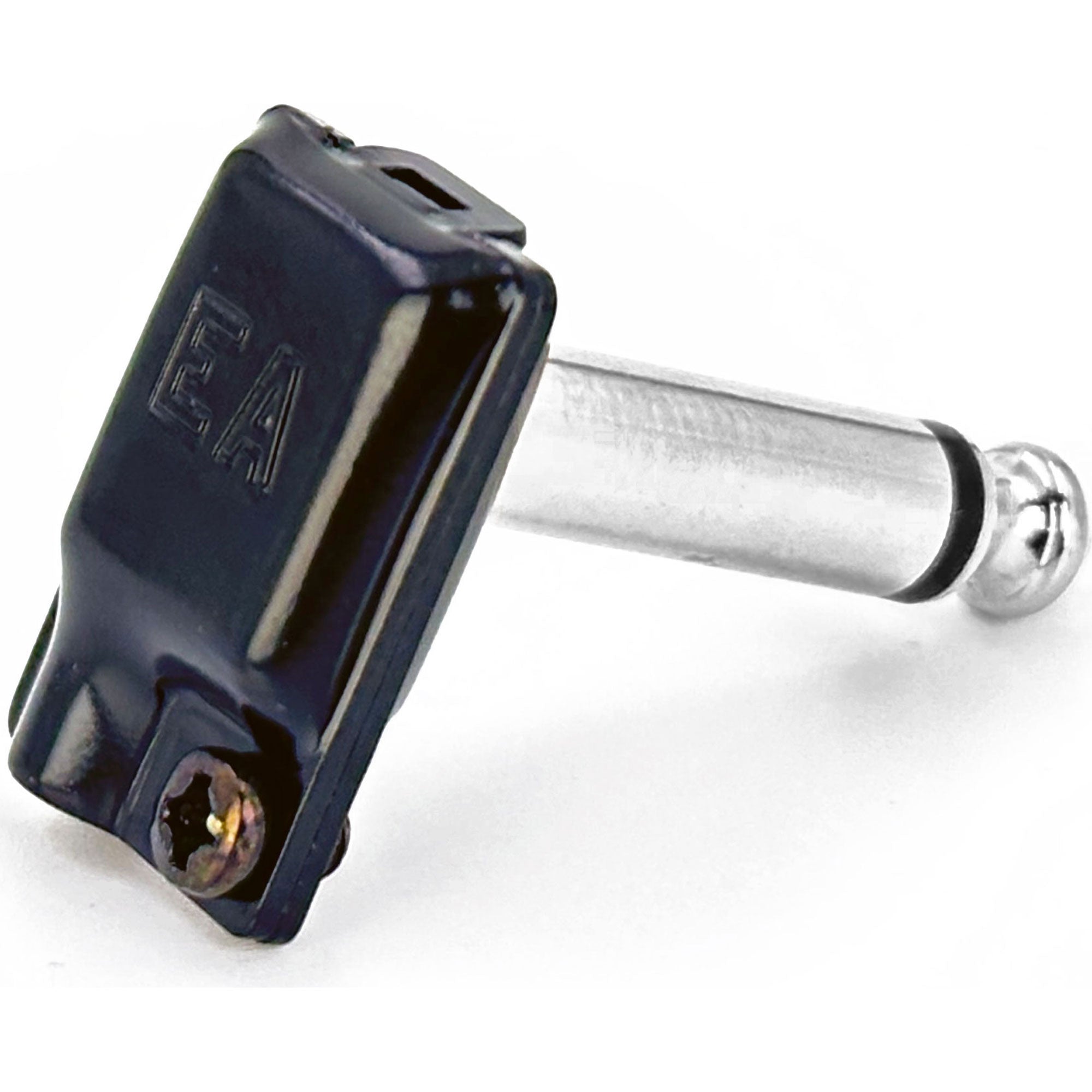

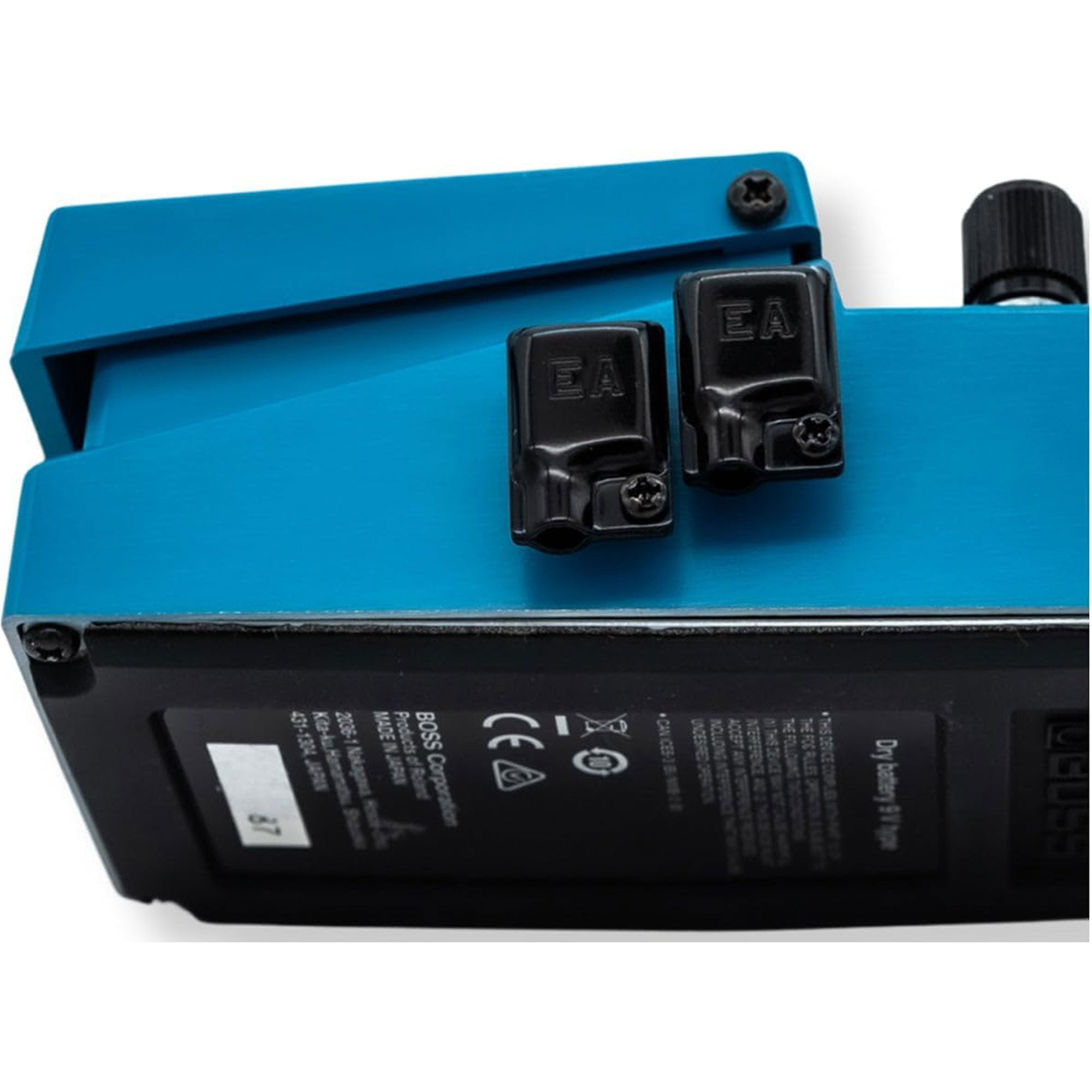

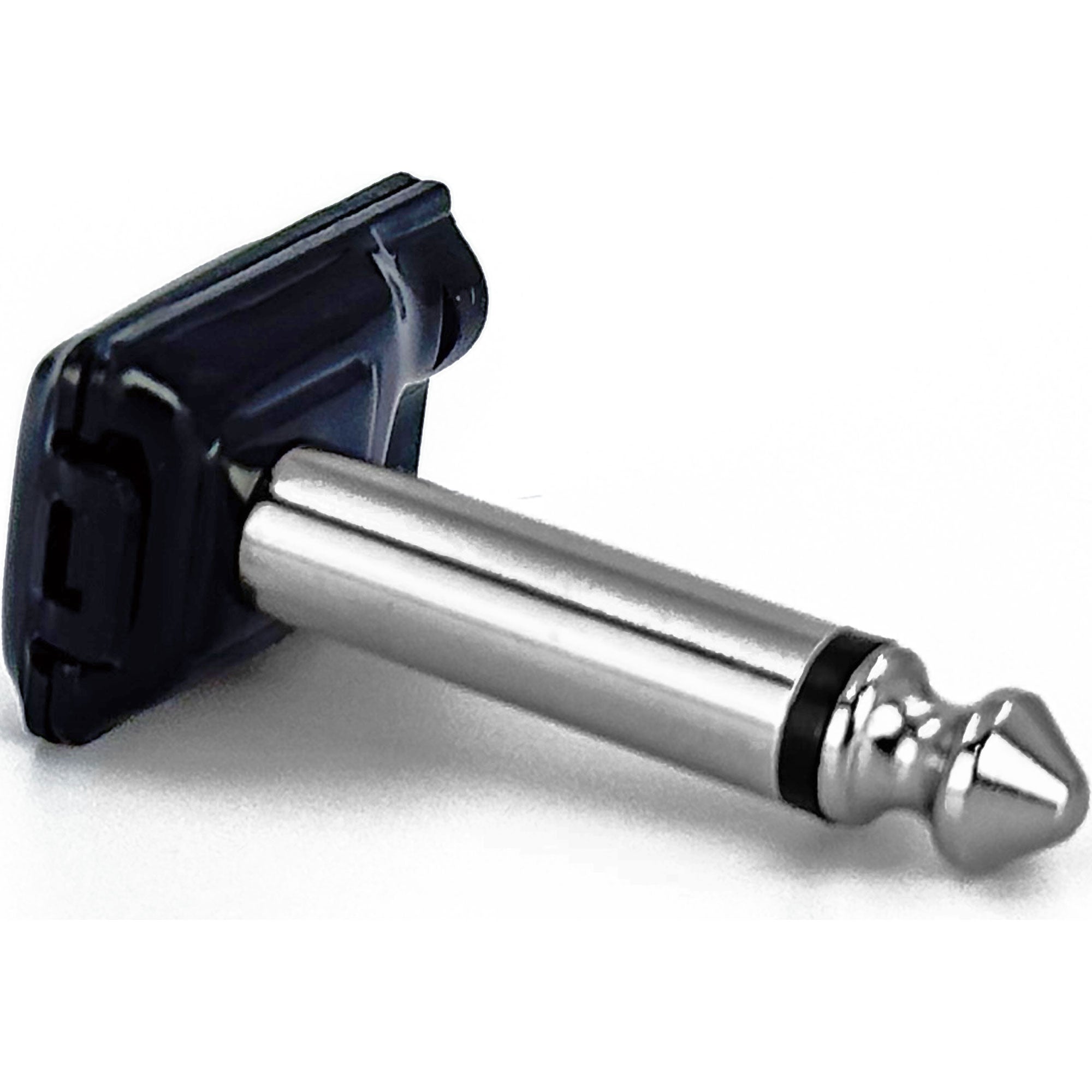

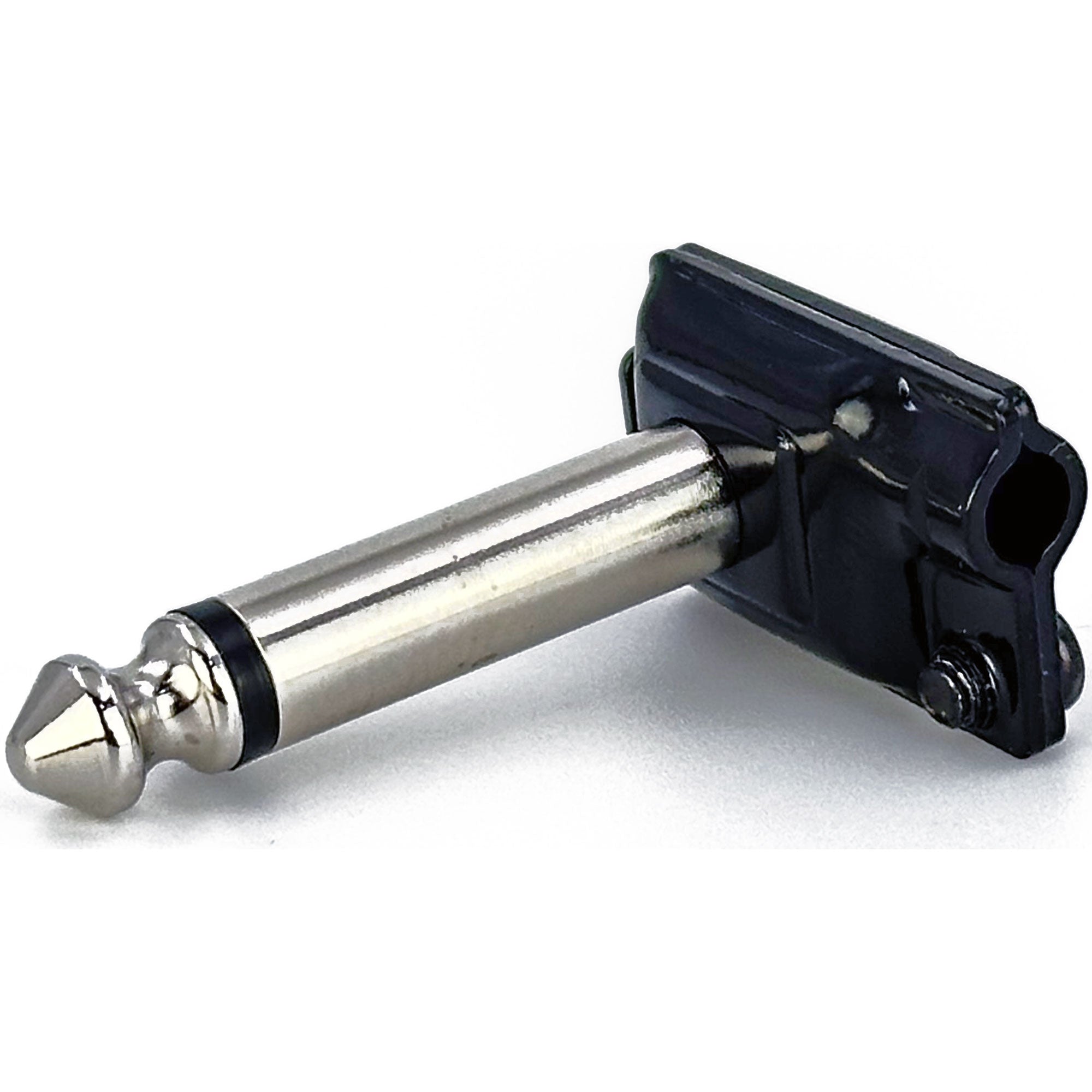

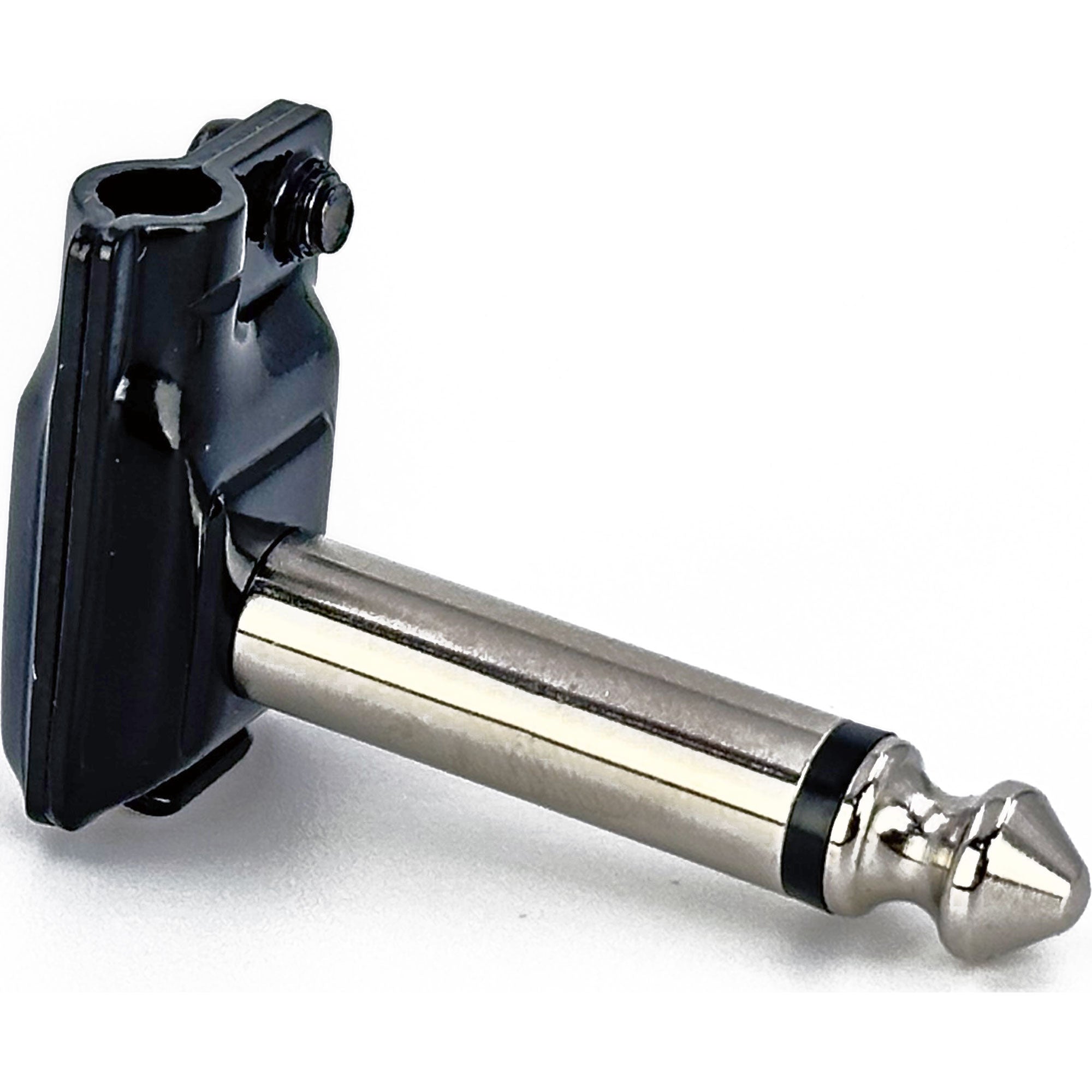

The Evidence Audio ESP-RA-S is a right-angle 1/4-inch TS mono cable plug for building your own patch cables. Its compact pancake housing and single-screw latch closure help conserve space around closely positioned pedal and switching-system jacks.

Cable fit and compatibility

Designed for mono cable with an outer diameter of approximately 4 mm. Listed compatible cables include Mogami W2314, Canare GS-4, and Evidence Audio Monorail.

This is a two-contact tip/sleeve connector for TS mono wiring, not a TRS connector. Check your cable diameter and equipment connection requirements before ordering.

Assembly and jack clearance

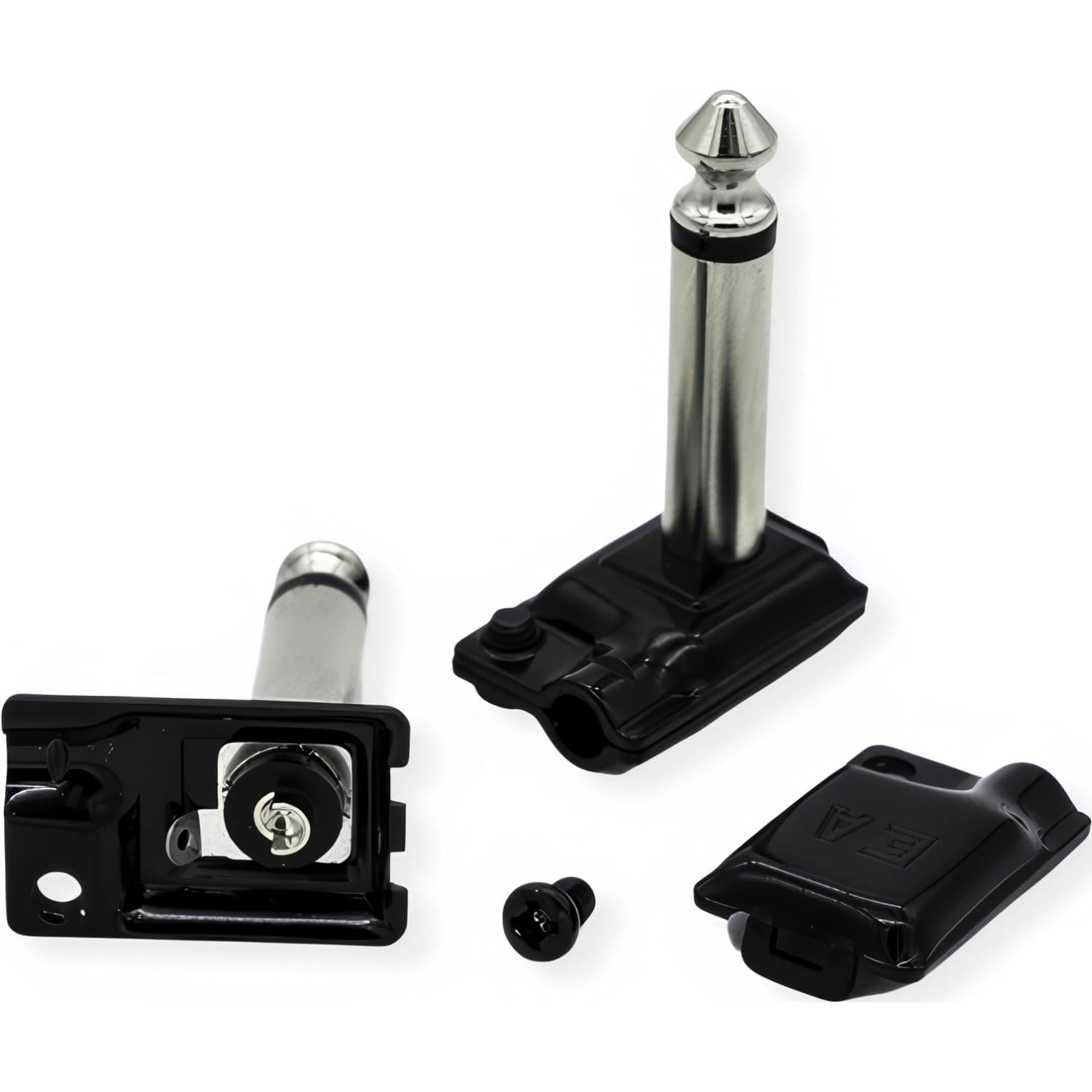

This is a soldered connector, not a solderless plug or a finished patch cable. Cable and soldering equipment are needed to complete your assembly. Follow the connector’s assembly instructions when preparing and soldering the cable.

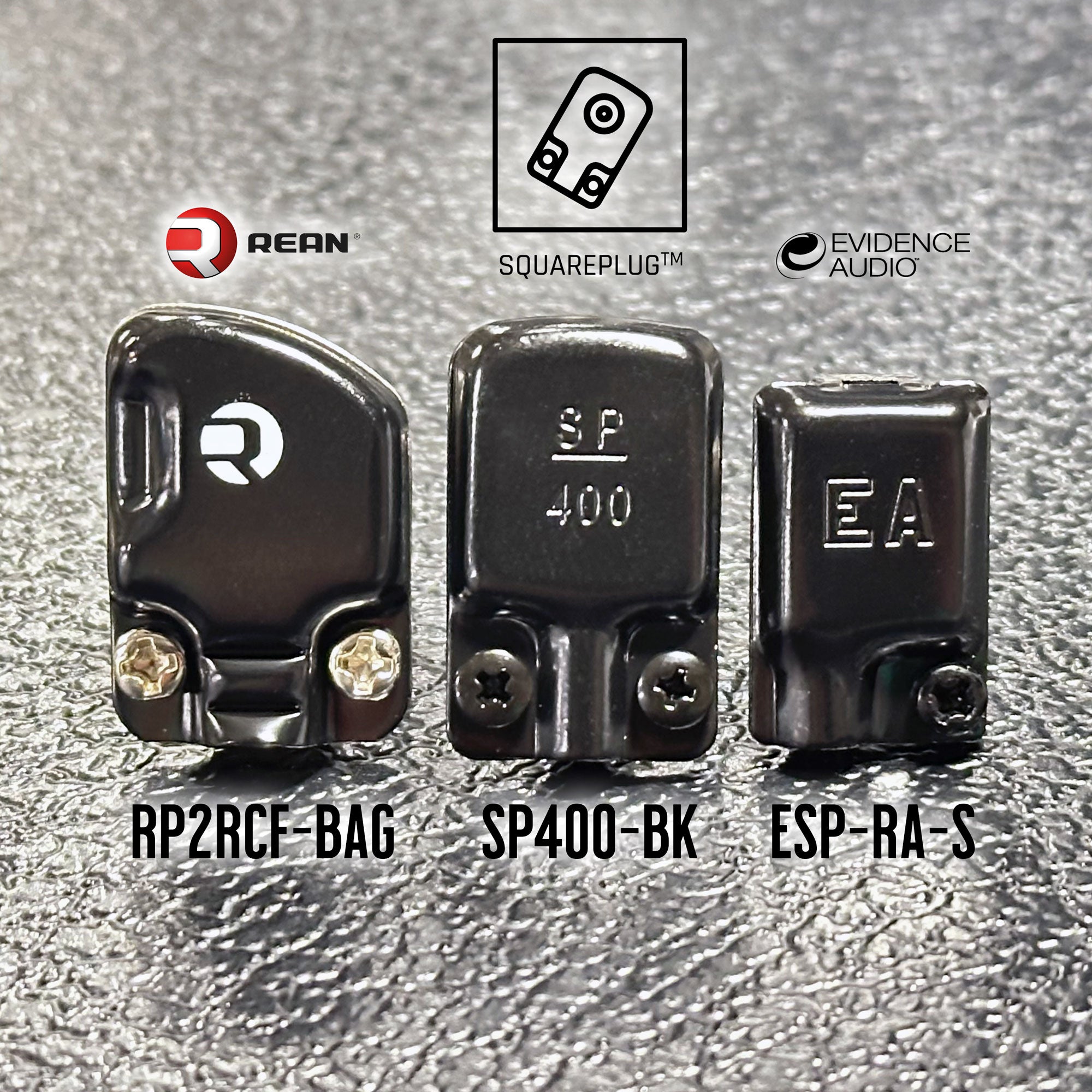

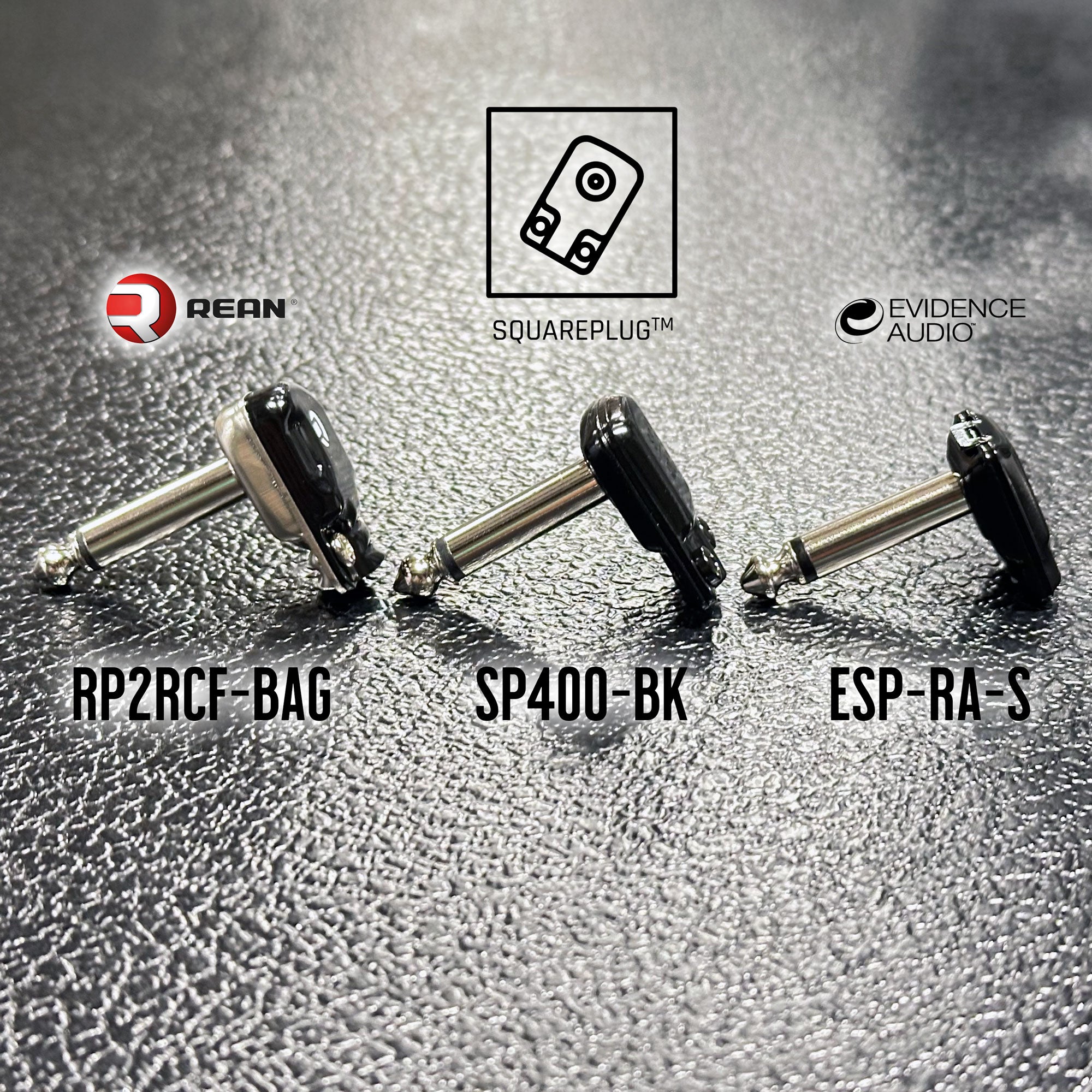

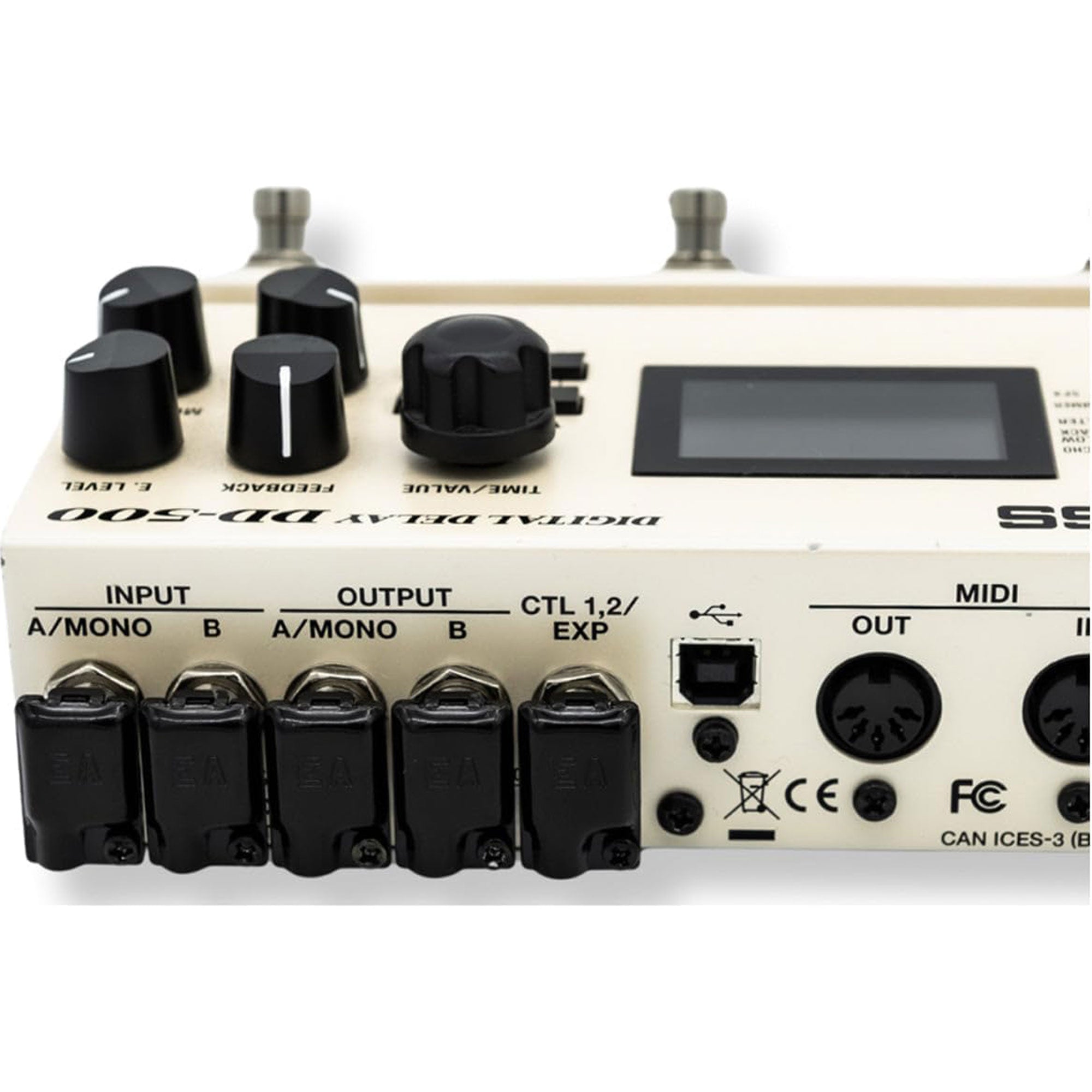

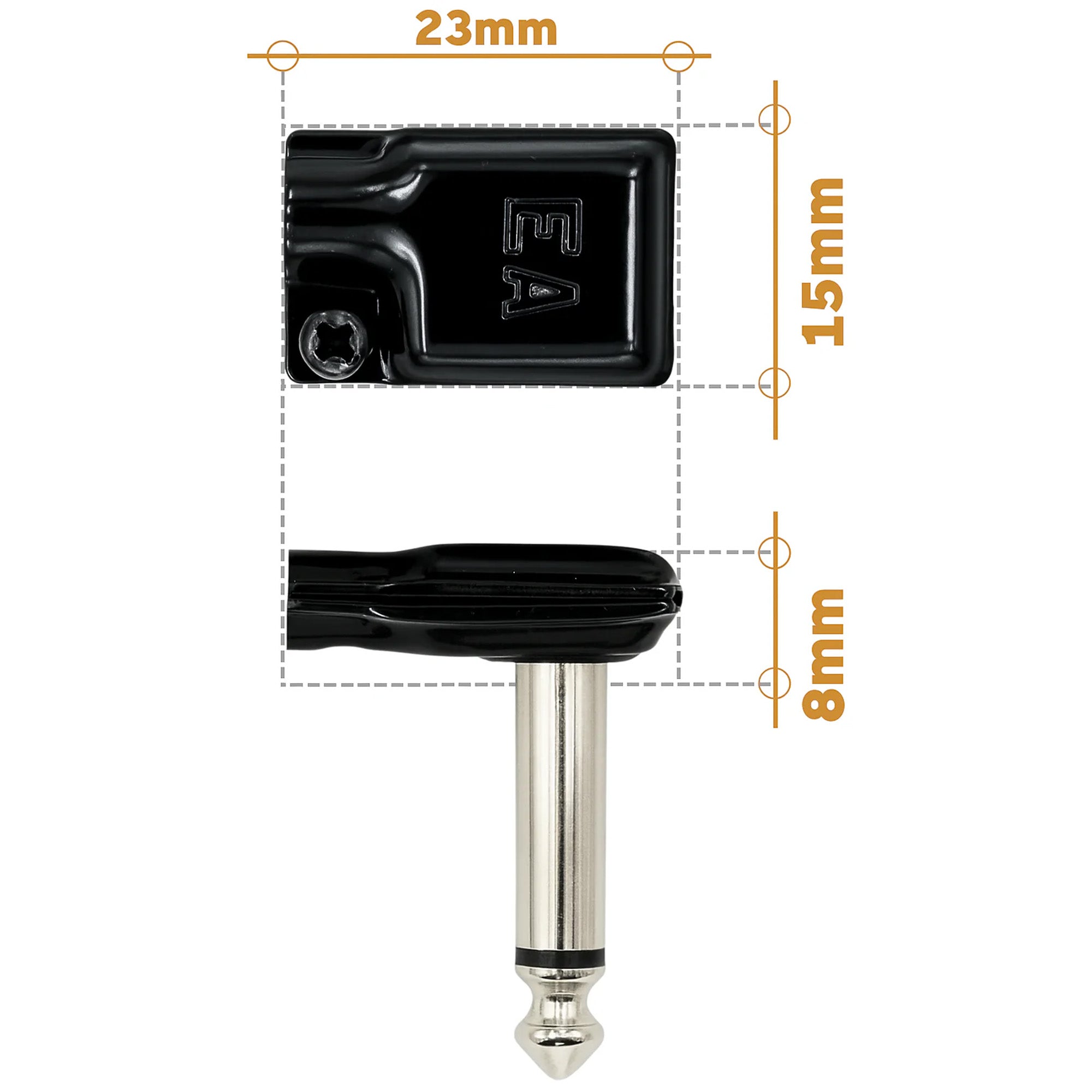

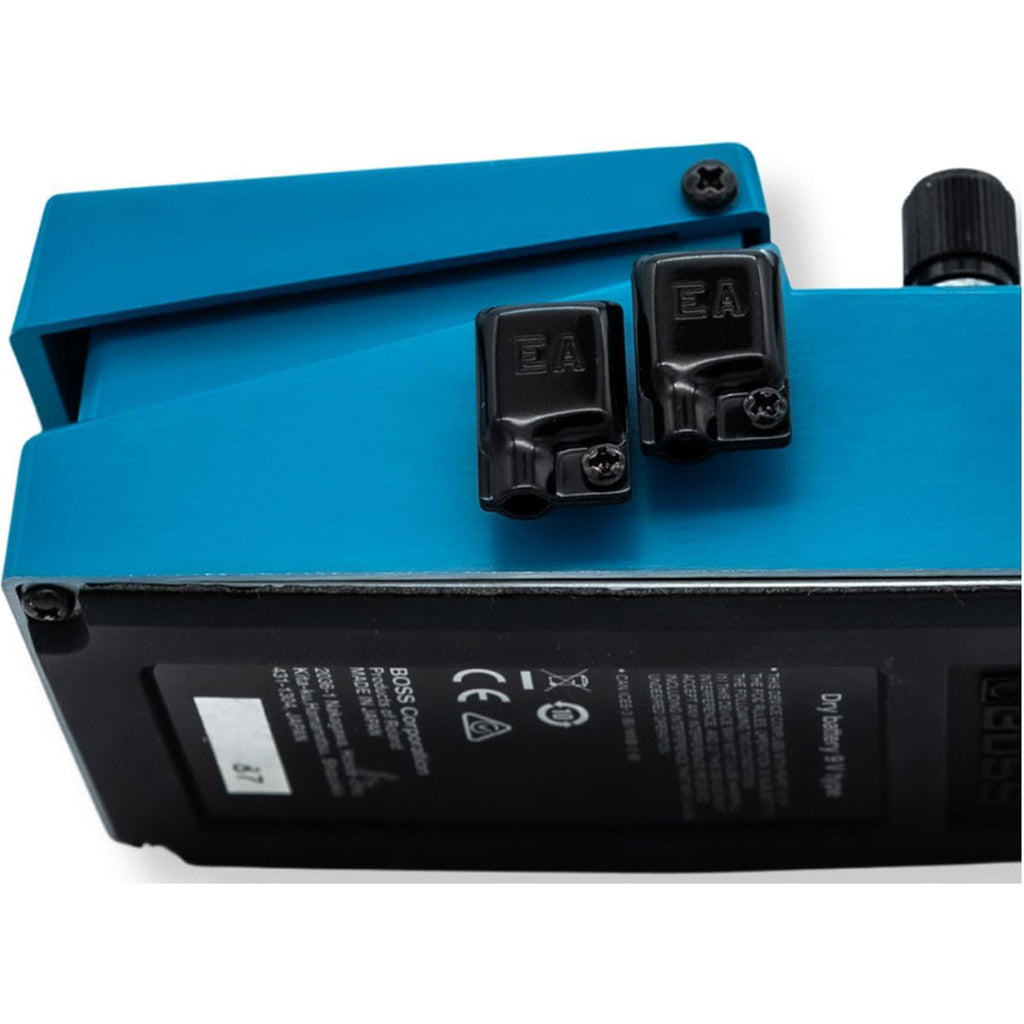

The housing measures 15 mm wide × 23 mm high × 8 mm deep. Check spacing around adjacent jacks, recessed sockets, and enclosure edges before choosing a pancake plug; compact dimensions do not guarantee a fit on every device.

Features

• Compact right-angle pancake housing for custom patch cables.

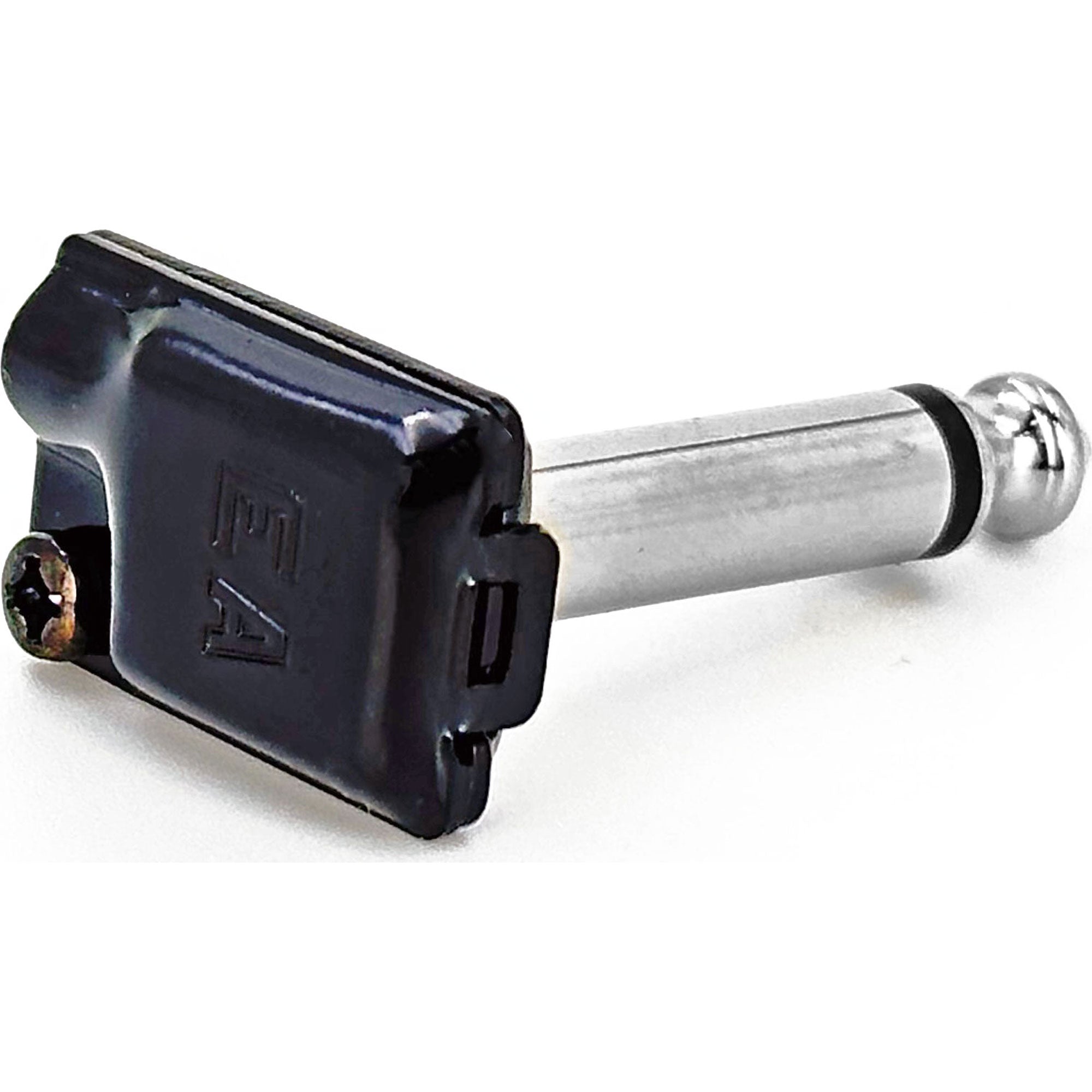

• Single-screw latch closure.
• Soldered tip/sleeve mono connection.

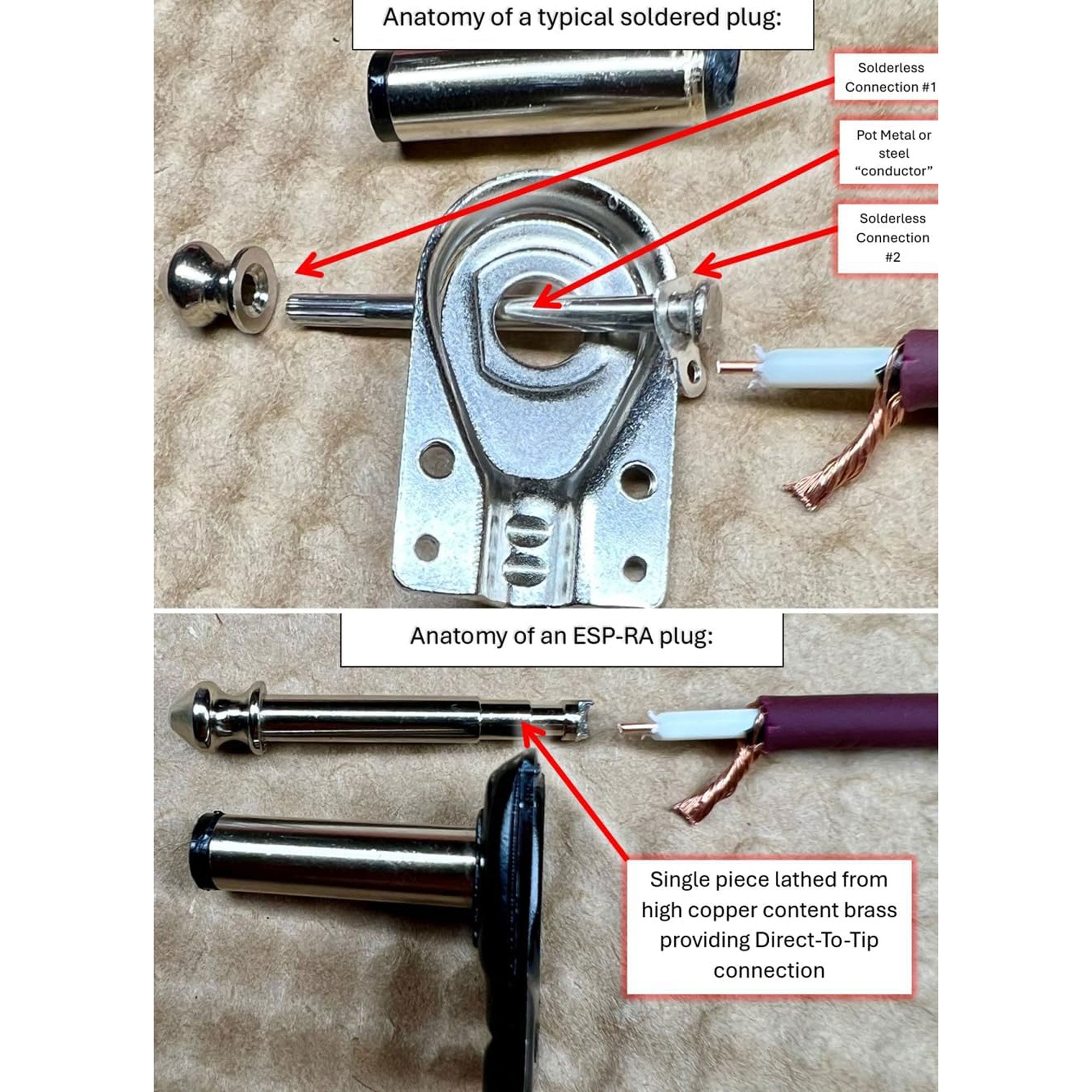

• High-copper-content brass contact points with direct nickel plating.
• Designed for approximately 4 mm cable outer diameter.

Specifications

• Model: ESP-RA-S
• Plug type: 1/4-inch TS mono, right-angle
• Termination: Soldered
• Cable outer diameter: Approximately 4 mm
• Housing width: 15 mm
• Housing height: 23 mm
• Housing depth: 8 mm
• Contact material: Brass with direct nickel plating
• Listed compatible cables: Mogami W2314, Canare GS-4, Evidence Audio Monorail
• GTIN: 00850045959364
