Evidence Audio ESP-RA-L Tiny Pancake Right-Angle 1/4" TS Mono Cable Plug (5mm Cable)

The Evidence Audio ESP-RA-L is a compact, solderable 1/4-inch TS right-angle plug designed for mono cables with an outer diameter of approximately 5 mm. Its low-profile pancake housing is a practical choice for custom patch cables when you want to keep connections compact around pedals, switchers, and other audio equipment.

Designed for Approximately 5 mm Mono Cable

The ESP-RA-L accommodates a single mono cable, with Mogami W2319 listed by Evidence Audio as a compatible example. Choose this version for approximately 5 mm cable rather than the smaller-cable ESP-RA-S or the stereo/balanced ESP-RA-TRS. Soldered termination lets you build patch cables to the lengths your setup needs.

Compact Housing with Single-Screw Assembly

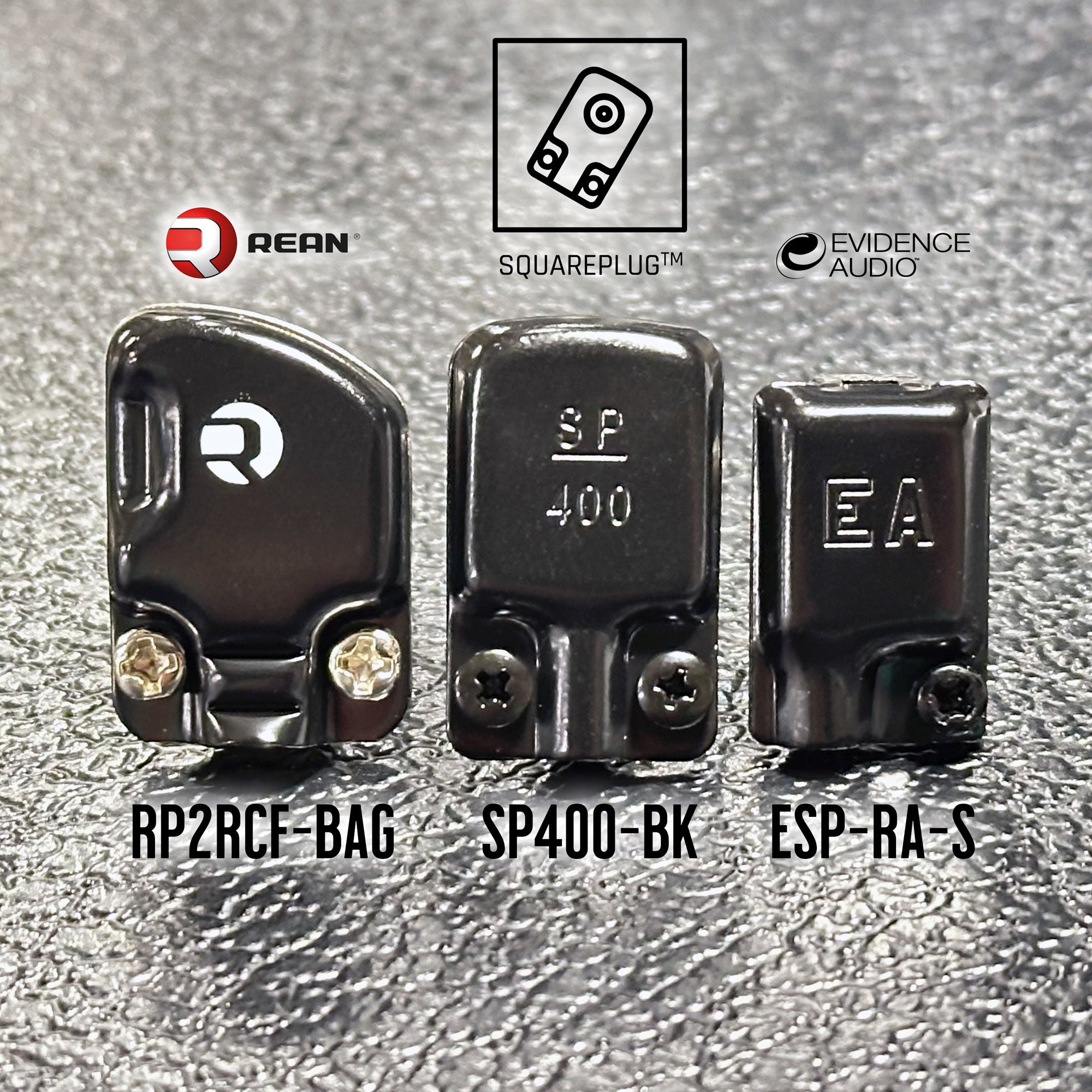

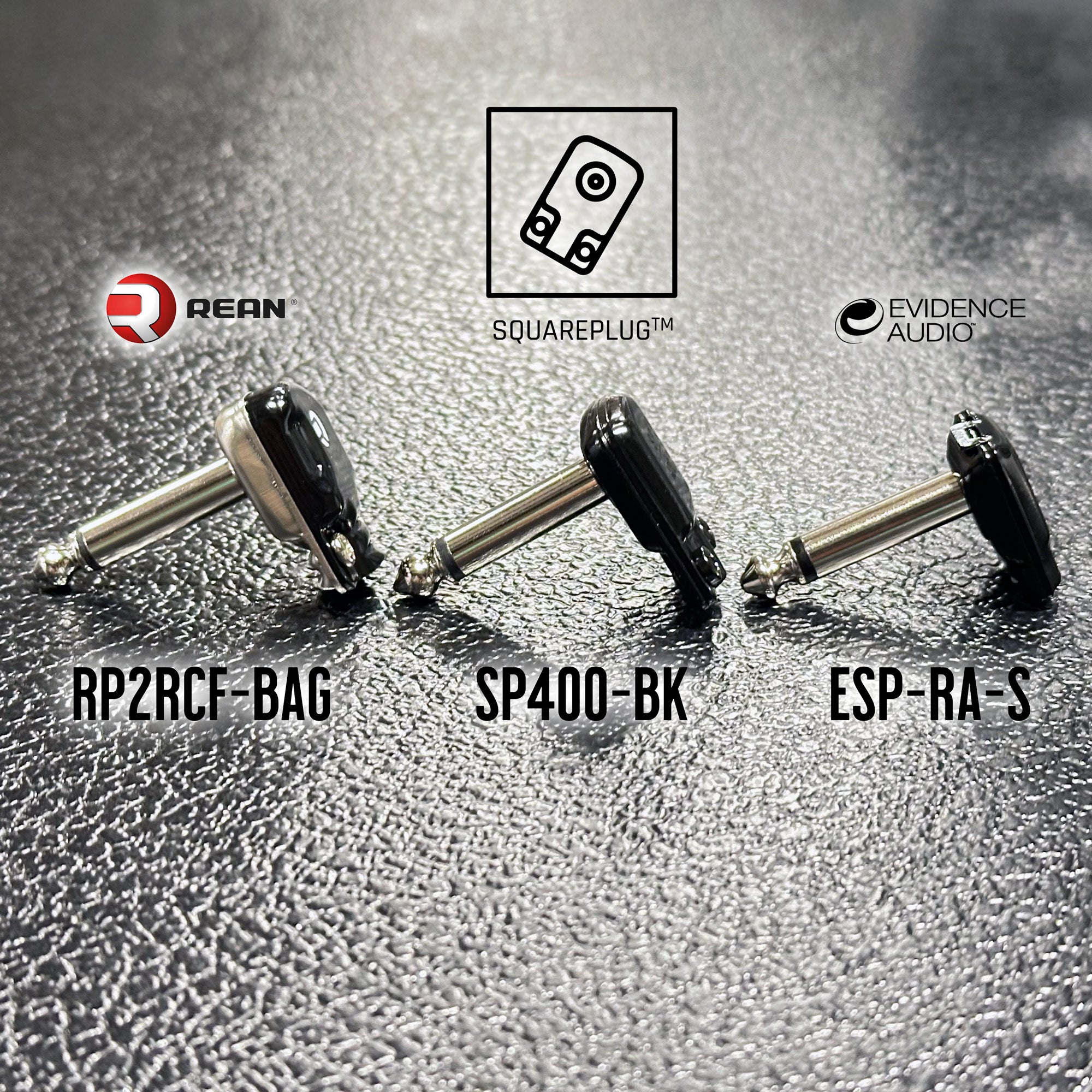

The pancake-style housing measures 15 mm wide by 23 mm high by 8 mm deep. Evidence Audio's closure system uses one screw instead of two, simplifying assembly while keeping the connector compact. When laying out a pedalboard, compare these dimensions with the clearance around adjacent jacks to make sure the plug suits your equipment.

Machined Brass Contacts

The ESP-RA series uses contact points machined from high-copper-content brass. Evidence Audio selects this material for its combination of conductivity, hardness, and strength, providing a solid foundation for a custom soldered cable connection.

Key Features

• 1/4-inch TS right-angle plug for mono cable assemblies
• Designed for cable approximately 5 mm in outer diameter
• Manufacturer-listed compatibility with Mogami W2319
• Low-profile pancake housing for space-conscious cable builds
• Contact points machined from high-copper-content brass
• Single-screw housing closure simplifies assembly
• Soldered termination for custom patch cable construction

Specifications

• Model: ESP-RA-L
• Connector: 1/4-inch TS male, tip-sleeve
• Orientation: Right-angle
• Cable type: Mono
• Cable outer diameter: Approximately 5 mm
• Compatible cable example: Mogami W2319
• Contact material: High-copper-content brass
• Housing dimensions: 15 mm wide x 23 mm high x 8 mm deep
• Termination: Solder
• Housing closure: Single screw
