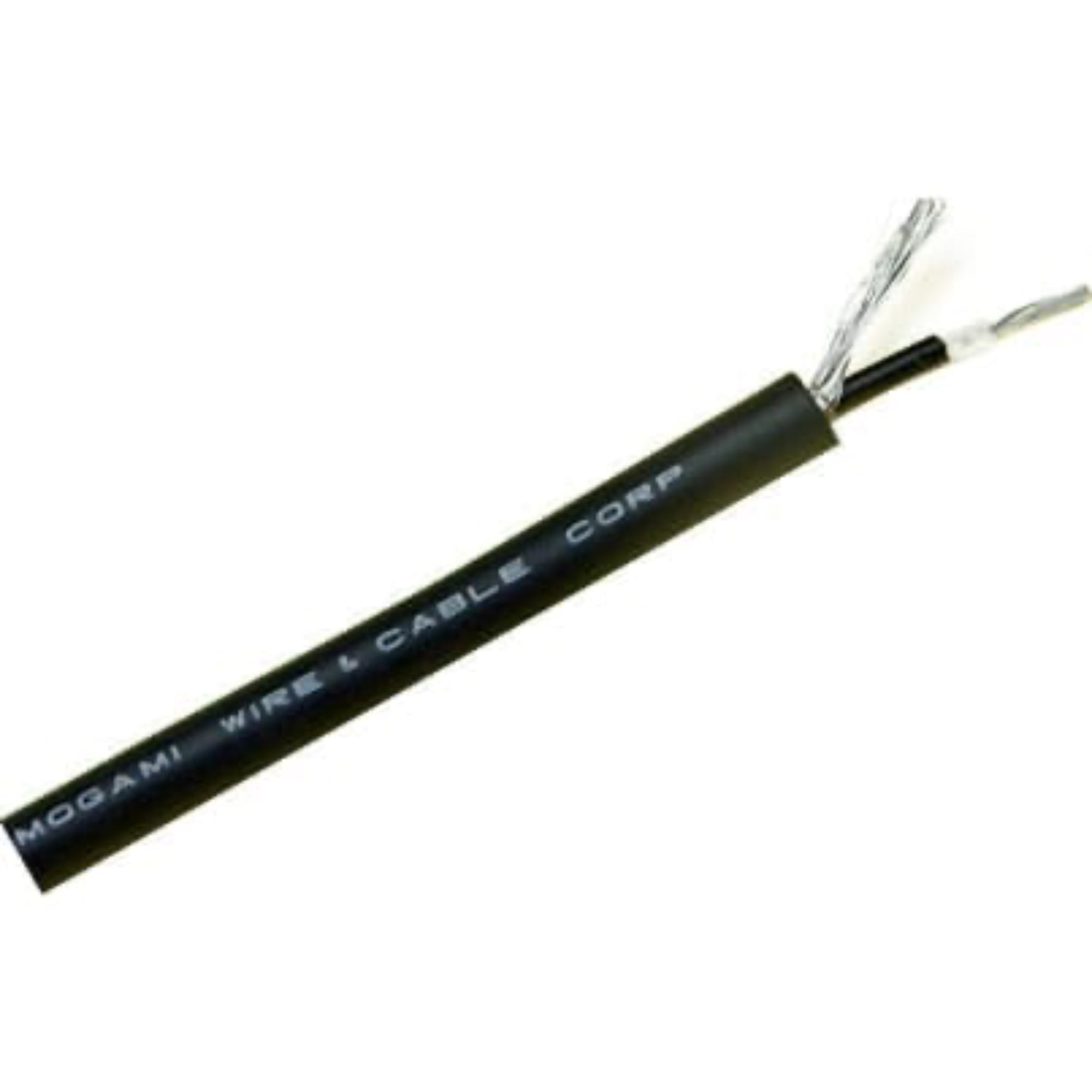

Mogami W2319 Guitar Instrument Cable (By the Foot) Image 1

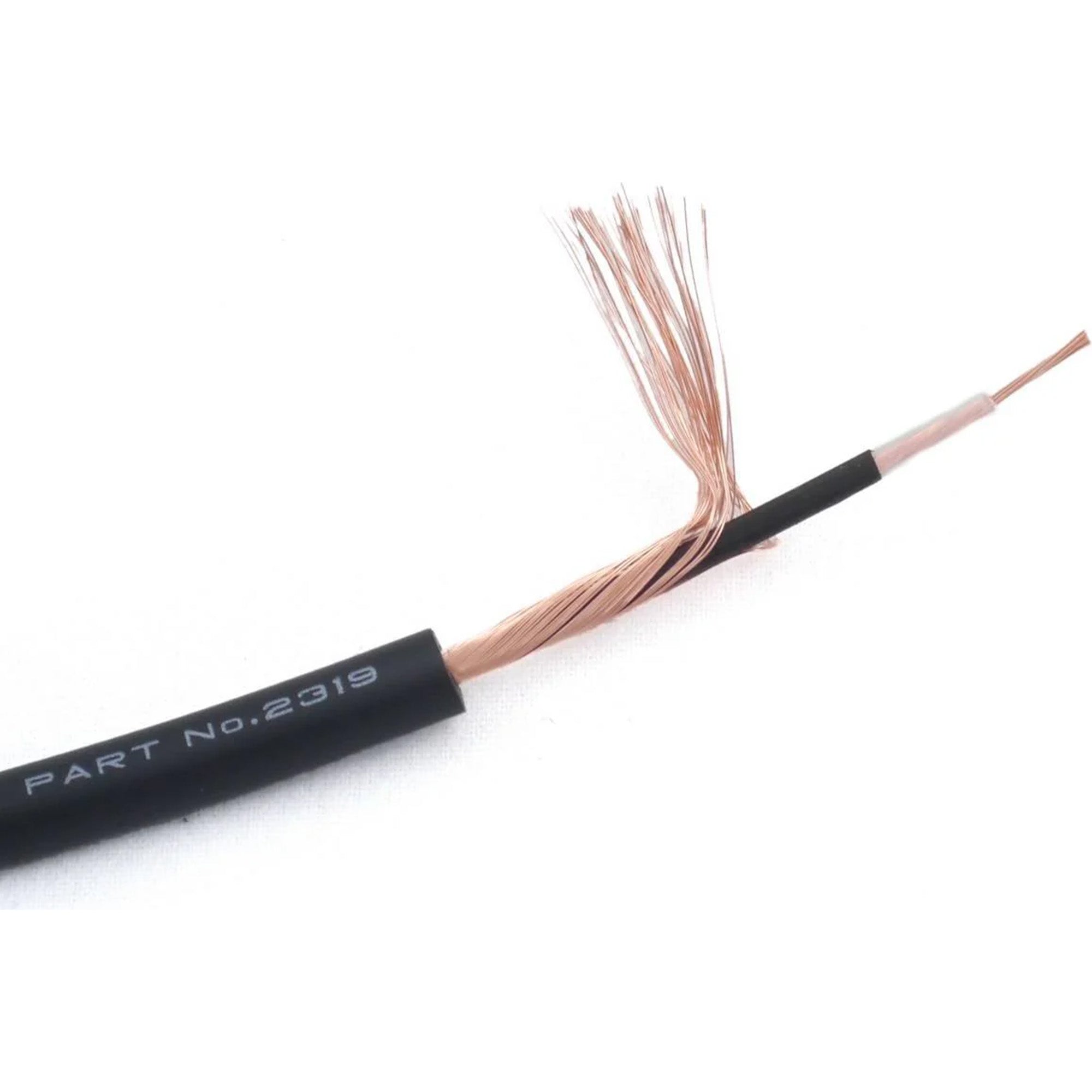

Mogami W2319 Guitar Instrument Cable (By the Foot) Image 2

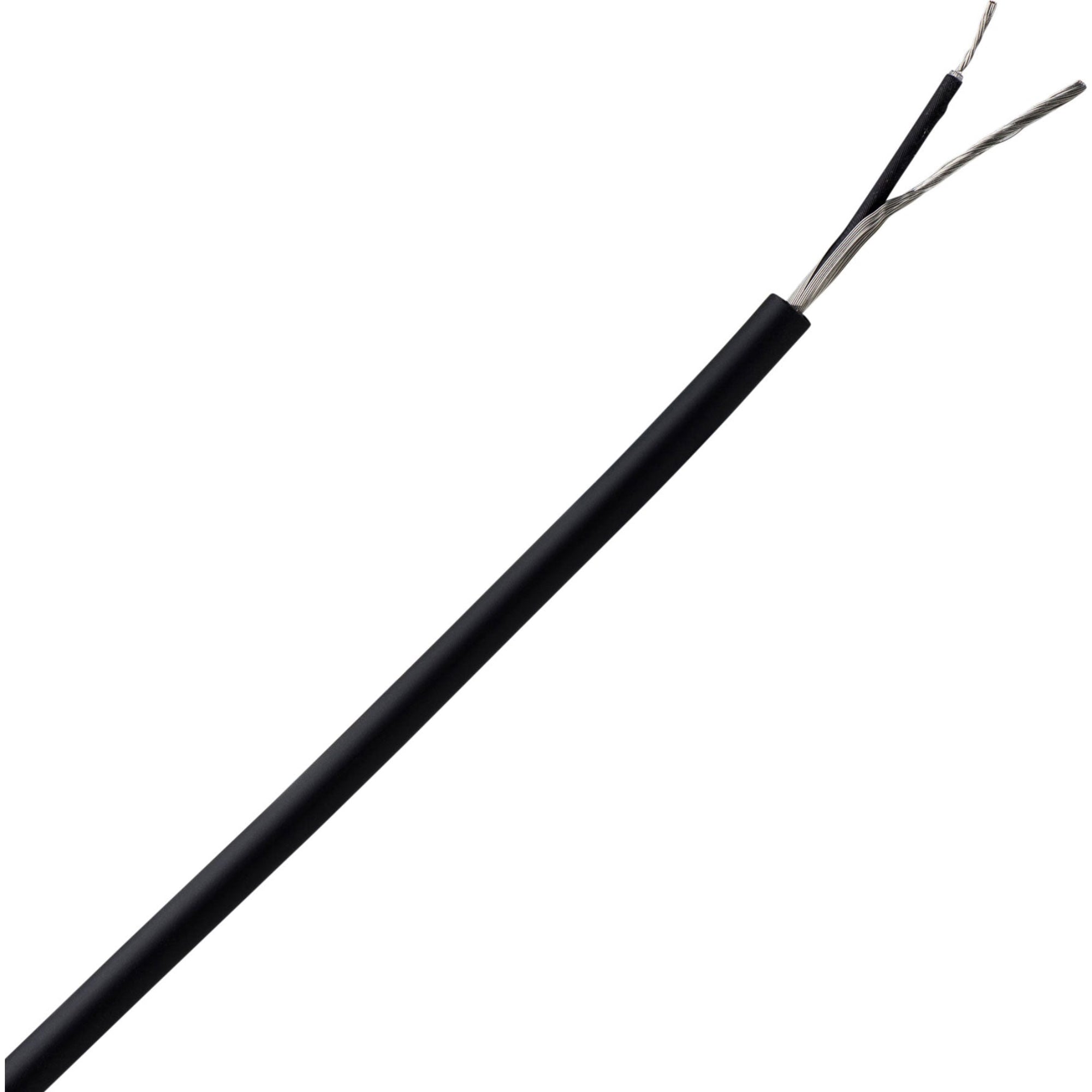

Mogami W2319 Guitar Instrument Cable (By the Foot) Image 3

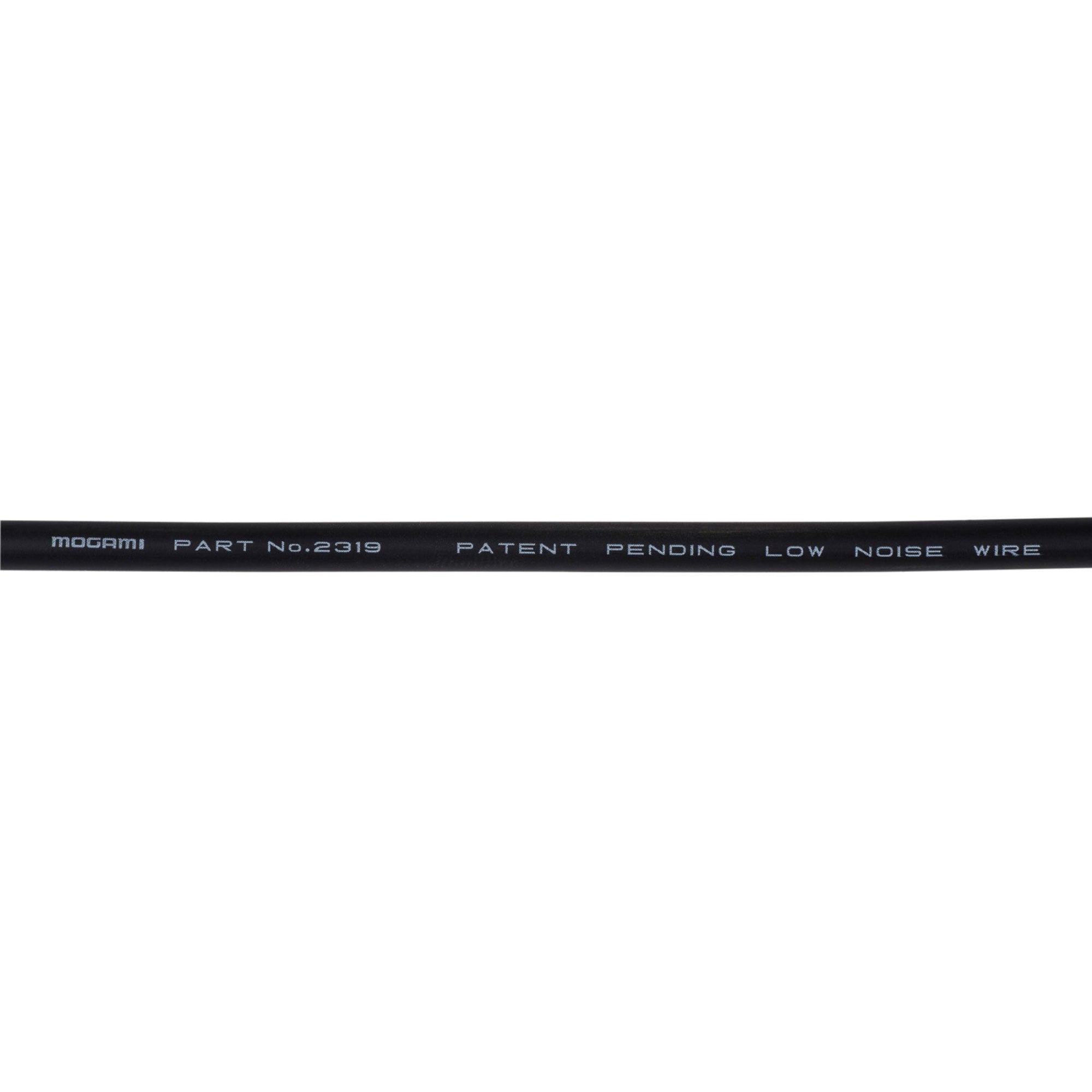

Mogami W2319 Guitar Instrument Cable (By the Foot) Image 4

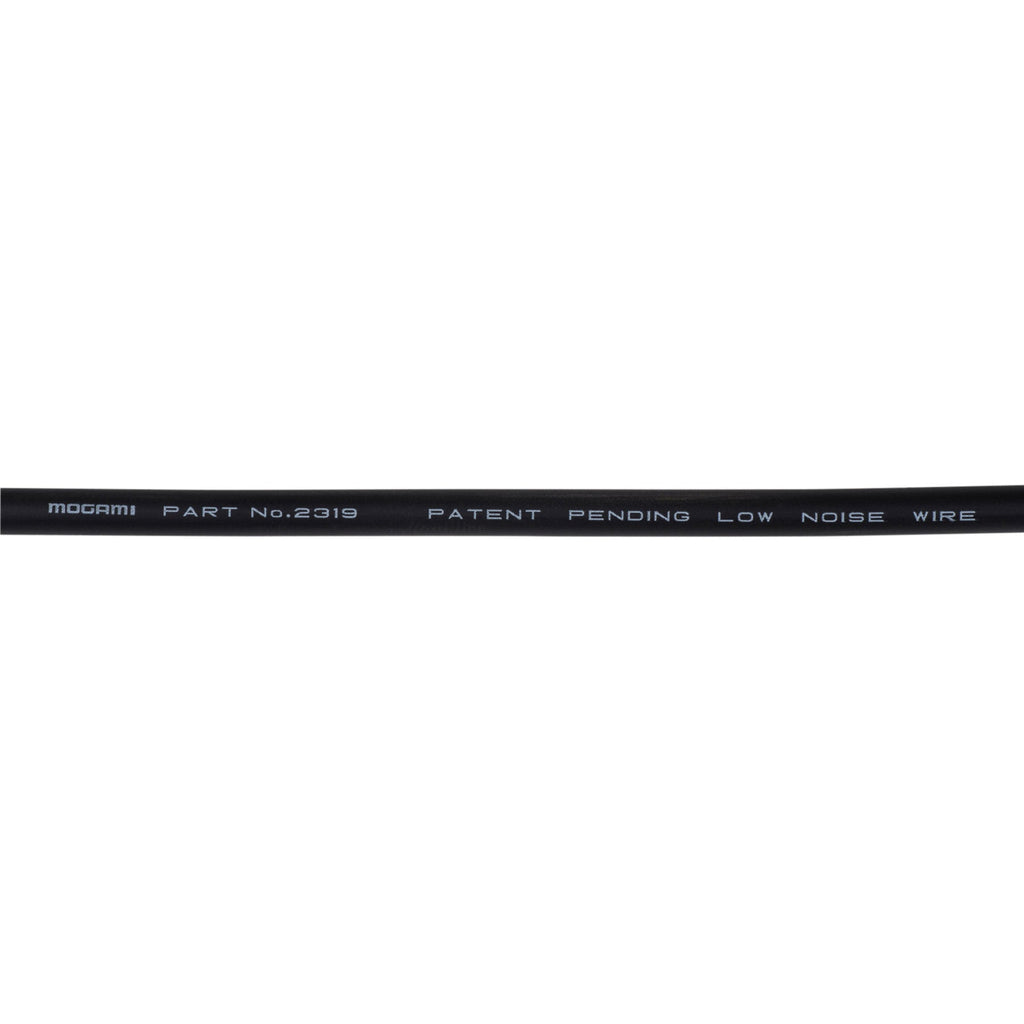

Mogami W2319 Guitar Instrument Cable (By the Foot) Image 5
Roll over image to zoom in Click on image to zoom
Mogami W2319 Guitar Instrument Cable (By the Foot) Image 1Mogami W2319 Guitar Instrument Cable (By the Foot) Image 2Mogami W2319 Guitar Instrument Cable (By the Foot) Image 3Mogami W2319 Guitar Instrument Cable (By the Foot) Image 4Mogami W2319 Guitar Instrument Cable (By the Foot) Image 5 Performance Audio instrument cable assembly guide video

Mogami W2319 Guitar Instrument Cable (By the Foot)

Mogami SKU: MOG W2319
MPN: W2319-00
Price:
$0.59
Stock:
5481 In Stock & Ready to Ship

Make it a bundle

Mogami W2319 Guitar Instrument Cable (164'/50m Roll) Image 1
Mogami W2319 Guitar Instrument Cable (164'/50m Roll)
$91.92
Mogami W2319 Guitar Instrument Cable (656'/200m Roll) Image 1 10% OFF
Mogami W2319 Guitar Instrument Cable (656'/200m Roll)
$387.04 $348.34
-$38.70
Custom Cable 10 Feet of Mogami W2319 Wire Image 1
Custom Cable 10 Feet of Mogami W2319 Wire
$5.90
Custom Cable 50 Feet of Mogami W2319 Wire Image 1
Custom Cable 50 Feet of Mogami W2319 Wire
$29.50
Custom Cable 5 Feet of Mogami W2319 Wire Image 1
Custom Cable 5 Feet of Mogami W2319 Wire
$2.95
Custom Cable 2 Feet of Mogami W2319 Wire Image 1
Custom Cable 2 Feet of Mogami W2319 Wire
$1.18
Custom Cable 40 Feet of Mogami W2319 Wire Image 1
Custom Cable 40 Feet of Mogami W2319 Wire
$23.60
Custom Cable 8 Feet of Mogami W2319 Wire Image 1
Custom Cable 8 Feet of Mogami W2319 Wire
$4.72
Custom Cable 3 Feet of Mogami W2319 Wire Image 1
Custom Cable 3 Feet of Mogami W2319 Wire
$1.77
Custom Cable 16 Feet of Mogami W2319 Wire Image 1
Custom Cable 16 Feet of Mogami W2319 Wire
$9.44
Custom Cable 22 Feet of Mogami W2319 Wire Image 1
Custom Cable 22 Feet of Mogami W2319 Wire
$12.98
Custom Cable 23 Feet of Mogami W2319 Wire Image 1
Custom Cable 23 Feet of Mogami W2319 Wire
$13.57

Key Features

  • Guitar Instrument Cable
  • 23 AWG Conductor
  • 0.197" Outer Diameter
  • Made in Japan
  • Sold by the Foot
  • Shipped in a Continuous Length

Description

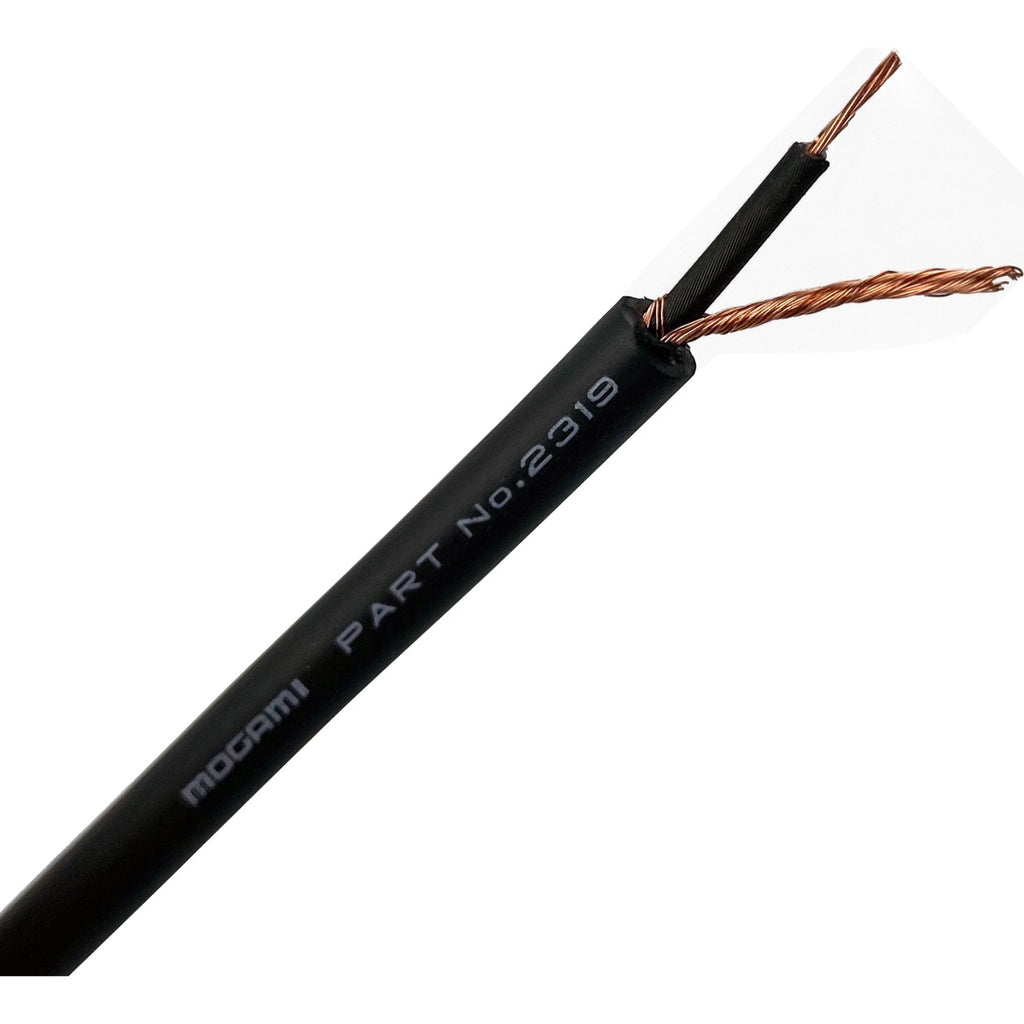

Black Mogami W2319 guitar instrument cable, sold by the foot

Black Mogami W2319 is a single-conductor, shielded instrument cable for custom guitar and other unbalanced instrument connections. It has a 23-AWG conductor, a served main shield, and a conductive PVC sub-shield beneath a 5.0 mm PVC outer jacket. This is bulk cable without connectors, not a finished instrument cable.

How to order your length

Sold by the foot. Enter the number of feet you need in the quantity field. For example, quantity 25 means one continuous 25-foot piece, not separate one-foot sections. This listing is for your selected length, not a full factory roll.

Check connector fit and wiring

The 5.0 mm outside diameter is an important check when choosing connector cable entries and strain relief. Match solder-terminal capacity to the conductor and shield, and follow your equipment's wiring requirements. The single-conductor construction is for unbalanced connections, not a two-conductor balanced microphone cable.

Important termination detail

The Black conductive PVC sub-shield helps control movement-related noise in high-impedance instrument connections. During preparation, remove the conductive layer from the exposed inner insulation at the termination as directed by Mogami. Keep it from contacting the signal conductor or its solder connection, which can cause a short. This conductive layer is separate from the outer Black jacket and the metal served shield.

Soldering and cable assembly are required. Follow the cable and connector manufacturers' preparation instructions, secure the jacket in the strain relief, and check continuity and shorts before use.

Features

  • Single 23-AWG conductor for unbalanced instrument cable builds.
  • Served main shield and conductive PVC sub-shield.
  • Clear polyethylene conductor insulation.
  • Black PVC jacket with a 5.0 mm outside diameter.
  • Sold by the foot in one continuous requested length.
  • Bulk cable; connectors are not included.

Construction specifications

  • Model: W2319
  • Signal conductor count: One
  • Conductor size: 23 AWG, 0.305 mm²
  • Conductor construction: 12 strands × 0.18 mm, listed as 12/0.18TA
  • Insulated conductor outside diameter: 1.6 mm, 0.063 in.
  • Insulation: Clear PE
  • Sub-shield outside diameter: 1.8 mm, 0.071 in.
  • Sub-shield: Black conductive PVC, carbon PVC
  • Main shield: Served, approximately 38 × 0.16 mm, listed as 38/0.16TA
  • Jacket: Black PVC
  • Overall jacket diameter: 5.0 mm, 0.197 in.
  • Cable weight: 3.5 kg per 100 m

Electrical and mechanical specifications

  • Inner conductor DC resistance at 20°C: 0.064 Ω/m
  • Shield DC resistance at 20°C: 0.026 Ω/m
  • Capacitance at 1 kHz and 20°C: 155 pF/m, 47.3 pF/ft
  • Inductance: 0.3 µH/m, 0.092 µH/ft
  • Electrostatic noise: 0.13 mV maximum under Mogami's standard test method
  • Electromagnetic noise at 10 kHz: 0.07 mV maximum under Mogami's standard test method
  • Microphonics: 0.3 mV maximum under Mogami's standard test method
  • Voltage breakdown test: 500 V DC for 15 seconds; a test specification, not an operating-voltage recommendation
  • Insulation resistance: 100,000 MΩ·m minimum at 500 V DC and 20°C
  • Listed flex life: 11,000 cycles
  • Tensile strength at 26°C and 65% relative humidity: 303 N
  • Listed material migration characteristic: Non-migrating to ABS resin
  • Operating temperature: −20°C to +60°C, −4°F to +140°F
Details
  • Manufacturer:  Mogami
  • MPN: W2319-00
  • Model Number: W2319
