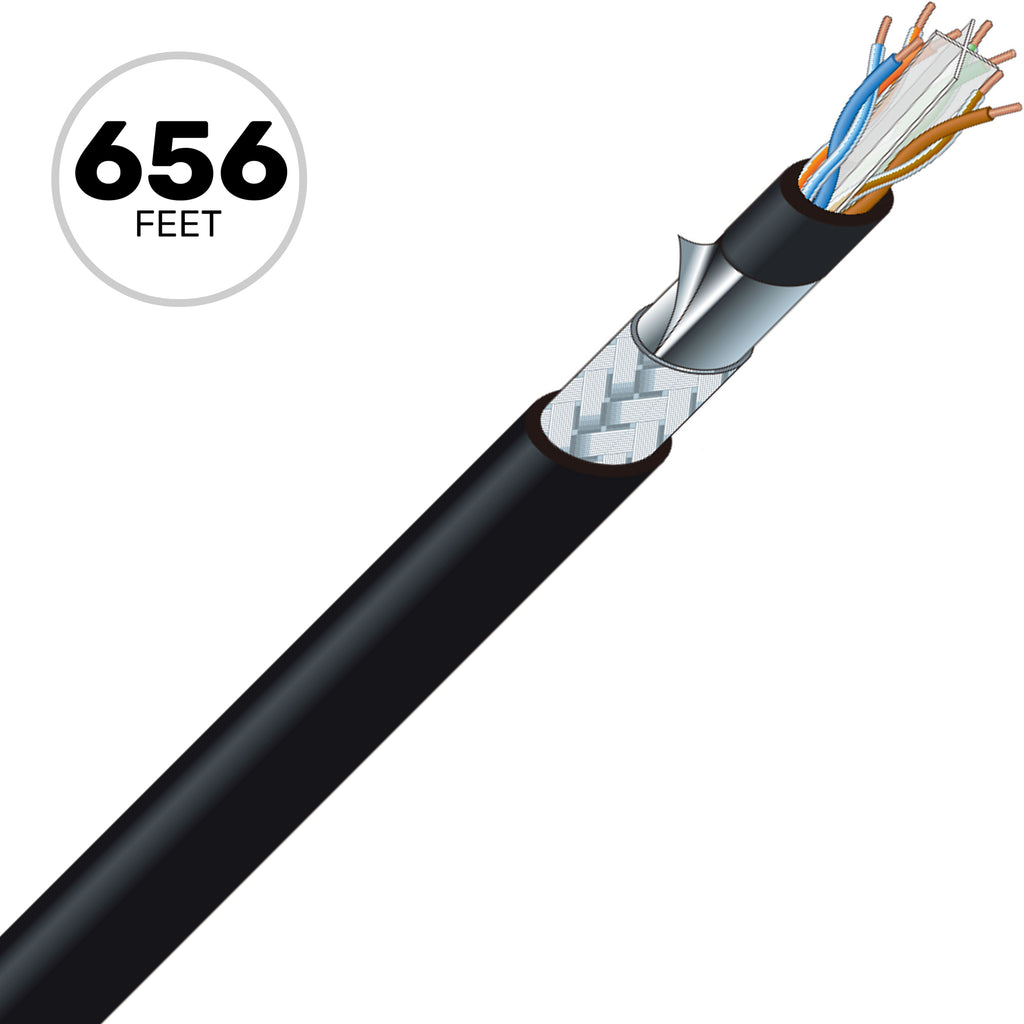

Canare RJC6A-4P-SFM Cat6a Flexible and Rugged STP Shielded Ethernet Cable (Black, 656'/200m)

The Canare RJC6A-4P-SFM is a flexible, rugged Category 6A shielded Ethernet cable supplied on a full 656-foot / 200-meter roll. Its four twisted pairs of 23 AWG solid conductors provide bulk cable for projects requiring multiple custom-length network cables.

An overall foil shield and high-density braided shield provide SF/UTP double shielding to help reduce electromagnetic interference. The black, abrasion-resistant PVC jacket adds protection during handling, while the flexible construction makes the cable easier to route and manage for mobile applications. Keep a full roll on hand to cut the lengths each job requires.

Other lengths available: By the Foot | 328′ / 100 m Roll

Full-Roll Ordering

Each order quantity of 1 includes one full 656-foot / 200-meter roll of cable. This listing is sold by the roll, not by the foot.

Key Features

• Category 6A Ethernet cable with four twisted pairs
• 23 AWG solid conductors
• Overall foil and braid shielding (SF/UTP)
• High-density braided shield with 87% coverage
• Flexible construction for easier routing and handling
• Black, abrasion-resistant PVC jacket
• Full 656-foot / 200-meter roll for multiple custom-length cable runs

Specifications

• Model: RJC6A-4P-SFM
• Cable category: Cat6A
• Shield type: Overall foil and braid (SF/UTP)
• Conductor size: 23 AWG, solid
• Conductor cross-sectional area: 0.26 mm²
• Nominal outside diameter: 8.6 mm
• Nominal cable weight: 8.9 kg per 100 m
• DC resistance: 8.2 ohms per 100 m
• Impedance: 100 ohms
• Insertion loss at 100 MHz: 19.1 dB per 100 m
• Insertion loss at 250 MHz: 31.1 dB per 100 m
• Jacket: Black PVC
• Roll length: 656 feet / 200 meters
