Canare RJC6A-4P-SFM Cat6a Flexible and Rugged STP Shielded Ethernet Cable (Black, 328'/100m)

The Canare RJC6A-4P-SFM is a flexible, rugged Category 6A shielded Ethernet cable supplied on a full 328-foot / 100-meter roll. Its four twisted pairs of 23 AWG solid conductors provide bulk cable for building custom-length network cables.

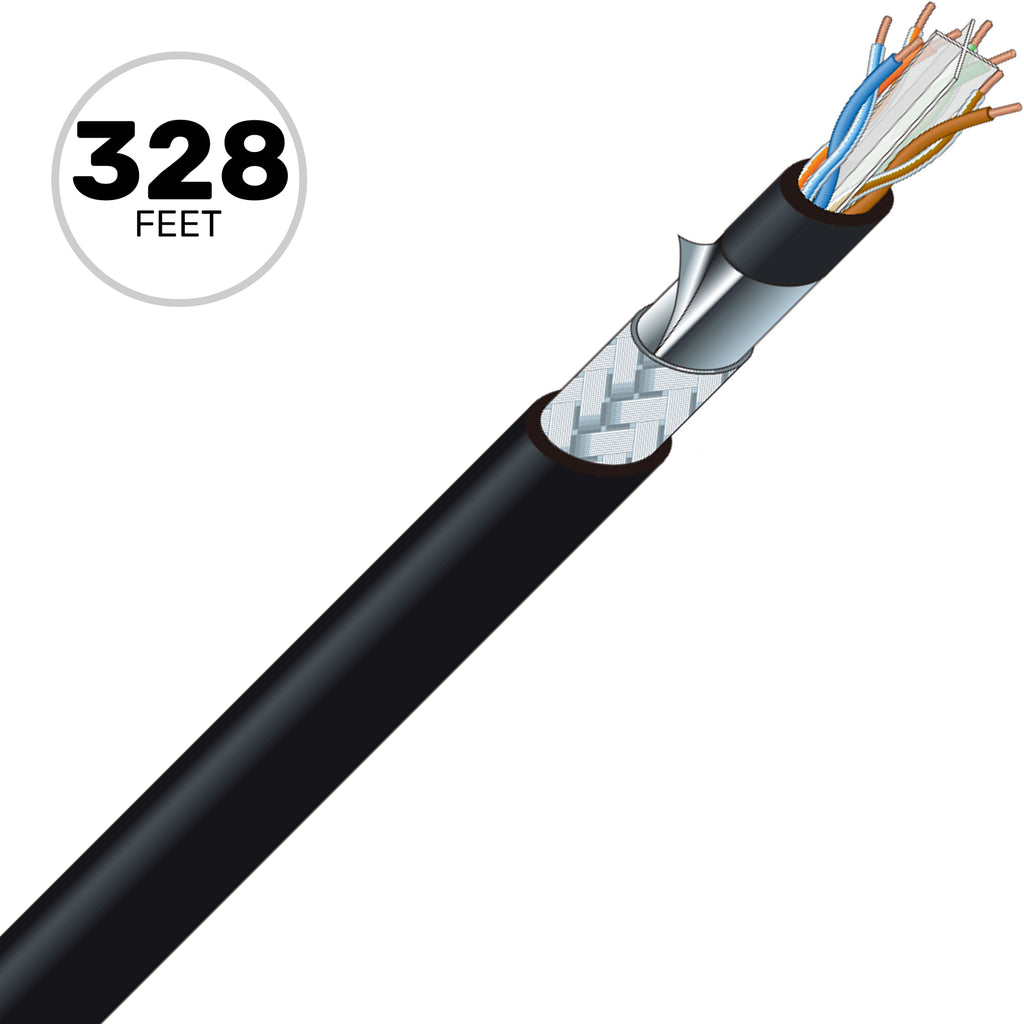

An overall foil shield and high-density braided shield provide SF/UTP double shielding to help reduce electromagnetic interference. The black, abrasion-resistant PVC jacket adds protection during handling, while the flexible construction makes the cable easier to route and manage for mobile applications. Cut the lengths your project calls for from one roll.

Other lengths available: By the Foot | 656′ / 200 m Roll

Full-Roll Ordering

Each order quantity of 1 includes one full 328-foot / 100-meter roll of cable. This listing is sold by the roll, not by the foot.

Key Features

• Category 6A Ethernet cable with four twisted pairs
• 23 AWG solid conductors
• Overall foil and braid shielding (SF/UTP)
• High-density braided shield with 87% coverage
• Flexible construction for easier routing and handling
• Black, abrasion-resistant PVC jacket
• Full 328-foot / 100-meter roll for custom-length cable runs

Specifications

• Model: RJC6A-4P-SFM
• Cable category: Cat6A
• Shield type: Overall foil and braid (SF/UTP)
• Conductor size: 23 AWG, solid
• Conductor cross-sectional area: 0.26 mm²
• Nominal outside diameter: 8.6 mm
• Nominal cable weight: 8.9 kg per 100 m
• DC resistance: 8.2 ohms per 100 m
• Impedance: 100 ohms
• Insertion loss at 100 MHz: 19.1 dB per 100 m
• Insertion loss at 250 MHz: 31.1 dB per 100 m
• Jacket: Black PVC
• Roll length: 328 feet / 100 meters
