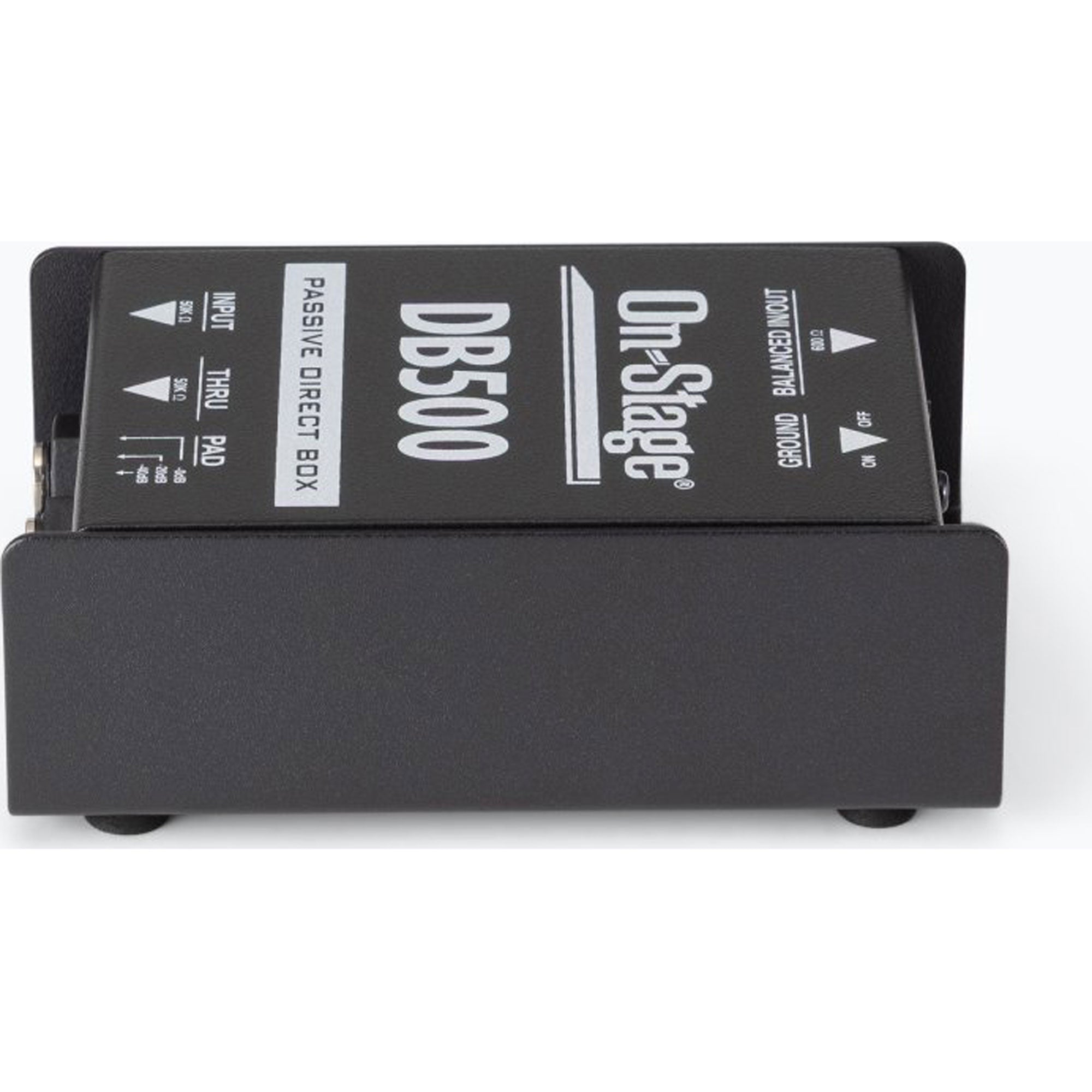

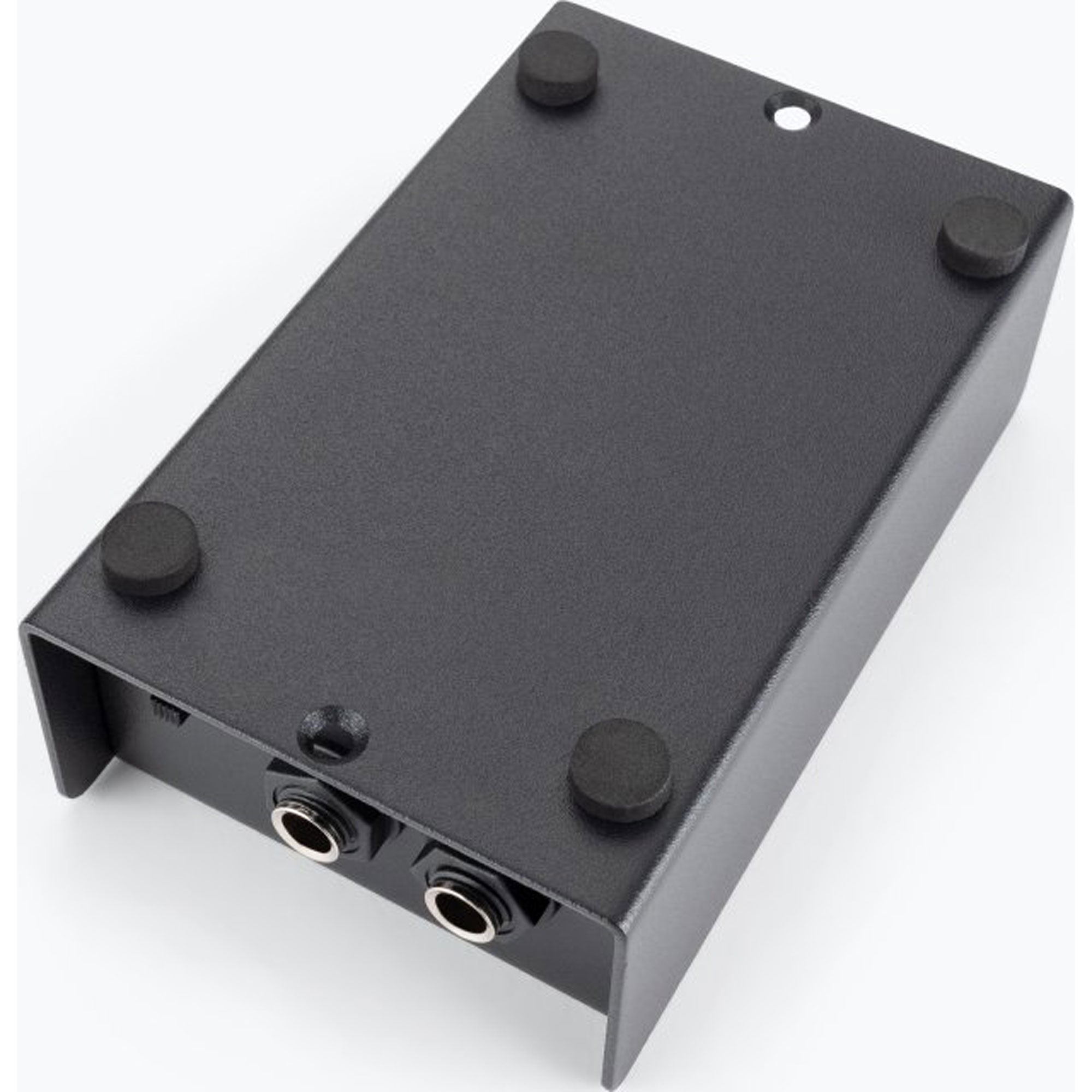

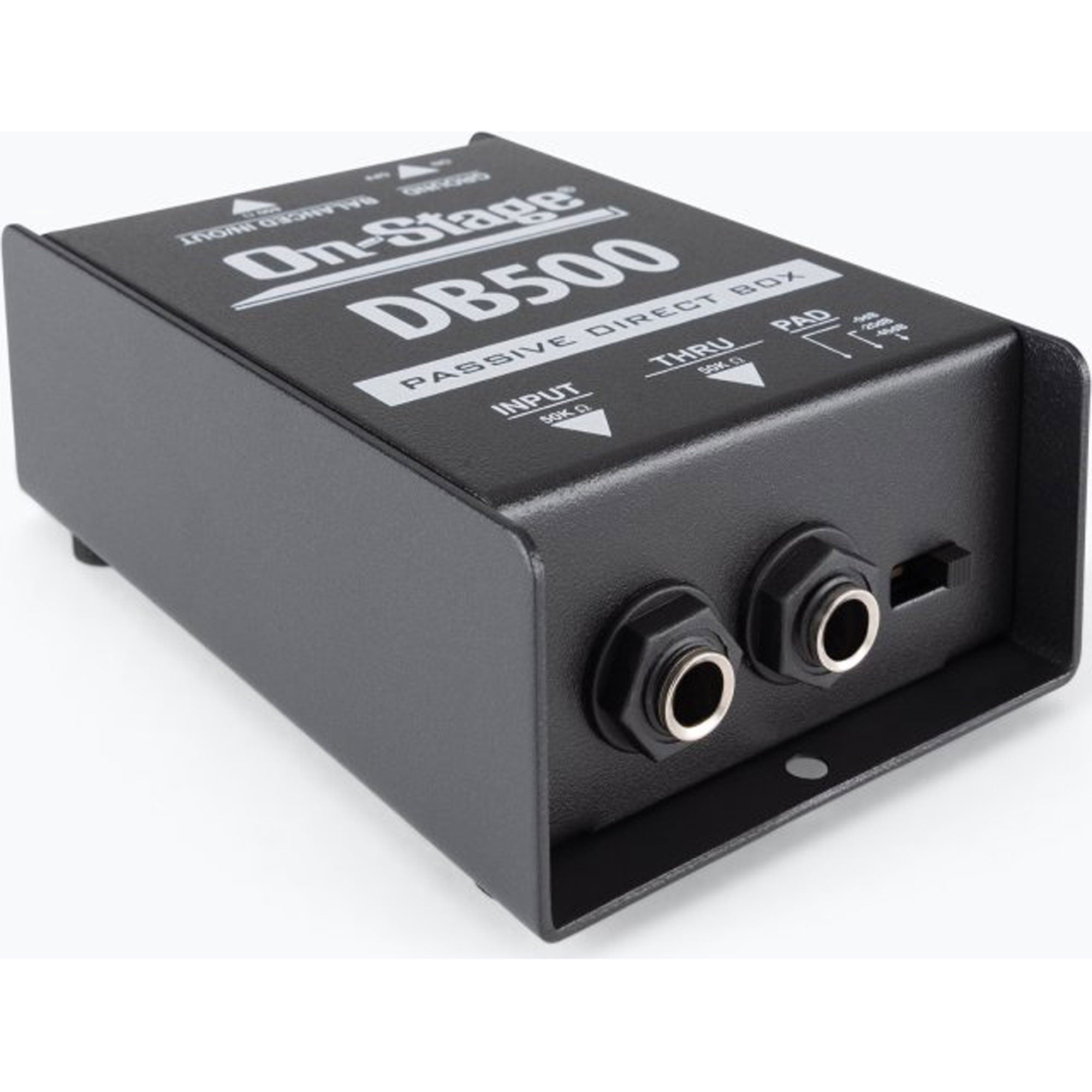

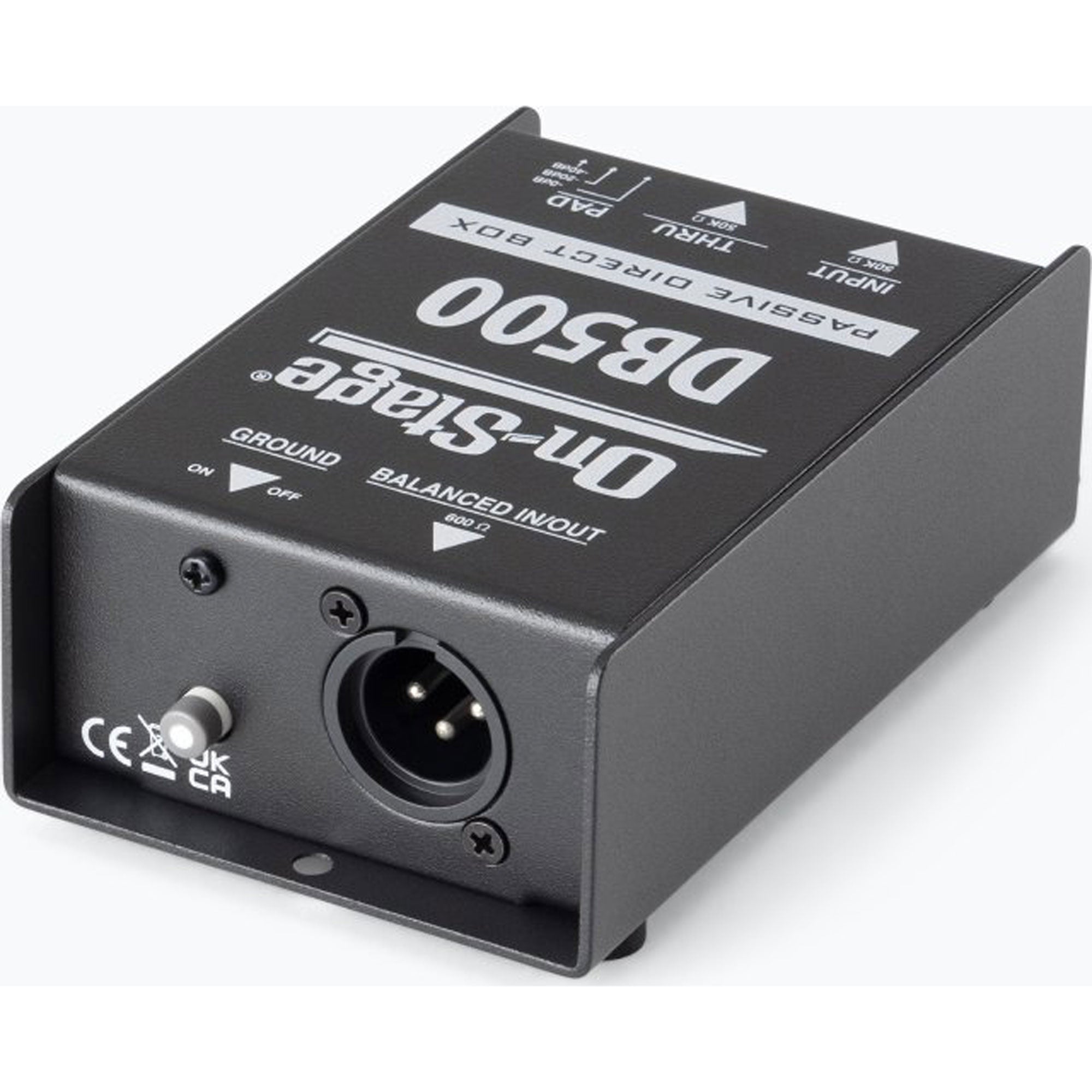

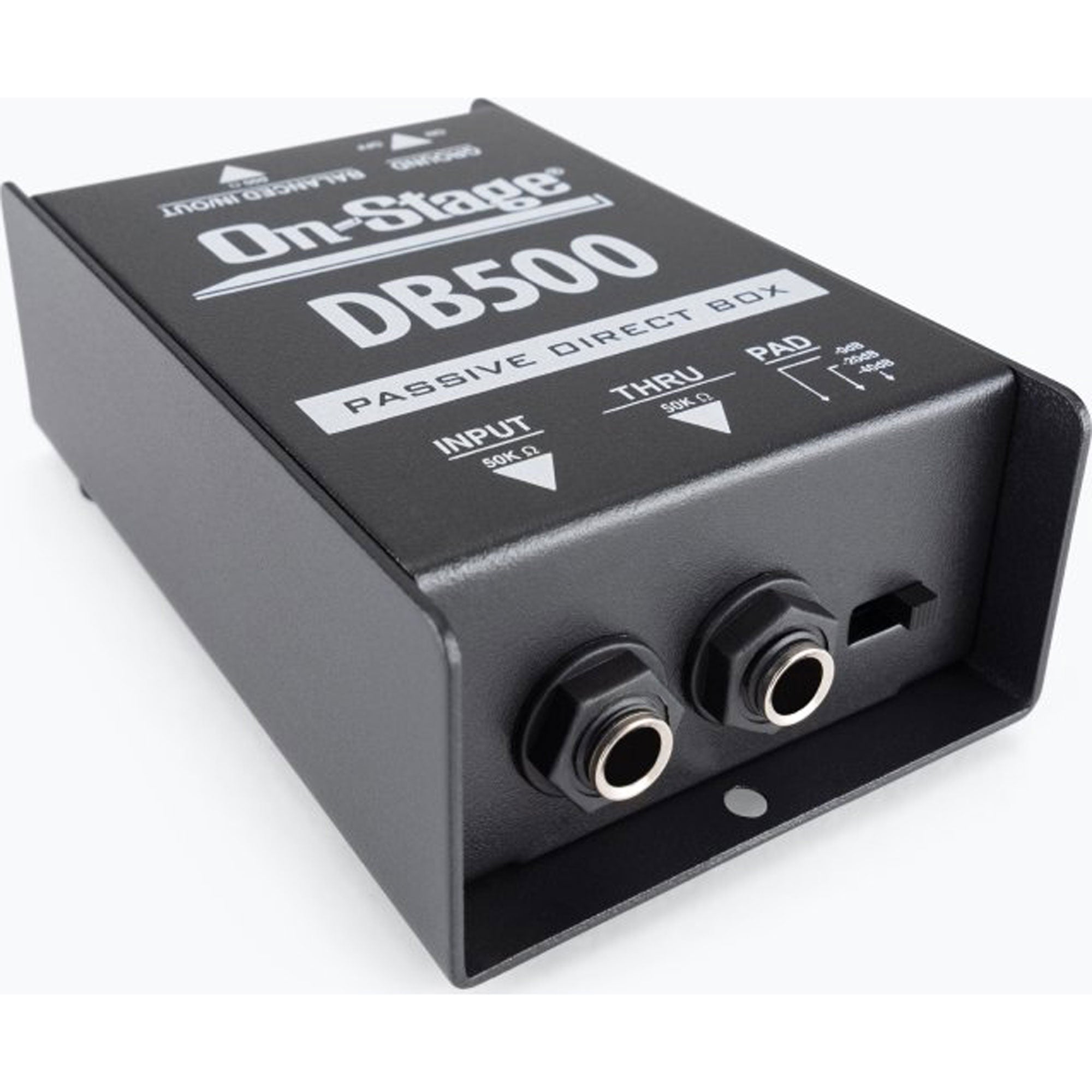

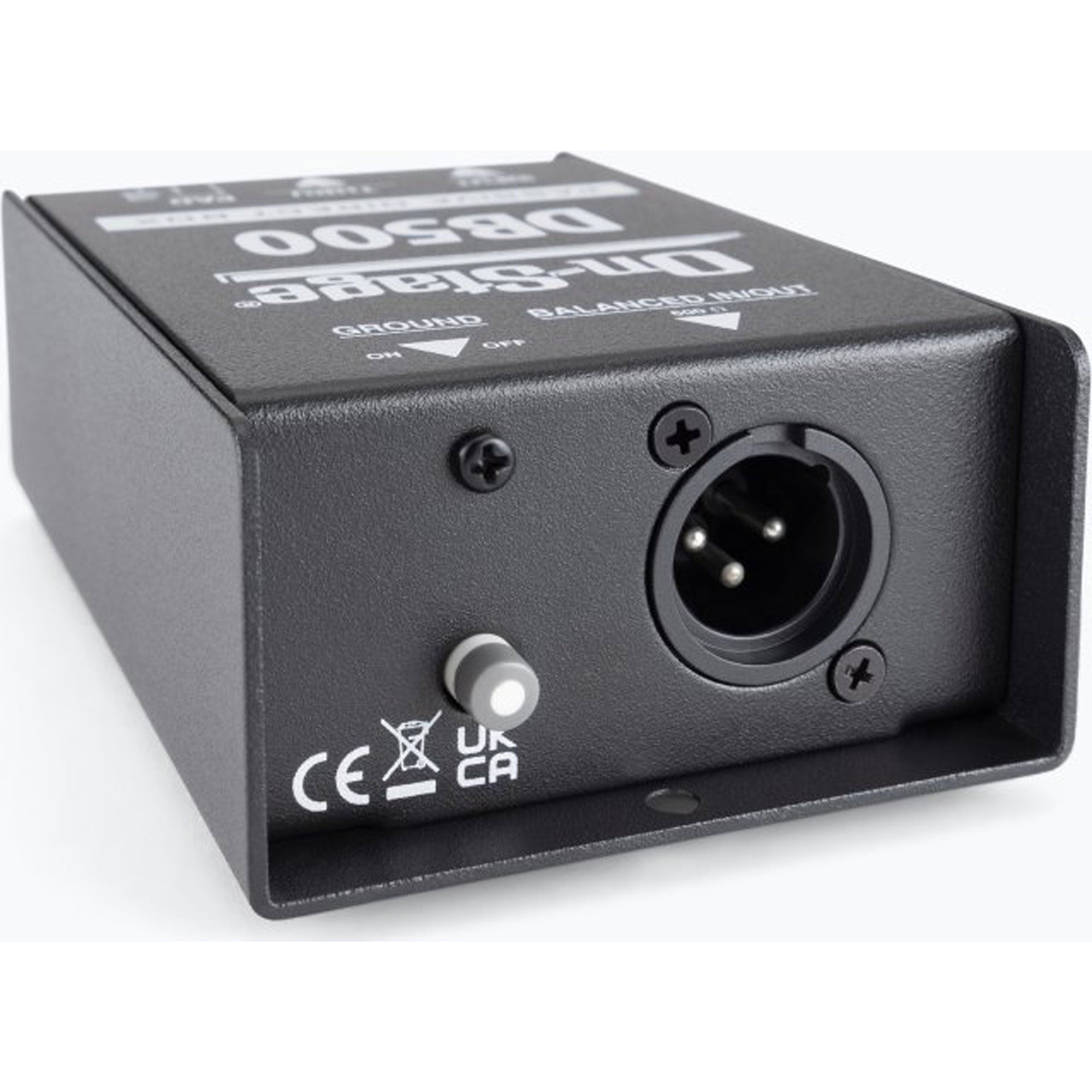

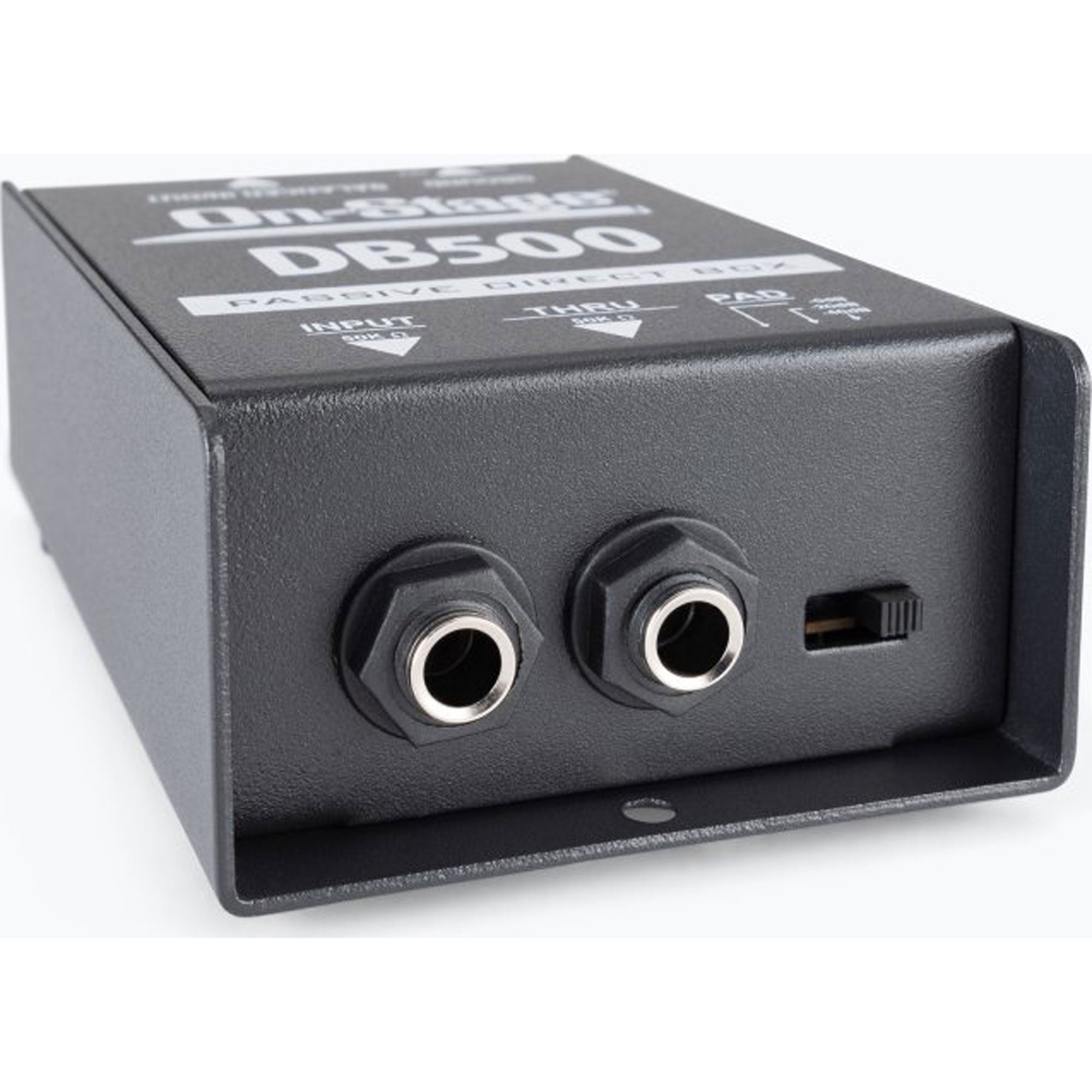

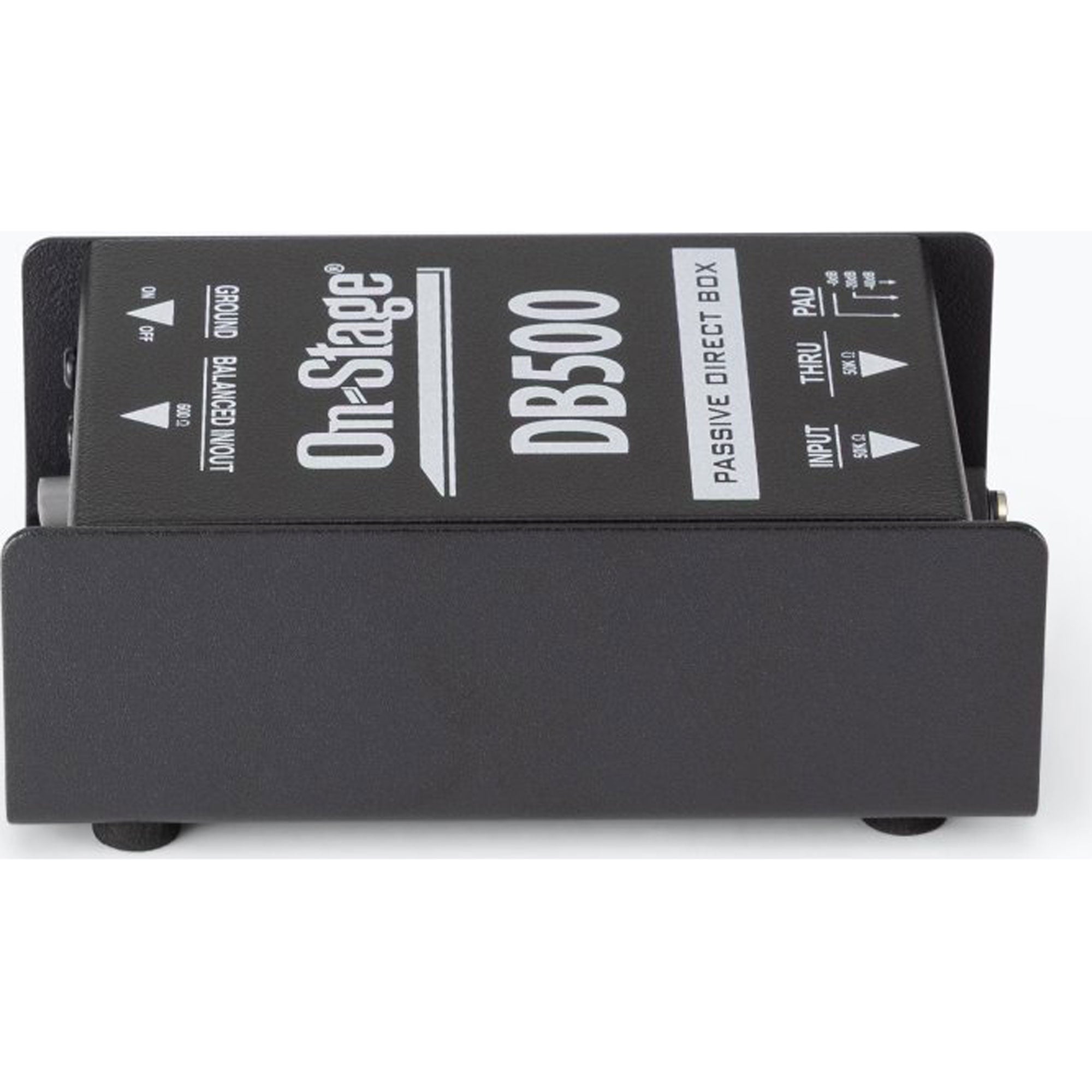

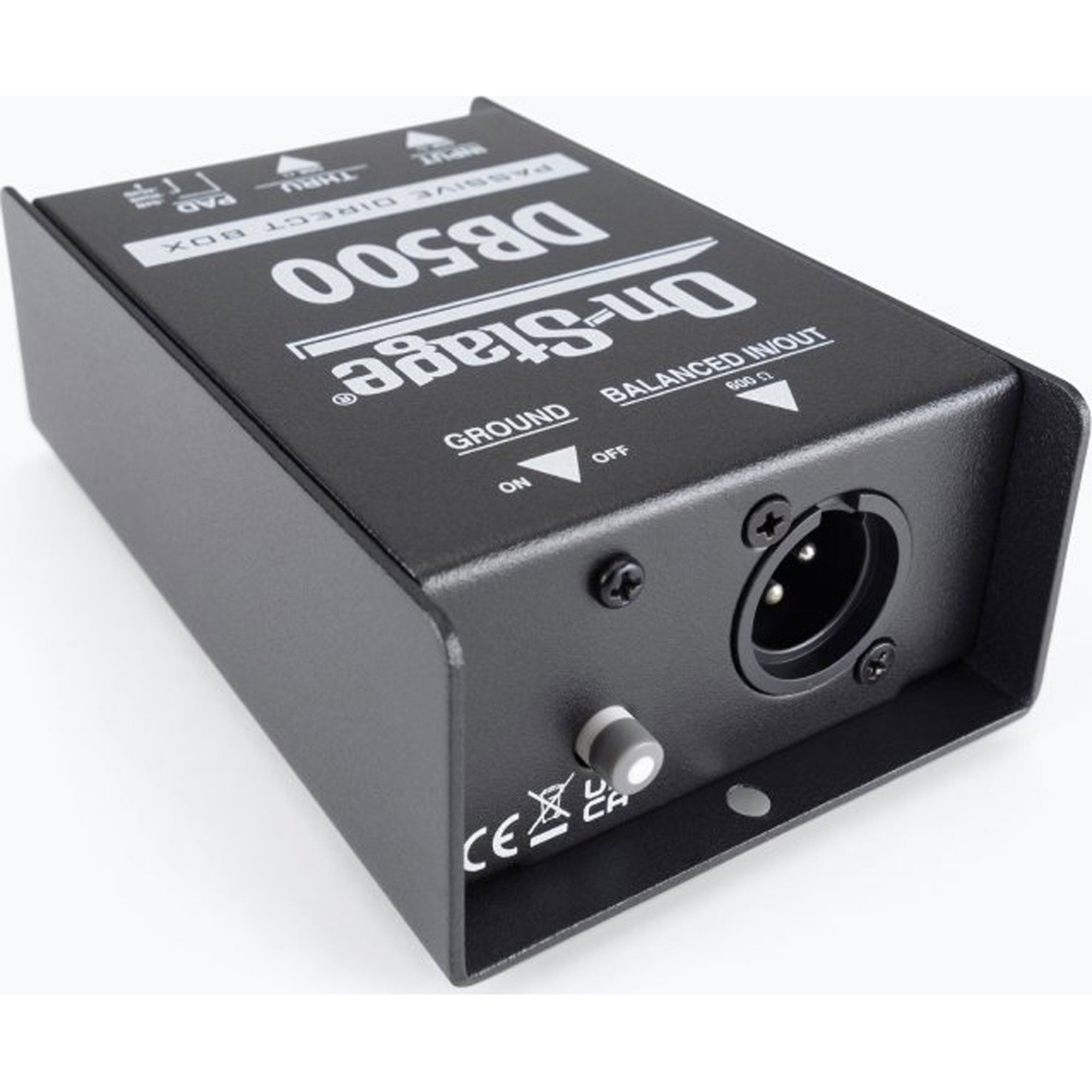

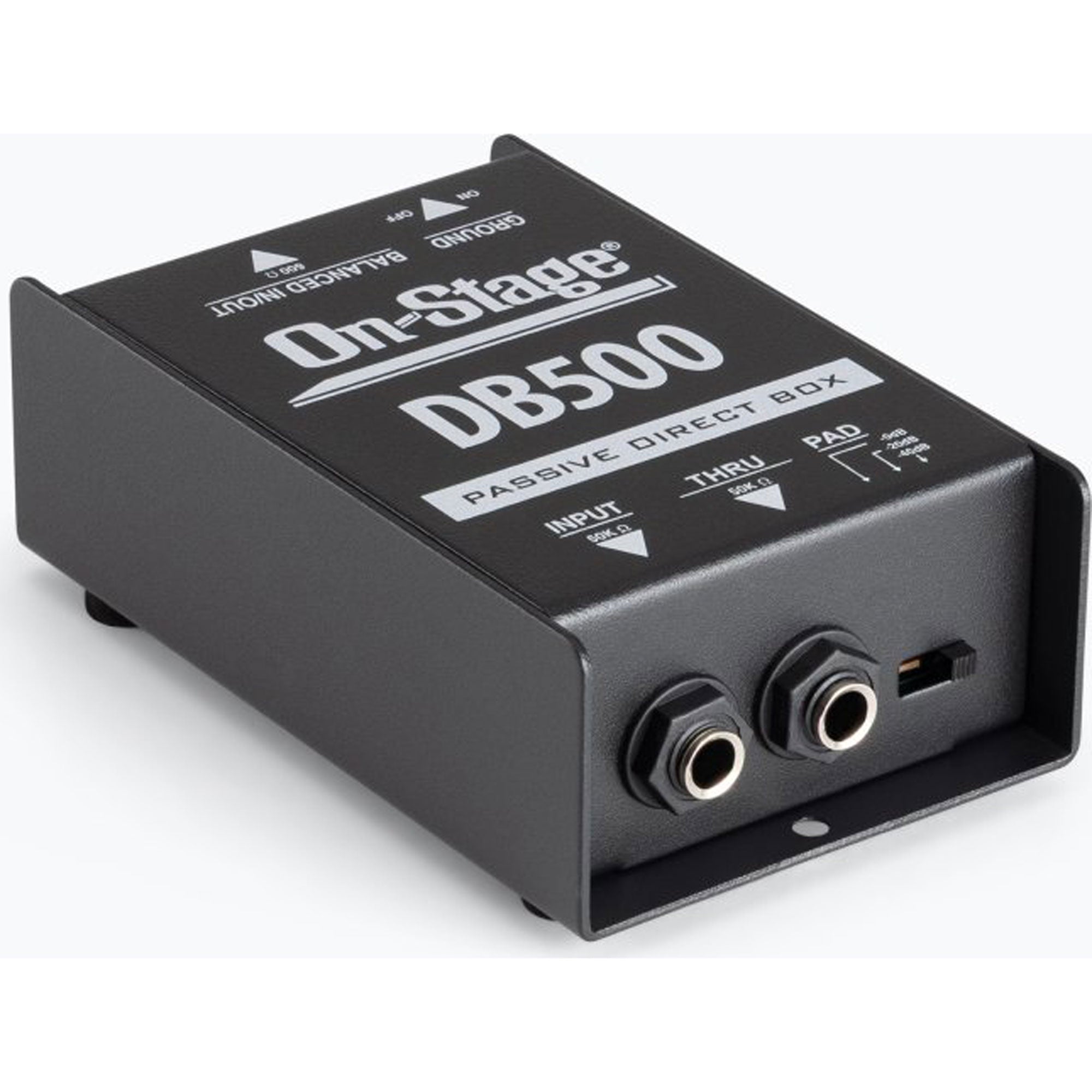

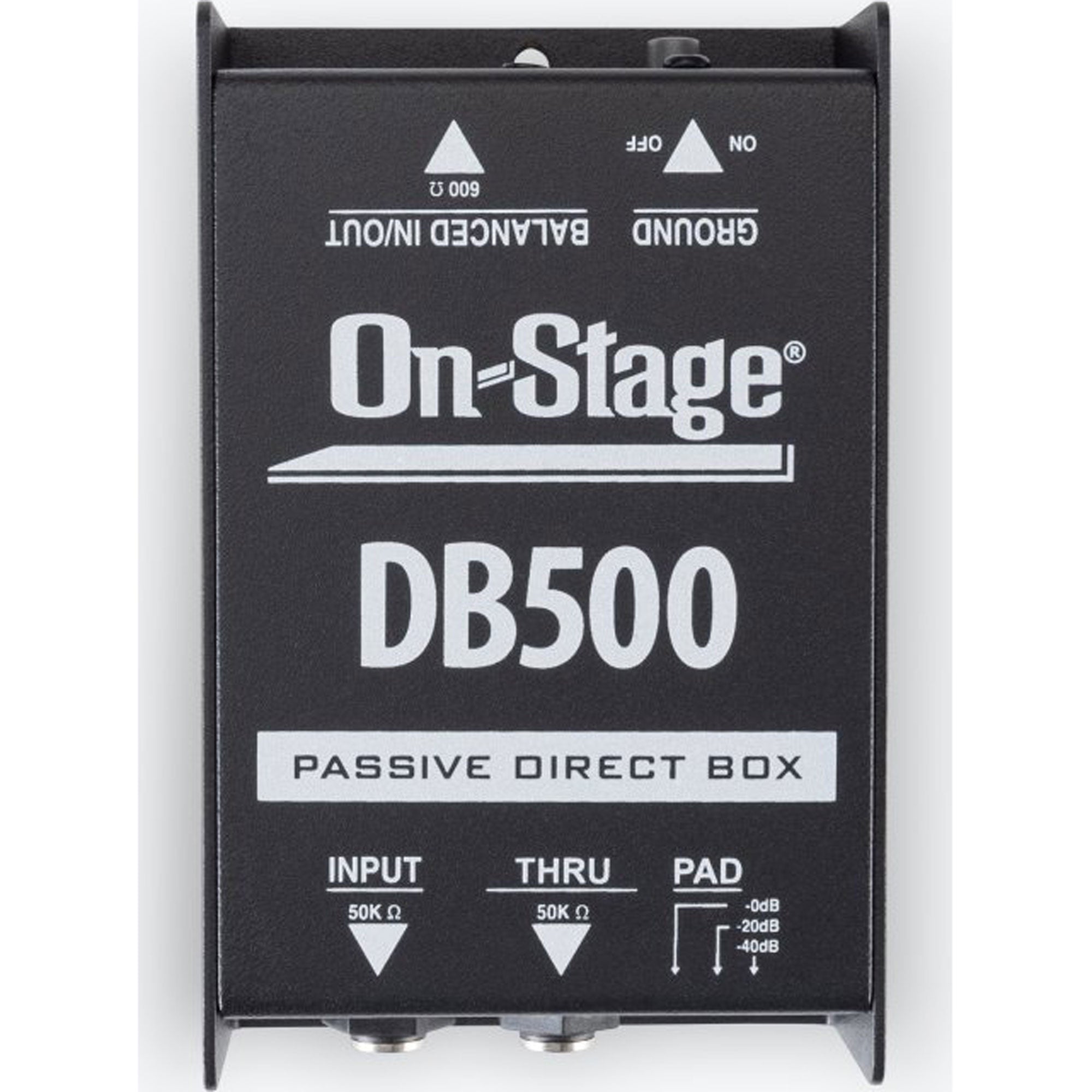

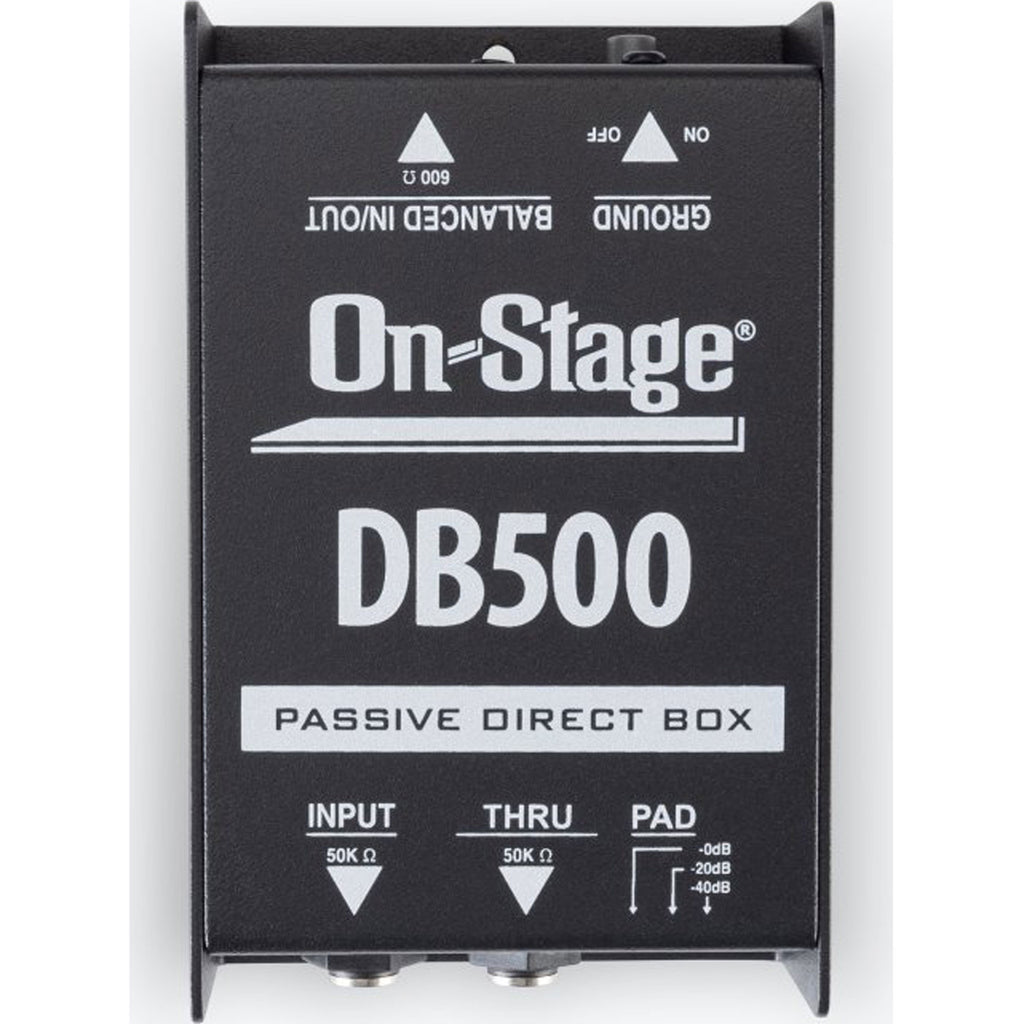

On-Stage DB500 Passive Direct Box

Single Channel, Passive Direct Box

Our DB500 Passive DI Box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -20 dB or -40 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, and a throughput connector to pass unaltered signal to a stage amp. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

Features:

• Converts a high-impedance (1/4") input to a balanced, low-impedance (XLR) output
• High-quality transformer for low distortion and an isolated signal path
• Output signal can be sent via a long cable to a mixer or PA system without frequency loss
• Passive circuit does not require a power supply or batteries

Specifications:

• Application: Acoustic guitars, bass guitars, keyboards, and more
• Construction: Metal
• Dimensions: (W)4.75" x (H)1.375" x (D)2.875"
• Input Impedence: 350K Ohms
• Inputs: 1/4"
• Output: XLR
• Output Impedence: 80 Ohms
• Pad: 20dB, 40dB, Ground Lift: Yes
• Power: Passive/not required
• Product Type: Direct Box
• Weight: 0.5 lb
