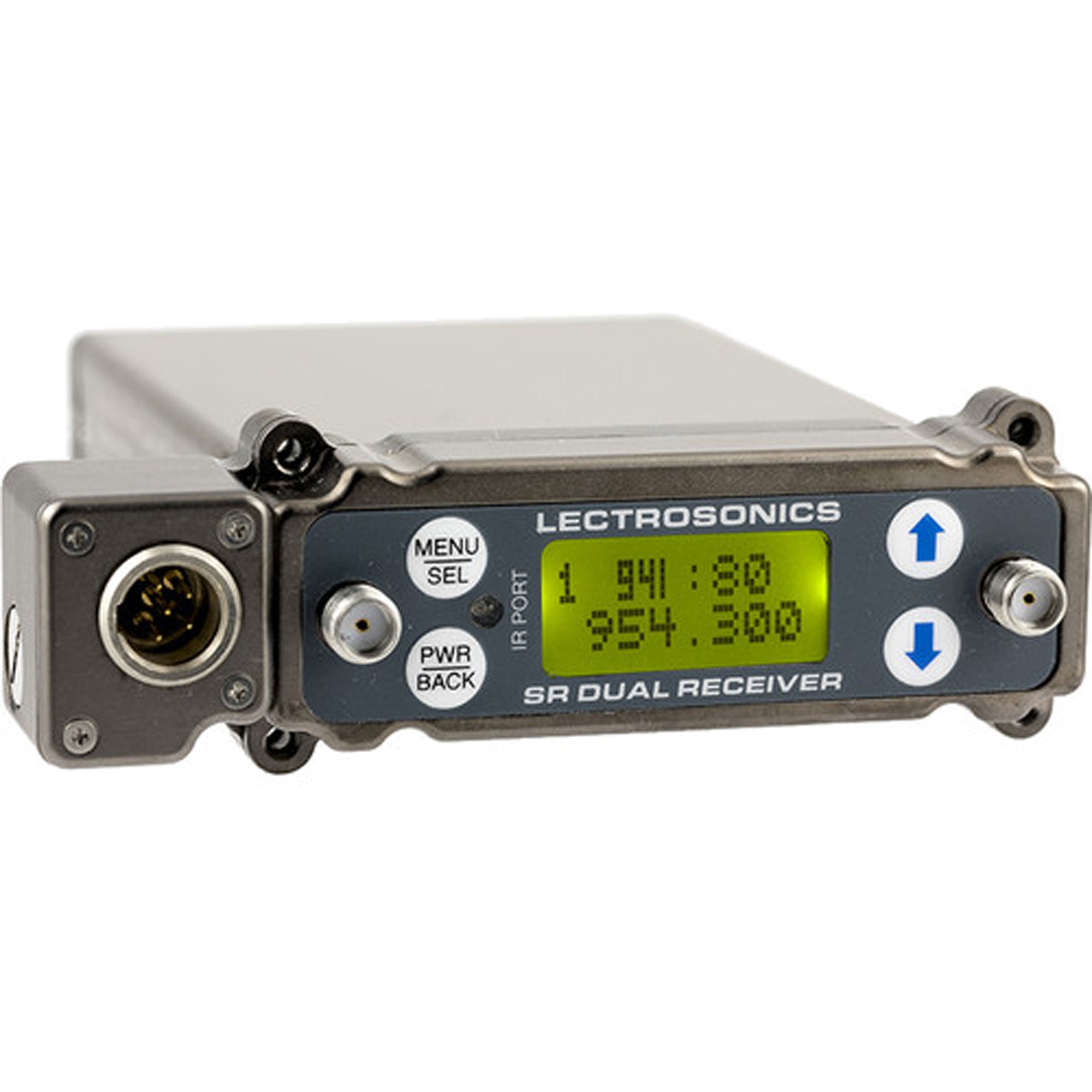

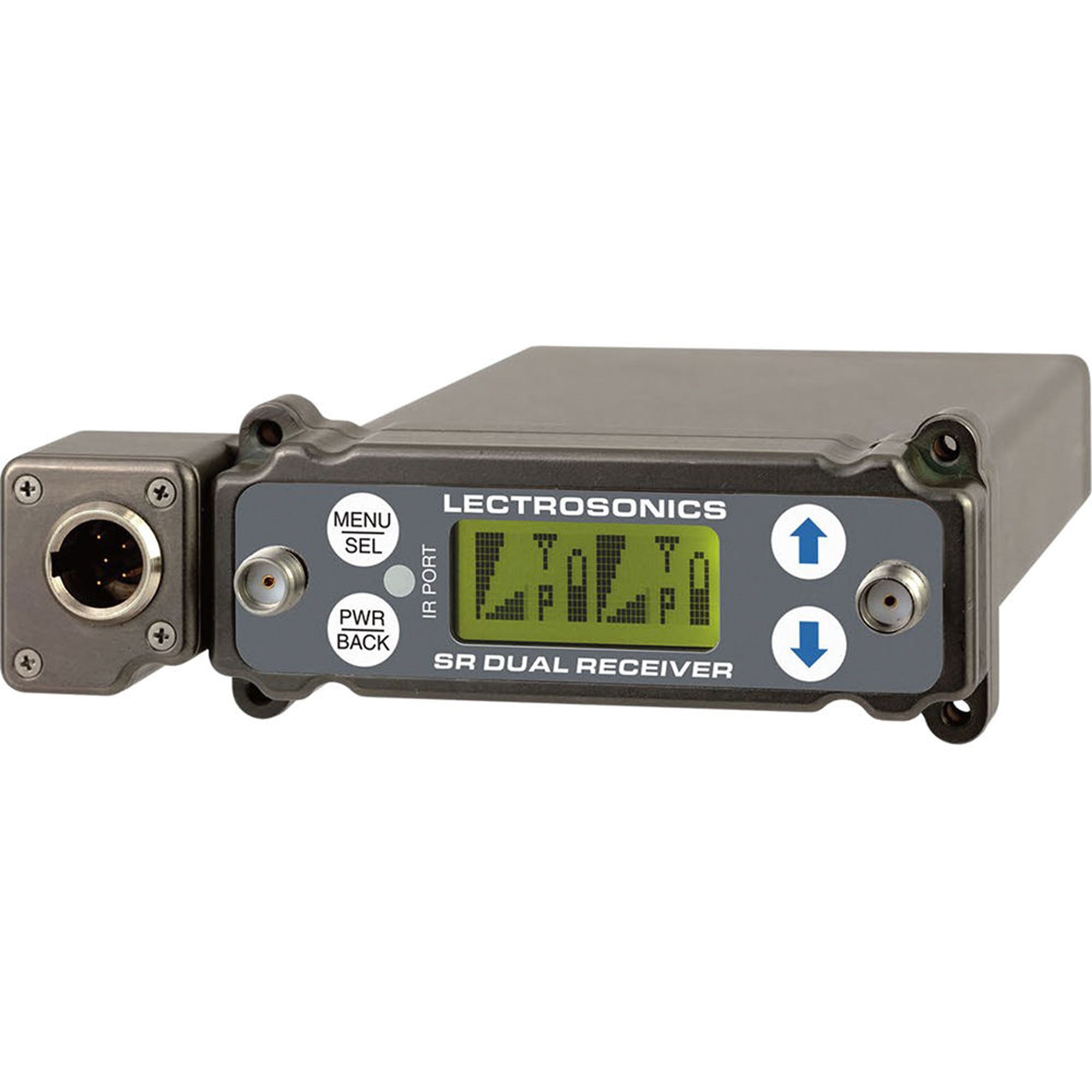

Lectrosonics SRc5P Dual Channel Slot Mount ENG Receiver (Band A1, 470.100-537.575 MHz)

Dual Channel Slot Mount ENG Receiver with 5-Pin Audio Output Connector (Frequency Range A1: Blocks 470-20)

The SRc5P and SRc consists of two separate receivers built into a single, ultra compact housing with adapters for video camera receiver slots and for stand-alone use. Digital Hybrid Wireless technology provides superb, compandor-free audio quality and compatibility with other wireless systems. The RF performance is extremely stable over a very wide temperature range, making the receiver perfectly suited to the rough environmental conditions found in field production.

DSP compatibility modes allow the receiver to be used with a variety of Lectrosonics systems, other brands of wireless systems and with Lectrosonics IFB transmitters.

SuperSlot ready for the Sound Devices SL6.

Features:

• Fits camera "slots," Lectrosonics Duopack adapter and Octopack multicoupler, and operates stand-alone with various adapters
• 76 MHz tuning range in 100 kHz or 25 kHz steps for up to 3072 frequencies (bands A1, B1, C1)
• 941 band offers 695 frequencies over 19 MHz tuning range with 25 kHz steps
• Dual receiver design for two channels with phase switched diversity or single channel with ratio diversity operation
• Digital Hybrid Wireless with compatibility modes for use with other transmitters
• Tracking front-end filters for high performance in tough RF environments
• LCD with RF spectrum scanning
• SmartSquelchTM DSP-controlled, noise based filtering and squelch
• DSP-based pilot tone for squelch control
• IR sync port for quick transmitter setup (LMb, LT, HHa, HMa, & SSM)
• SmartTune operation for quick and confident frequency selection

Includes:

• 1 - Adjustment Tool (Part# 35679)
• 2 - Antennas (Part #AMJ-XX)
• 1 - Quickstart Guide
