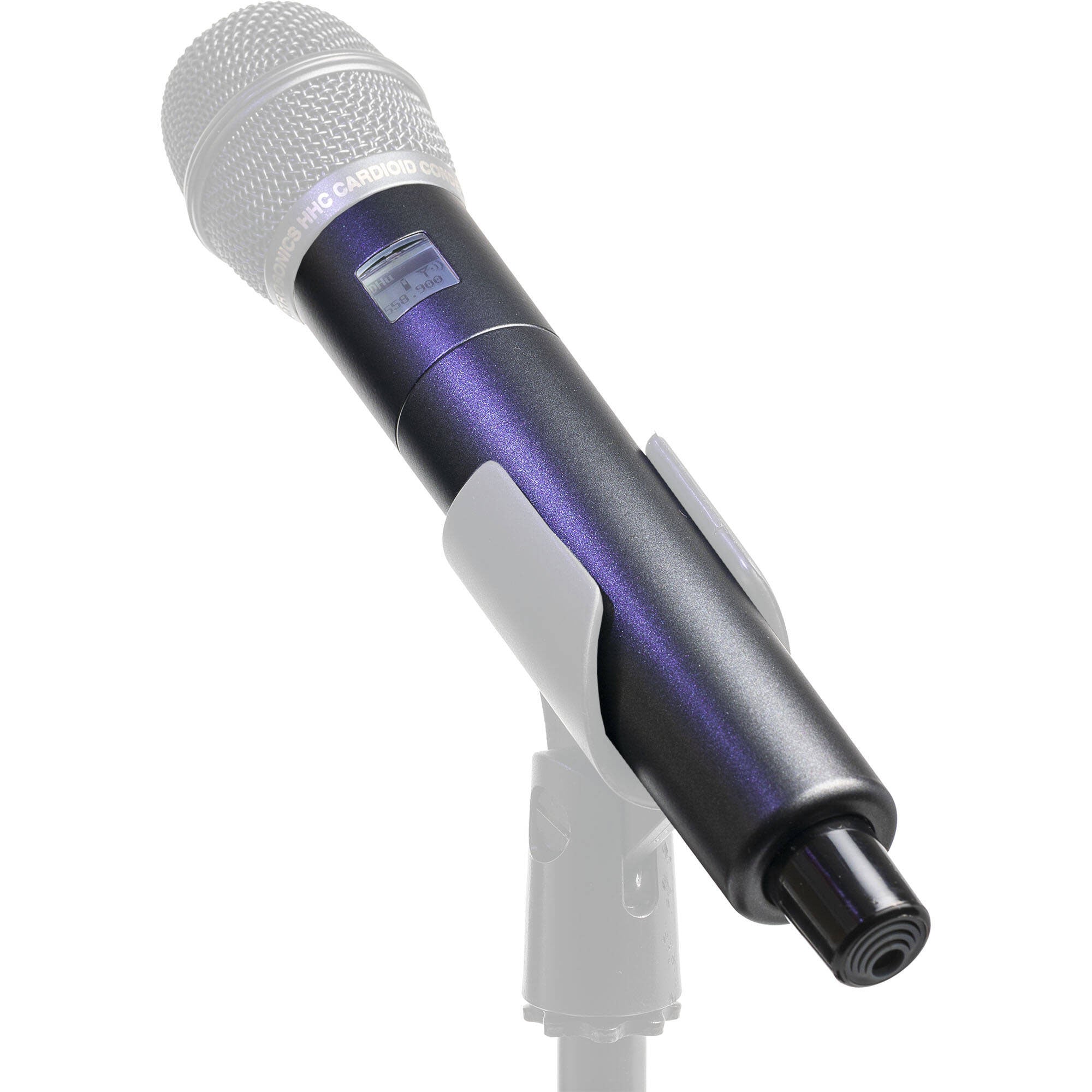

Lectrosonics HHa-B1 Handheld Wireless Transmitter (Band B1, 537.600-607.950 MHz)

Digital Hybrid Handheld Wireless Transmitter, No Capsule, Frequency Band B1 (537.600-614.375 MHz)

The HHa Digital Hybrid Wireless handheld transmitter represents an elegant solution for a variety of wireless microphone applications including live performance, broadcast, AV rental and houses of worship. The HHa incorporates many advanced features to provide highquality speech and vocal reinforcement. Along with providing peerless audio quality with wide frequency response and dynamic range in native 400 Series mode, the technology used in the HHa includes compatibility modes for Lectrosonics 200 Series, 100 Series and IFB receivers, and some systems from other top manufacturers.

Lectrosonics offers the HHC cardioid condenser capsule. Thread-on capsules from other manufacturers using a 1.25" opening and 28 thread pitch can also be used, including those from manufacturers such as EV, Shure, Heil SoundTM, Telefunken and others.

List Of Compatible Capsules
The following capsules are known to fit properly and have the correct current draw/audio connections to work with the HH:

Lectrosonics
HHC cardioid condenser element
HHVMC cardioid condenser element with VariMic tone controls

Shure
RPW112 capsule head with SM58 dynamic element
RPW120 capsule head with Beta 87A condenser element
RPW122 capsule head with Beta 87C condenser element
RPW118 capsule head with Beta 58A dynamic element
RP114 capsule head with SM86 condenser element
RPW184 capsule head with KSM9 dual-element condenser
RPW124 capsule head with VP68 omni condenser element
RPW186 capsule head

EV
RC2-767 - Supercardioid dynamic N/D767a
RC2-967 - Supercardioid dynamic N/D967
RC2-PL80a - Supercardioid dynamic PL80a
RC2-410 - Cardioid condenser RE410
RC2-510 - Supercardioid Condenser RE510

Heil Sound
RC35

Earthworks
WL40V

BLUE
Encore 300 (not yet on the market)

Audix
(all Audix capsules require a Sound Tools audix2shure adapter)T363-CA capsule assembly with OM3 dynamic element)
T365-CA capsule assembly with OM5 dynamic element
T366-CA capsule assembly with OM6 dynamic element
T367-CA capsule assembly with OM7 dynamic element

DPA
d:facto II

Neumann
(all Neumann capsules require an adapter - see below)
KK104-S cardioid condenser element (requires Ambient HHA adapter set at 15V)
KK105-HD supercardioid condenser element (requires Ambient HHA adapter set at
15V)
KK105-S supercardoid condenser element (requires Ambient HHA adapter set at 15V)
KK204 cardioid condenser element (requires Lectrosonics HH2SEN adapter)
KK205 supercardioid condenser element (requires Lectrosonics HH2SEN adapter)

Sennheiser
(all Sennheiser capsules require an adapter - see below)
MD5235 dynamic cardioid element (requires Ambient HHA adapter)
ME5002 omni condenser element (requires Ambient HHA adapter set at 7V)
ME5004 cardioid condenser element (requires Ambient HHA adapter set at 7V)
ME5005 supercardioid condenser element (requires Ambient HHA adapter set at 7V)
ME5005-E supercardioid condenser element optimized for live sound applications
(requires Ambient HHA adapter set at 7V)
ME5009 wide cardioid condenser element (requires Ambient HHA adapter set at 7V)
MMD835-1 cardioid dynamic element (requires Lectrosonics HH2SEN adapter)
MMD845-1 supercardioid dynamic element (requires Lectrosonics HH2SEN adapter)
MME865-1 supercardioid condenser element (requires Lectrosonics HH2SEN
adapter)
MMD935-1 cardioid dynamic element (requires Lectrosonics HH2SEN adapter)
MMD945-1 supercardioid dynamic element (requires Lectrosonics HH2SEN adapter)
MME965-1 dual pattern condenser element (requires Lectrosonics HH2SEN adapter)

Features:

• Up to 76 MHz tuning range in 25 or 100 kHz steps (bands A1, B1)
• 941 band offers 695 frequencies over 19 MHz tuning range with 25 kHz steps
• Digital Hybrid Wireless Technology
• Standard thread-on capsules
• Membrane switch and LCD interface
• AA battery power
• Selectable RF power at 10 (export only), 25, 50 (export only) and 100 mW
• Talkback feature
• IR (Infrared) Port for fast setup
• Capsule sold separately

Specifications:

• Operating Frequencies: Band A1: 470.100 - 537.575 MHz
• Frequency Selection Steps: 25 or 100 kHz tuning steps selectable
• RF Power Output: 50 or 100 mW selectable
• Pilot Tone: 25 to 32 kHz frequency (400 Series only); 5 kHz deviation
• Frequency Stability: ± 0.002%
• Deviation: ± 75 kHz (max)
• Spurious Radiation: 90 dB below carrier
• Operating Temperature Range: -47 to 122°F (-20 to +50°C)
• Compressor: Input: Dual envelope compressor, >30 dB range
• Gain Control Range: 45 dB, semi-log menu-driven control, 1 dB steps
• Frequency Response: 40 Hz to 20 kHz (+/- 1 dB)
• Controls: External: Programmable mute/talkback button
• Battery Compartment: Power, mute disable, menu/select, back and up/down arrow buttons for menu selection and settings
• Battery: 2 x AA with polarity protection and battery ejector
• Battery Life: At 100 mW: 5.5 hours (Duracell Quantum alkaline)
• Capsule Type: Interface: 1.25" opening and 28 thread pitch
• Power available: 5 V, 25 mA max
• Input impedance: 1000 Ohms
• Emission Designator: 180KF3E
• Dimensions (L x Diam): 9.5" x 1.97" (24.1 x 5.0 cm)
• Weight: 12.1 oz (343 g) with batteries and HHC capsule
