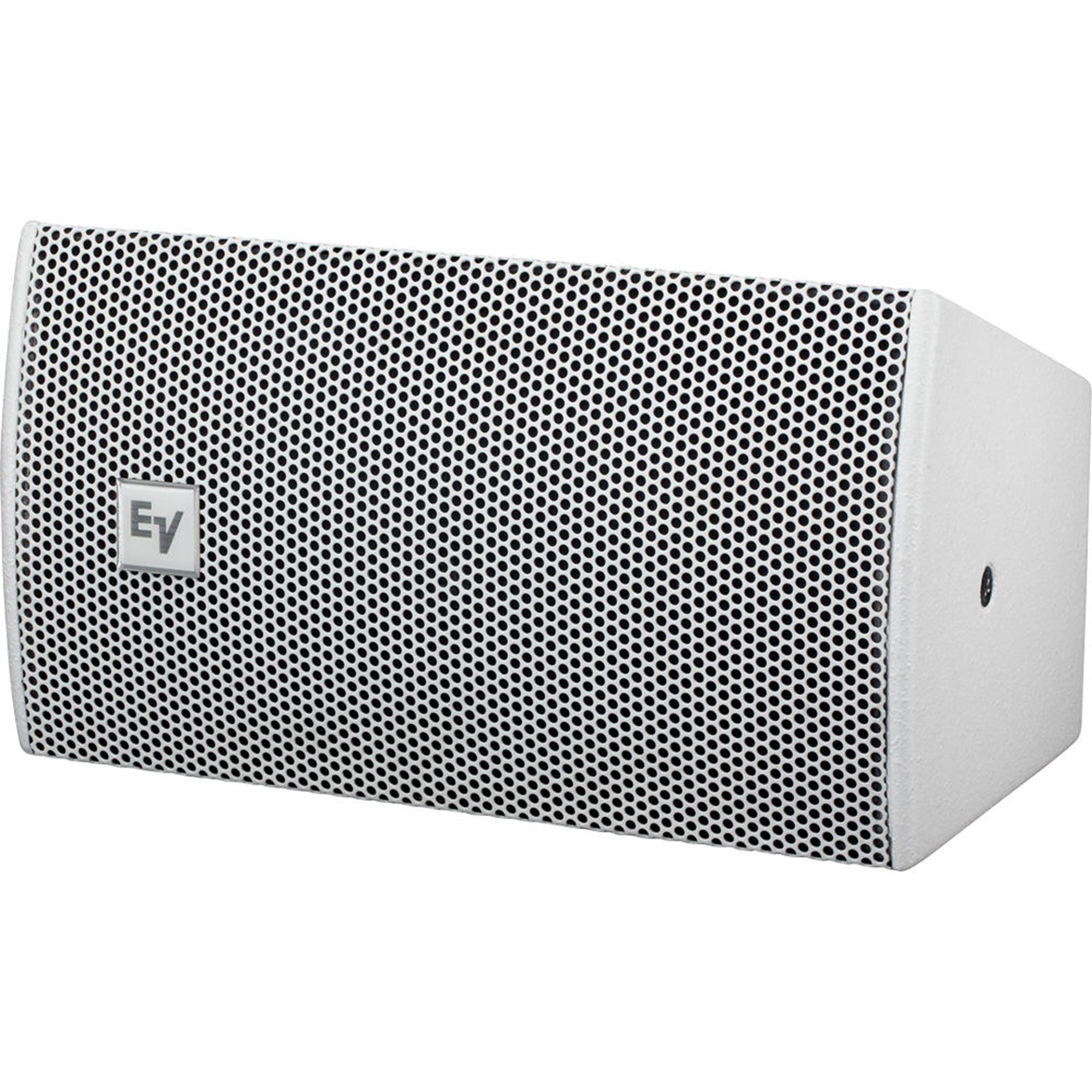

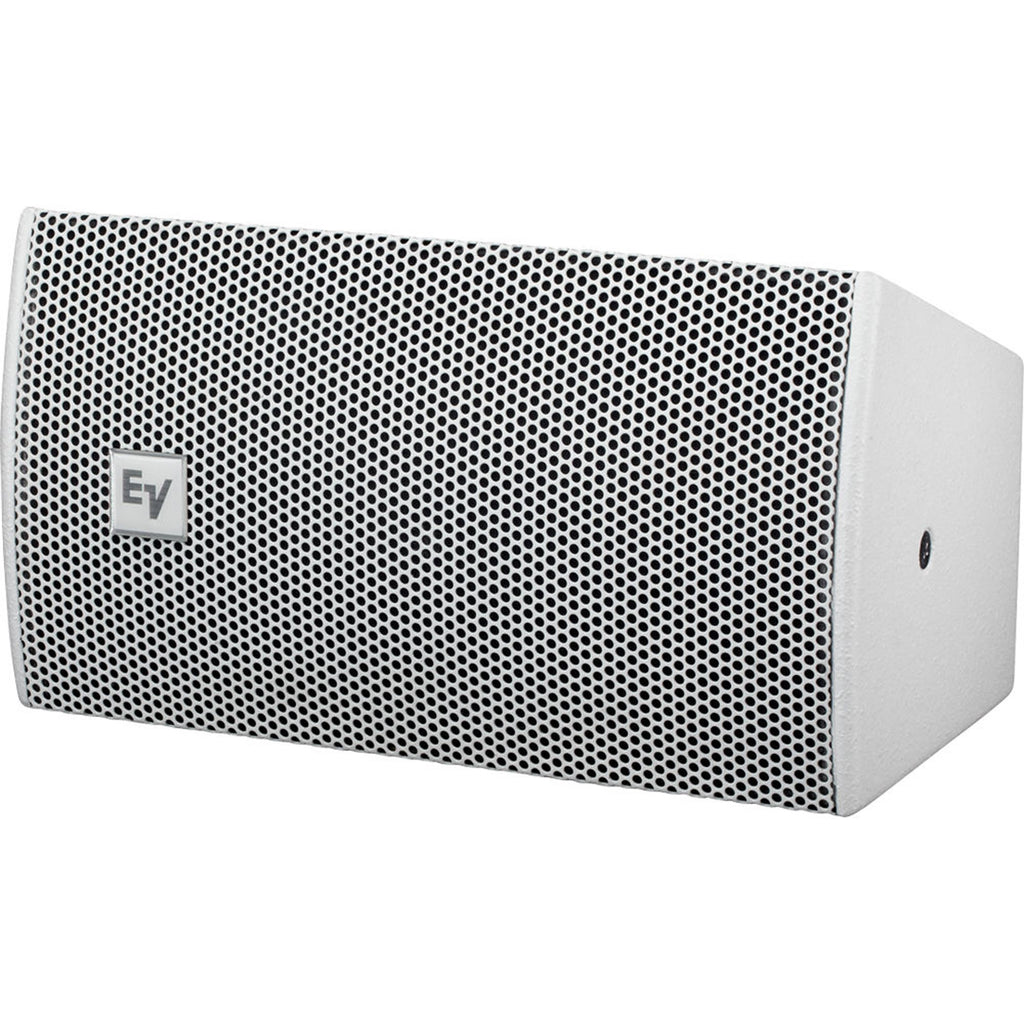

Electro-Voice EVU-1062 Single 6.5" Two-Way 90 x 50° Full-Range Loudspeaker (White)

Ultracompact Loudspeaker System with a Single 6.5-Inch Woofer, White

The single 6.5-in woofer EVU-1062/95 offers the most compact enclosure (just over 8 inches high and 14 inches wide), yet system power-handling capacity and sensitivity are quite high for the size: 160 W continuous and 92 dB 1 W/1 m, respectively.

Features:

• Designed for Club Sound, Concert Sound, House of Worship, Performance & Sports Venues, Stadium Systems, and other applications.
• 6.5-inch woofers allow ultracompact enclosures
• Ideal solution for delay, distributed, front-fill, under-balcony, and wall-mounted audio applications
• Asymmetrical enclosure shape provides an appropriate vertical aiming angle for both under-balcony and stage-lip applications
• Sophisticated, 18-dB-octave passive crossover/EQ networks
• Rear-mounted input panel equipped with a four-pin Phoenix/Euroblock screw-terminal connector
• Input panel accepts optional EVU-TK60 60-W 70.7/100-V input transformer (taps at 60, 30, 15, and 7.5 W)

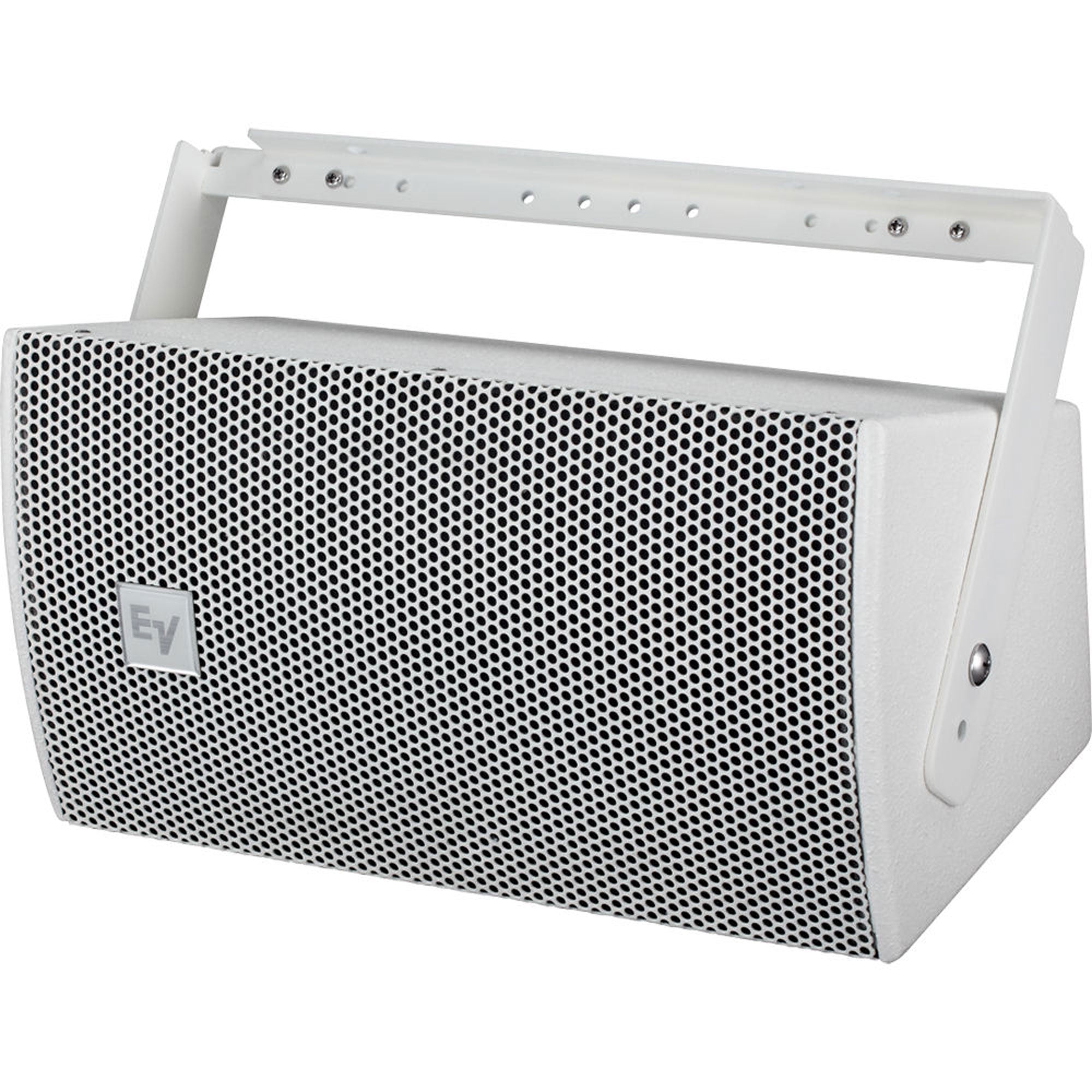

• Six M8 threaded suspension points and supplied U-bracket
• Rear mounting points accept OmniMount brackets
• Available in black or white

Specifications:

• Axial Sensitivity: 92 dB
• Axial Sensitivity: 92 (1 W x 1 m) dB
• Frequency Response (-3 dB): 110 - 16000 Hz
• Frequency Response (-10 dB): 65 - 20000 Hz
• Recommended High-Pass Frequency: 90 Hz
• Max. SPL/1m (calc); half space: 120 dB
• Coverage
• (Nominal -6 dB) H: 90
• Coverage
• (Nominal -6 dB) V: 50
• Rotatable Horn: Yes
• System Power Handling (Continuous/Program/Peak): 160/320/640 Watts
• Nominal Impedance (Passive): 8 Ω
• Suspension: (6) M8 threaded points
• Height: 208.4 mm (8.2")
• Width: 369.7 mm (14.56")
• Depth: 206.7 mm (8.14")
• Weight Net: 6.5 kg (14.33 lbs)
• Shipping Weight: 9.1 kg (20.06 lbs)
