Key Features
- Combo XLR-1/4", 3.5mm, 1/4" TRS Inputs
- Compact Design
- 4" Driver
- 77 Hz to 20 kHz Frequency Range (-10 dB)
- 30W D-Class Amplifier
- 115 dB SPL
- Volume, Low, High Controls
- Magnetically Shielded
- Multivoltage Power Supply
- Optional Mounting Brackets Available
Description

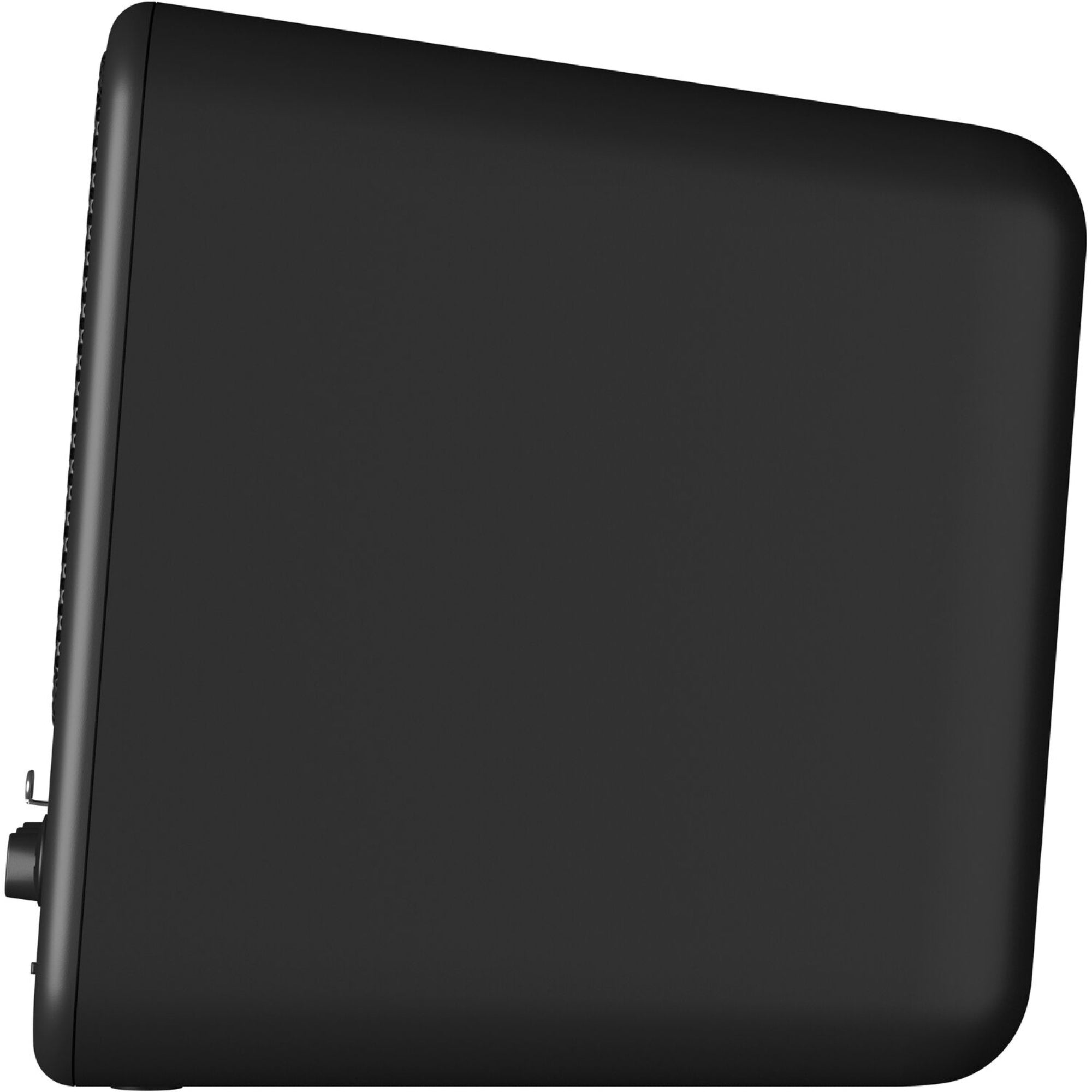

30W Powered Studio Monitor, with 4" Woofer, 1" Tweeter, and 2-band EQ (Each)
The MS101-4 powered monitor speaker is our standard in the range of desktop utility powered monitors. It offers portablility in a compact design and simple but comprehnsive functions for outstanding usability. Don't let its small footprint fool you, the MS101-4 is capable of up to 117dB SPL, great even in noisy environments, it's wide dynamic range provides remarkable accuracy at low levels as well.
Audio professionals looking for a compact and portable reference monitor will be impressed with the Yamaha MS101-4, a compact full-range monitor speaker for use in professional mobile, project, or home studios. The speaker features a 4" full-range driver powered by an integrated 30W Class-D amplifier. Inputs include a combo XLR-1/4" mic/line connector on the front panel, while the rear provides a 3.5mm TRS and a 1/4" TRS line inputs. A 1/4" output is available for connecting to an additional monitor or other compatible devices.
The front panel also includes a power switch and controls for volume and low and high EQ. The MS101-4 comes with a 3/8-16 threaded female mount for direct attachment to a Euro microphone stand, and optional accessories can also be added for use in a wide range of applications. The MS101-4 ships with a power cord.
Features:
- 30 Watts of amplifier power provides clean, high output sound
- Four inch high output driver with a 1 inch voice coil
- Front mounted controls provide easy access
- Two band EQ for quick tone adjustments
- Redesigned enclosure for an even lower profile
- Smooth frequency response form 77hZ to 20kHz
- Compatible with a wide range of optional brackets
- Directly mountable on Euro microphone stands
Specifications:
- General
- System Type: Full range powered Speaker, Bass-reflex Type
- Frequency Range (-10dB): 77Hz - 20kHz
- Measured Maximum SPL(Peak) Pink noise (1m): 115 dB SPL
- Transducer
- Diameter: 4" Cone
- Voice coil: 1"
- Magnet: Ferrite
- Enclosure
- Material,Color: Plastic (PP), Black
- Dimensions (WxHxD, without rubber feet): 142×196×187 mm (5 5/8""x 7 3/4""x7 3/8"")
- Net Weight: 2.1kg (4.6 lbs)
- Handles: Side x 2
- Screw Threads (bottom): 2 x M5; depth 11mm; spaced 60 mm apart 1 x 3/8-16; depth 12mm (.47")
- Optional Speaker Brackets: BMS-10A, BAS-10, BWS20-190, BCS20-210, BCS20-150
- Amplifier
- Amplifier Type: Class-D
- Power Rating*¹: Dynamic: 30 W
- Continuous: 20 W
- Cooling: Natural cooling (no fan)
- Connectors: Input: Input (Front): Combo, Line Input 1: Stereo mini, Line Input 2: Phone TRS
- Output: Phone TRS (x1)
- Power: IEC AC Inlet x1
- Input Impedance: INPUT (Front): LINE: 5.4 kΩ, MIC: 5.4 kΩ, LINE INPUT 1, 2: 10 kΩ
- Input Sensitivity (VOLUME: Maximum): INPUT (Front): LINE: -10 dBu, MIC: -40 dBu, LINE INPUT 1, 2: -10 dBu
- Nominal Input Level (VOLUME: Center): INPUT (Front): LINE: -10 dBu, MIC: -40 dBu, LINE INPUT 1, 2: -10 dBu
- Maximum Input Level: INPUT (Front): LINE: +20 dBu, MIC: -10 dBu, LINE INPUT 1, 2: +20 dBu
- Controls: VOLUME × 1, LOW CONTROL × 1, HIGH CONTROL × 1, POWER
- Idle Power Consumption: 3W
- 1/8 Power Consumption: 10W
- Power Requirements: 100V-240V, 50/60 Hz
Includes:
- Yamaha MS101-4 Powered Monitor Speaker 30W Class-D (Single)
- Power Cord
- Limited 1-Year Warranty
