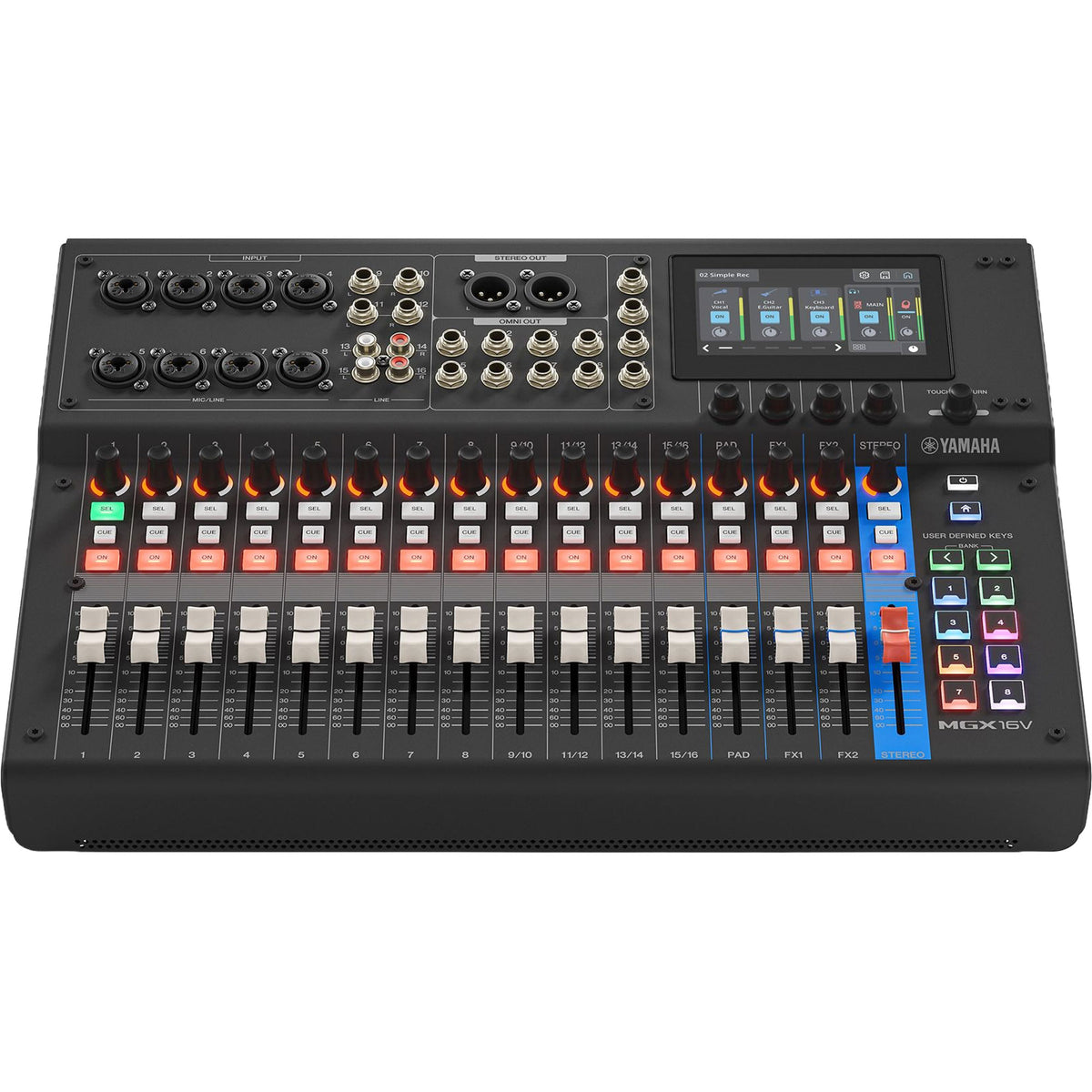

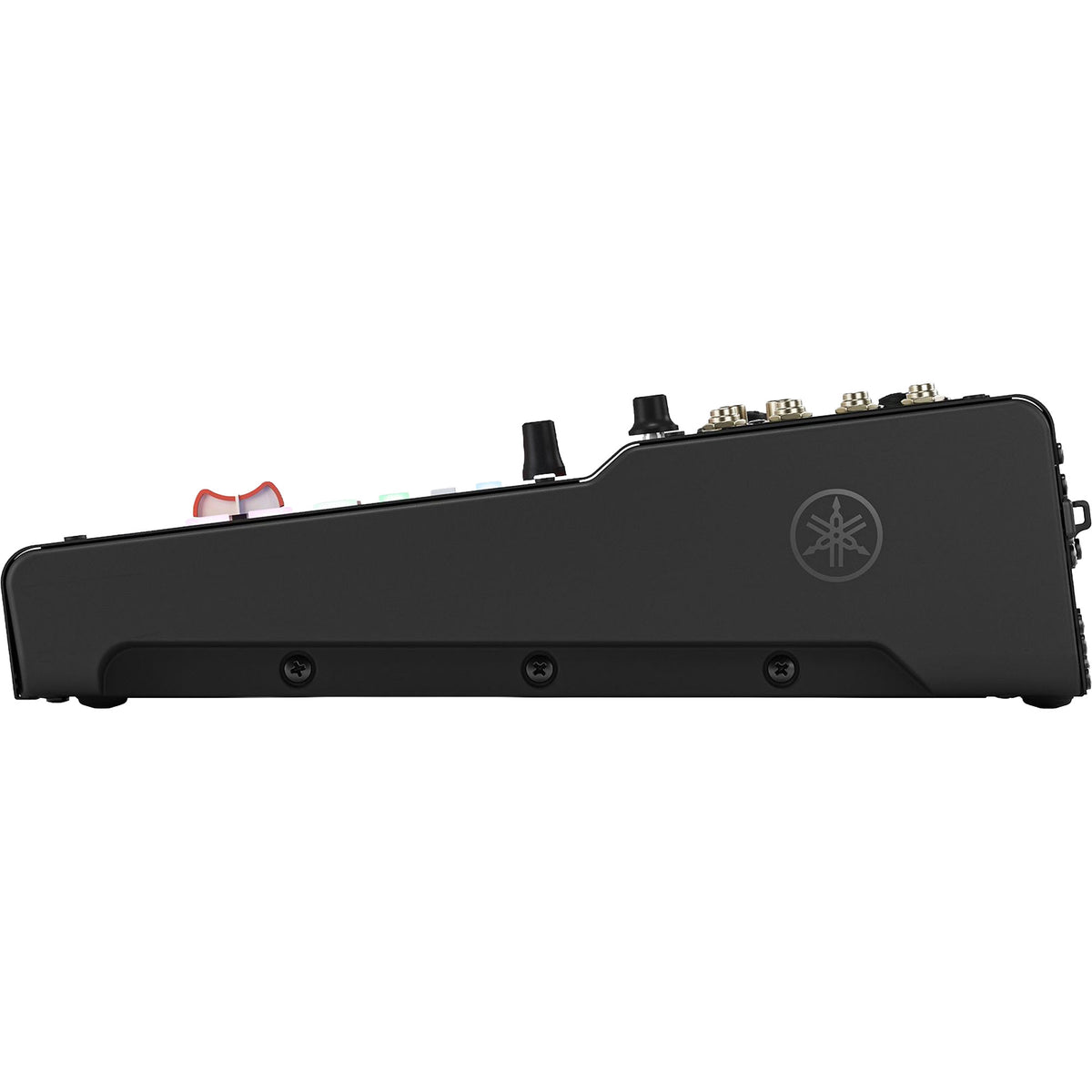

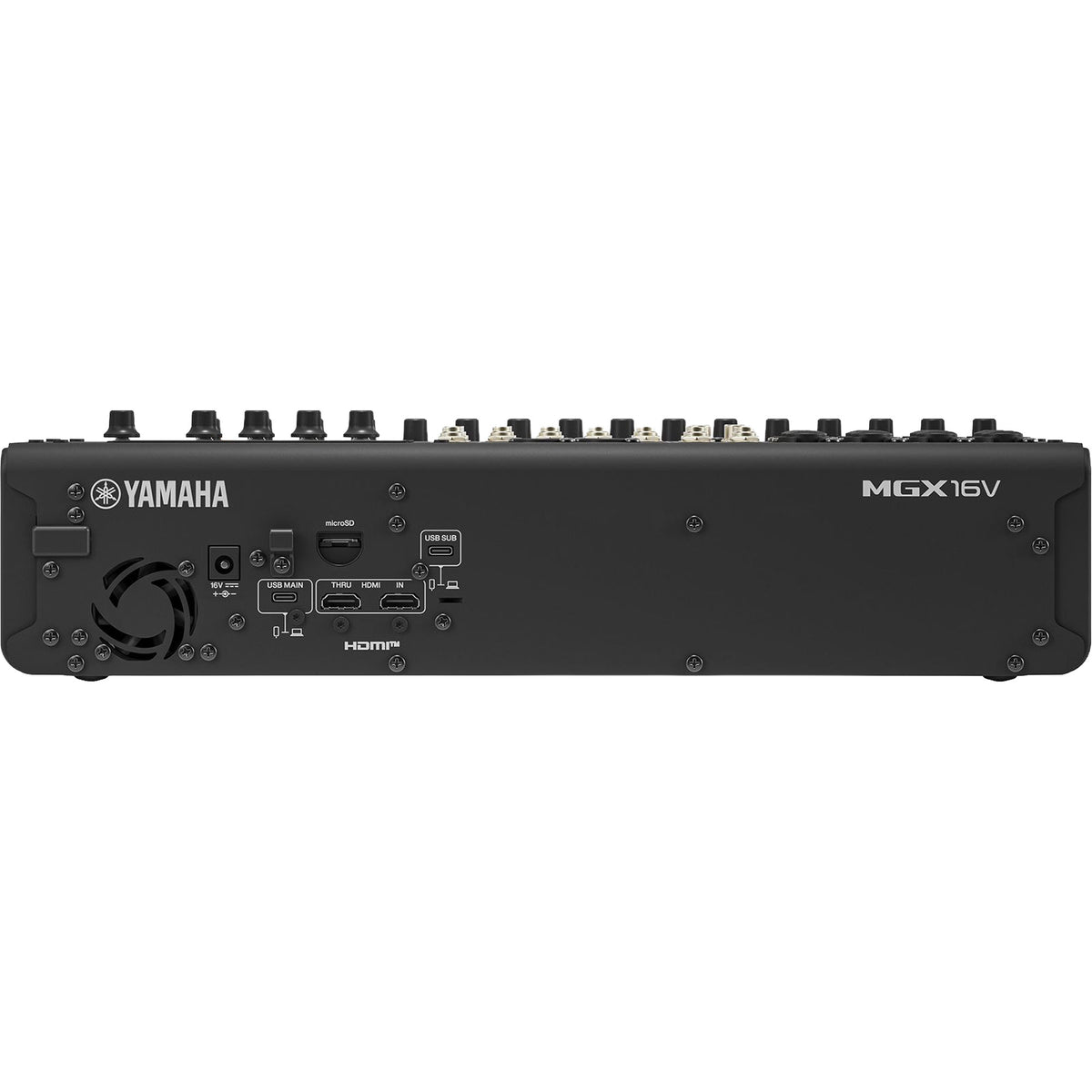

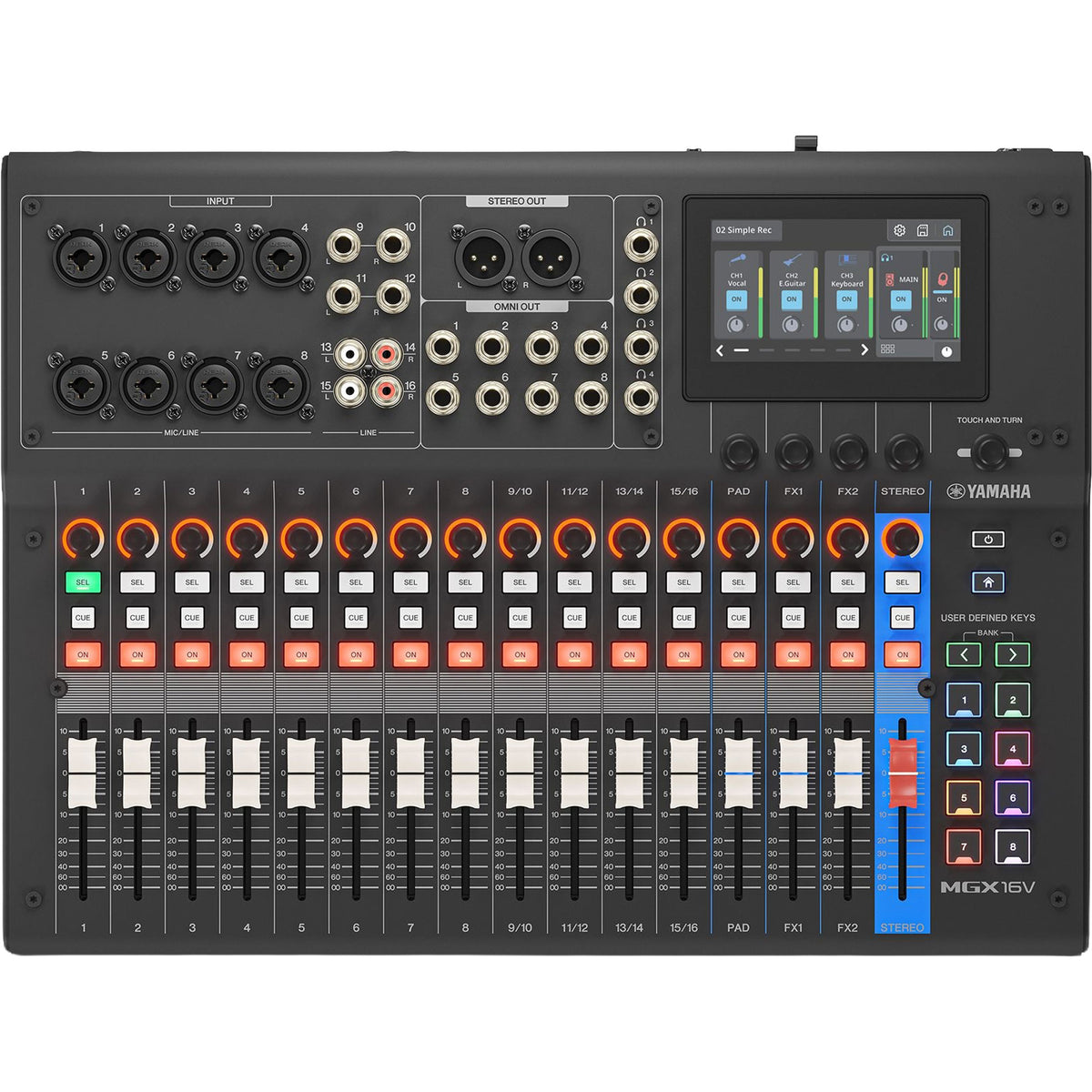

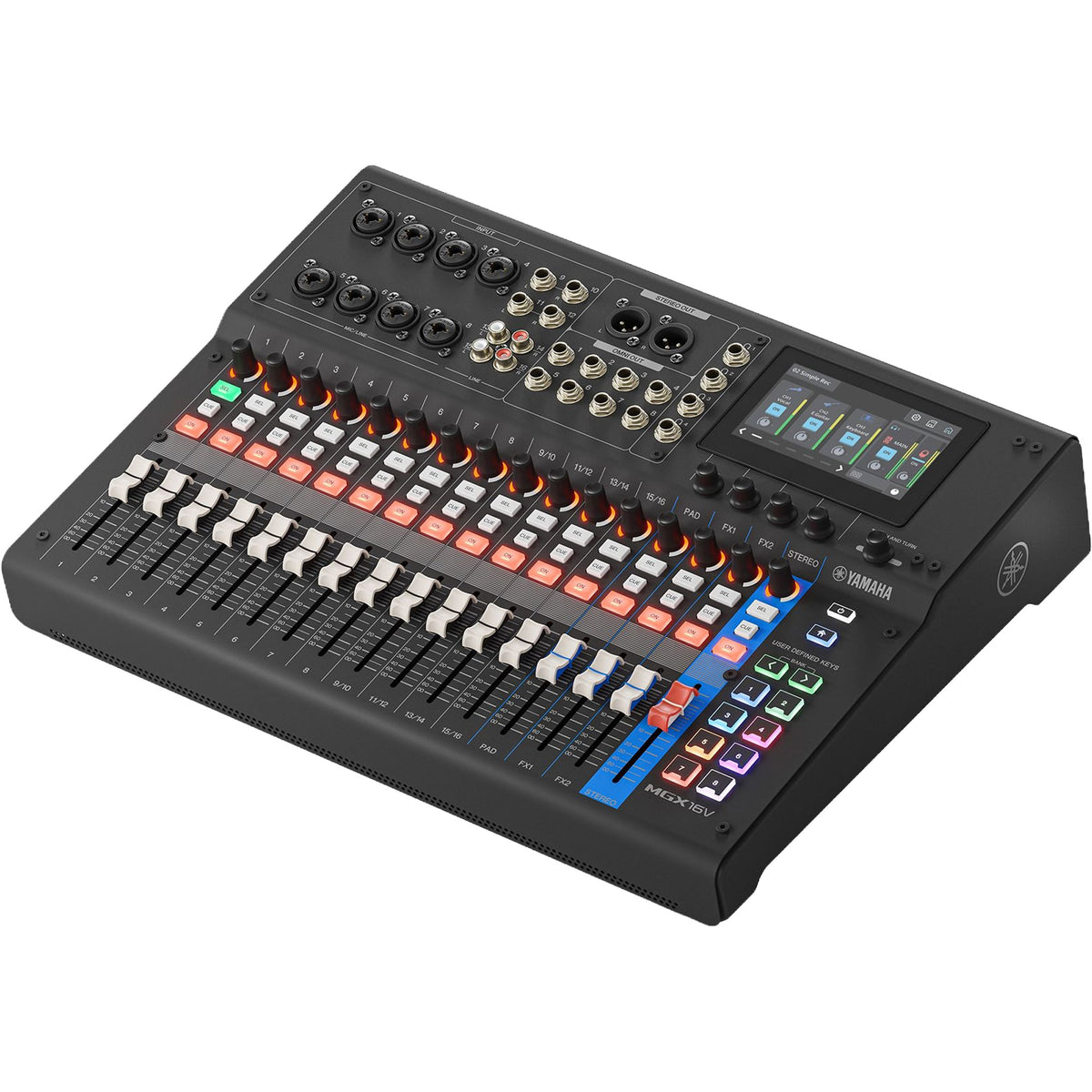

Yamaha MGX16V 22-Channel Digital Mixing Console with Dual USB-C Audio/Video Interface (Black)

16-input Digital Mixer with 15+1 Faders, 8 Mic Preamps, 4.3" Touchscreen, USB-HDMI A/V Interface, 16-track Recorder, Bluetooth, and DSP - Black

The Yamaha MGX16V combines digital mixing, multitrack recording, and HDMI-to-USB audio/video capture in a compact console. Designed for live sound, installed systems, podcasts, streaming, and music production, it provides eight microphone preamps and flexible routing for microphones, instruments, and playback sources. This model features a black finish.

Fifteen channel faders and a master fader provide hands-on level control, while a 4.3-inch touchscreen and five control knobs give you access to mixing functions. Built-in DSP handles audio processing and latency-free monitoring. Auto Gain and Clip Safe assist with level management, Simple and Standard modes offer different operating workflows, and Scene Recall lets you return to stored settings.

For productions that combine sound and video, the integrated HDMI-to-USB interface captures audio and video to a computer for recording or streaming. Real-time HDMI passthrough provides an additional video output alongside capture, bringing audio mixing and video connectivity together in one console.

Record to your computer through the main 22-in/22-out USB audio interface at 32-bit/96 kHz, or capture up to 16 tracks directly to a microSD card without a computer. A separate 2-in/2-out USB interface, Bluetooth audio input, and two-track microSD playback provide additional ways to connect and play back audio.

Key features:

• Eight microphone preamps with eight combo mic/line inputs
• 15 channel faders plus one master fader, all non-motorized
• 4.3-inch touchscreen with five control knobs
• Mixing channels: eight mono, four stereo, one Sound Pad, and two effects returns
• One stereo bus and eight mix buses
• Local inputs: eight combo mic/line, four TRS line, and four RCA line inputs
• Local outputs: two XLR, eight TRS, and four headphone outputs
• Main USB interface: 22 inputs and 22 outputs at 32-bit/96 kHz
• Secondary USB interface: two inputs and two outputs at 16-bit/48 kHz
• microSD recording: 16-track recording and two-track playback at 24-bit, up to 96 kHz
• HDMI-to-USB audio/video capture with real-time HDMI passthrough
• Two-channel Bluetooth 5.0 audio input with A2DP support
• Built-in DSP for audio processing and latency-free monitoring
• Auto Gain, Clip Safe, Simple and Standard modes, and Scene Recall
• Black finish

Includes a PA-300C AC power adapter, Start Guide, Safety Guide, and software license cards for Cubase AI, WaveLab Cast, Steinberg Plus, and Basic FX Suite.
