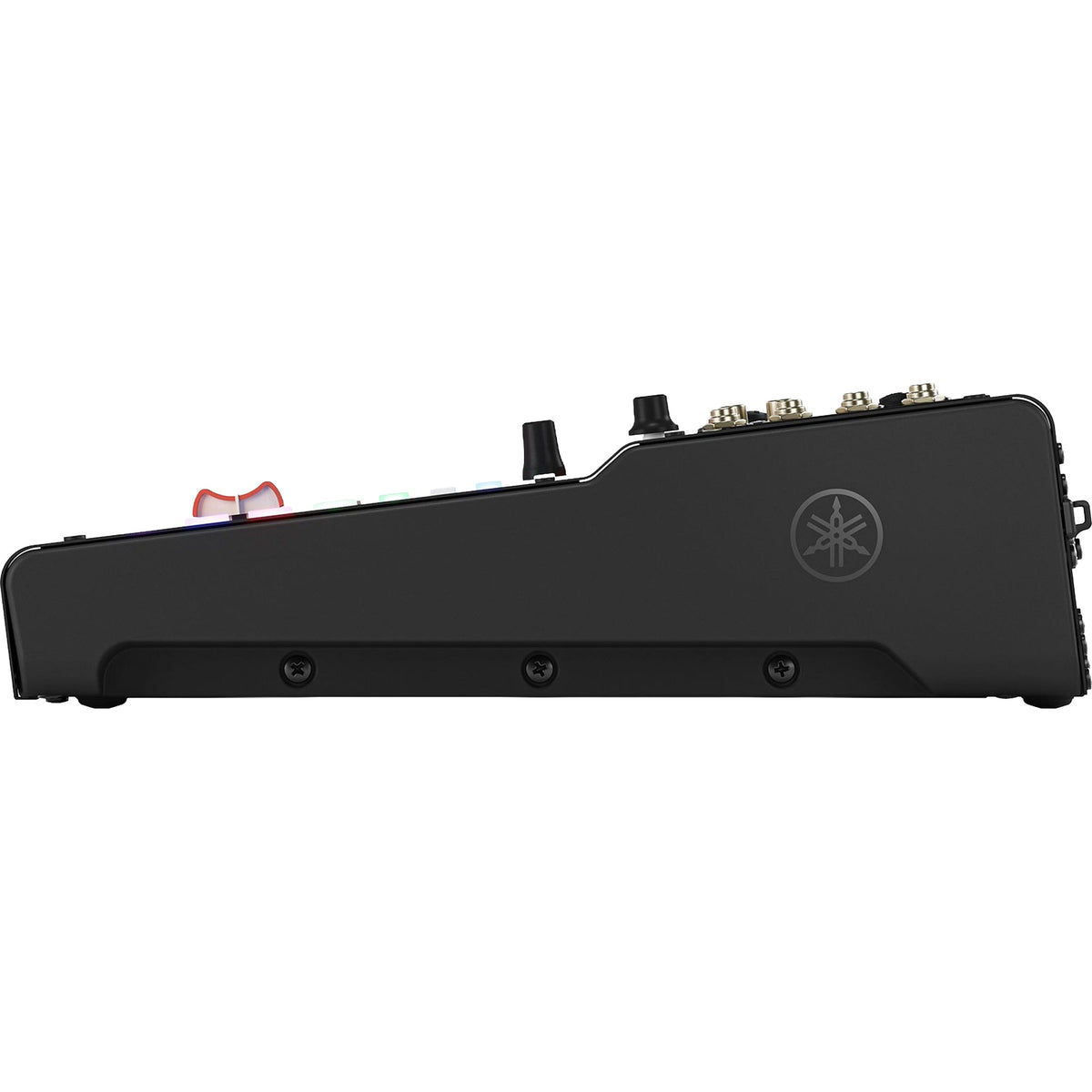

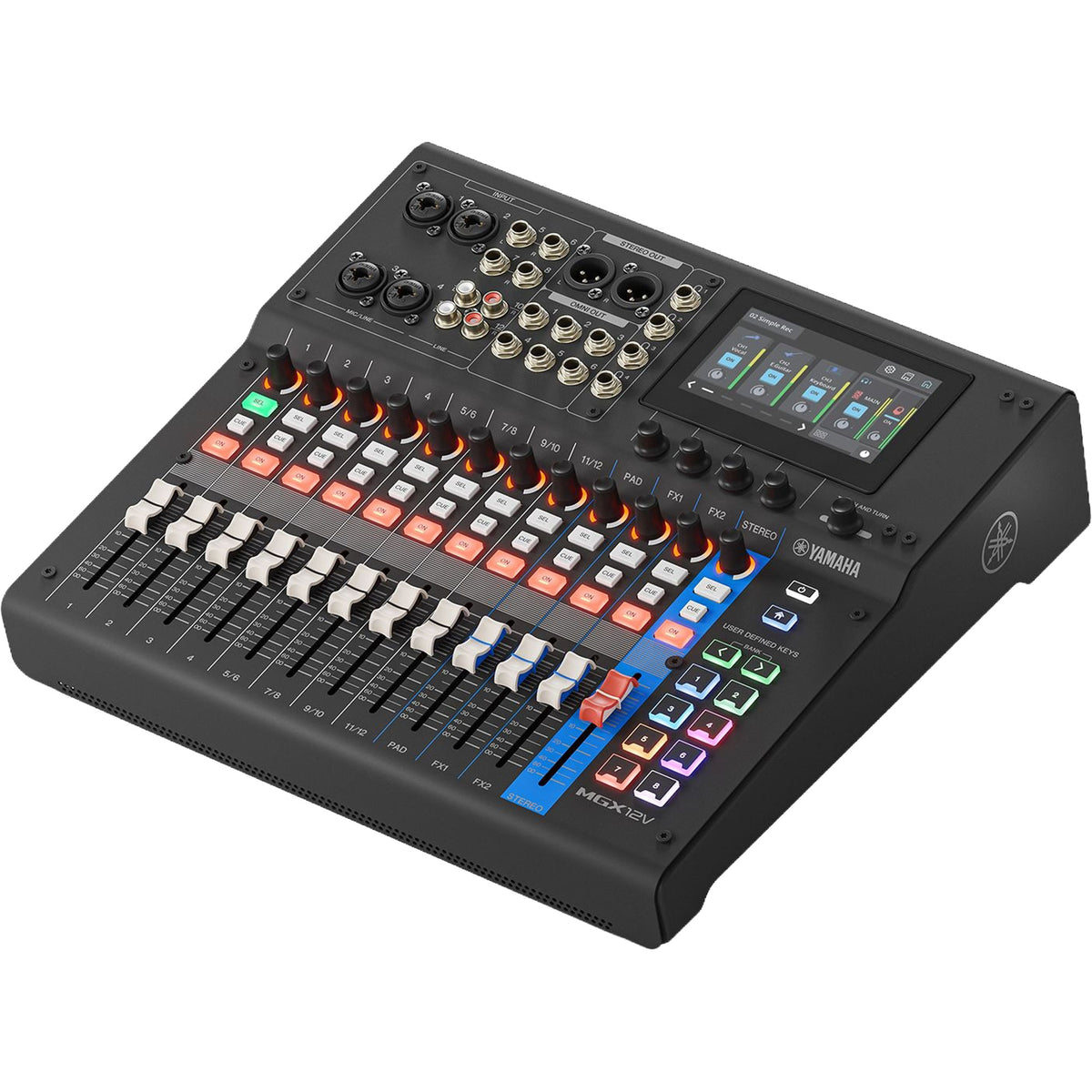

Yamaha MGX12V 18-Channel Digital Mixing Console with Dual USB-C Audio/Video Interface (Black)

12-input Digital Mixer with 11+1 Faders, 4 Mic Preamps, 4.3" Touchscreen, USB-HDMI A/V Interface, 16-track Recorder, Bluetooth, and DSP - Black

The Yamaha MGX12V brings digital mixing, multitrack recording, and HDMI-to-USB audio/video capture together in a compact console. Designed for live sound, podcasts, streaming, and music production, it combines four microphone preamps with flexible audio connections and hands-on control. This model features a black finish.

For a four-person podcast, the four mic inputs and four headphone outputs accommodate each participant, while the integrated video interface lets you capture HDMI audio and video to a computer for recording or streaming. Real-time HDMI passthrough provides a video output alongside capture.

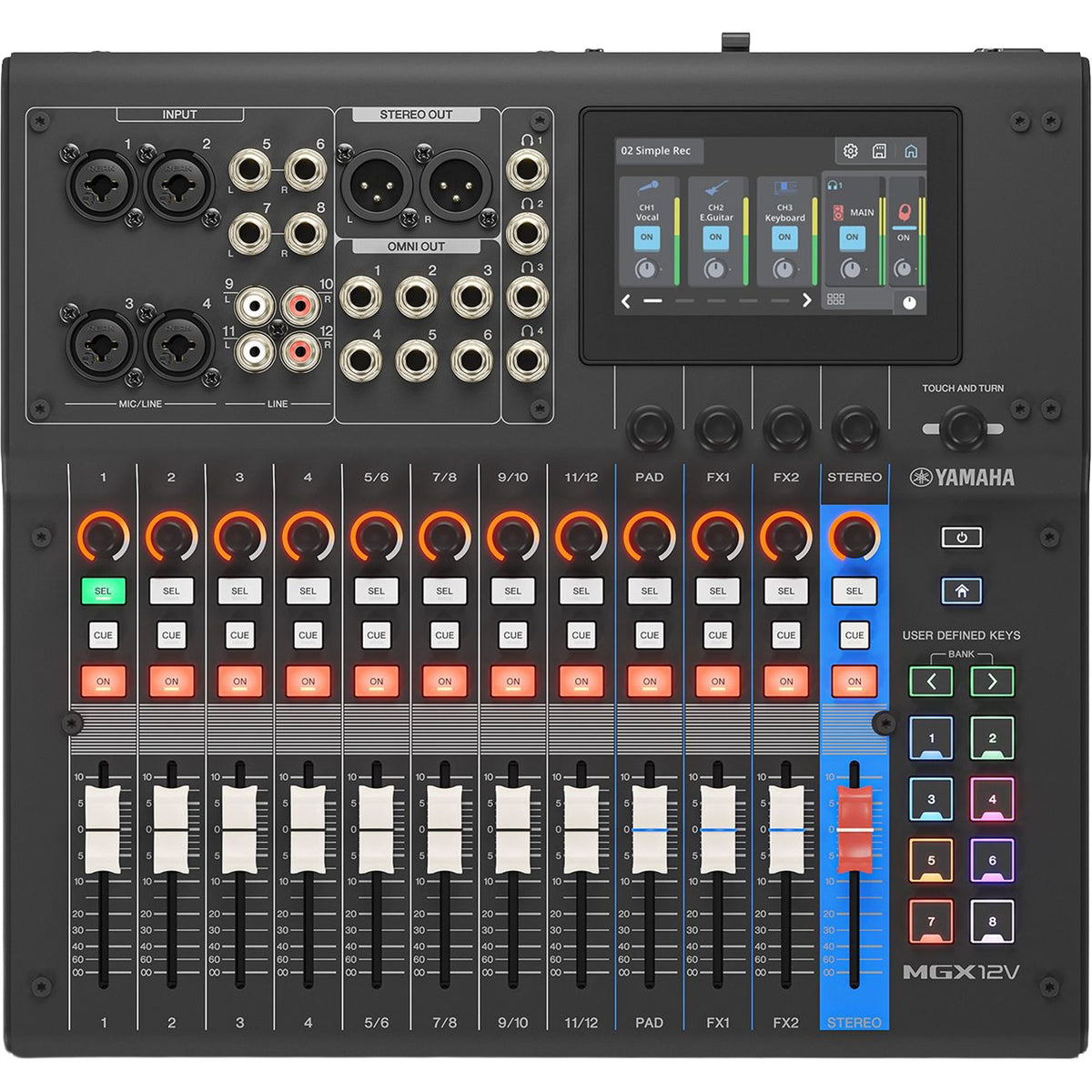

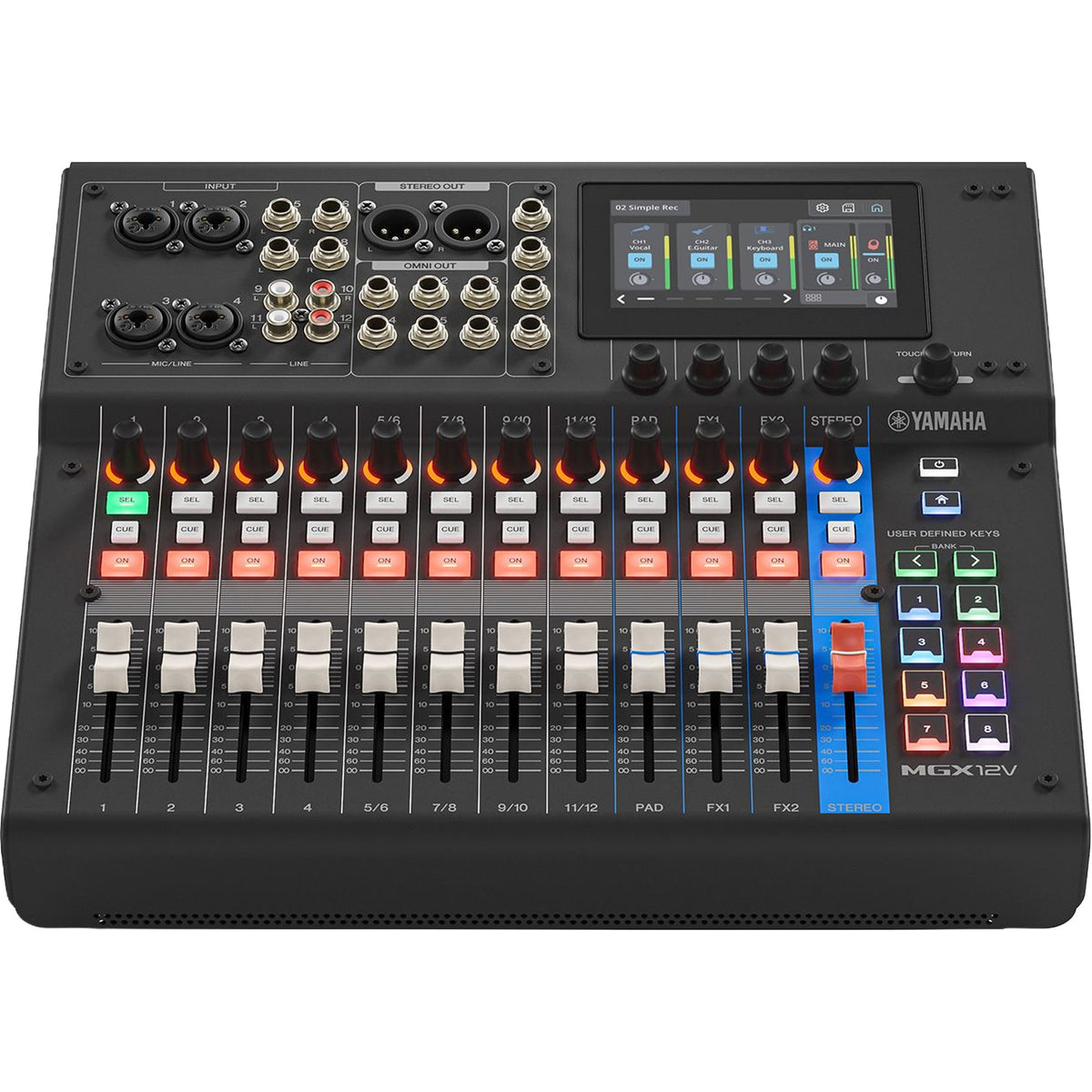

Eleven channel faders and a master fader put level control at your fingertips. A 4.3-inch touchscreen with five control knobs provides access to mixing functions, while built-in DSP handles audio processing and latency-free monitoring. Auto Gain and Clip Safe assist with level management, Simple and Standard modes offer different operating workflows, and Scene Recall lets you return to stored settings.

Record to your computer through the main 18-in/18-out USB audio interface at 32-bit/96 kHz, or capture up to 16 tracks directly to a microSD card without a computer. A separate 2-in/2-out USB interface, Bluetooth audio input, and two-track microSD playback provide additional options for bringing audio into your production.

Key features:

• Four microphone preamps with four combo mic/line inputs
• 11 channel faders plus one master fader, all non-motorized
• 4.3-inch touchscreen with five control knobs
• Mixing channels: four mono, four stereo, one Sound Pad, and two effects returns
• One stereo bus and eight mix buses
• Local inputs: four combo mic/line, four TRS line, and four RCA line inputs

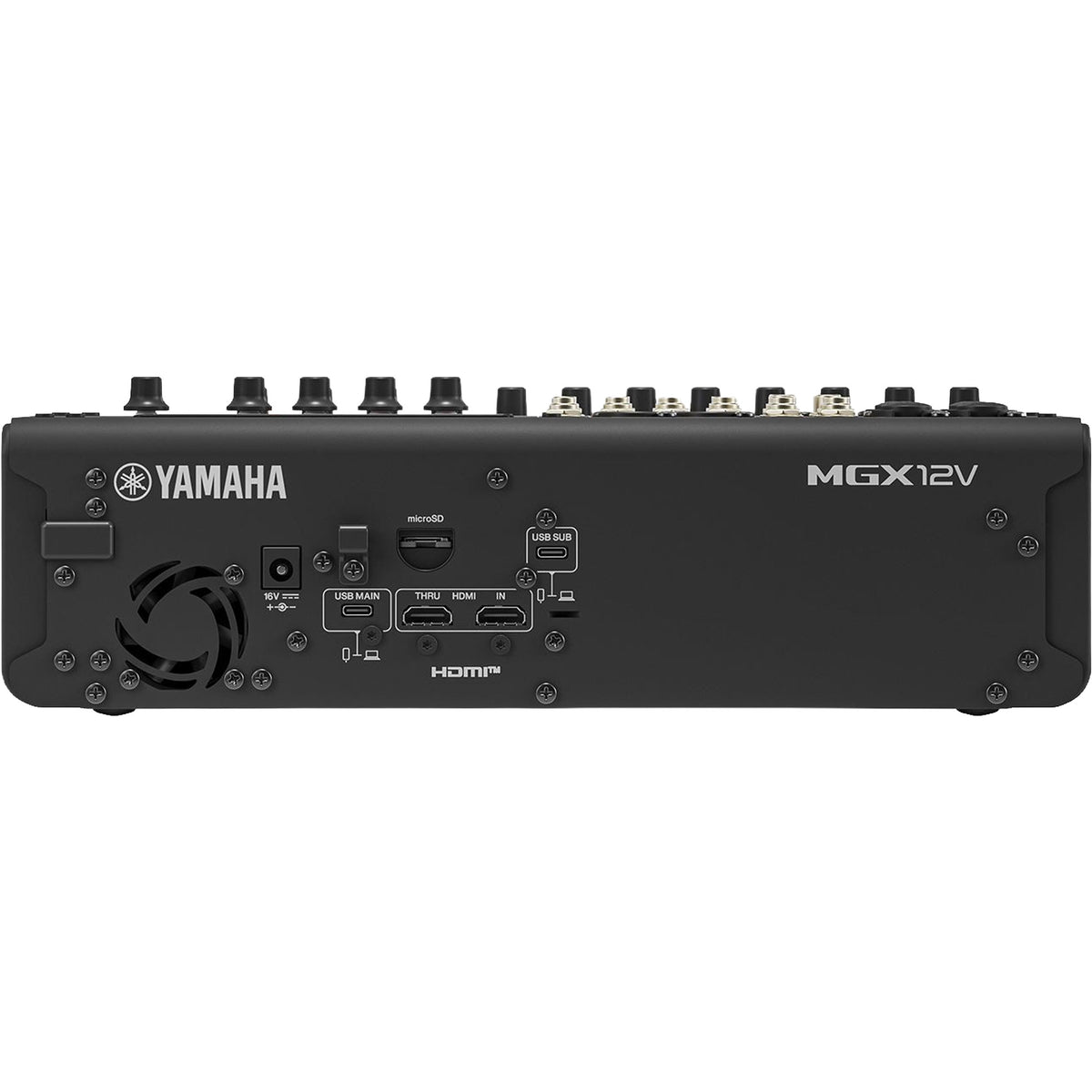

• Local outputs: two XLR, six TRS, and four headphone outputs
• Main USB interface: 18 inputs and 18 outputs at 32-bit/96 kHz
• Secondary USB interface: two inputs and two outputs at 16-bit/48 kHz
• microSD recording: 16-track recording and two-track playback at 24-bit, up to 96 kHz
• HDMI-to-USB audio/video capture with real-time HDMI passthrough
• Two-channel Bluetooth 5.0 audio input with A2DP support
• Built-in DSP for audio processing and latency-free monitoring
• Auto Gain, Clip Safe, Simple and Standard modes, and Scene Recall
• Black finish

Includes a PA-300C AC power adapter, Start Guide, Safety Guide, and software license cards for Cubase AI, WaveLab Cast, Steinberg Plus, and Basic FX Suite.
