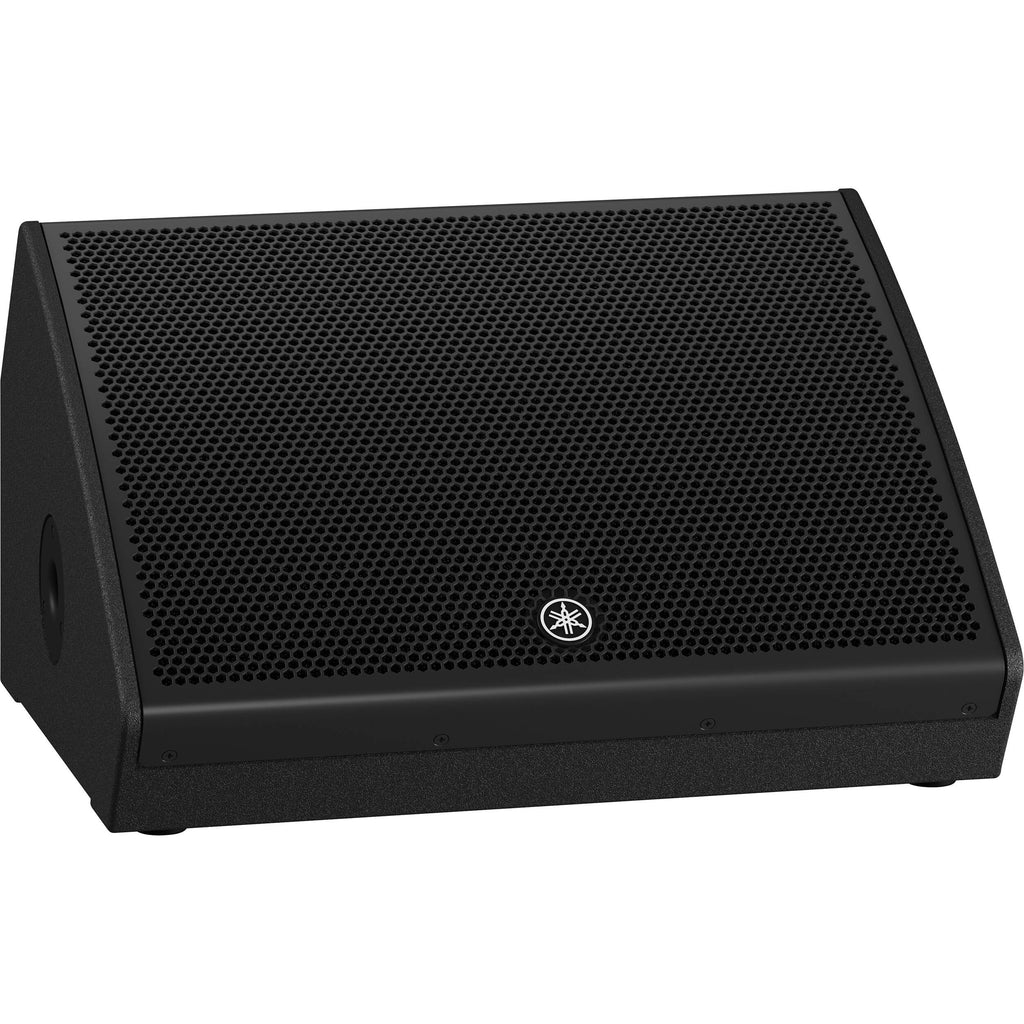

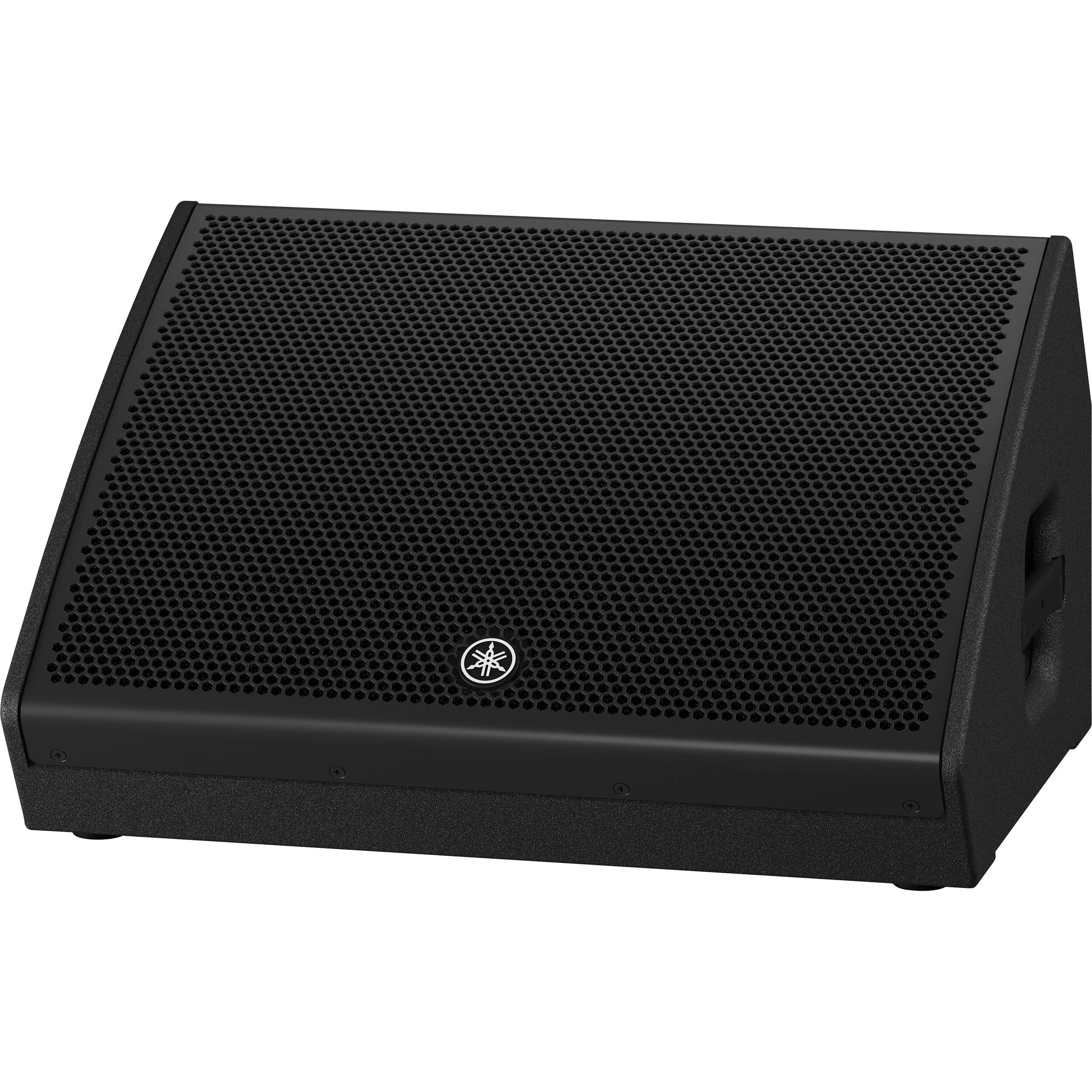

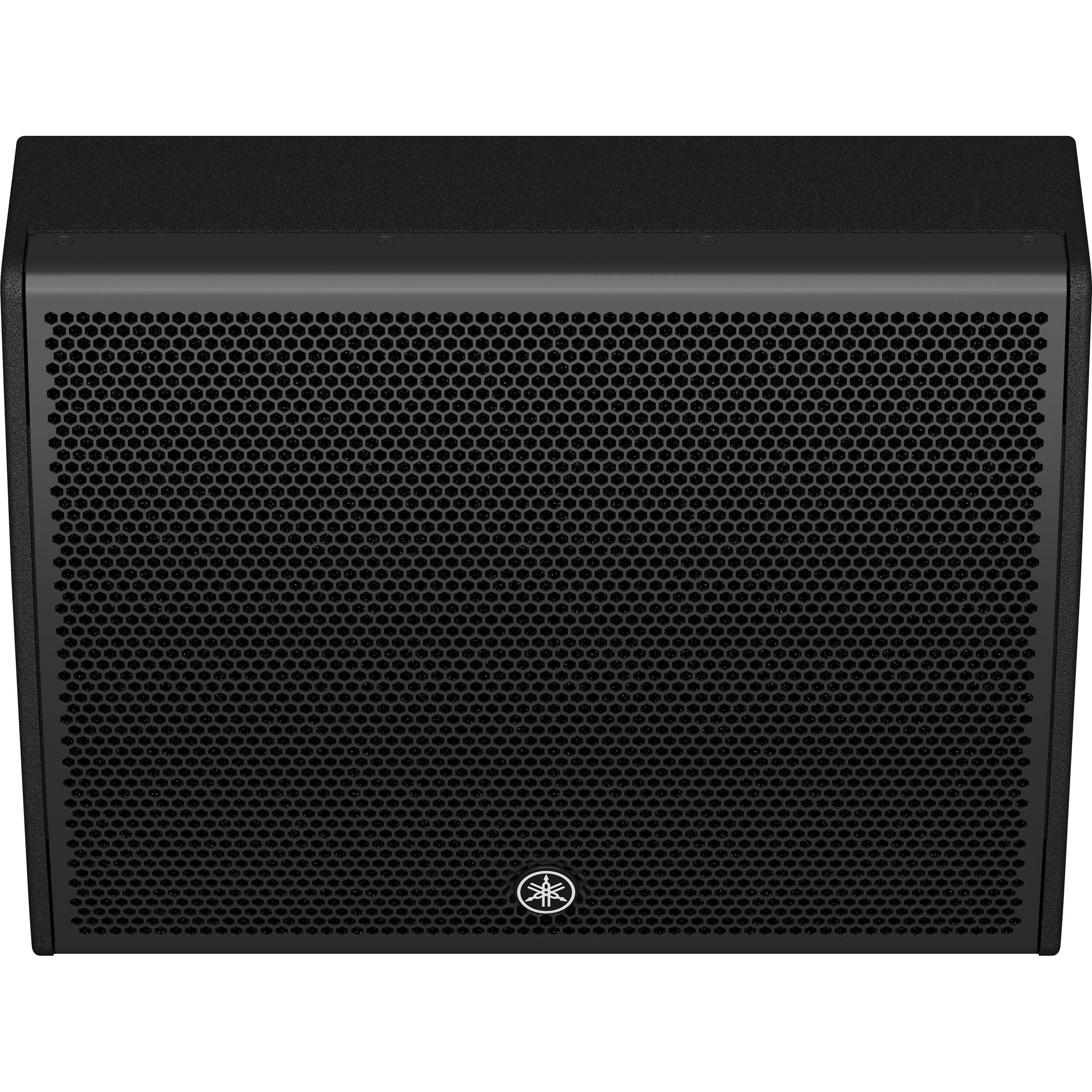

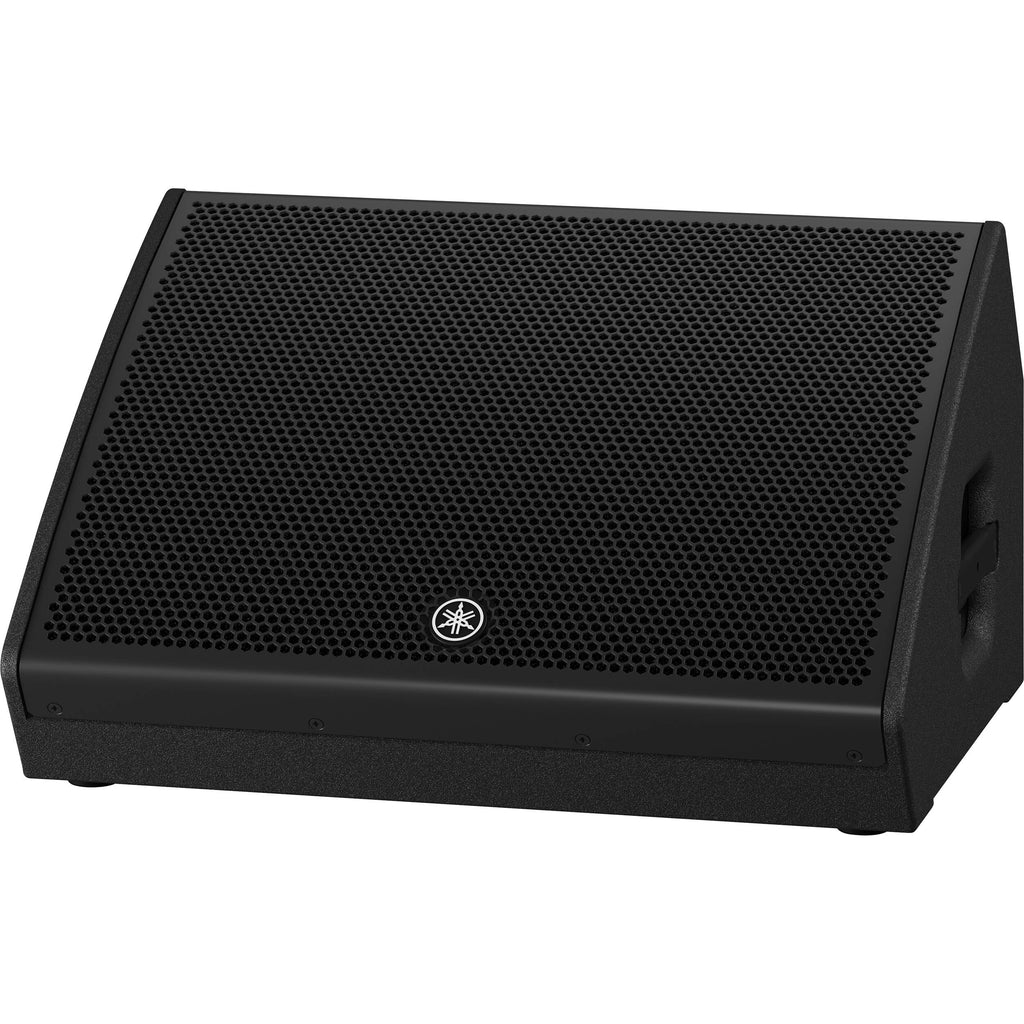

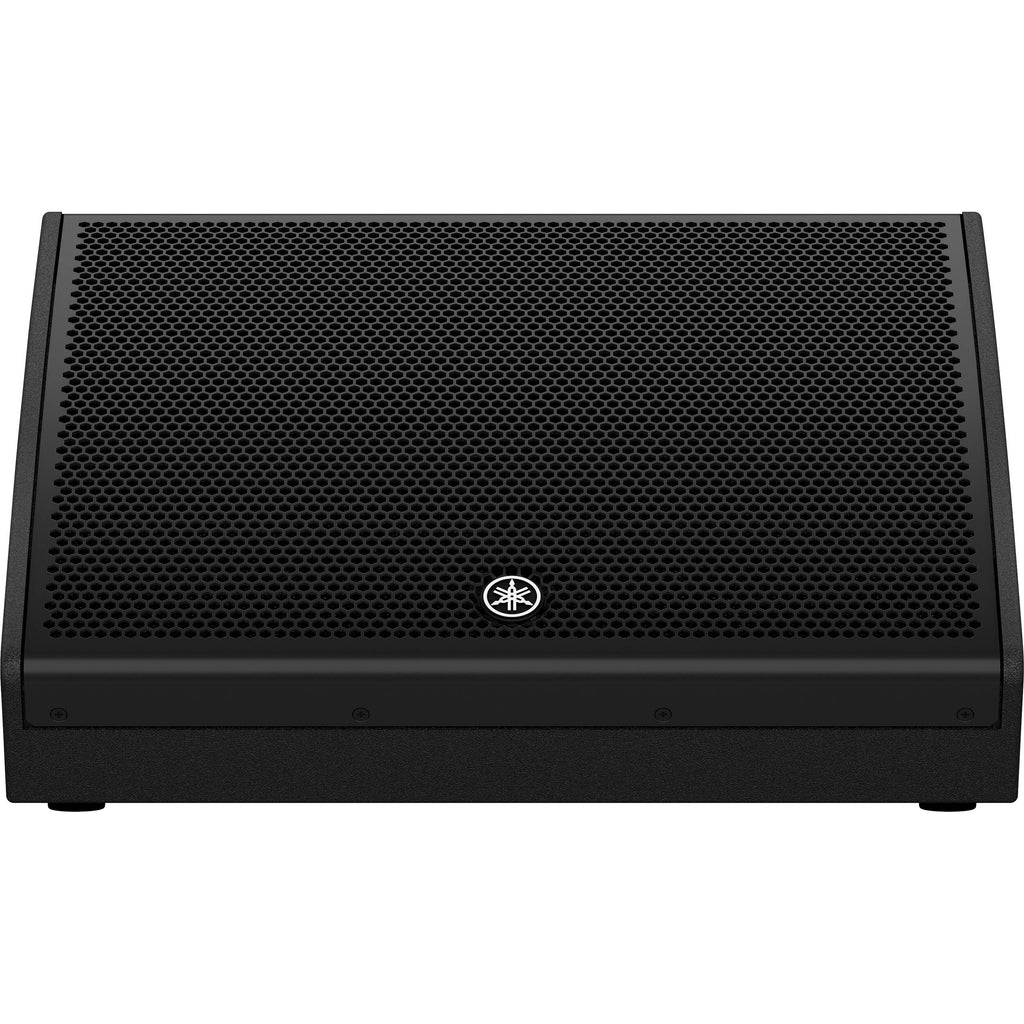

Yamaha DHR15M 2-Way Coaxial 15" 1000W Active Floor Monitor / Loudspeaker

1,000W 2-way Powered Floor Monitor with 15" Woofer, 1.4" Coaxial Tweeter, and DSP

The DHR15M is a 2-way bi-amp powered loudspeaker featuring a 15-inch woofer and a 1.75-inch HF driver in a space-saving coaxial configuration with a custom-designed constant directivity horn, perfect for use as a floor monitor. Combining a 1000W amplifier and high-performance DSP with the same plywood construction found on our high-end DZR Series, the DHR15M offers best-in-class sound quality and durability.

Performance. Optimized.

The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with DHR10 and DHR12 for fixed installation and utilities, DHR12M and DHR15M designed for use as floor monitors, and DHR15 for FOH applications-all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, this series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn't it time you audition DHR quality and performance to improve your sound?

Cabinet Designs Optimized for a Range of Audio Environments

The DHR Series features a comprehensive lineup of powered loudspeakers with cabinets optimized to meet the demands of specific applications. DHR10 and DHR12 are equipped with rotating horns and a dedicated U-bracket for use in fixed installations and utility, while DHR12M and DHR15M feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring. The series is rounded out by DHR15, which features rigging points for use in fixed installations. DHR12 and DHR15 also feature dual-angle pole sockets, allowing them to be used as temporary main speakers for sound reinforcement.

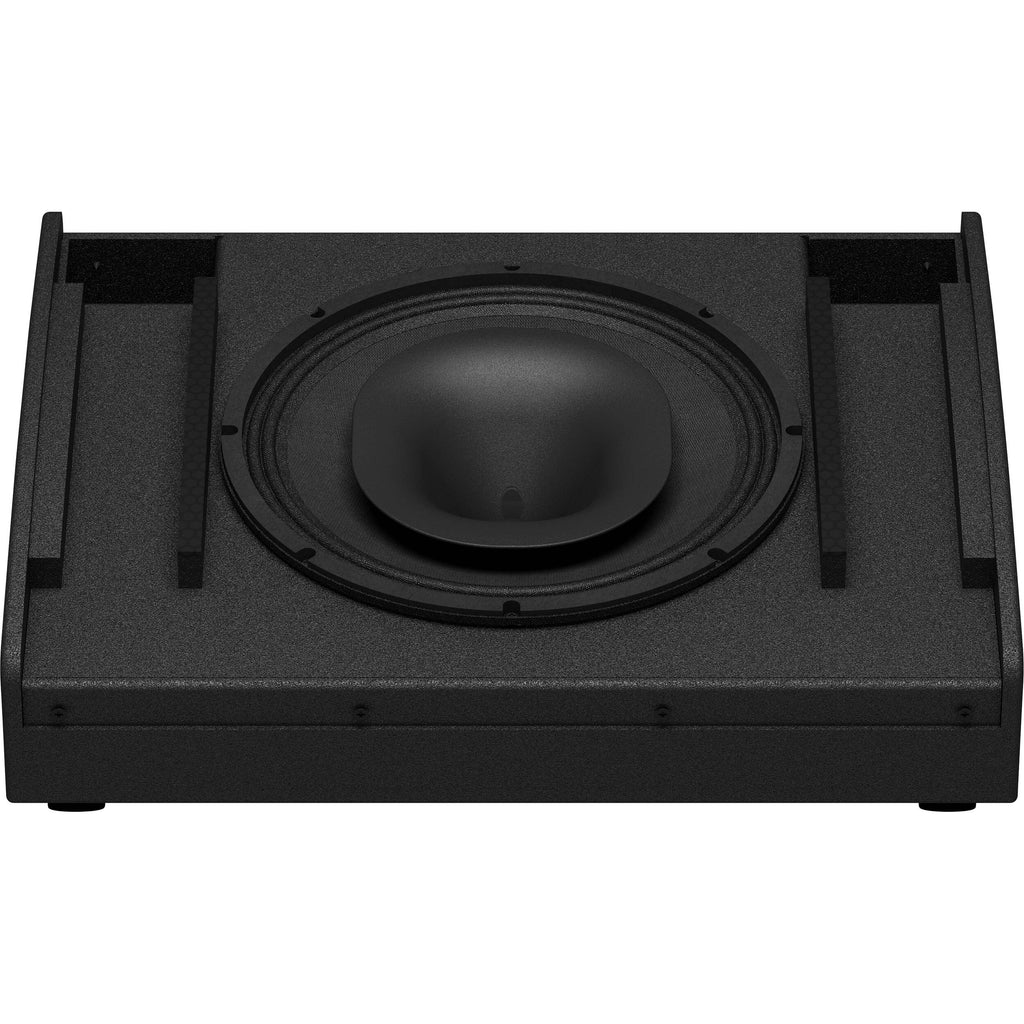

Custom Designed Transducers

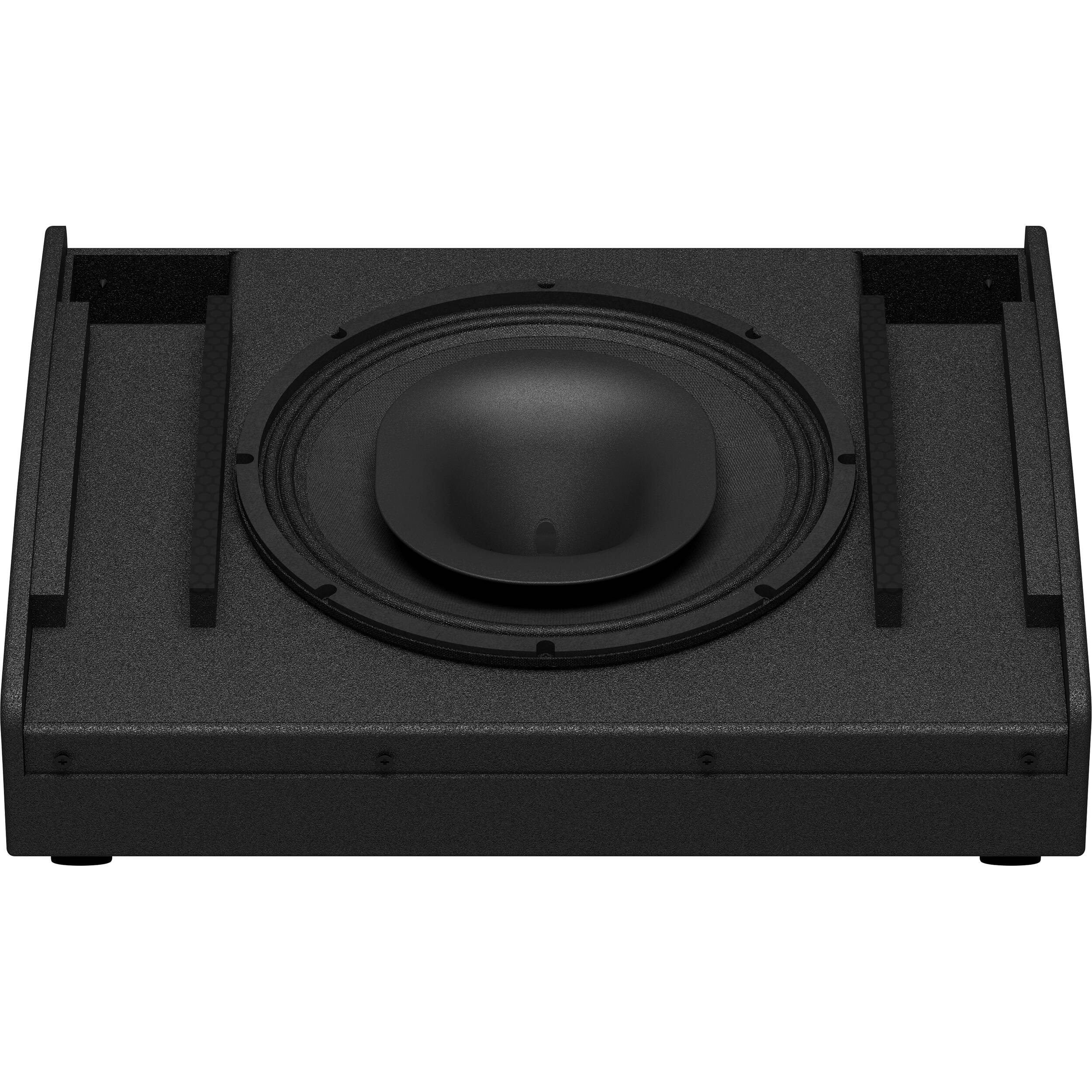

The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver* produces accurate mid-range and high frequencies.

* DHR12M and DHR15M feature a 1.75" coaxial compression driver.

A Rugged, Highly Portable Cabinet

The DHR series feature plywood enclosures like our acclaimed DZR loudspeakers to deliver outstanding durability and acoustic performance.

High-Efficiency 1000W Class-D Amplifiers

The DHR's lightweight, high-performance Class-D amplifier is capable of producing up to 1000W* of power, achieving an SPL of 131 dB (DHR15), delivered with remarkable clarity and dynamic characteristics.

*DHR10 has an output level of 700W.

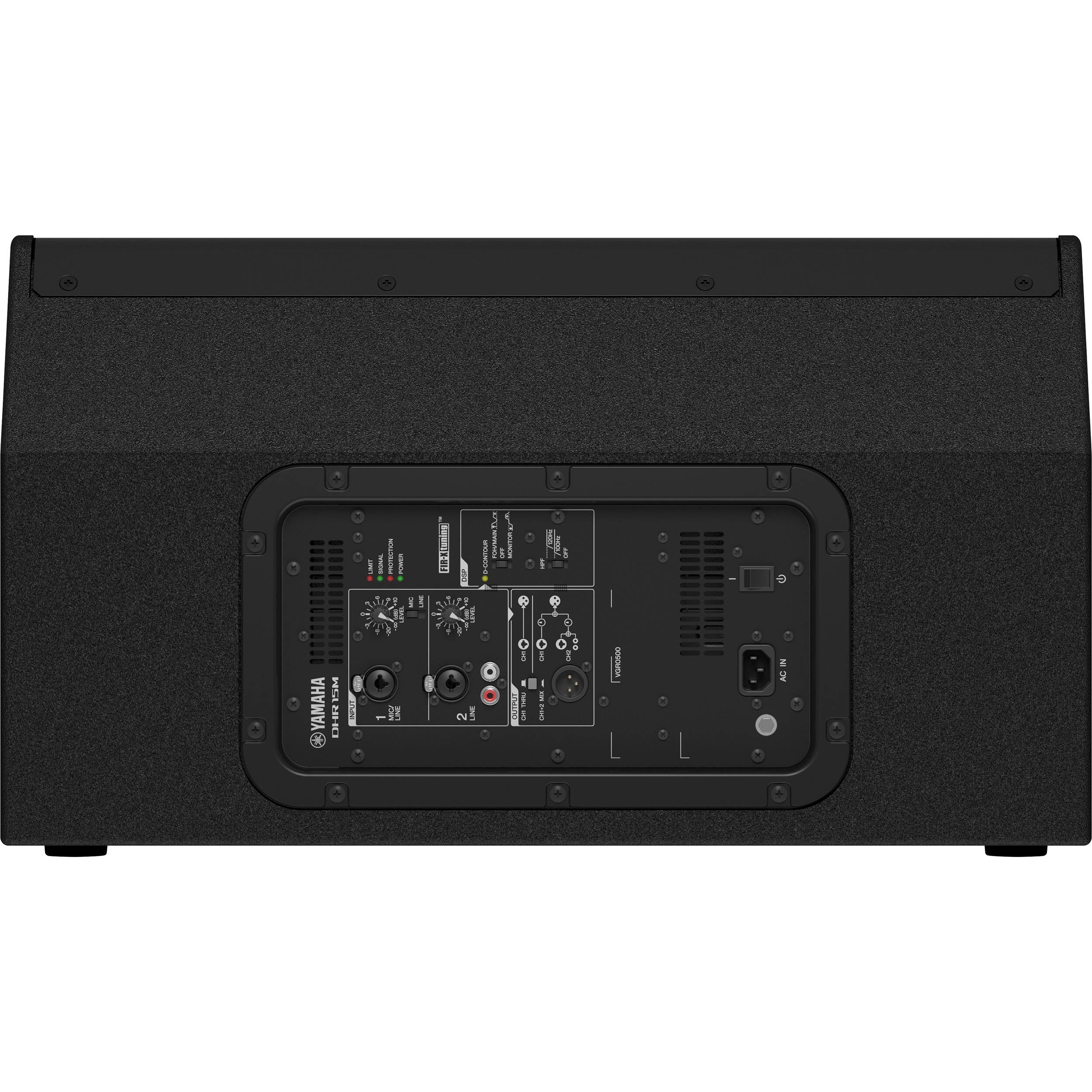

Easy-to-use Onboard 2-Channel Mixer

DHR Series speakers have two input channels. CH1 has a combo jack that accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a pair of RCA pin Jacks for input from CD players or other stereo line-level sources.

The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

Dual-Angle Pole Mount Socket (DHR15, DHR12)

Depending on the venue, sometimes your mix can fall prey to low ceilings or other room attributes that can impede a clear, even mix and detract from the audience's listening experience significantly. The DHR15 and DHR12's pole mount socket offers two positions - 0° or -7° - to direct the acoustic energy away from reflective surfaces and onto your audience where it belongs.

Features:

• The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
• A pole socket for use on a stand
• Proprietary FIR-X tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Specifications:

• SPEAKER TYPE
• 2-way, Bi-amped Powered Speaker, Bass-reflex
• FREQUENCY RANGE (-10DB)
• 50 Hz - 20 kHz
• COVERAGE AREA
• H65ﾟ x V75ﾟ
• CROSSOVER
• 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
• MAXIMUM OUTPUT LEVEL (MEASURED PEAK, IEC NOISE@1M)
• 131 dB SPL
• COMPONENTS
• LF: Diameter:15" cone, Voice Coil: 3", Magnet: Ferrite
• HF: Diaphragm: 1.75", Type: 1" throat compression driver Coaxial, Magnet: Ferrite
• AMPLIFIER CLASS
• Class-D
• POWER RATING
• Dynamic: 1,000 W (LF: 800 W, HF: 200 W) *1
• Continuous: 465 W (LF: 400 W, HF: 65 W)
• COOLING
• Fan cooling, 4 speeds
• POWER CONSUMPTION
• 74 W (1/8power), 18 W (Idle)
• POWER REQUIREMENTS
• 100 V, 100-120 V, 220-240 V, 110/127/220V (Brazil), 50/60 Hz
• A/D D/A CONVERTERS
• 24 bit 48 kHz Sampling
• PROCESSORS
• OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
• I/O CONNECTORS
• INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• CABINET MATERIAL
• Plywood
• FINISH
• Durable Polyurea Painting, Black

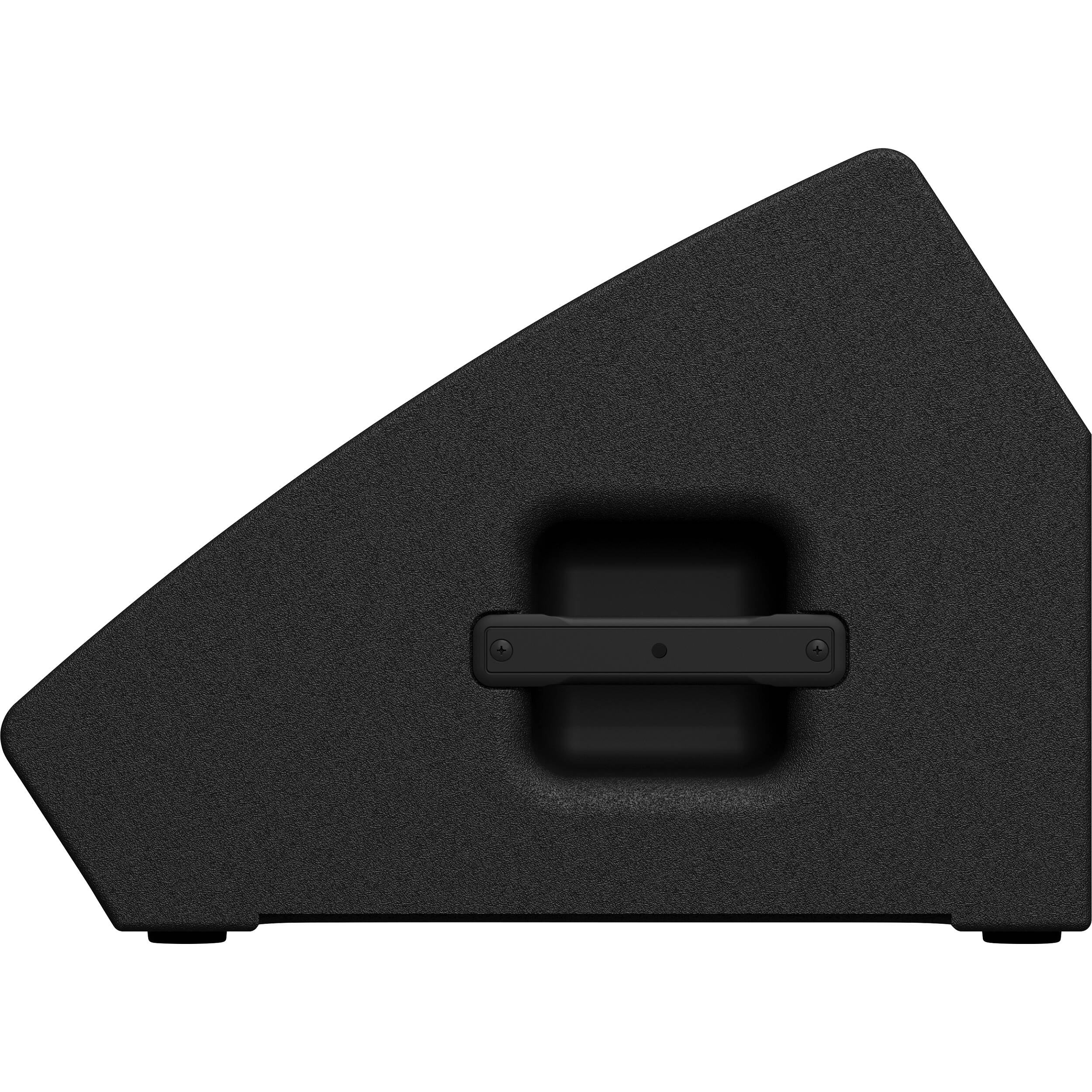

• HANDLE
• Side x1

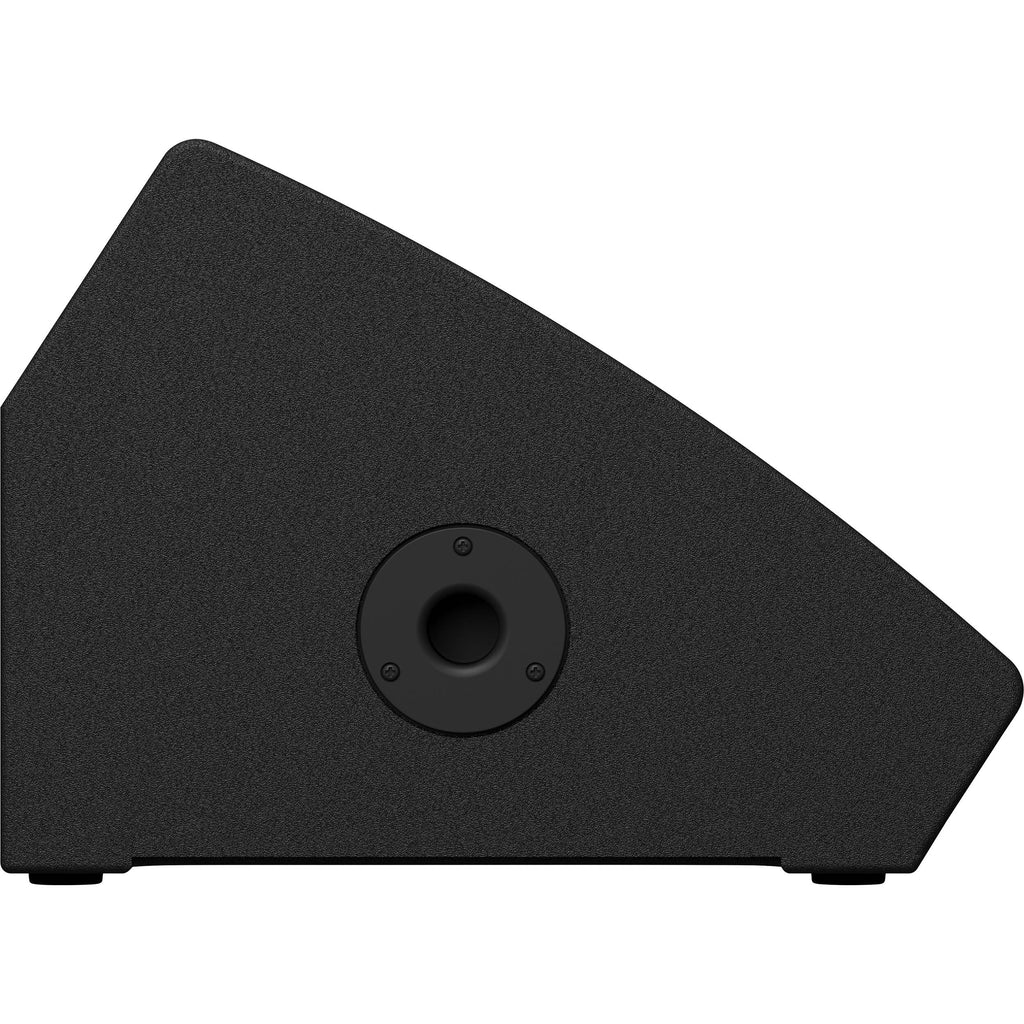

• POLE SOCKET
• Φ35 mm x1 (Side)
• FLOOR MONITOR ANGLE
• 57°
• DIMENSIONS
• W: 642 mm (25.3")
• H: 369 mm (14.5") (with rubber feet)
• D: 505 mm (19.9")
• NET WEIGHT
• 23.0 kg (50.7 lbs)
• *1: Total peak power of individual outputs (AC 120 V, 25 ℃). This value was measured at minimum load impedance, with protection released.
