Key Features
- 12" Cone, 2" Voice Coil (Ferrite)
- 1.4" Coil Compression Driver (Ferrite)
- 175W Peak, 350W Program, 700W Peak
- Use as Floor Monitor
- Portable Enclosure Design
- Rigging Points for Installation
- Functional Speaker Cover
Description

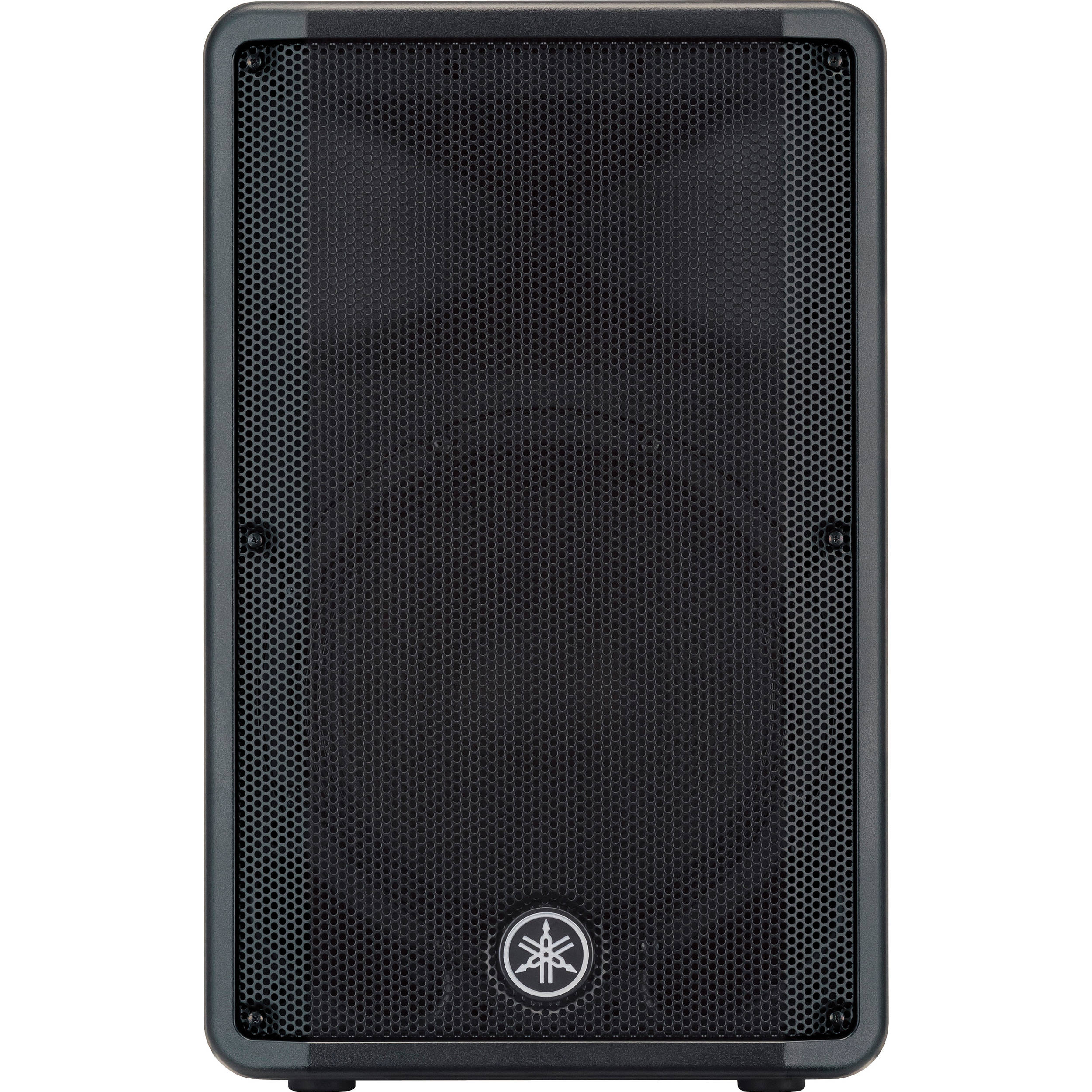

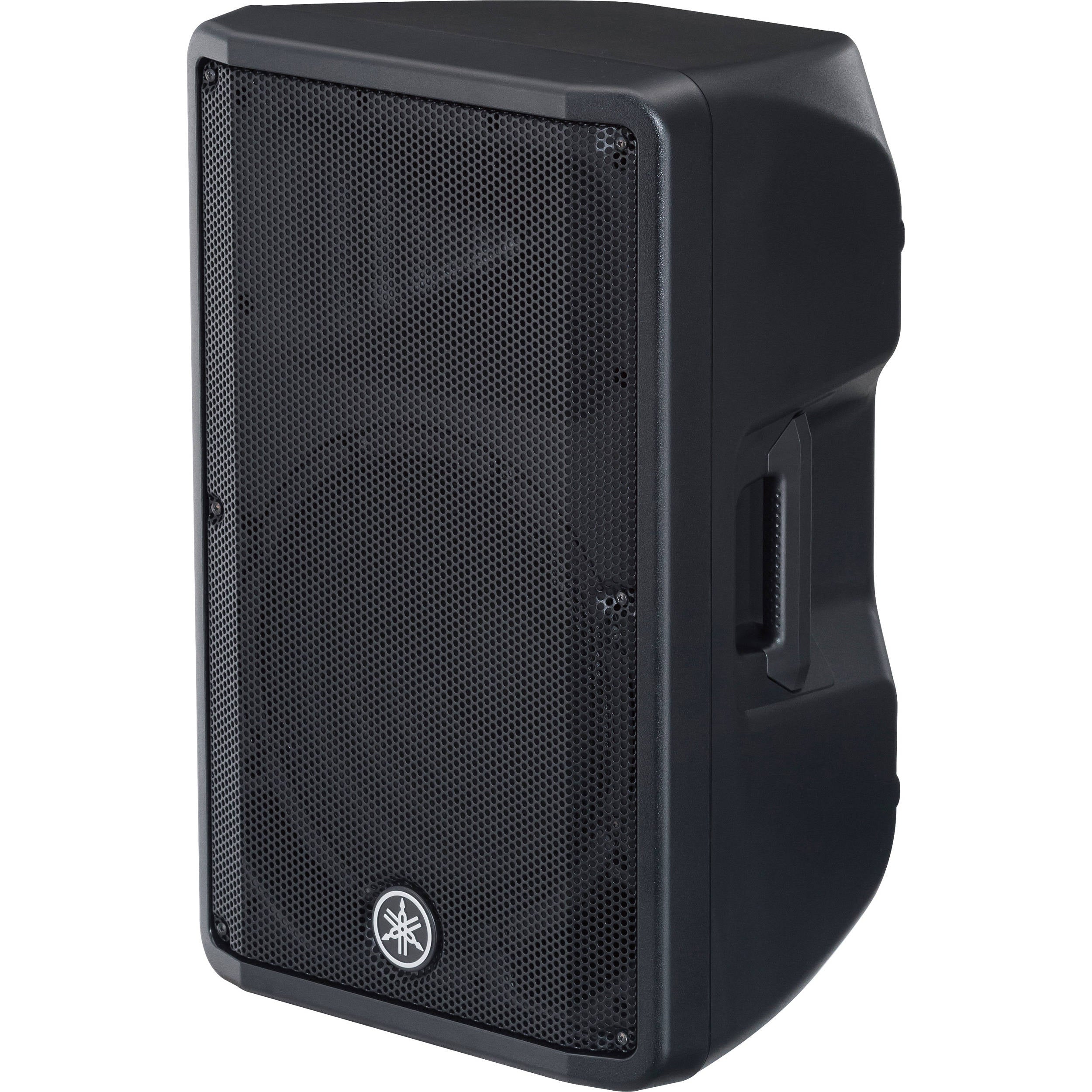

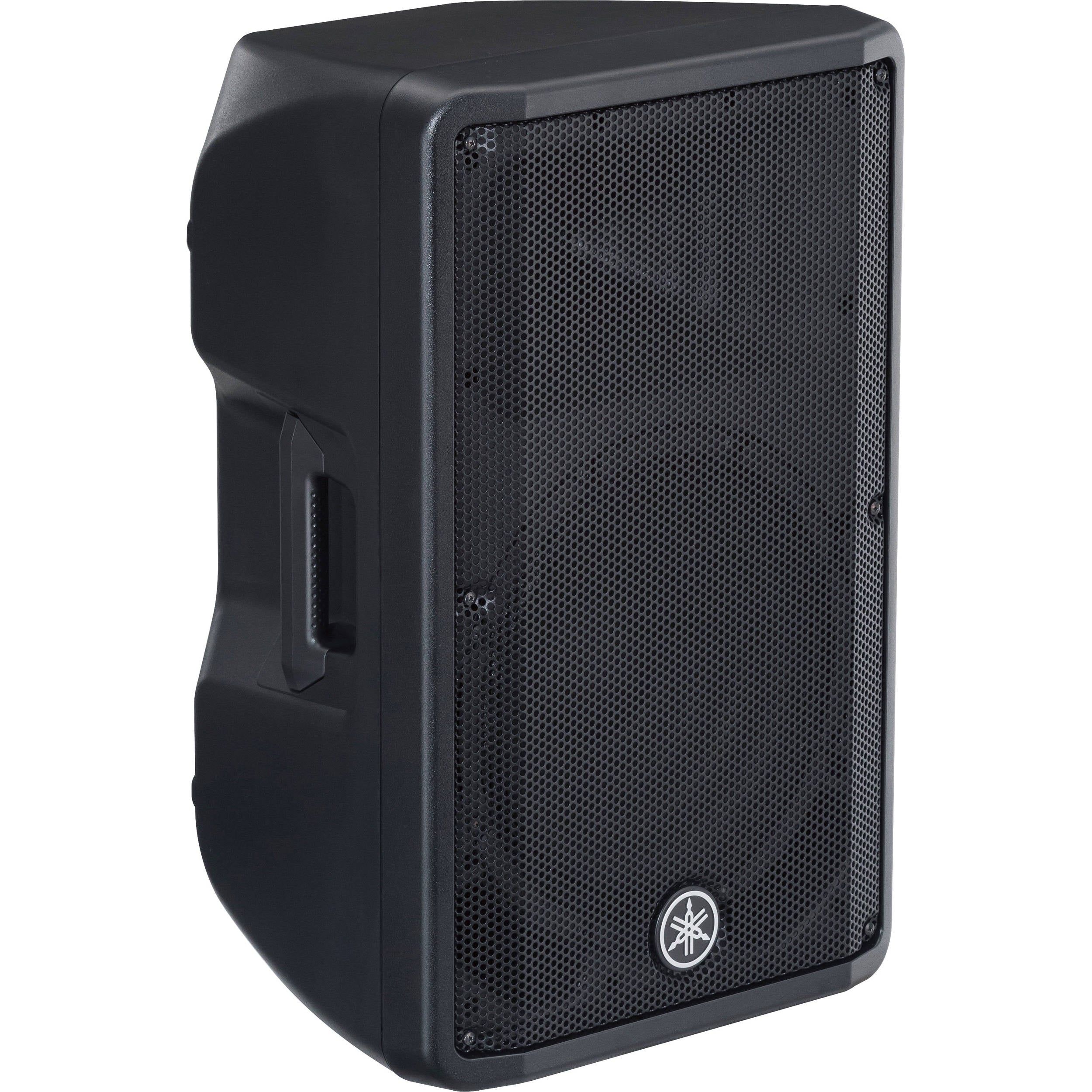

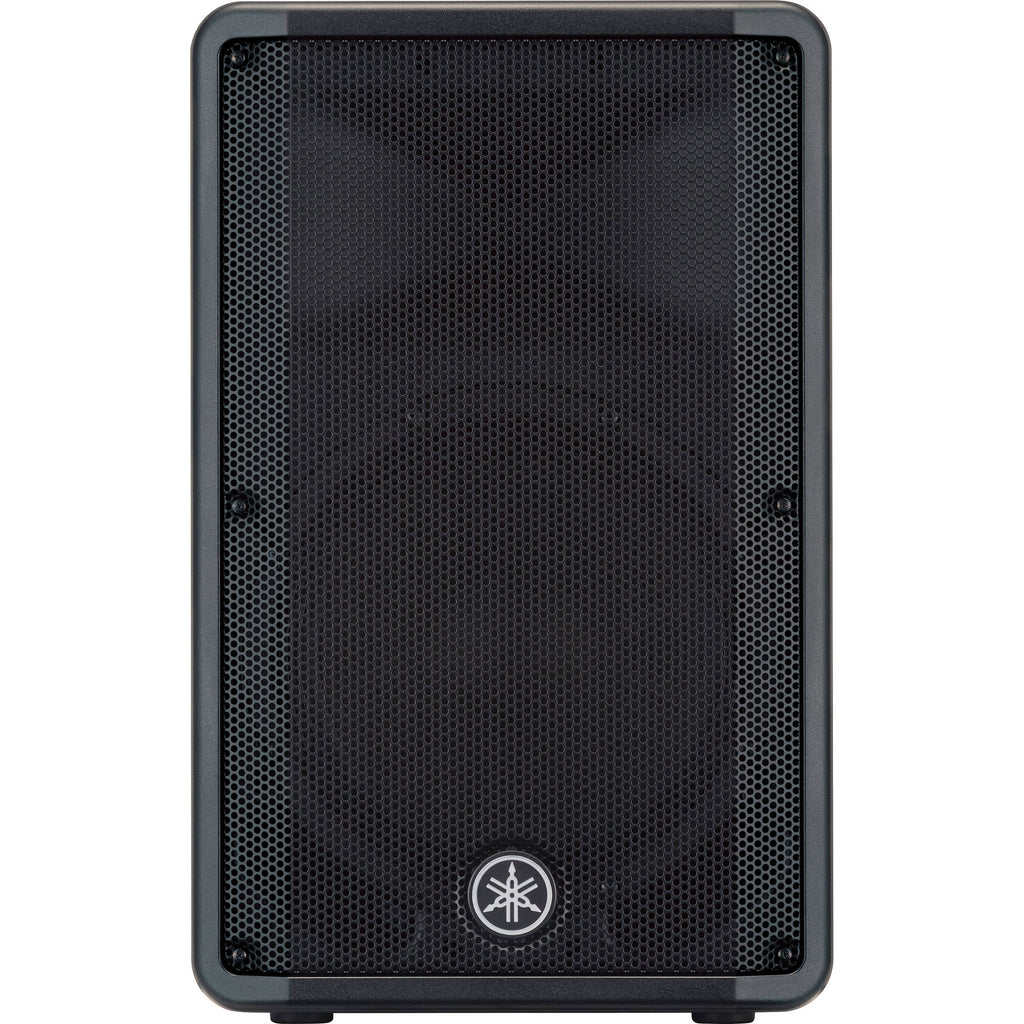

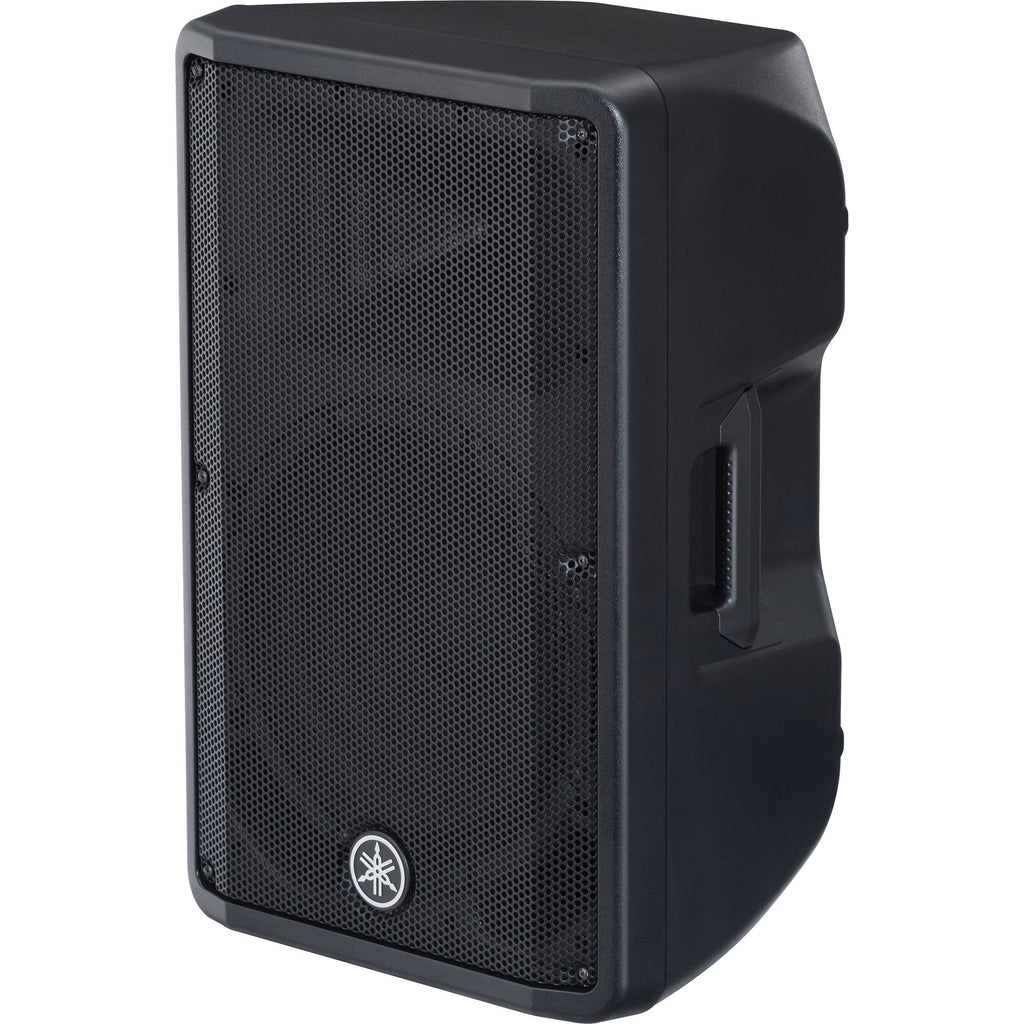

Two-Way Passive Bass Reflex Speaker with 12" Woofer
The Yamaha CBR12 2-Way Passive Bass Reflex Speaker With 12" Woofer is designed to deliver high-power, high-definition sound in a portable and versatile package for applications such as front-of-house, floor monitoring, and rigged configurations. The speaker uses custom designed transducers with a wide-dispersion constant directivity horn to deliver a frequency response of 48 to 20,000 Hz.
The speaker offers a balance of size and performance for a wide range of applications.
Features:
-
Custom Transducers and Wide-Dispersion Horn
Leverages carefully selected materials with a horn design that minimizes radiation pattern deterioration in oblique directions -
HF Protection Circuit
Limits excessive input that might otherwise damage the speaker -

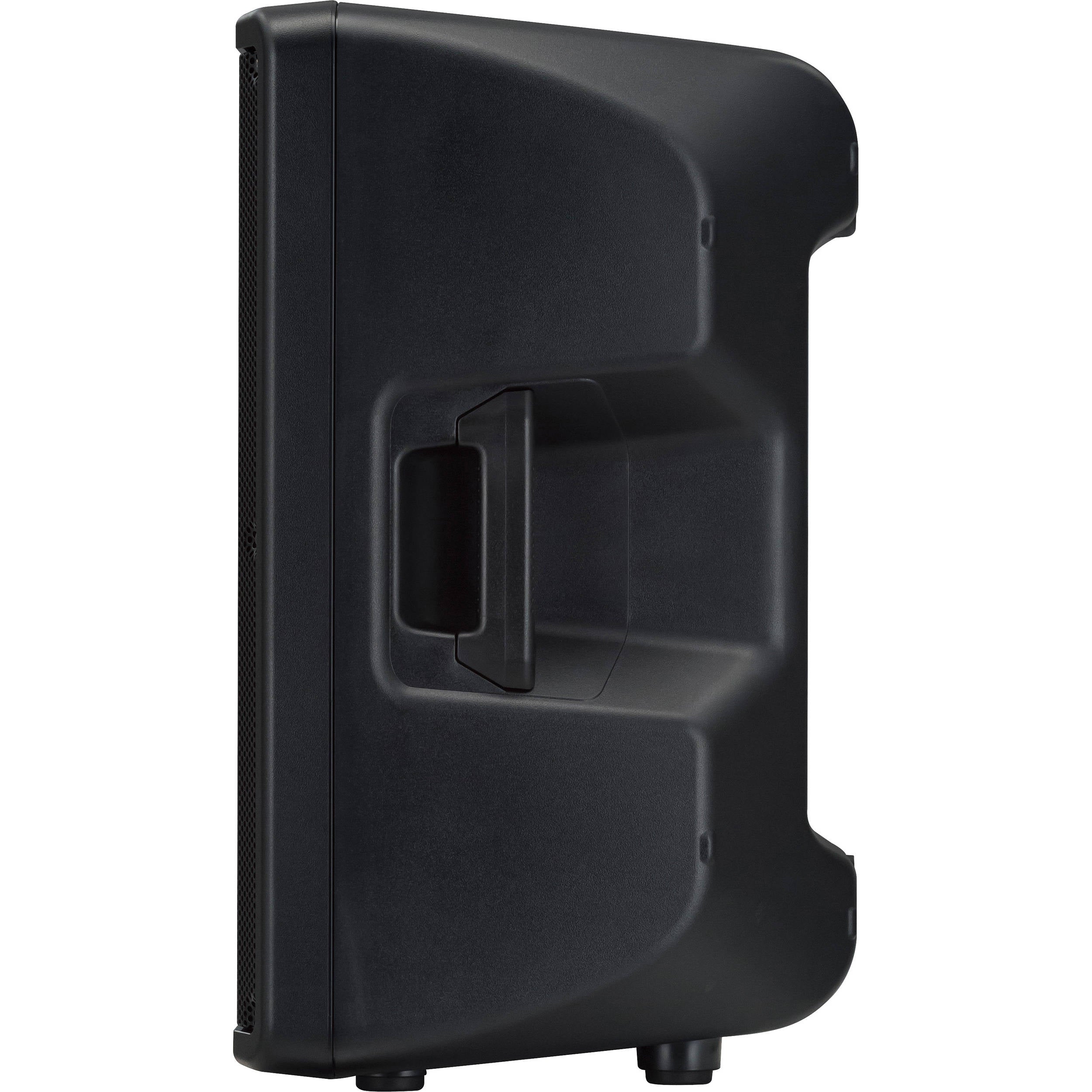

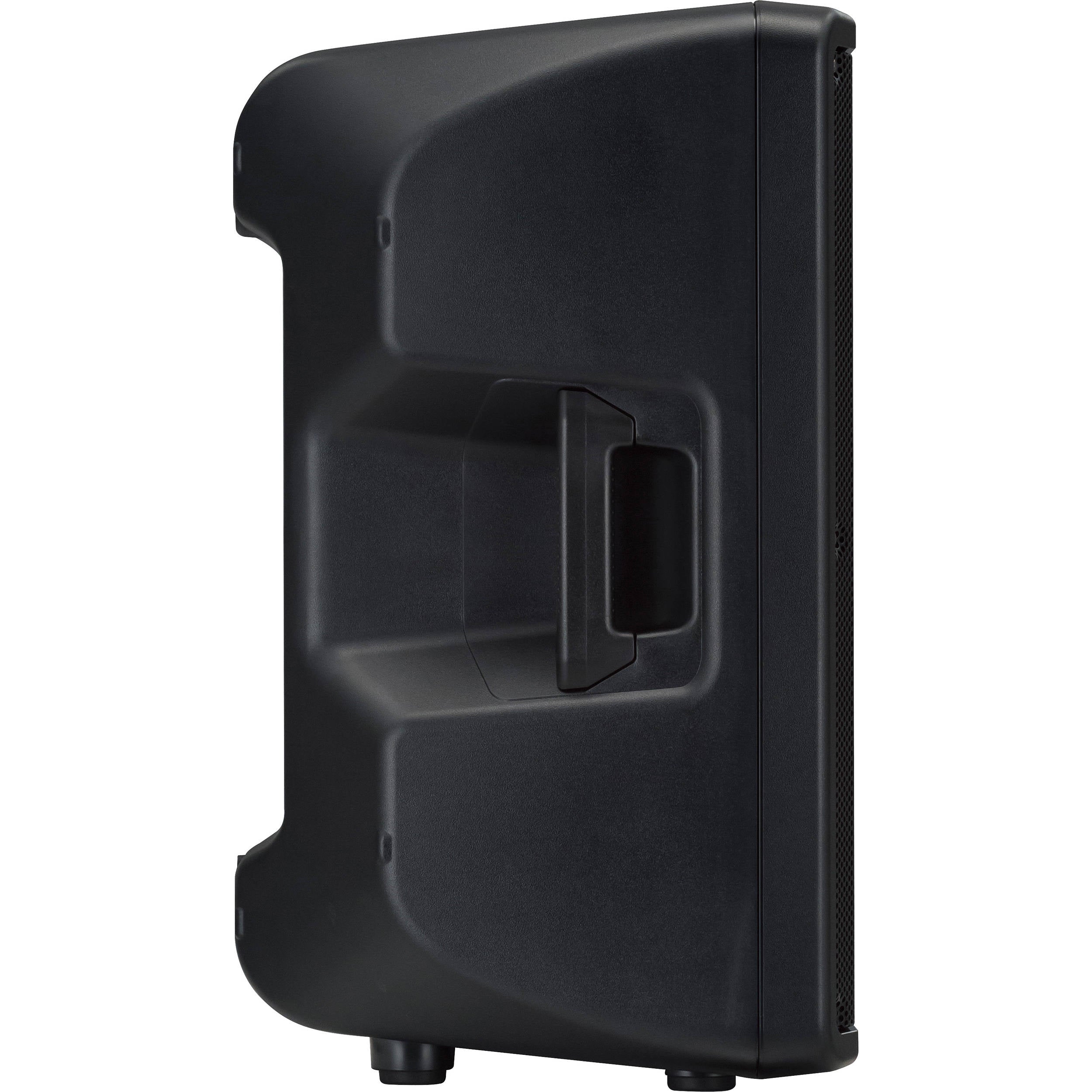

Rugged, Portable Enclosure Design
Uses a lightweight plastic cabinet with ergonomic handle(s) -

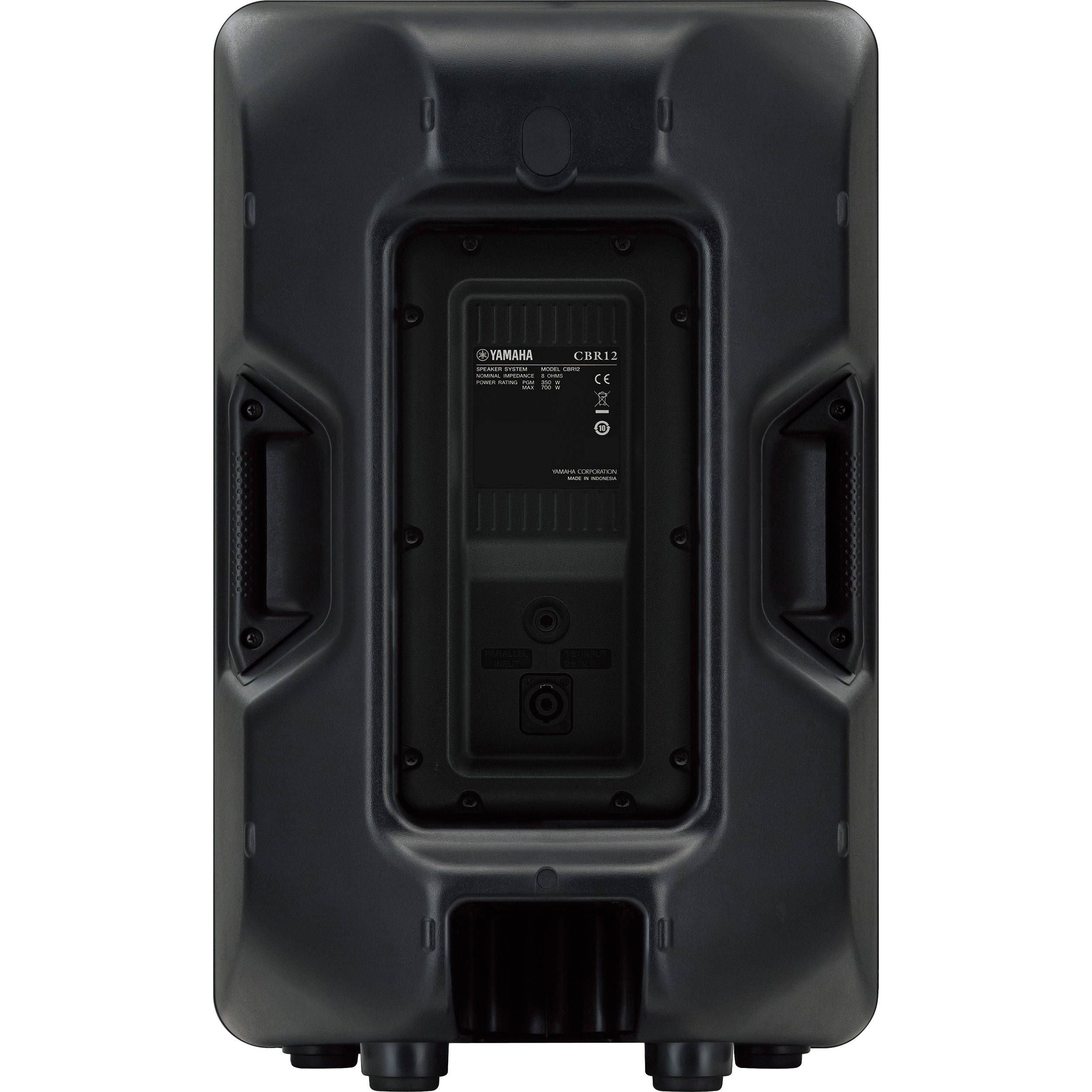

Connectivity
Features one speakON jack and one 1/4" phone jack for fast connectivity -

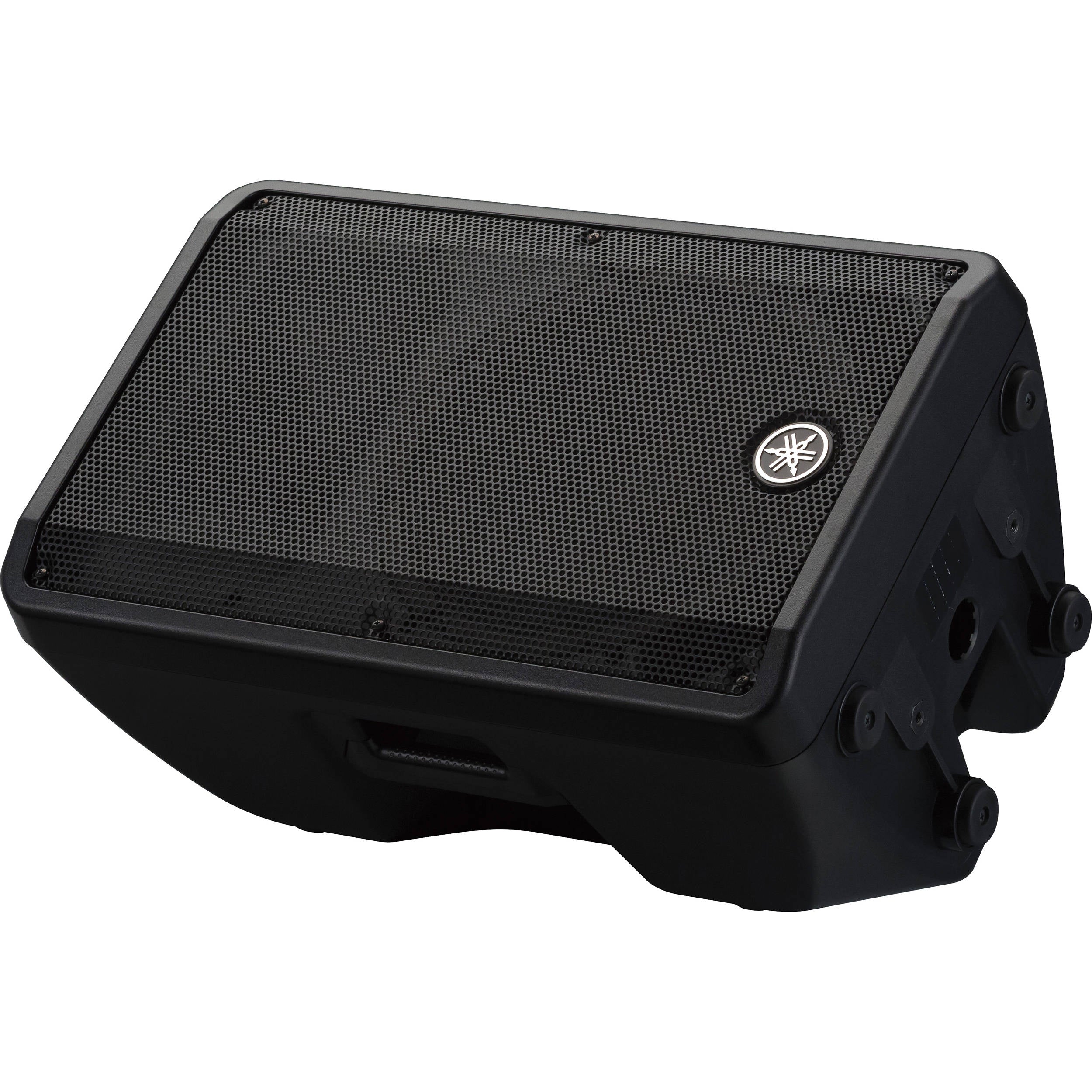

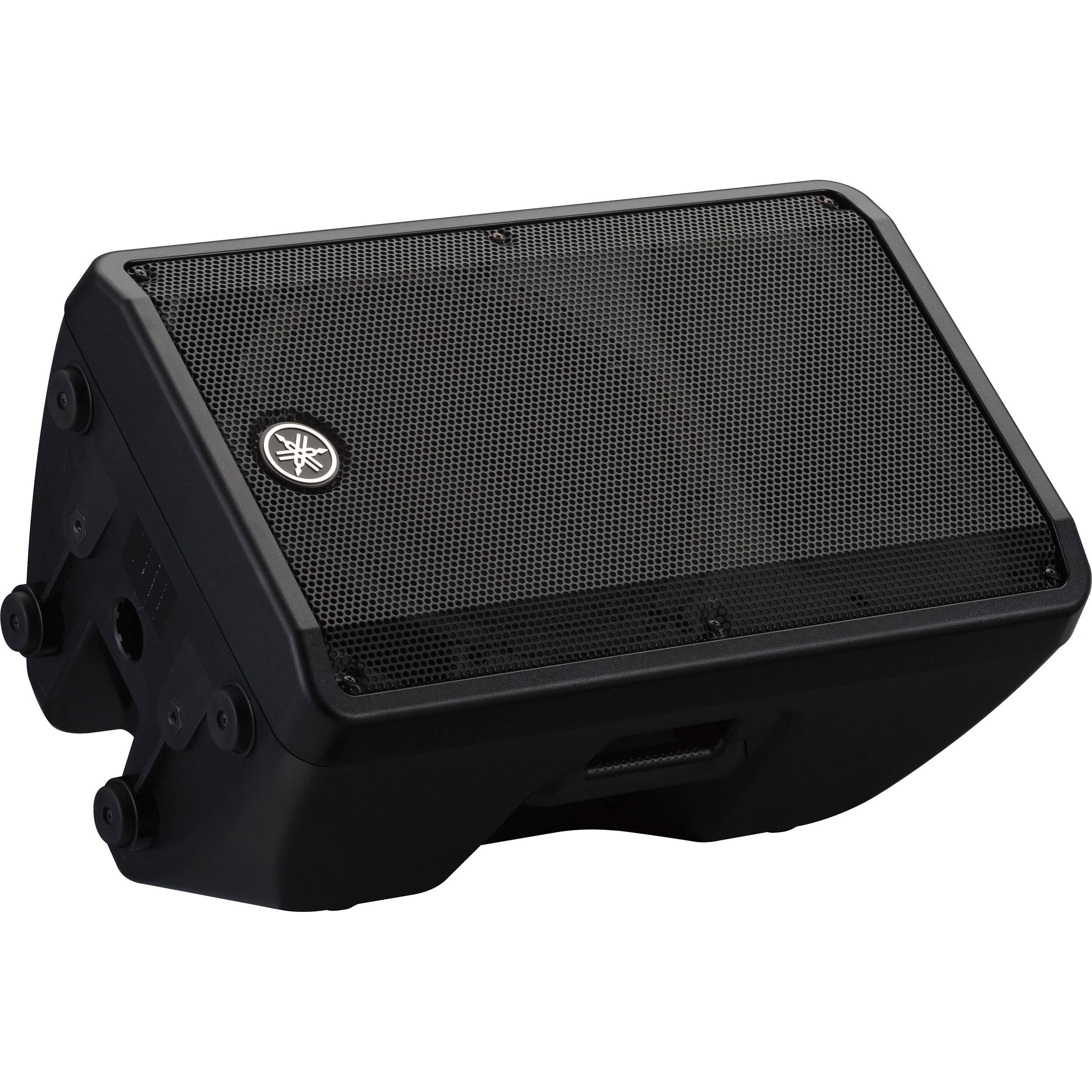

Enclosure Design for Floor Monitoring
Features a 50° wedge angle for floor monitoring -
Rigging Points for Installation
Features M8 rigging points for rigged applications with optional speaker brackets and standardized eye-bolts -
Functional Speaker Cover
Protects speaker from unfavorable weather during outdoor performances
Specifications:
- Speaker type: 2-way Speaker, Bass-reflex Type
- Frequency range (-10dB): 48 Hz - 20 kHz
- Nominal coverage:
H: 90°
V: 60° - Components:
LF: 12" Cone, 2" Voice Coil (Ferrite Magnet)
HF: 1.4" Voice Coil, Compression Driver (Ferrite Magnet) - Crossover: 2.1 kHz
- Power rating:
NOISE: 175W
PGM: 350W
PEAK: 700W - Nominal impedance: 8Ω
- SPL:
Sensitivity (1W; 1m on axis): 96dB SPL
Peak (Calculated): 125 dB SPL - I/O connectors: 1/4" Phone x 1, speakON NL4MP x 1
- Cabinet material: Plastic
- Finish: Black
- Handle: Side x 2
- Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
- Pole socket: 35 mm Bottom x 1
- Dimensions:
W: 376mm (14.8")
H: 601mm (23.7")
D: 348mm (13.7") - Net weight: 13.9 kg (30.6 lbs)
