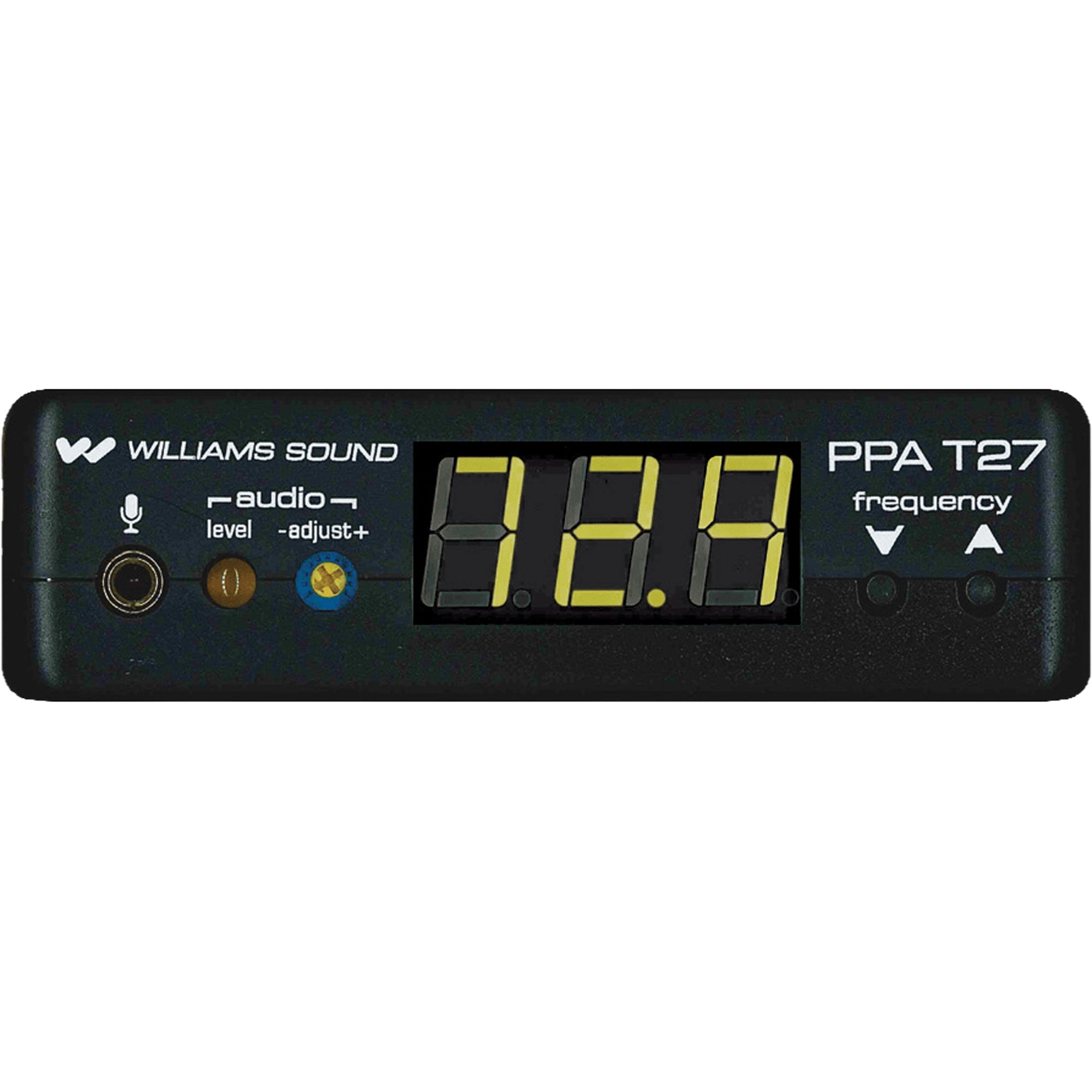

Williams AV PPA T27 Personal PA Compact Base Station Transmitter

Personal PA Compact FM Transmitter

The PPA T27 is a compact FM transmitter that broadcasts a speaker's voice, music program or other audio wirelessly up to 1000 feet to a listening audience. The speaker simply connects a microphone with a 3.5mm plug into the unit to broadcast their voice. The PPA T27 compact FM transmitter also can connect to a sound system through a line-level (RCA) jack to broadcast music or other audio service. Audience participants can use an optional R37, R38 or any FM receiver operating on the 72-76 MHz frequency to pick up the broadcast.

Note: The PPA T27 transmitter is approved by the FCC for operation in U.S. markets. The transmitter cannot be used in all countries. Check with your government's radio regulations for 72-76 MHz operation. This product is only available with 110V power supply and US plug type.

System Includes

• (1) PPA T27 transmitter
• (1) ANT 021 antenna
• (1) WCA 013 audio cable
• (1) TFP 036 power supply
• *All items can be purchased separately

Features

• Simple set-up and operation
• High-contrast LED display and push-button frequency selection
• Up to 1000' operating range
• Flexible 3.5mm mic and RCA line-level inputs
• Lifetime PLUS Limited Warranty. 90 days on accessories.
• FCC Part 15 compliant

Specifications

• Dimensions [&] Weight: 4.1" W x 6.1" L x 1.3" H (104.1 mm x 154.9 mm x 33 mm)
• 7.8 oz. (221 g)
• Color: Black
• Power (U.S./Canada): 105-130 VAC, 50-60 Hz, 3.2 W at 120 VAC
• Operating Frequencies: 72-76 MHz*: 72.1 (CH A), 72.2 (CH K), 72.3 (CH B), 72.4 (CH N), 72.5 (CH C), 72.6 (CH O), 72.7 (CH D), 72.8 (CH P), 72.9 (CH E), 74.7 (CH I), 75.3 (CH J), 75.4 (CH R), 75.5 (CH F), 75.6 (CH S), 75.7 (CH G), 75.8 (CH T), 75.9 (CH H)
• Frequency Selector: External switches, 17 channels (lockable)
• RF Field Strength: Does not exceed 80mV/m @ 3m
• Nominal Range: Up to 1000 feet (305 m) w/standard ANT 021 "rubber duckie" antenna or optional ANT 005 coaxial antenna.
• Modulation: FM, 75 kHz deviation (wide-band) max.
• Stability: ± .005% over 0-50˚C
• Pre-Emphasis: 75 µS
• Frequency Response: 85Hz - 14kHz ±3dB
• Distortion: 1% Max. THD
• Signal to Noise Ratio: 65 dB with R35 Receiver
• Microphone Input: 3.5mm mini phone jack, supplies +DC for electret mics
• Mic Input Level: 1-10 mV, nominal
• Line-Level Input: RCA Jack, Hi Z, unbal.
• Line Input Level: .1-1 Vrms, nominal
• Input Attenuator: Pot, screwdriver-adjustable

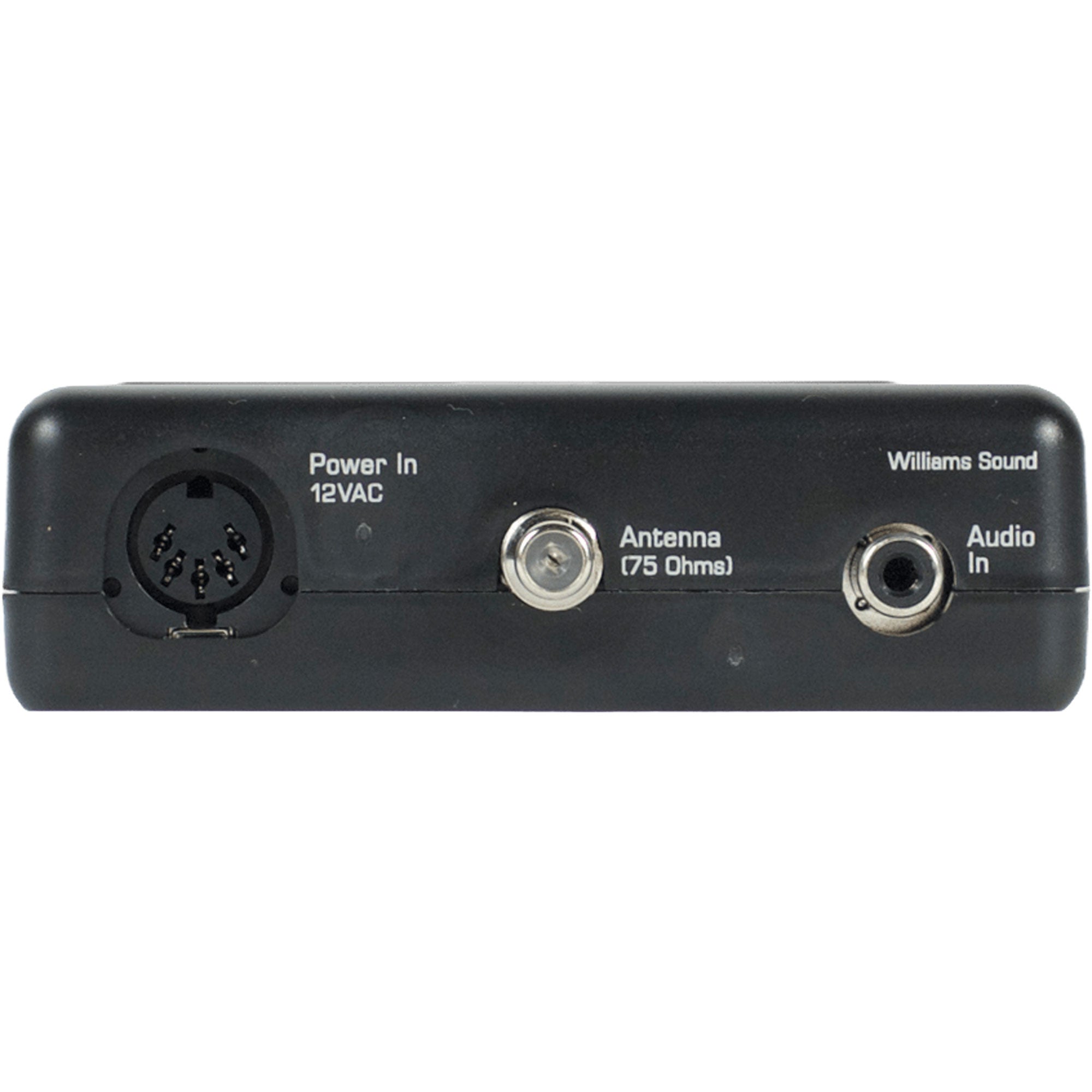

• Antenna Outputs: Thread mount for ANT 021 "rubber duckie" antenna or ANT 025 telescoping antenna RF connector for ANT 024 dipole or ANT 005 coaxial antenna
• Approvals: FCC including part 15*, Industry Canada, RoHS, WEEE
• Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories
