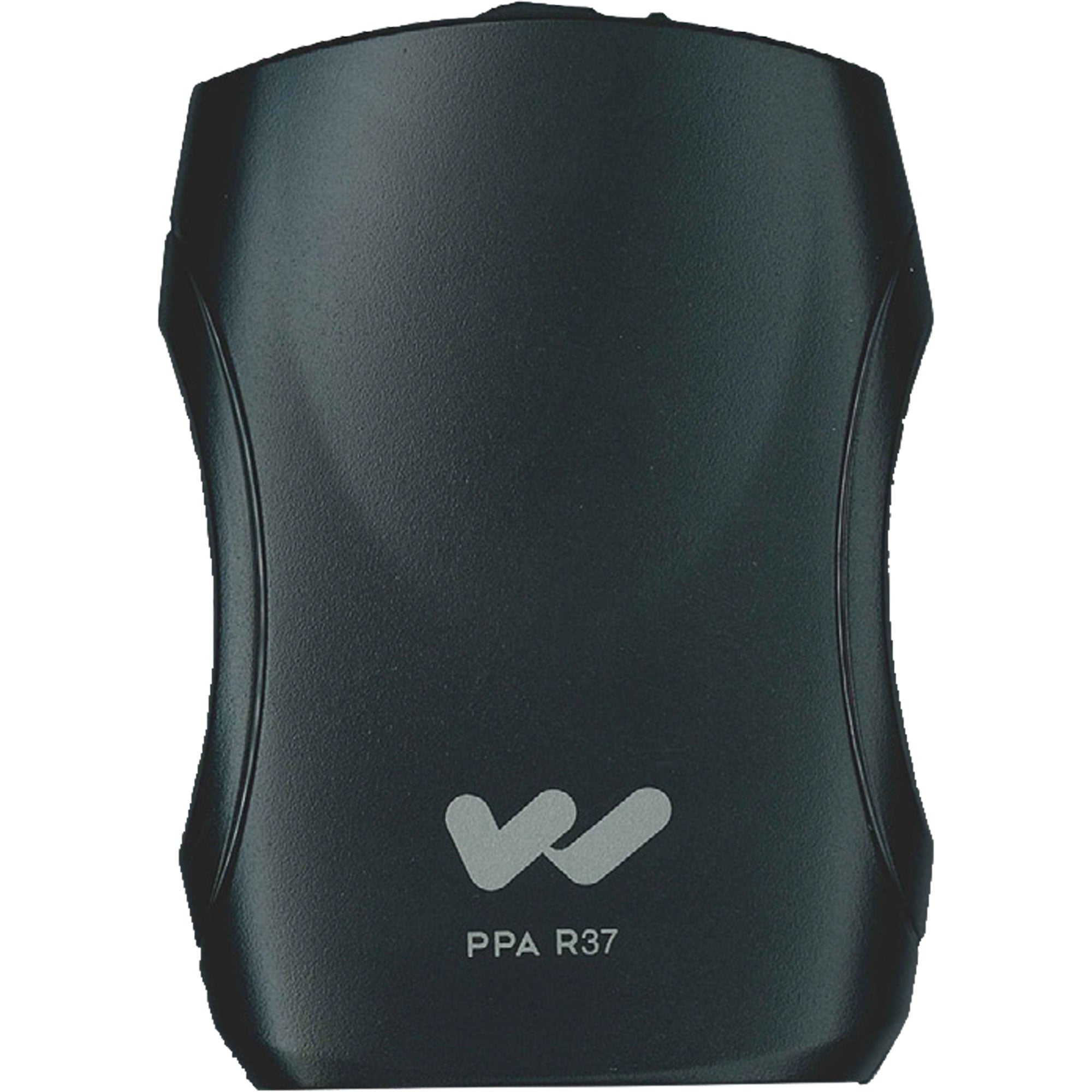

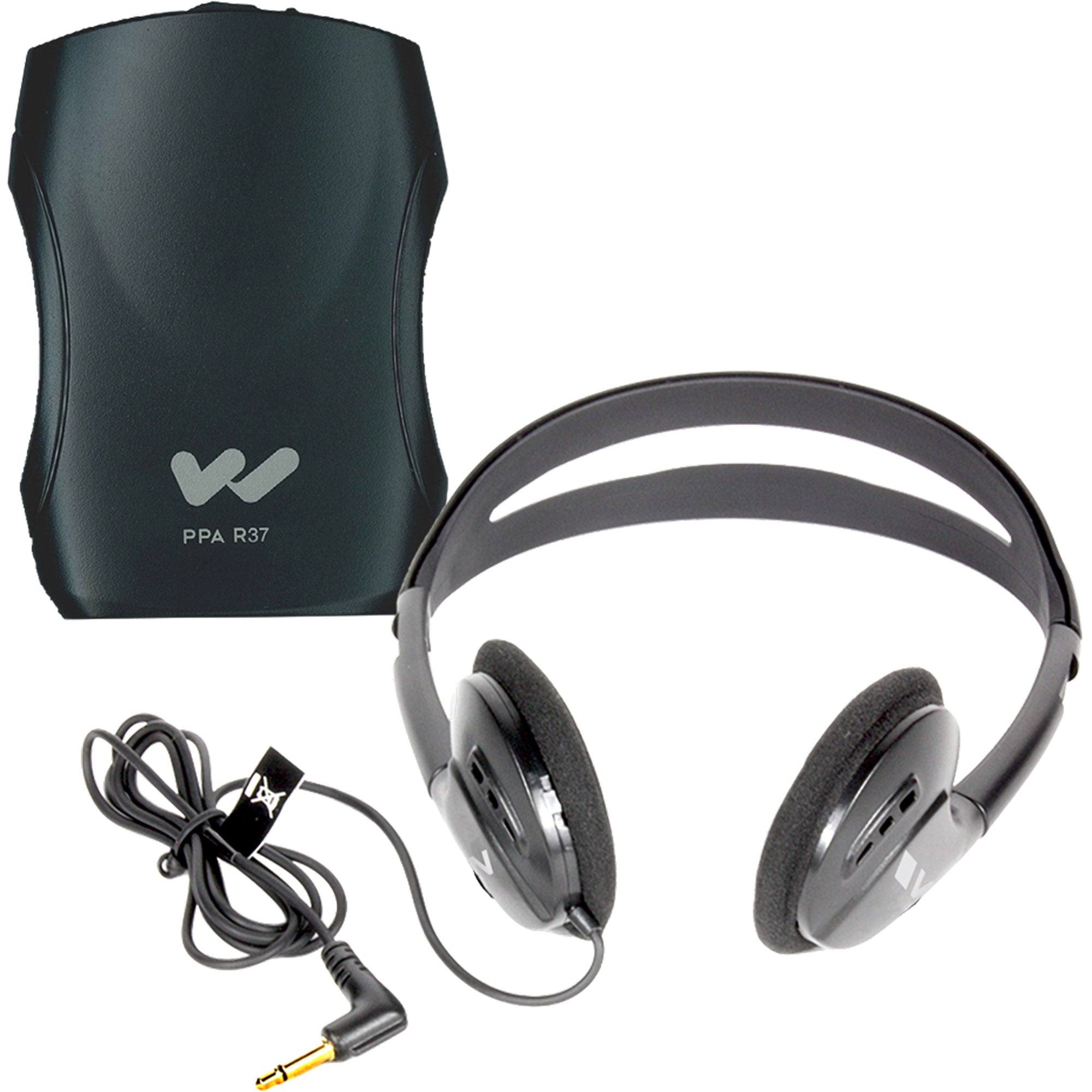

Williams AV PPA R37 HD FM Receiver with Headphones

FM R37 Receiver with Headphones

The R37 FM Receiver with a HED 021 headphone features seek-button channel selection with access to 17 pre-set, wideband frequencies reserved for hearing assistance by the ADA. The receiver is compatible with all Williams Sound 72-76 MHz wide-band transmitters.

NOTE: The Receiver requires a transmitter operating on 72-76 MHz. The Receiver is approved by the FCC for operation in U.S. Markets. The receiver cannot be used in all countries. Check with your government's radio regulations for 72-76 MHz operation.

The R37's audio is digitally synthesized for exceptional audio clarity and stability. Versatile 3.5mm stereo/mono jack allows for various earphone/headphone options and is neck loop/telecoil-equipped hearing aid compatible. The FM R37 offers sleep mode, a low-battery indicator, and a stereo headphone jack.

System Includes

• (1) PPA R37N Receiver
• (1) BAT 001-2 AA Alkaline Batteries

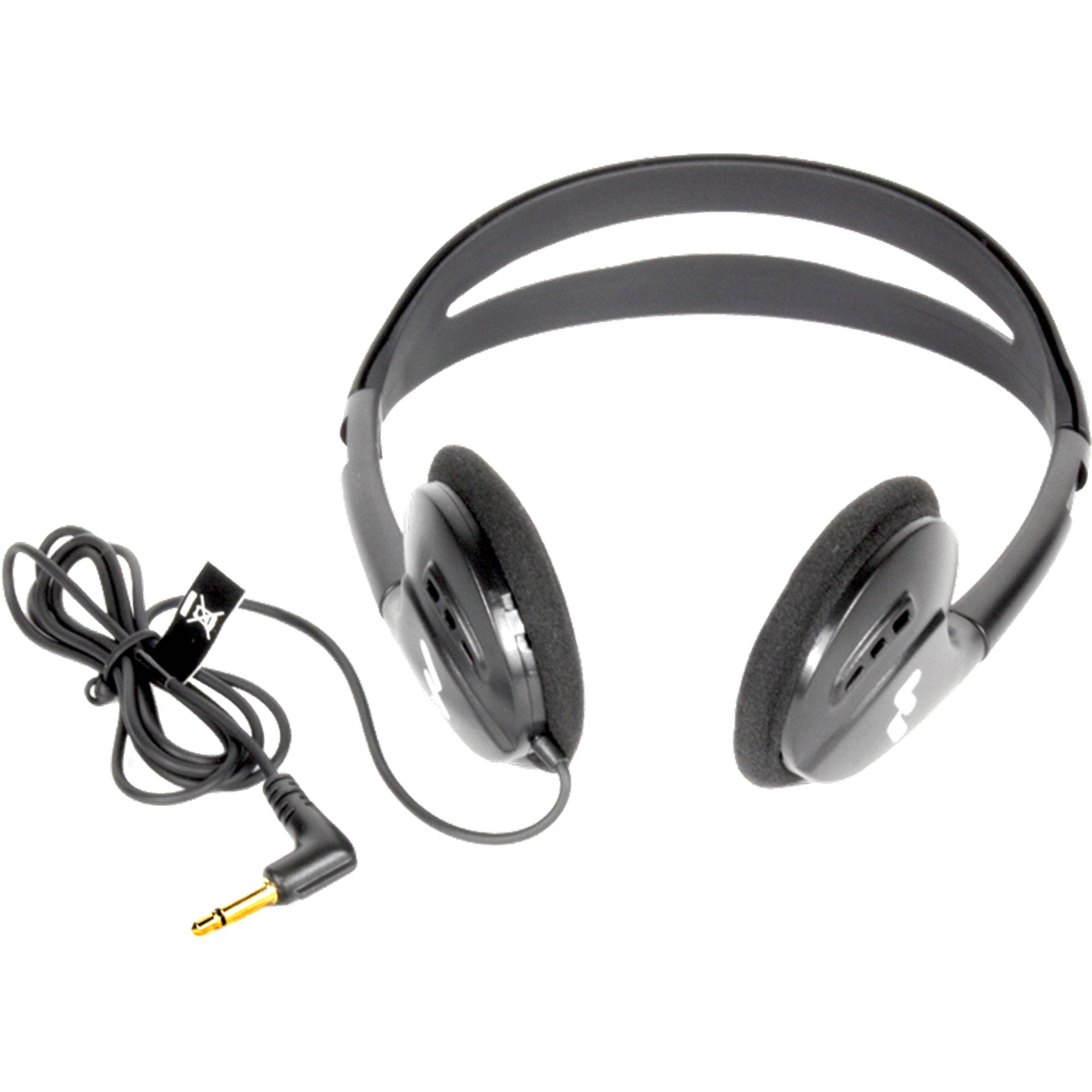

• (1) HED 021 headphone
• *All items can be purchased separately

Can also be ordered as:

• PPA R37N: Receiver and Belt Clip (CLP 023) (No batteries or earphones)
• PPA R37-00: Receiver, batteries (BAT 001-2) and Belt Clip (CLP 023) (No earphones)
• PPA R37 HD: Receiver, batteries (BAT 001-2), Belt Clip (CLP 023) and headphones (HED 021)

Features

• Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
• Channel-lock capability
• Battery-saving sleep mode
• Low-battery indicator
• Field tunable

Specifications:

• Dimensions: 4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
• Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries
• Color: Black
• Battery Type: (2) AA Alkaline or 2 x AA NiMH
• Battery Life: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs
• (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
• Current Consumption: 52mA nominal
• Temperature Range: - 0 to 50C
• Channels: 17, accessed via seek button in battery compartment
• Operating Freq.: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
• Intermediate Freq.: 75 kHz
• FM Deviation: 75 kHz
• De-Emphasis: 75 µS
• LED Indicator: Power: Green; Low Battery: Flashes Green
• AFC Range: ± 120 kHz
• Sensitivity: 2 µV at 12 dB Sinad with squelch defeated
• Input Overload: 100 mV
• Frequency Response: 200 - 15 kHz
• Modulation: FM, +/- 75 kHz peak deviation
• Signal-to-Noise Ratio: 65 dB min @ 100 uV
• Receive Antenna: Integral with earphone/headphone cord
• Audio Output: 35 mW max, peak into 16 ohms
• Output Connector: 3.5 mm stereo/mono phone jack
• Earphone: Earbud-type with foam cushion, 3.5 mm plug, 32 Ω
• Auto Shut-off: Enters sleep mode after approx 6 mins of no RF signal
• Approvals: FCC, Industry Canada, RoHS, WEEE
• Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories.
