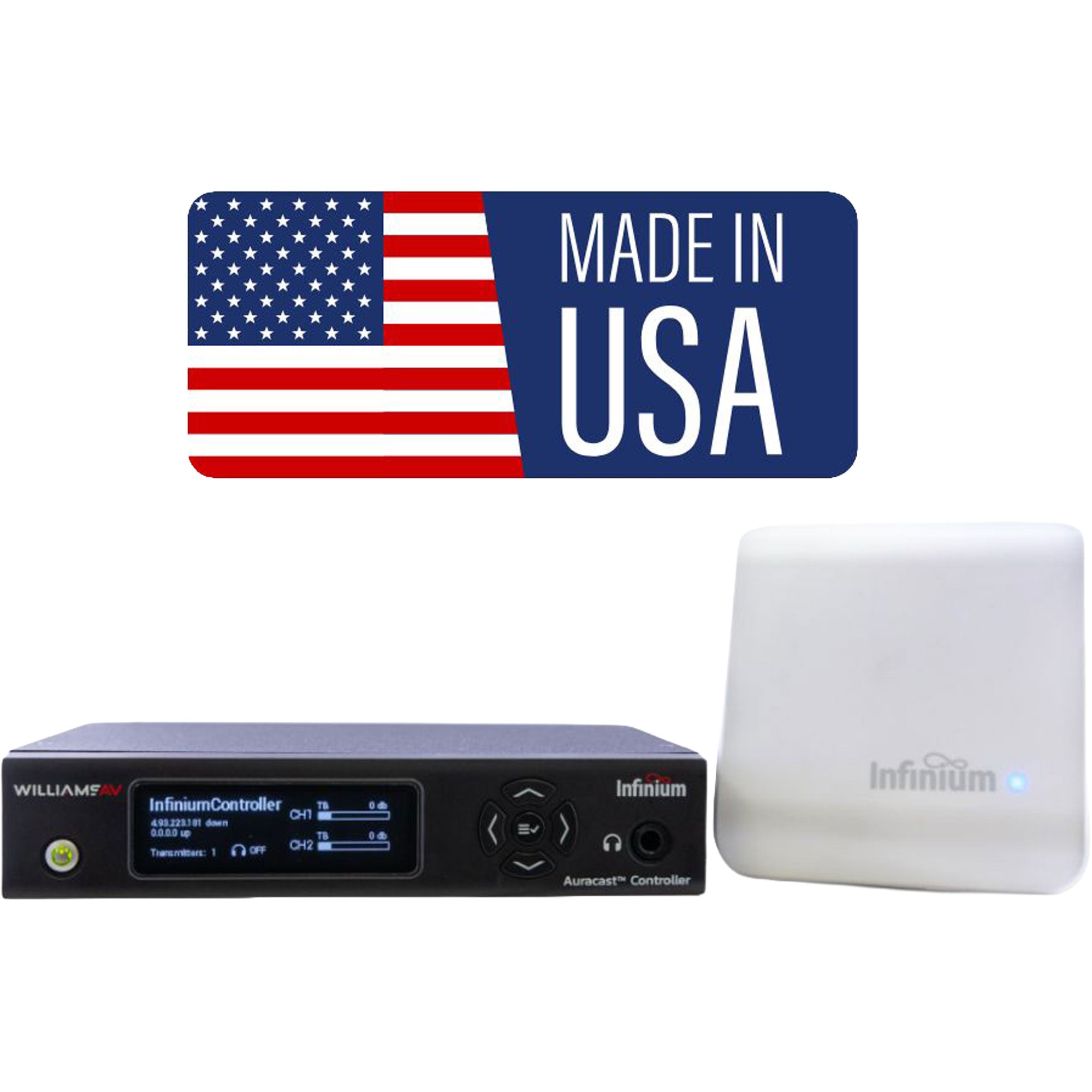

Williams AV Infinium CT1 Auracast Controller & Transmitter with Ethernet Cable

Infinium Auracast Controller and Transmitter

Designed for modern AV environments, Infinium CT1 is a patented Auracast broadcast audio system-proudly made in the USA and TAA compliant-built for scalable, multi-stream audio delivery across complex facilities. The modular architecture combines a rack-mount-ready controller with a remote transmitter, simplifying rack integration while allowing flexible, discreet transmitter placement throughout a space.

This system includes both the Infinium controller and transmitter, making it an ideal starting point for deploying Auracast broadcast audio in commercial AV environments.

Enhanced Scale & Management (ESM) features provide centralized, web-based control, enabling AV teams to configure, monitor, and manage up to 150 transmitters from a single system. space-based organization and coordinated transmitter arrays make it easy to deploy and manage audio across multiple rooms and large environments.

With native Dante integration, a single CAT5 connection for power, audio, and control, and open API support, Infinium CT1 integrates seamlessly into professional AV and smart building systems-delivering a scalable, future-ready Auracast audio solution.

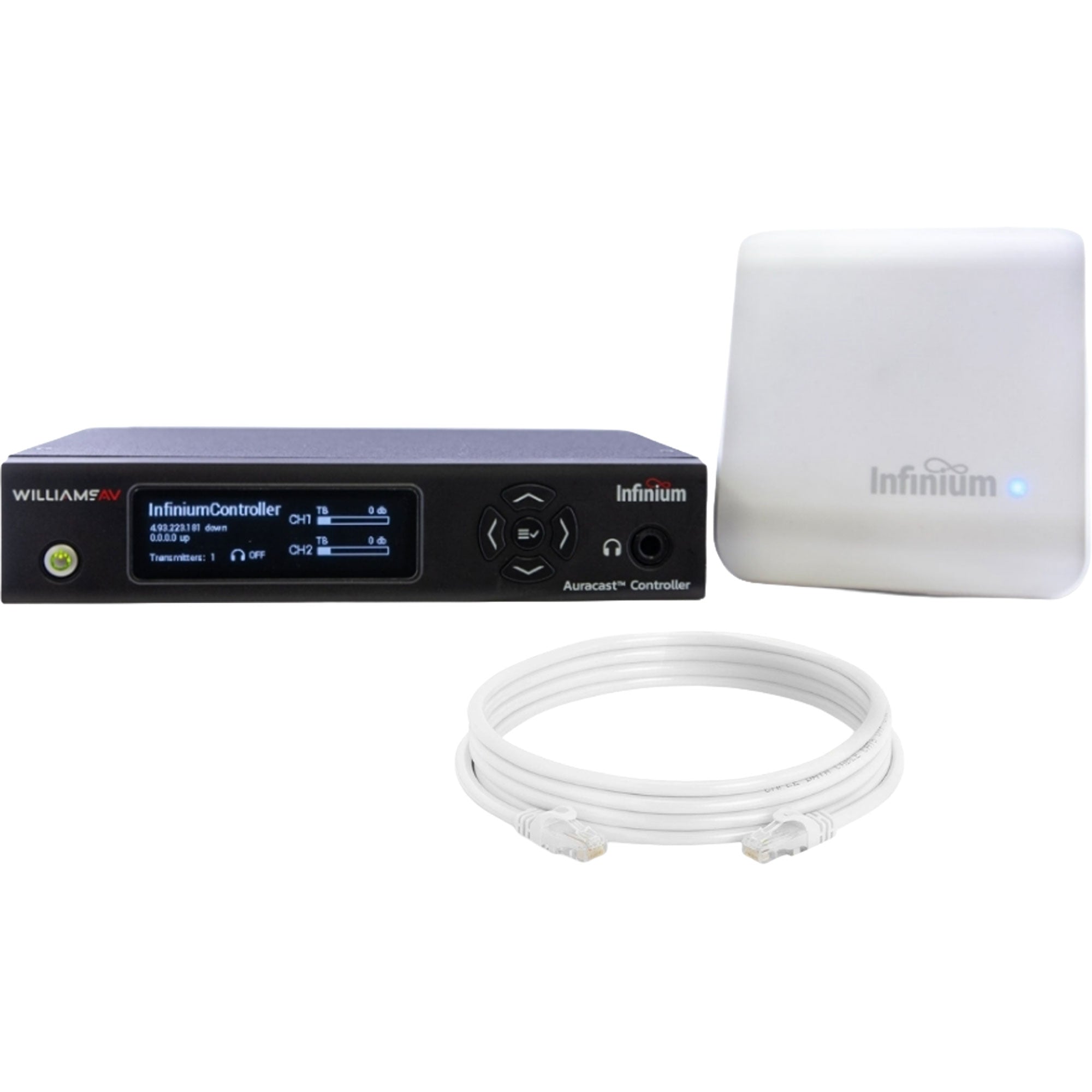

System Includes

• (1) BA-C1 Infinium Controller
• (1) BA-T1 Infinium Transmitter
• (1) 10 ft (3m) Ethernet cable

Features

• Key Advantages
• Patented Modular Design - Rack-mounted controller + remote transmitter for flexible, integrator-friendly deployments
• Enhanced Scale & Management (ESM) - Manage up to 150 transmitters with centralized web-based control
• Single-Cable Installation - Power, audio, and control over one CAT5 cable
• Native Dante + Open API - Seamless integration with professional AV and control systems
• Unlimited Listening - Stream to Auracast devices or dedicated receivers
• Ideal For Use
• Lecture halls, theaters, and performing arts venues
• Transportation hubs and large public spaces
• Multi-room facilities and campuses
• Assistive listening, audio description, and language interpretation

With Infinium, venues can break down barriers to audio access and deliver a seamless, high-performance listening experience for every guest.

Specifications:

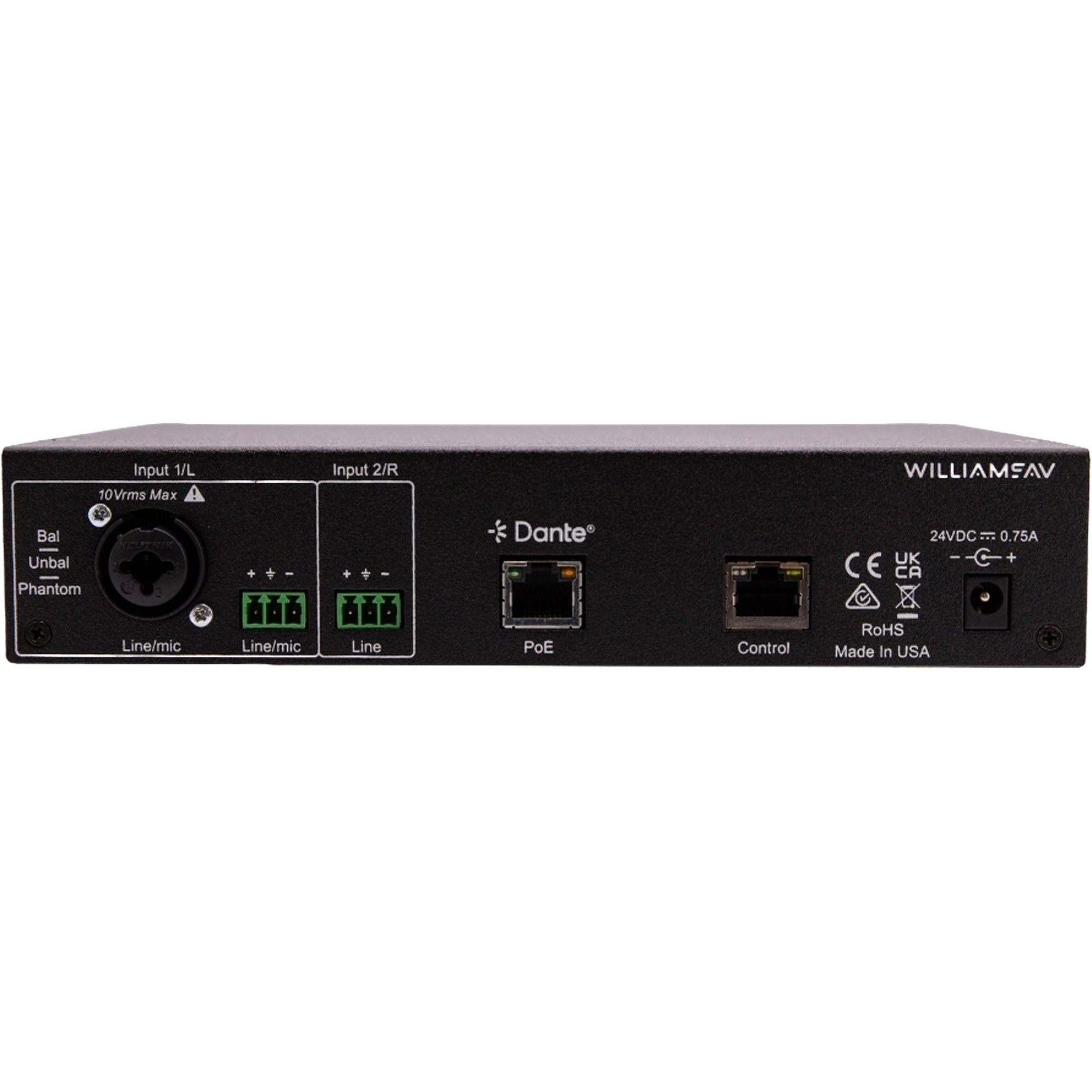

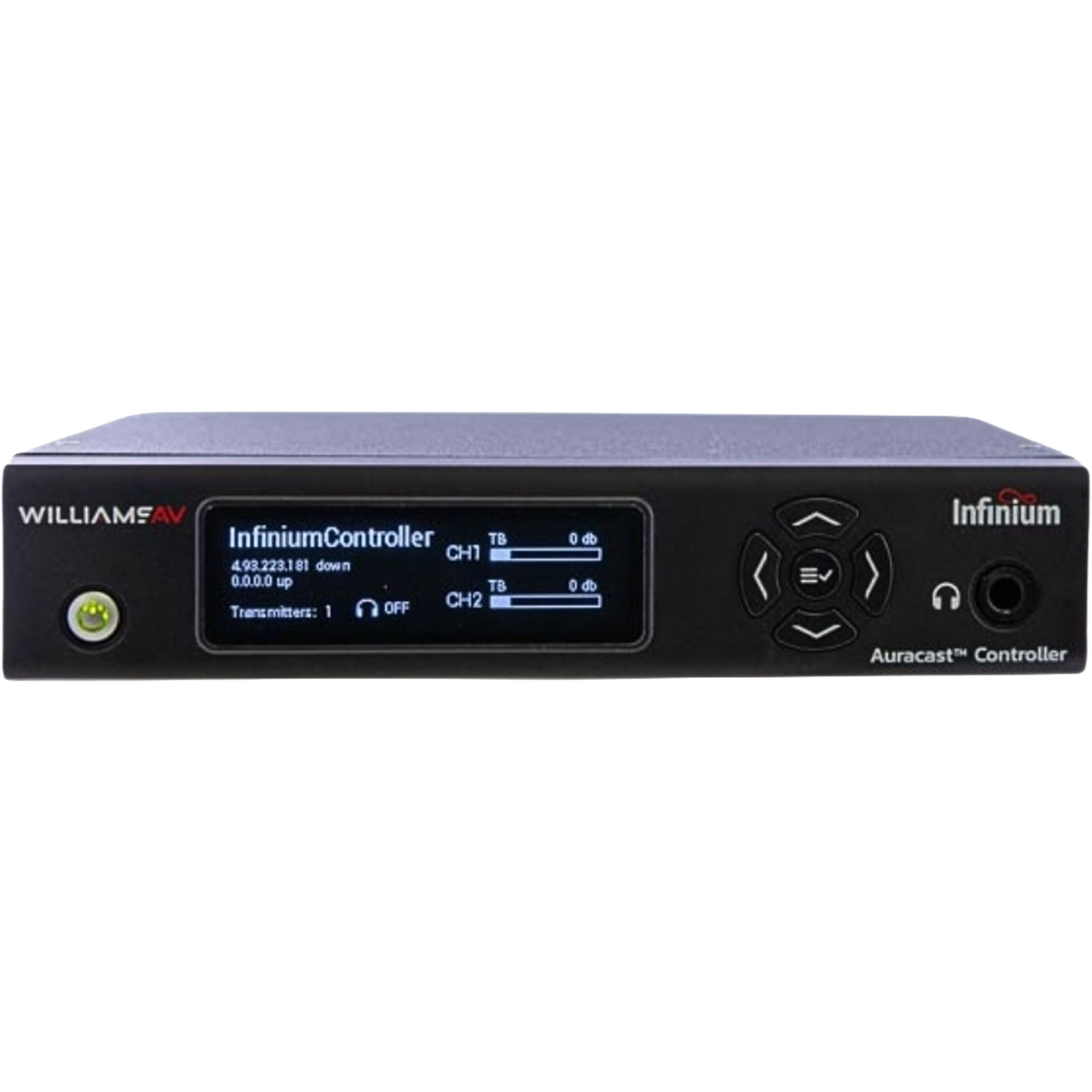

• Controller
• Dimensions: 8.45" W x 8.25" D x 1.72"H (21.5 cm x 14.6 cm x 4.4 cm)
• Weight: 2.3 lbs (1.04 kg)
• Color: Black
• Installation Configurations: Rack Mount: Standard 19" Rack, one EIA rack space high, 1/2 space wide
• 1-2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
• Shelf: Can sit on shelf, table, podium, etc.
• Temperature Range - Operating: +32° F to +122° F (0° C to 50° C)
• Temperature Range - Storage: -4° F to +158° F (-20° C to 70° C)
• Power Supply: Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
• Power Button: Push On/Push Off latching power button.
• Ethernet Control Port: (1x) RJ-45 used for web UI, programming, and status display. Supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T
• Front Panel Display: 3.12" High Resolution OLED Direct Entry UI with button entry programming and status indicator selections.
• Dante: (1x) RJ-45 jack.
• Power Supply: Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
• PoE Power Out: PoE
• Compliance Approvals: FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme
• Warranty: 2-year parts and labor

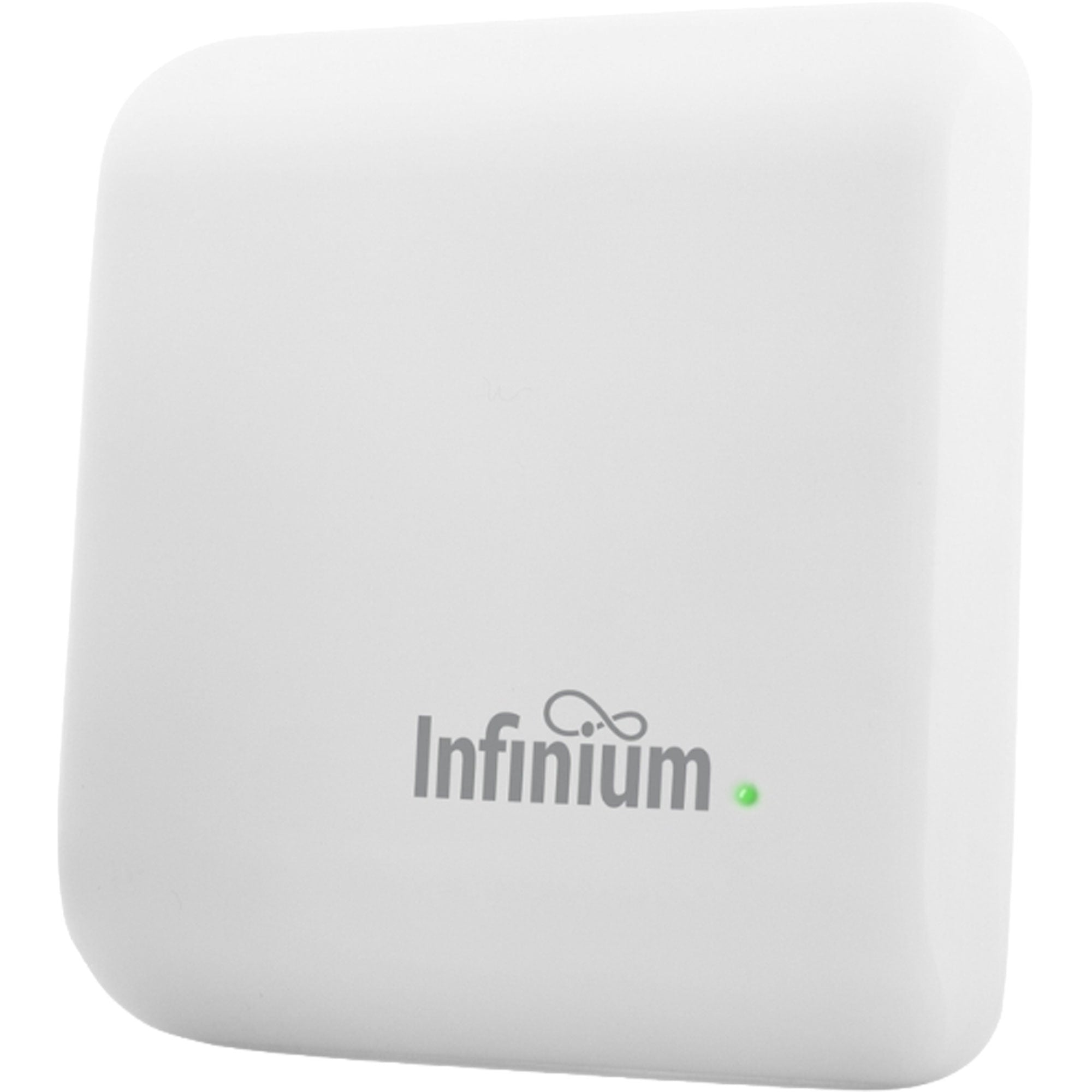

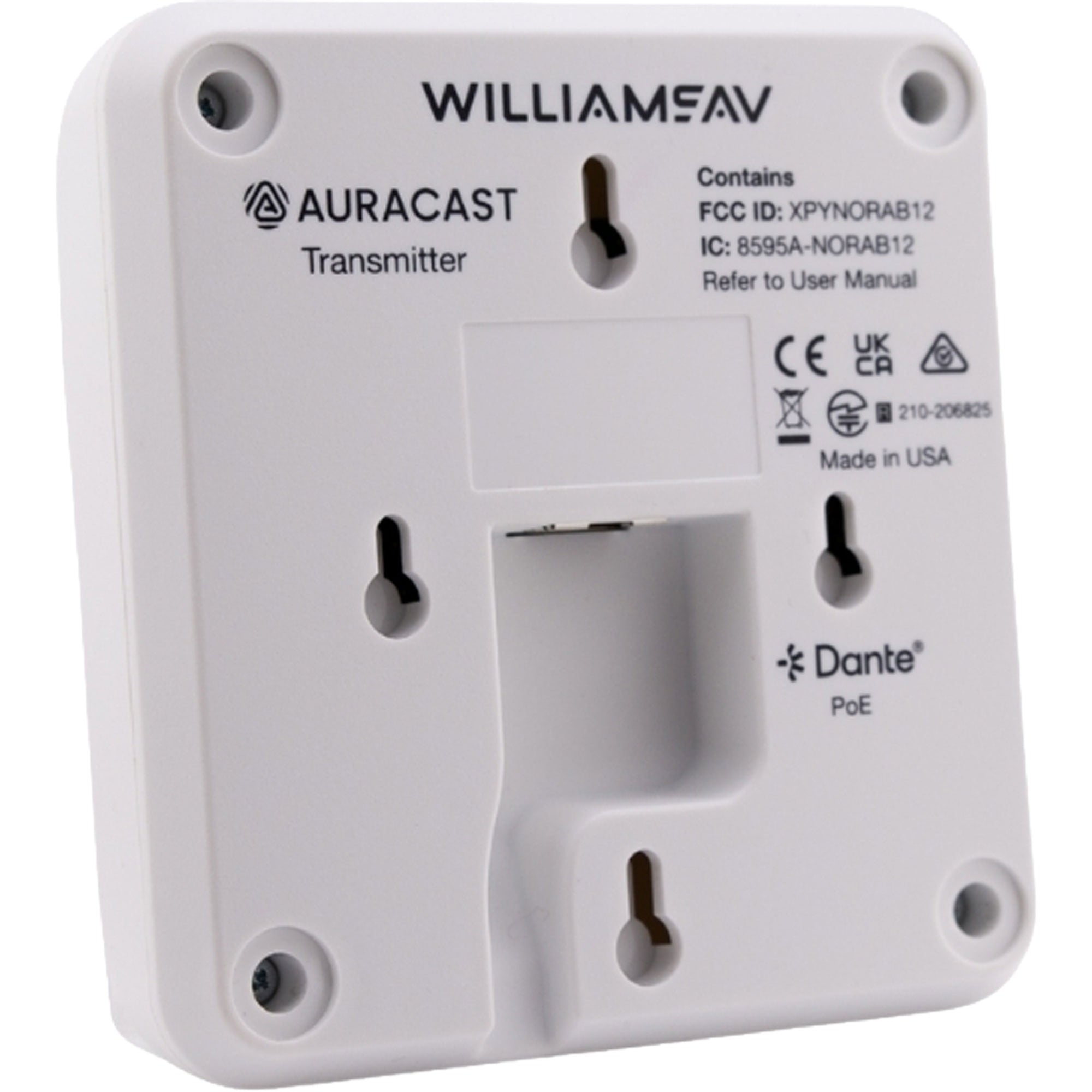

• Transmitter
• Dimensions: 4.7" W x 5.0" D x 1.19"H (11.9 cm x 12.7 cm x 3 cm)
• Weight: 0.4 lbs (0.18 kg)
• Color: White
• Installation Configurations: Ceiling Mount, Wall Mount, Shelf
• Temperature Range - Operating
• +32° F to +122° F (0° C to 50° C)
• Temperature Range - Storage: -4° F to +158° F (-20° C to 70° C)
• Power: PoE (Input)
• Connection: RJ45 (1x) with audio, control and PoE
• Power ON Indicator: Programmable LED
• Transmitter Power Output: Programmable
• Compliance Approvals: FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, Gitecki (Japan)
• Warranty: 2-year parts and labor
• Cable

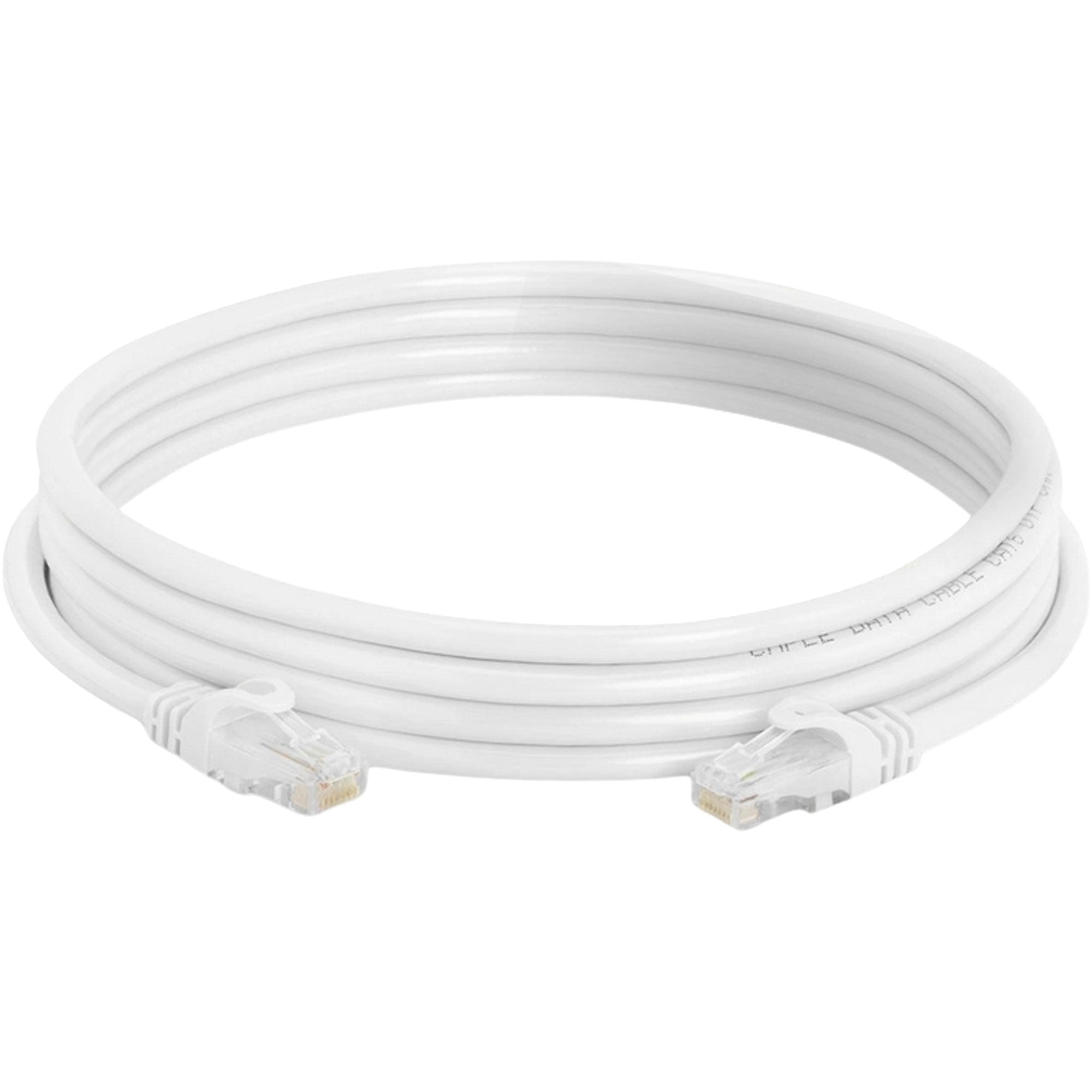

• Ethernet Cable: 10' - CAT 5e Ethernet; 10/100 Base-T IEEE 802.3 compliant
• Warranty
• 2 Years
