8 Channel Rackmount Line Level Splitter with 1 Direct & 1 Isolated Out Per Channel

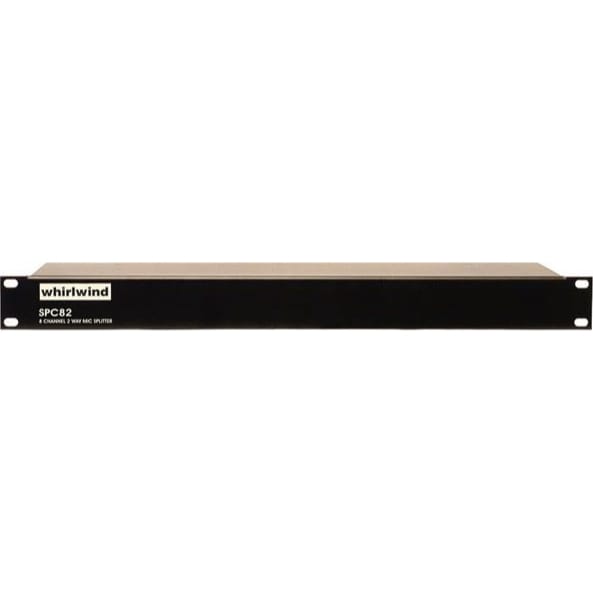

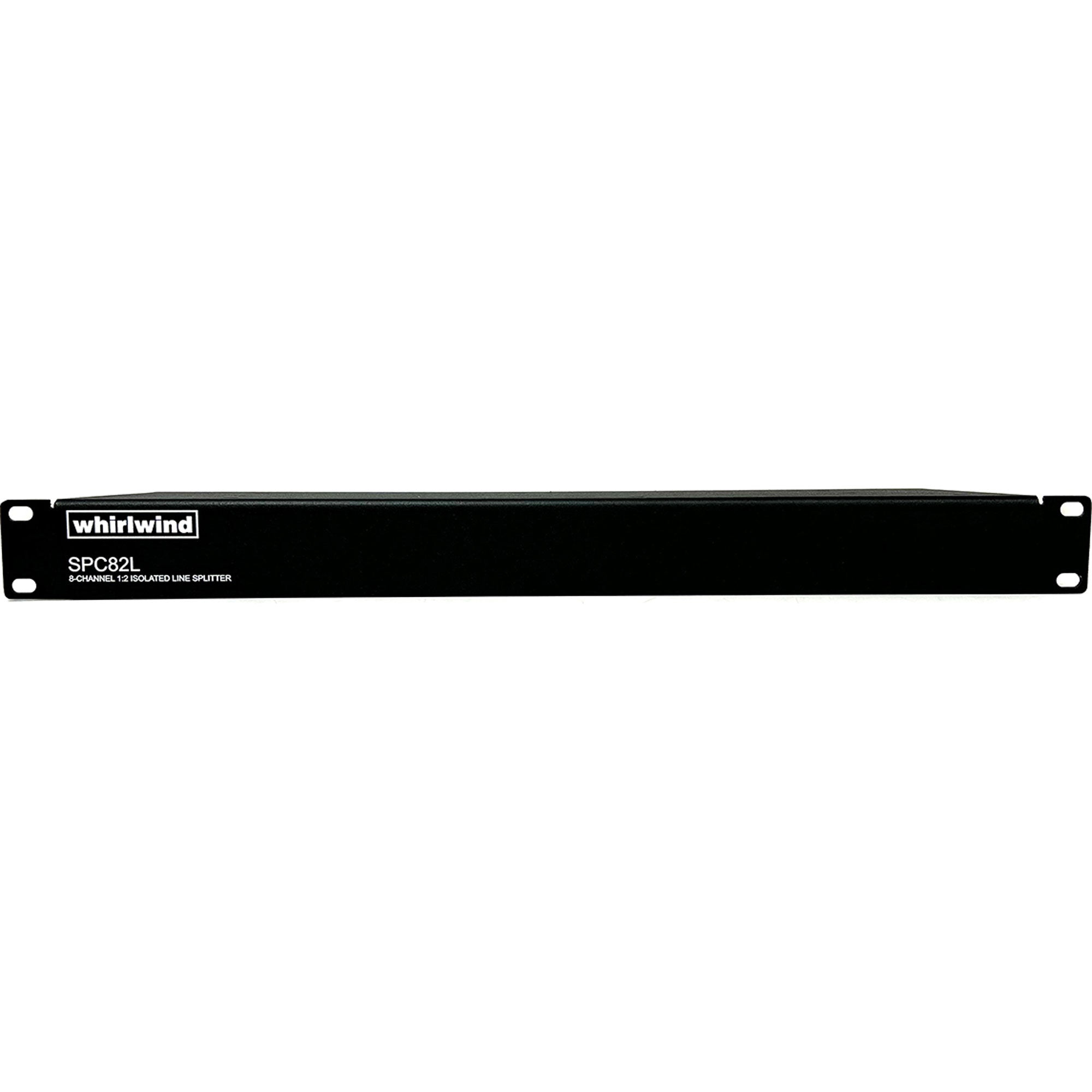

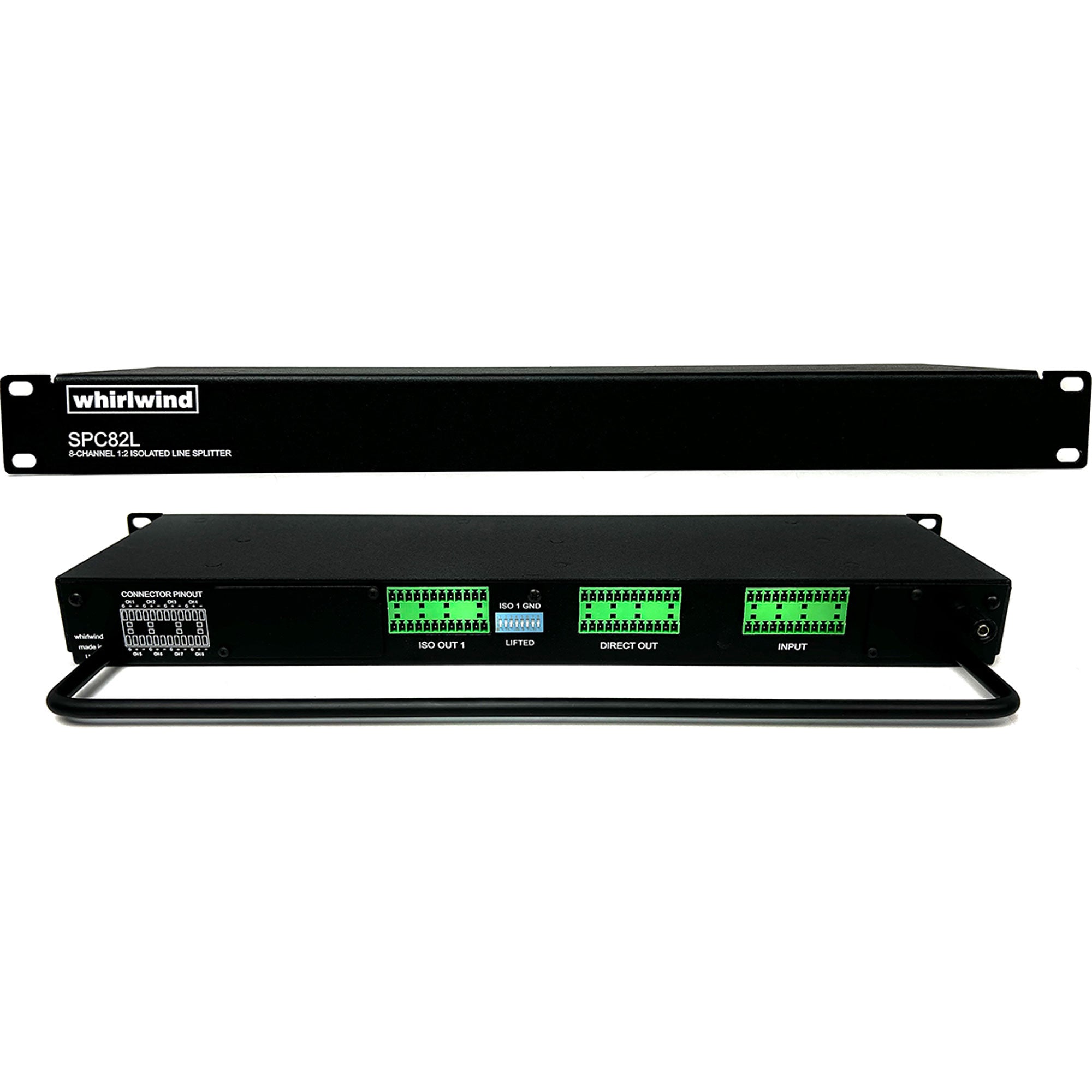

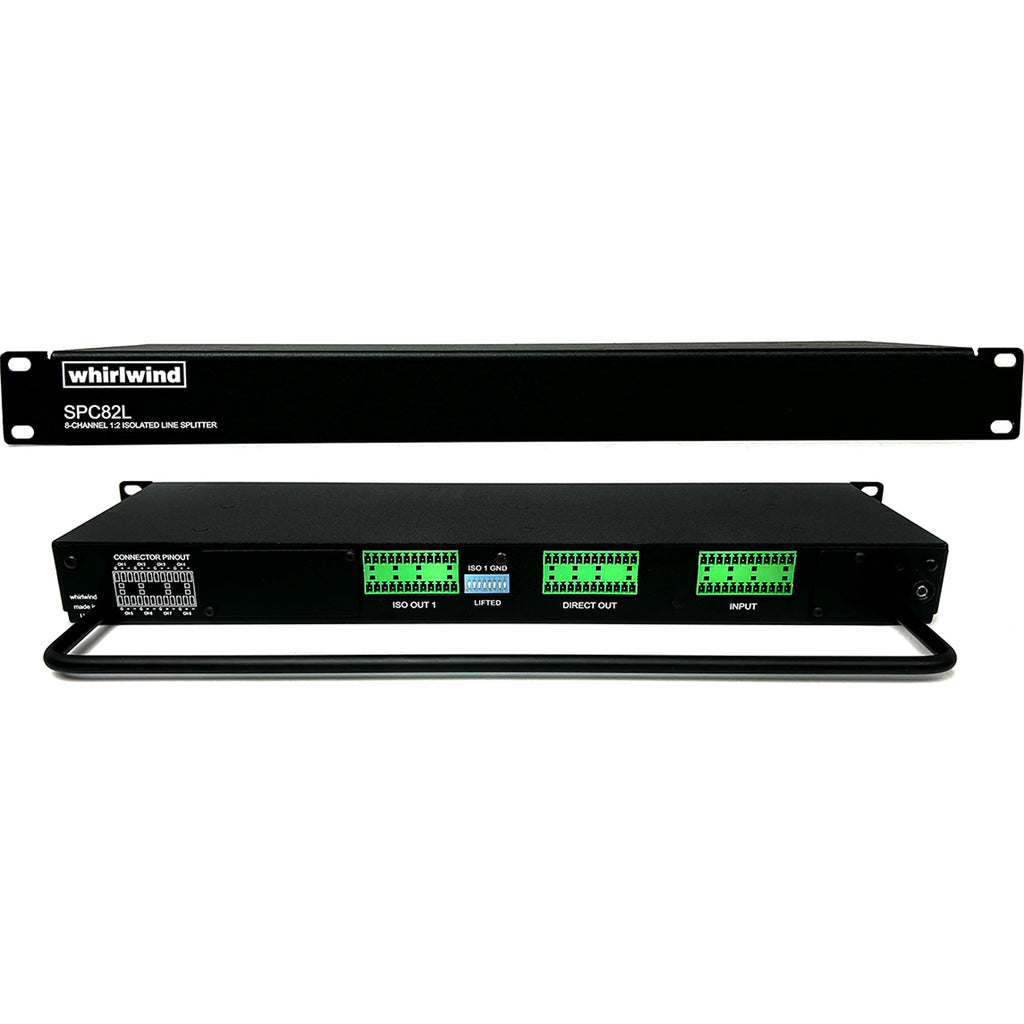

The Whirlwind SPC8x series of passive microphone splitters are the ideal, expandable solution for permanent installations.
Each unit provides 8 channels of mic level splitting circuitry in a single rack space unit. Depth is 7.5" including tie bar.

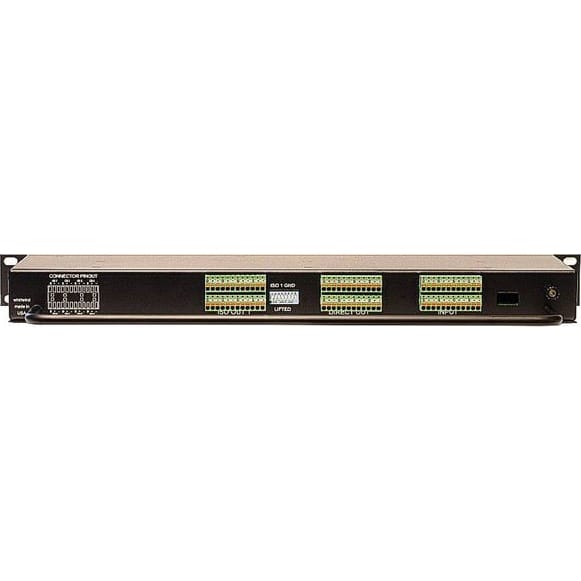

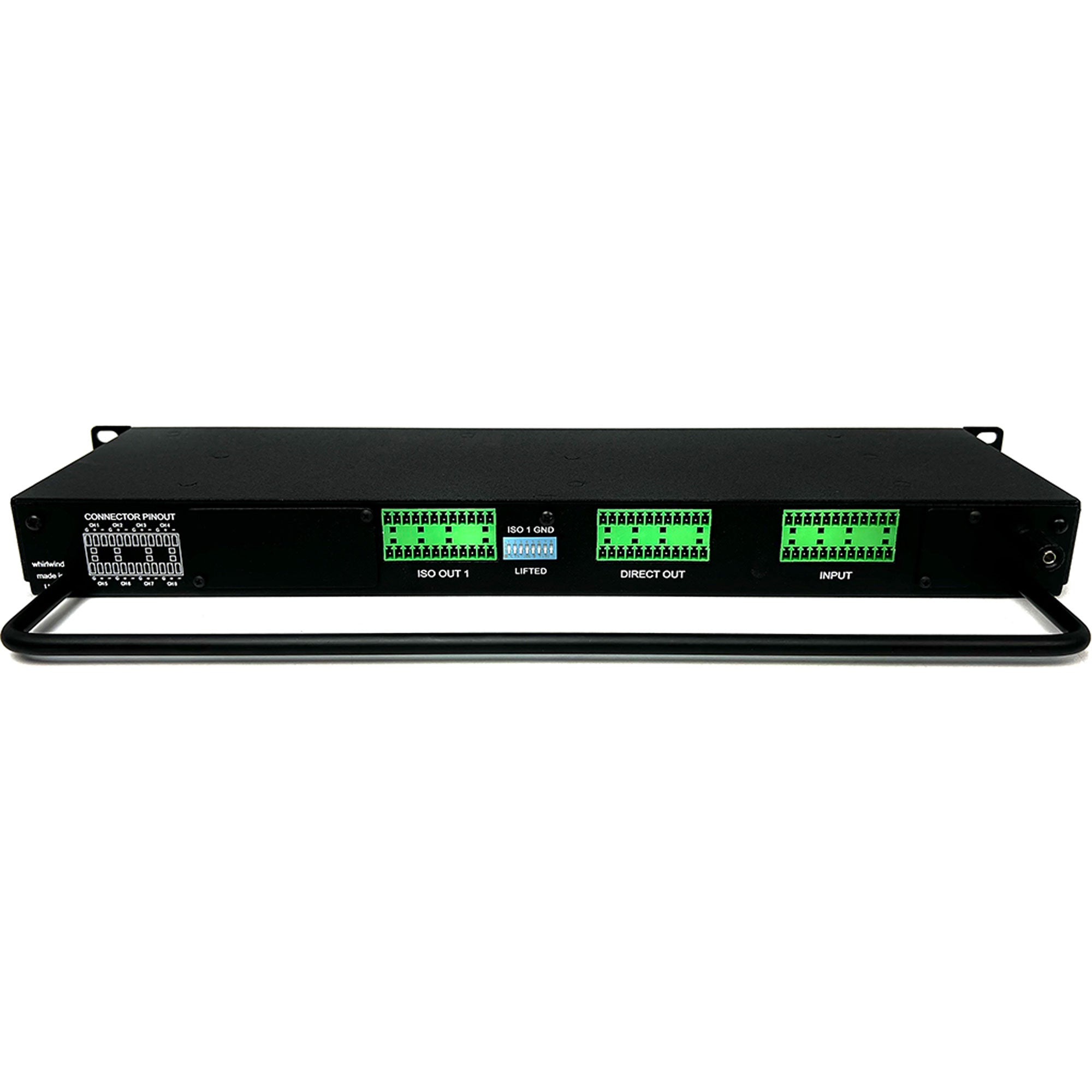

All connections are made via removable Phoenix style connectors - cable end connectors are included.
A set of dip switches is provided for each ISO output for lifting the ground connection between input and ISO output. (The SPC83P-S provides convenient front panel buttons for engaing phantom power and ground lifting each iso channel.)
Rear tie-bar is provided for attaching cables securely to avoid accidental disconnects.
The SPC82 and SPC82P provide one direct and one transformer isolated output per channel, the SPC83 and SPC83P provide one direct and two isolated outputs per channel. Whirlwind transformers are used throughout. They are available with Jensen transformers, add "JT" to the model number. SPC83 and SPC83P are available with premium Lundahl transformers, add "LUNT" to the model number.
Units are also available in line level versions SPC82L and SPC83L.
The SPC82P and SPC83P feature rear terminal connections for injecting phantom power at the splitter with the optional Whirlwind DCSP1 (replaces PS48) external phantom power supply. Phantom power is blocked from the splitter's outputs, including the direct out.
Therefore, with the "P" versions, PHANTOM POWER WILL NOT PASS THROUGH THE SPLITTER FROM YOUR MIXING CONSOLE. Use the SPC82 or SPC83 model when you will be providing phantom power from the mixing console and NOT from an external power supply.
A loop through feature on the phantom connection allows a single DCSP1 to provide phantom power to multiple units, limited only by total current draw of up to 500mA.
Models
SPC82: 1-direct and 1-isolated output, passes phantom power from direct in to direct out.
SPC82P: 1-direct and 1-isolated output, phantom power is blocked from direct in to direct out.
SPC82L: Line level version, 1-direct and 1-isolated output.
SPC82JT: 1-direct and 1-isolated output with Jensen transformer, passes phantom power from direct in to direct out.
SPC82PJT: 1-direct and 1-isolated output with Jensen transformer, phantom power is blocked from direct in to direct out.
SPC82X : 1-direct and 1-isolated output, XLR inputs, Phoenix connector outputs, passes phantom power from direct in to direct out
SPC82PX: 1-direct and 1-isolated output, XLR inputs, Phoenix connector outputs, phantom power is blocked from direct in to direct out
:
SPC83: 1-direct and 2-isolated outputs, passes phantom power from direct in to direct out.
SPC83X: 1-direct and 2-isolated outputs, XLR inputs, Phoenix connector outputs, passes phantom power from direct in to direct out
SPC83P: 1-direct and 2-isolated outputs, phantom power is blocked from direct in to direct out.
SPC83PX: 1-direct and 2-isolated outputs, XLR inputs, Phoenix connector outputs, phantom power is blocked from direct in to direct out
SPC83L: Line level version, 1-direct and 2-isolated outputs. Transformer's split secondary results in a 6 dB drop in signal at each isolated output.
SPC83JT: 1-direct and 2-isolated outputs with Jensen transformer, passes phantom power from direct in to direct out.
SPC83PJT: 1-direct and 2-isolated outputs with Jensen transformer, phantom power is blocked from direct in to direct out.
SPC83LUNT: 1-direct and 2-isolated outputswith Lundahl transformer, passes phantom power from direct in to direct out.
SPC83PLUNT: 1-direct and 2-isolated outputs with Lundahl transformer, phantom power is blocked from direct in to direct out.
SPC83P-S: 1-direct and 2-isolated outputs, front panel buttons provided for phantom on/off and ground lift for each iso channel.
