Key Features
- Stereo to Mono Direct Box
- Single Input Passive DI
- 1/8" Stereo Mini TRS Input
- Dual RCA Inputs
- Balanced XLR Output
- Ground Lift Switch
Description

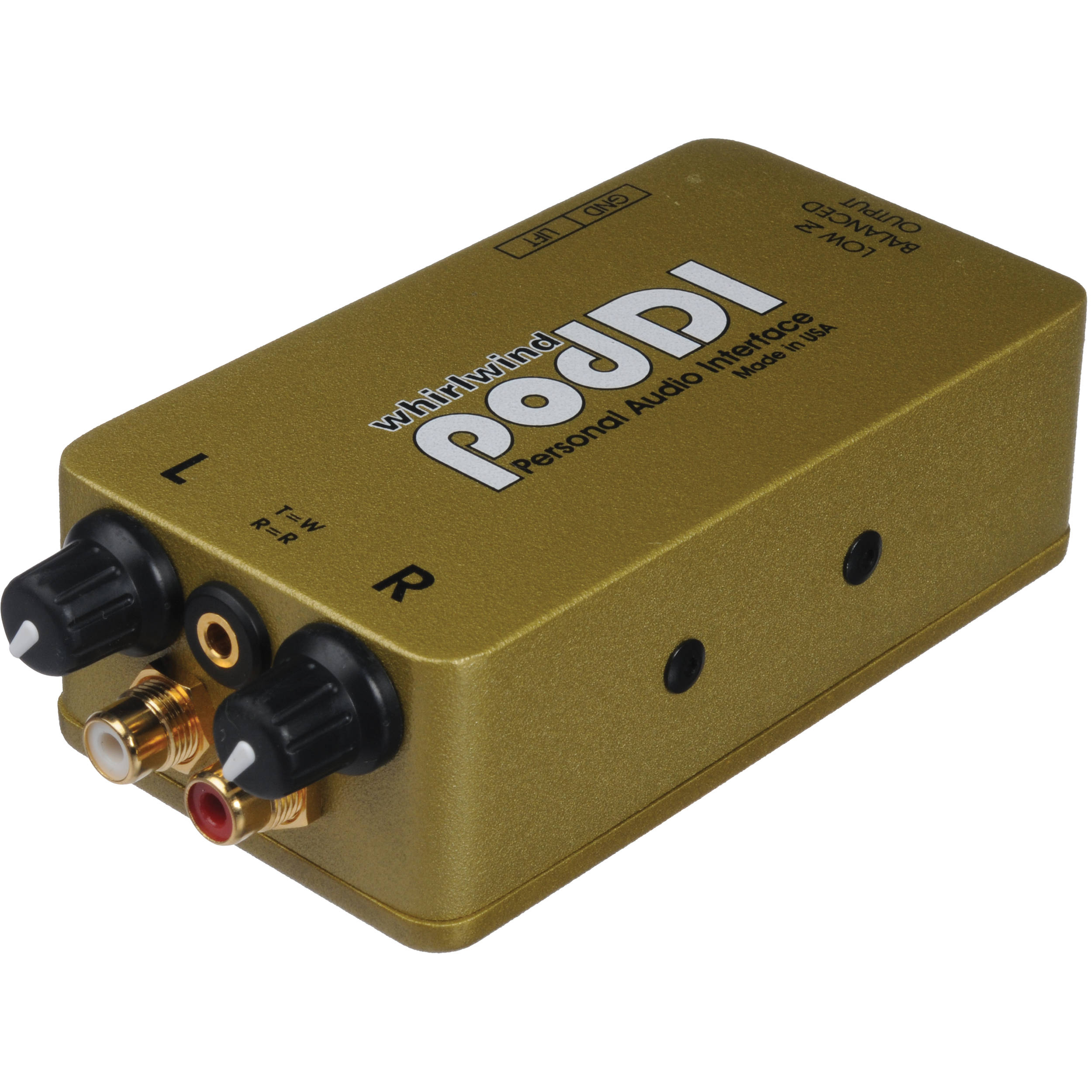

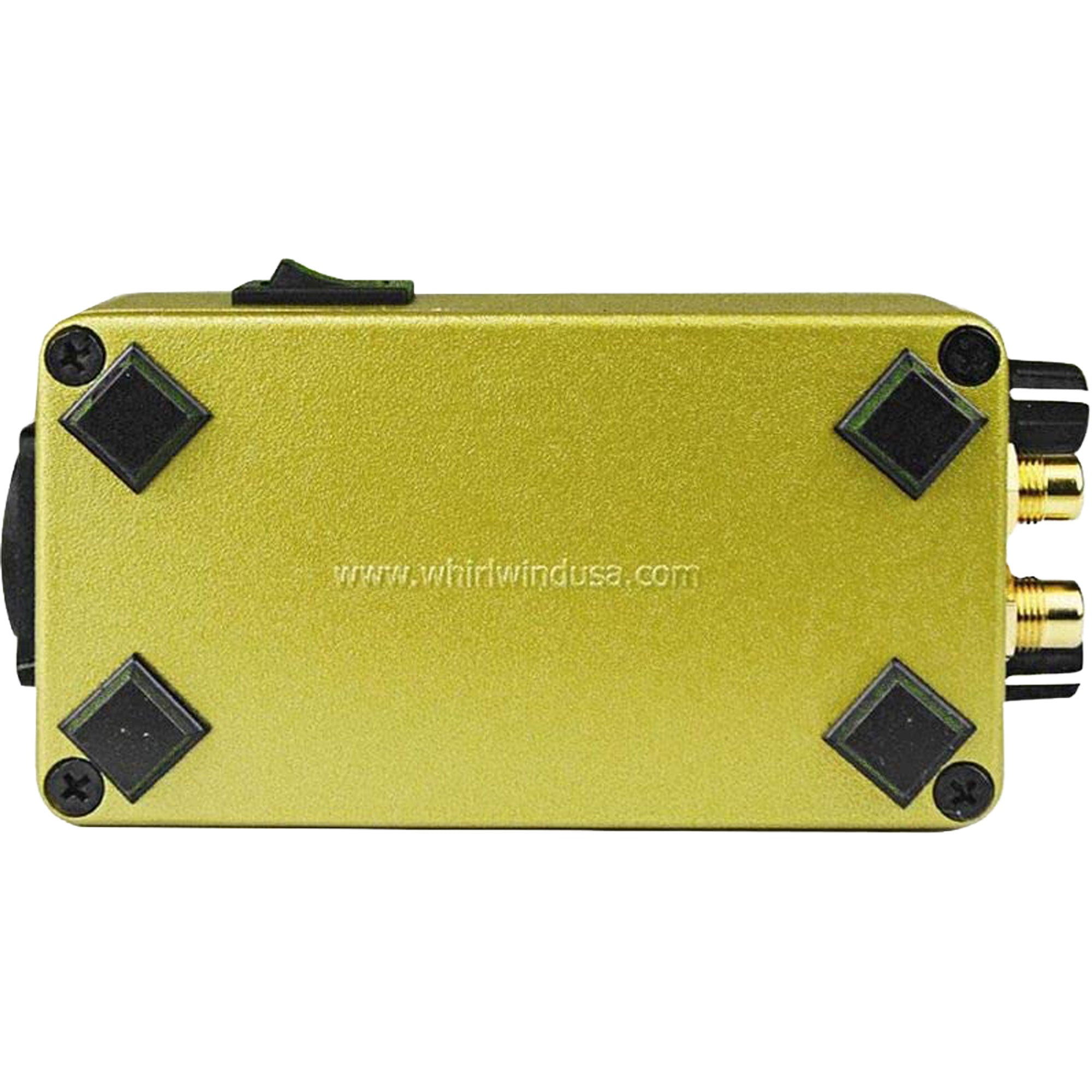

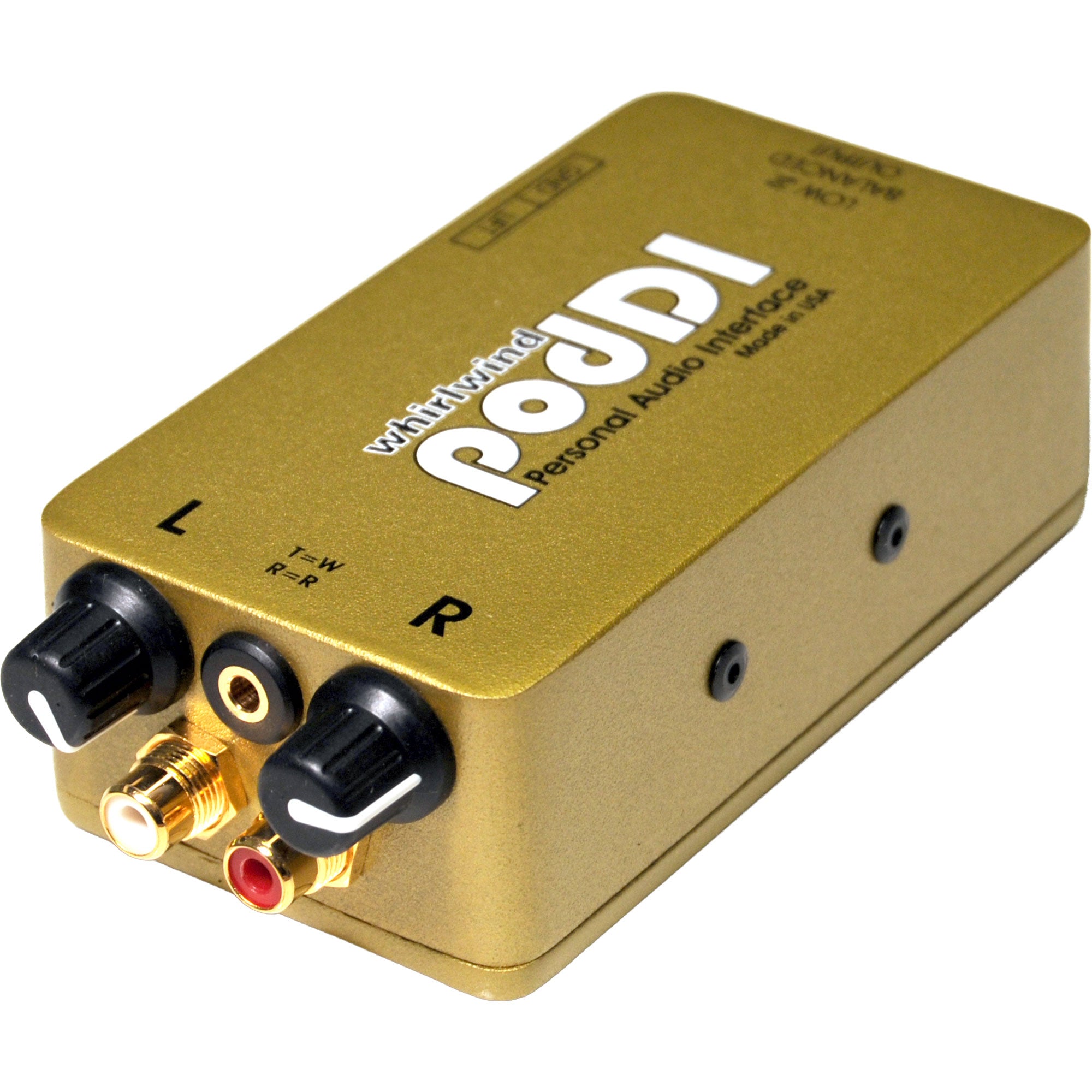

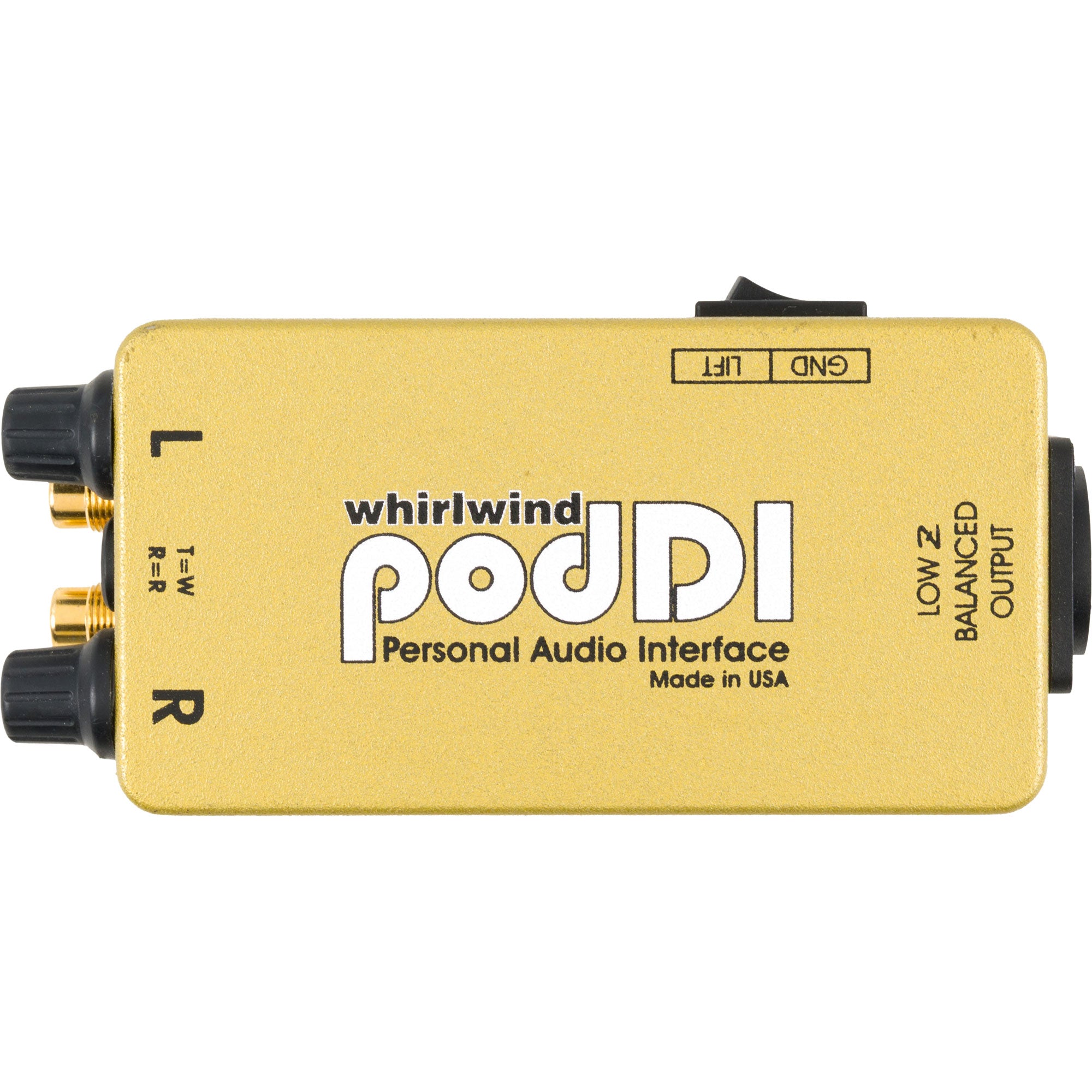

Single Output Passive Summing Direct Box
The podDI is a single output summing direct box. Use it to connect CD and MP3 players, computer sound card outputs, DJ mixers, etc. to professional equipment with balanced inputs such as a mixing console. Accepts stereo inputs and sums them into a single mono output.
A variable attenuator on each input allows level matching between left and right inputs. This makes the podDI a passive mixer in split track audio applications, balancing the voice track and the music track levels in the summed mono output.

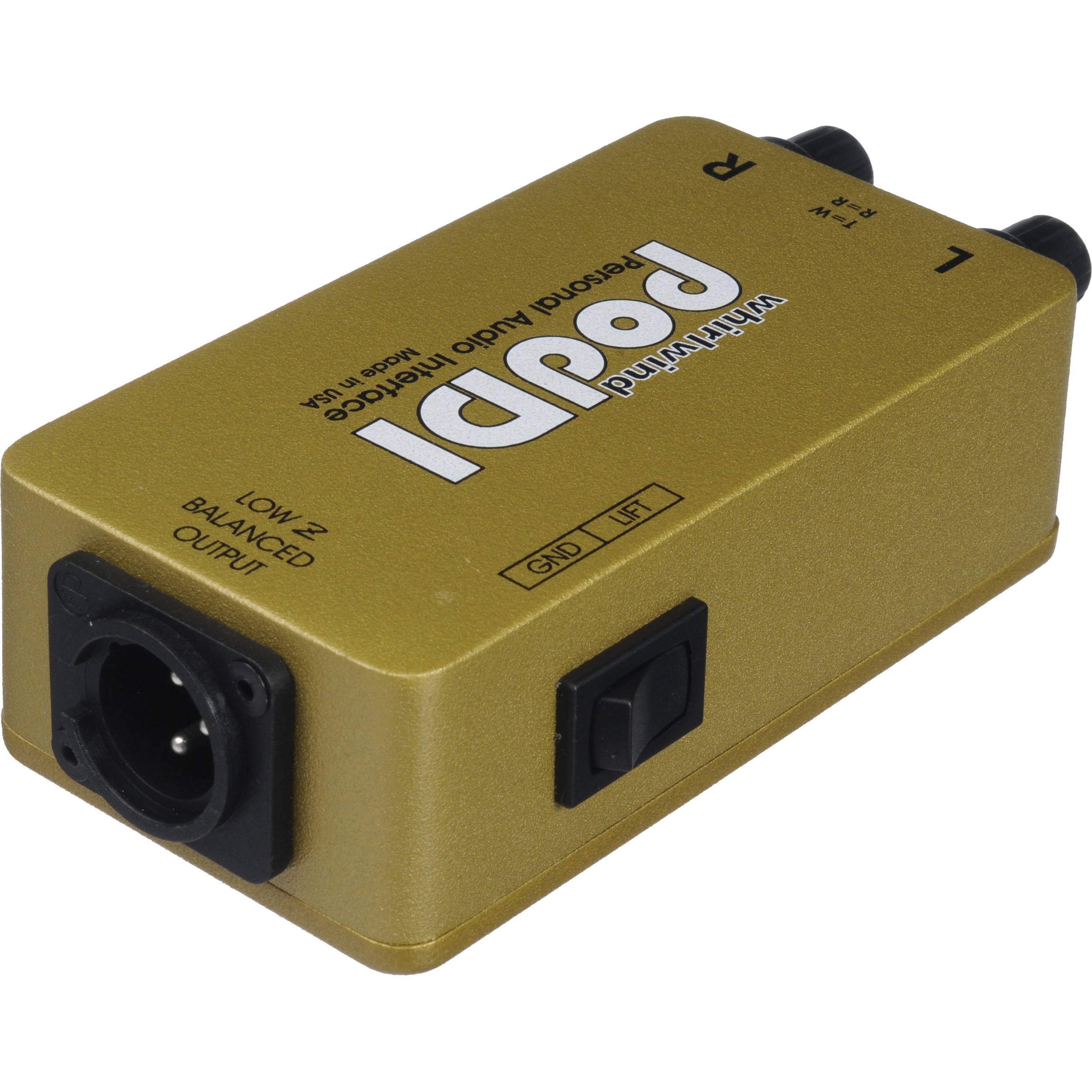

Signal is input via 3.5mm (1/8") stereo TRS jack or color coded RCA phono jacks. An unused input can be used as a "loop through". Output is via a balanced male XLR jack.
Features a ground lift switch to help eliminate hum and buzz.
The podDI can also be used as a high quality single input
Specifications:
- Type: Passive
- Input Connections:
1 x 1/8" TRS stereo mini
2 x RCA phono - Impedance Ratio: 133:1
- Output Connector: 1 x XLR
- Controls:
2 x Input volume attenuators
1 x Ground lift switch - Specialties: An unused input can be used as a "loop through"
