Description
8-Channel Stereo Line Level Mixer
The MIX-8S provides 8 stereo balanced line level inputs in an economical, space-saving package for broadcast audio mix-minus and studio monitoring of multiple stereo feeds.

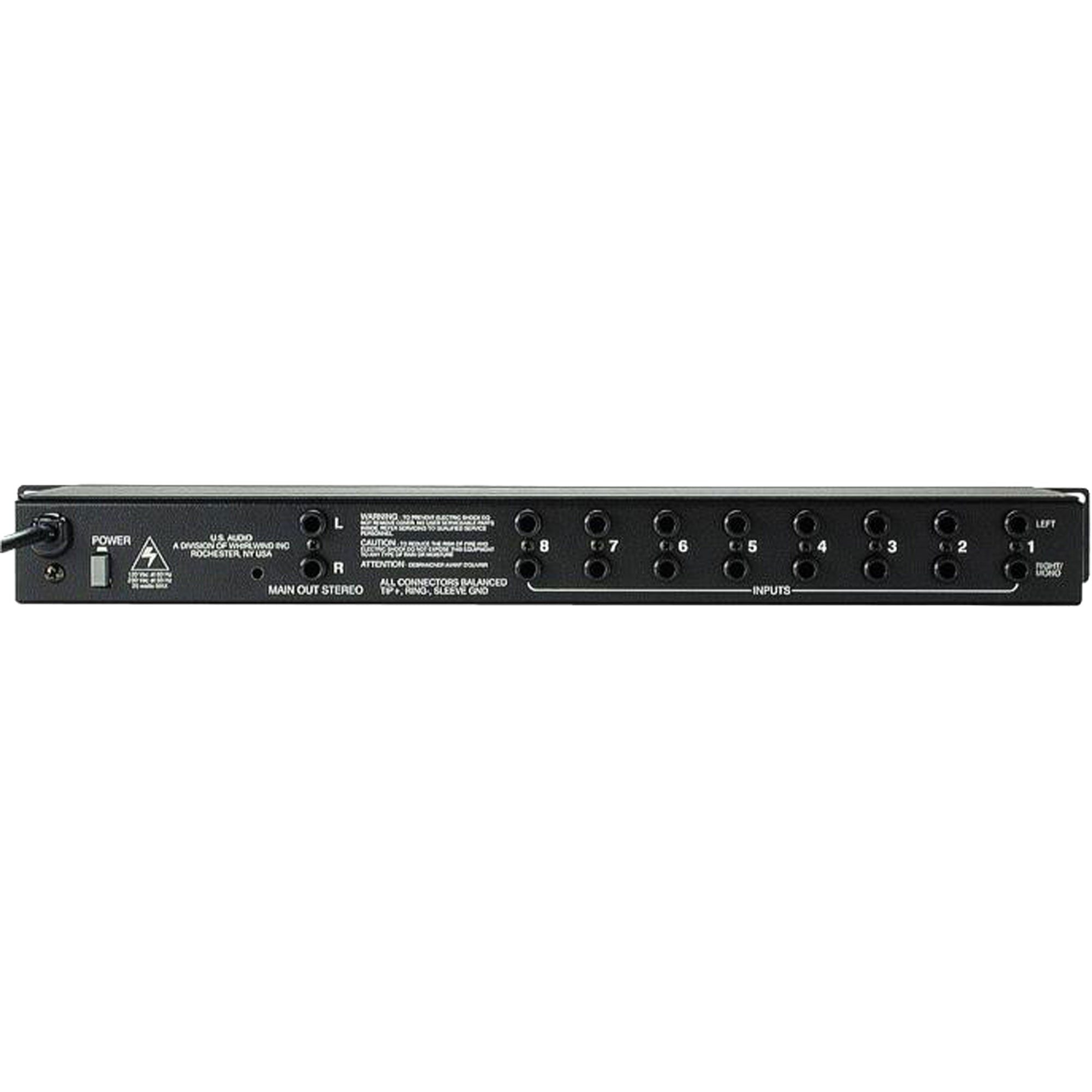

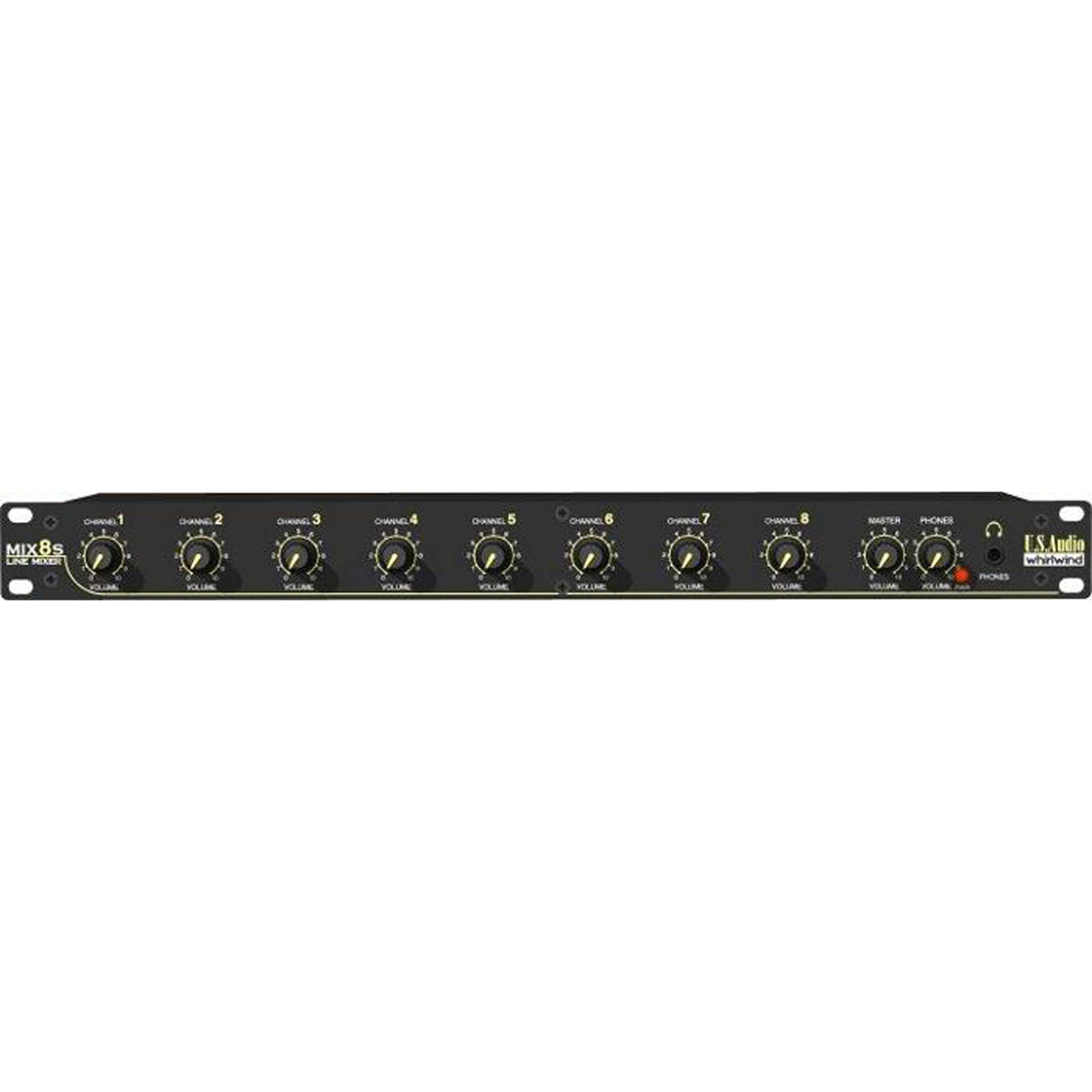

Each channel has a front-panel volume control, with a single master volume control for the stereo output level. The unit also includes a headphone volume control and headphone jack for monitoring the stereo program mix. The stereo inputs and outputs are balanced or unbalanced line level via TRS 1/4" jacks.
Specifications:
- Frequency Response: 30Hz-20kHz +/-0.5dB
- Maximum Input Level: +22dBu
- Input Impedance: 10k Ohms
- Maximum Output Level: +22dBu
- Output Impedance: 100 Ohms
- Rise Time: 5S
- Total Harmonic Distortion: 0.05%
- Power Requirements: 115/230VAC
- Gain Structure:
- Channel Gain: 18dB
- Master Gain: 18dB
- Total Gain: 36dB
- Headphone Impedance: 30 Ohms minimum
