Description
16-Channel Mono Line Level Mixer

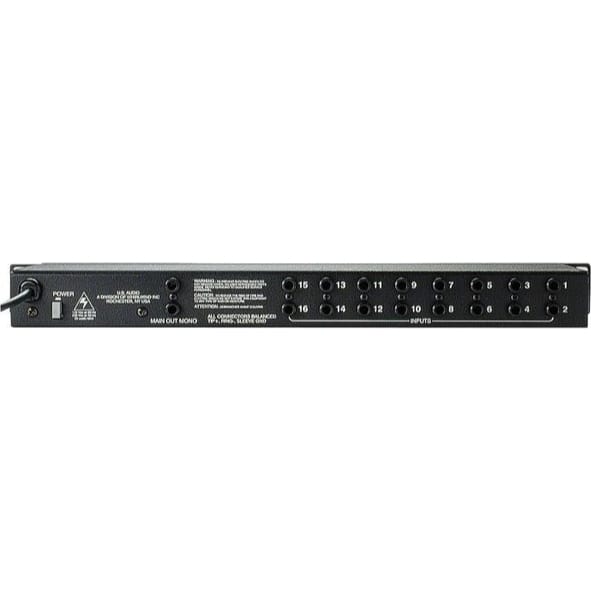

The MIX-16 was designed for use in broadcast production, monitoring, and wherever large numbers of balanced inputs are required in a minimum amount of space. It provides 16 mono balanced 1/4" line level inputs in a compact, cost-effective 1U package.

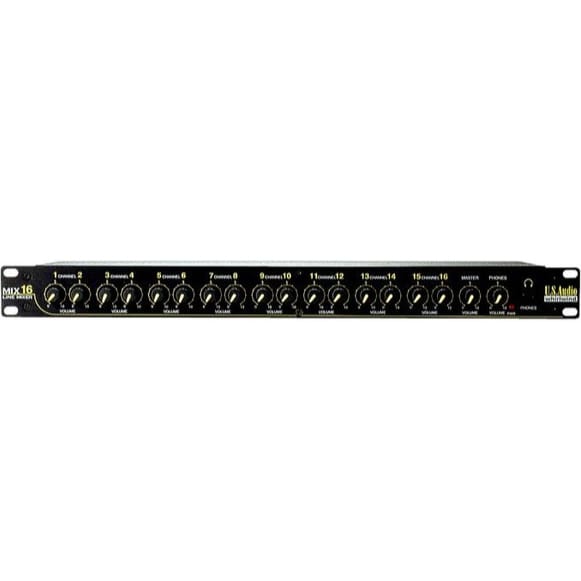

Each channel has a volume control, and the output level is controlled by a master volume control. The unit also includes a headphone volume control and headphone jack for monitoring the program mix. The output is balanced or unbalanced line level via two TRS 1/4" jacks.
Specifications:
- Frequency Response: 30Hz-20kHz +/-0.5dB
- Maximum Input Level: +22dBu
- Input Impedance: 10k Ohms
- Maximum Output Level: +22dBu
- Output Impedance: 100 Ohms
- Rise Time: 5S
- Total Harmonic Distortion: 0.05%
- Power Requirements: 115/230VAC
- Gain Structure:
- Channel Gain: 18dB
- Master Gain: 18dB
- Total Gain: 36dB
- Headphone Impedance: 30 Ohms minimum
