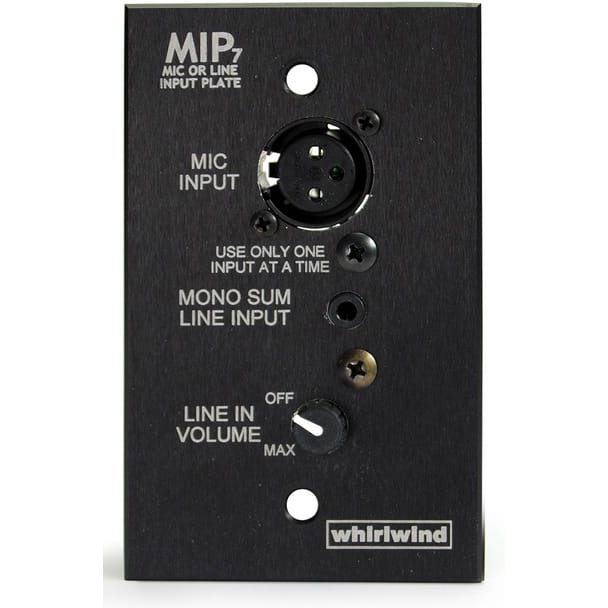

Whirlwind MIP7 Media Input Plate (Black)

Media Input Plate - Inputs: XLRF, 3.5mm TRS; Output: Balanced Screw Terminal; Mono, 1-Gang, Black

The MIP7 permits the connection of a microphone or line source to a single mic input of a remote audio processor. The mic input XLR is connected directly to the output screw terminal plug. Set the audio processor channel gain for the desired system level of the MIP7 mic output. A stereo line source can be connected to the 3.5mm TRS jack. Left and right are automatically summed to mono and applied to the line input volume control. This pot allows adjustment of the line input to avoid overdriving the mic preamp in the remote processor. Condenser mics can receive phantom power from the processor. Use only one input of the MIP7 at a time. Do not use the mic and line inputs simultaneously.
