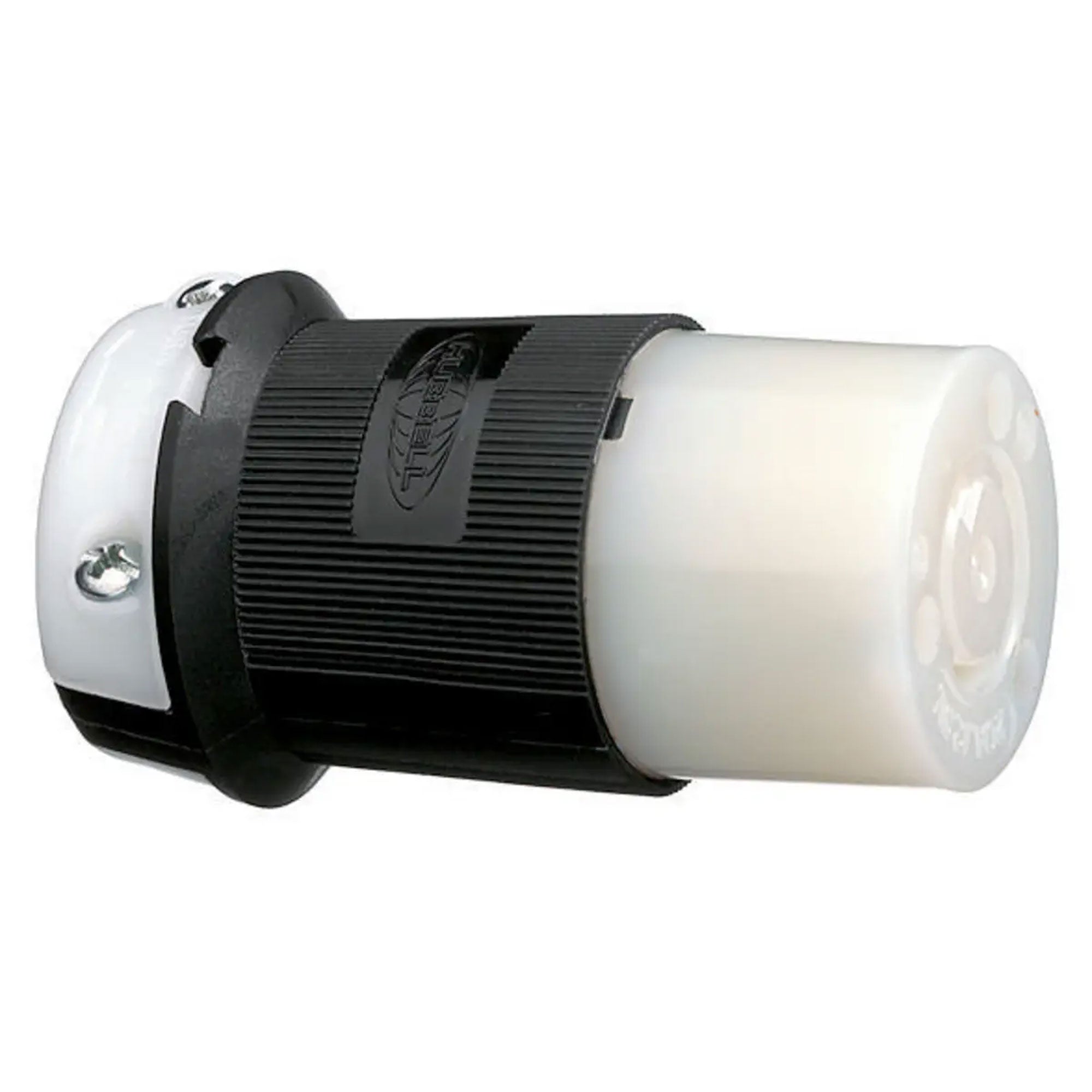

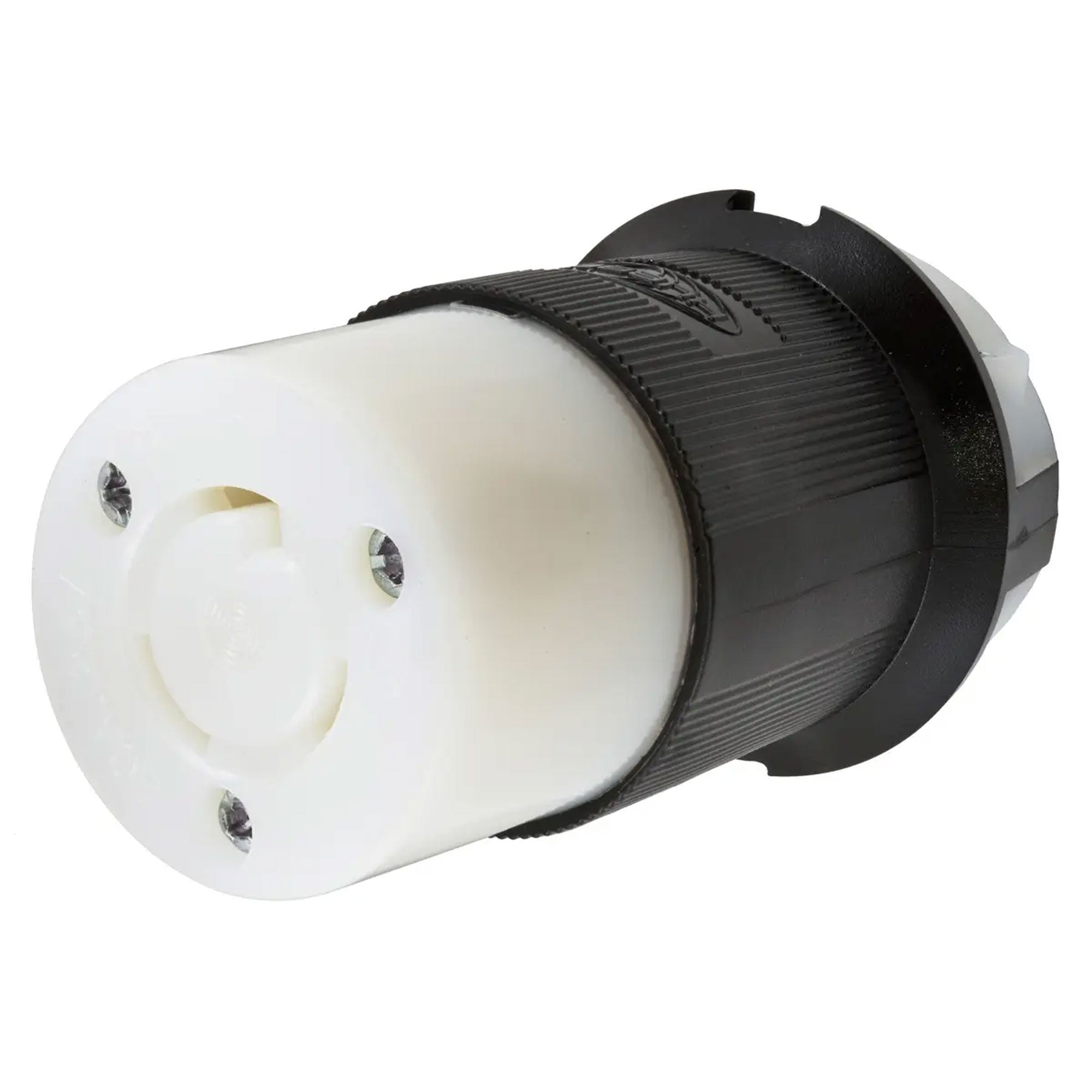

Whirlwind Hubbell HBL2313 Twist-Lock Nema L5-20R Inline Female AC Electrical Power Connector

Locking Devices, Twist-Lock, Industrial, Female Insulgrip Connector Body, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, Black and White Nylon

Locking Devices, Twist-Lock, Industrial, Female Insulgrip Connector Body, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, Black and White Nylon. Ribbed nylon housing provides a secure grip and impact and chemical resistance. Superior cord grip design protects terminations from excess strain. Clear, funnel shaped wire entry for ease of termination. Integral dust shield protects wiring chamber from dust or contaminants.

Features:

• Insulated Nylon Construction to Keep Non-Current Carrying Parts From Becoming Energized
• Tough Ribbed Nylon Housing For Secure Gripping
• Two-Part Cord Grip Tightens With Two Screws For Maximum Retention Force
• Broad Gripping Area to Accommodate Wide Range of Cable Diameters
• Product Identification is Visible While Device is in Use
• Markings Include Catalog Number and Ratings Printed in the IEC Color Scheme on the Current-Carrying Portion of the Device
• Series: Twist-Lock Insulgrip
• Grade: Industrial
• Materials: Nylon

Specifications:

• General
• Cord Range: 0.360"-0.930" (9-24)
• Horsepower - Maximum: 1
• Insulation: Insulated Body
• Item Type: 20A Insulgrip Connector
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Performance:
  Electrical - Current Interrupting - Certified for current interrupting at full rated current
  Electrical - Dielectric Voltage - Withstands 2,000V minimum
  Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
  Environmental - Moisture Resistance - IP20 Suitability
  Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 783585037745
• Dimensions
• Dimensions: 2.26 in x 2.26 in x 3.86 in
• Display Size: Standard
• Height: 3.86 in
• Length: 2.26 in
• Weight: 0.30 lb
• Width: 2.26 in
• Electrical Ratings
• Amperage Rating: 20 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Voltage Rating: 125 VAC
• Voltage Rating Description: 125 VAC
• Conductor Related
• Cable Range: 0.360 - 0.930 in
• Number Of Wires: 3-Wire
• Wire Size: #16 AWG to #8 AWG
• Certifications and Compliance
• Nema Rating: L5-20R
• Logistics
• Carton Quantity: 30
