Description

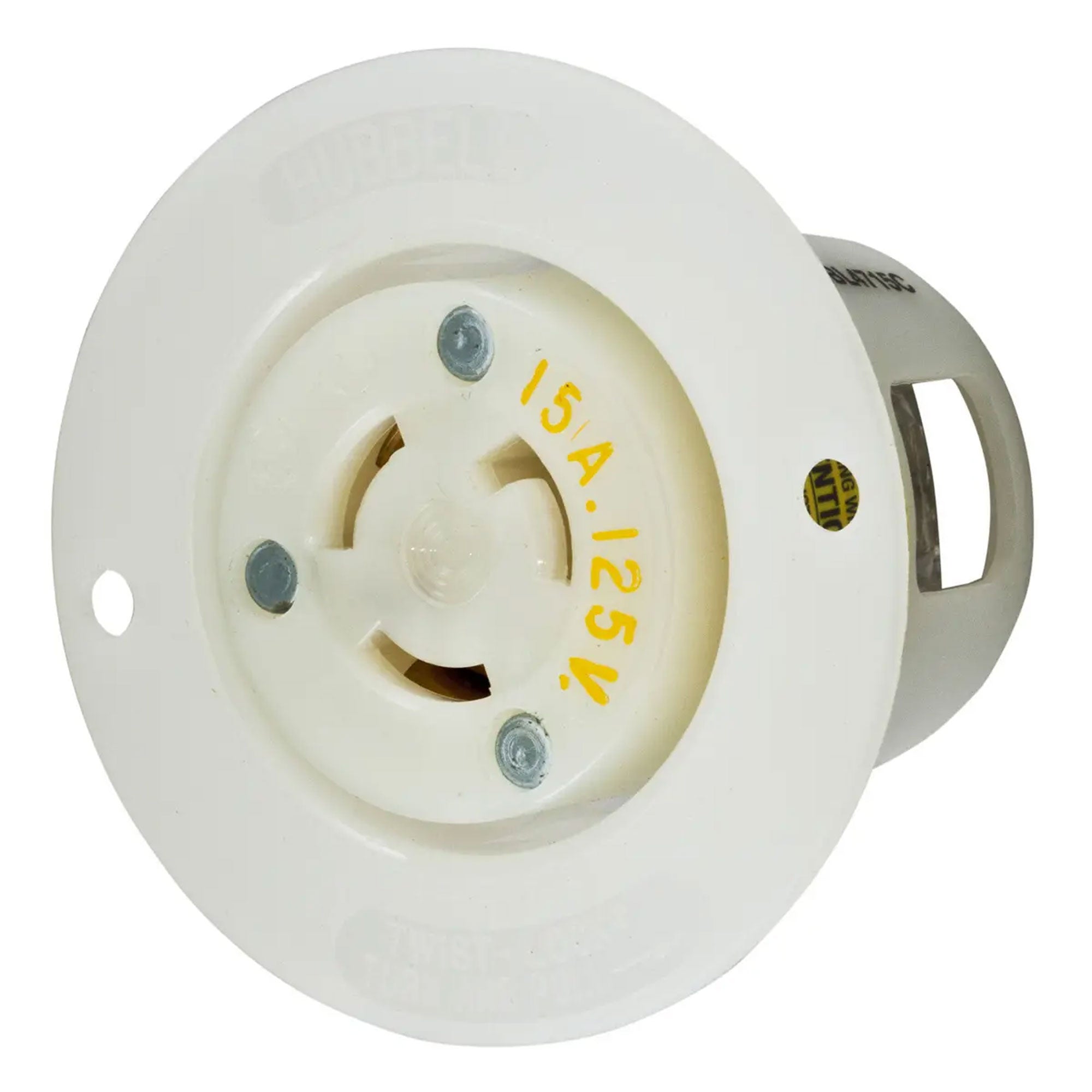

Twist-Lock Insulgrip 15A 250V L5-15R Plug, Black and White
The HBL4715C is a 2-pole 3-wire 15A/125VAC Twist-Lock NEMA L5-15R Insulgrip Grounding Flanged Receptacle, made of white nylon casing, back wired, brass contacts, #8-32 brass Phillips/slotted/Robertson screw terminals.
Features:
- UL 498 listed
- HB or better per UL94/CSA 22.2 No.0.17 Flammability test
- IP20 Moisture resistance rating
- -40 to 75°C Operating temperature range
- Impact-resistant thermoplastic construction
- Back wired terminations for ease of installation
- Mounting screws included
- Product family: Hubbell
- Type: Chassis
Specifications:
- Connector Body Material: Nylon (Polyamide) Body
- Connector Color: White
- Connector Type: Power Entry
- Current Rating: 15A
- SVHC: To Be Advised
- Voltage Rating VAC: 250V
