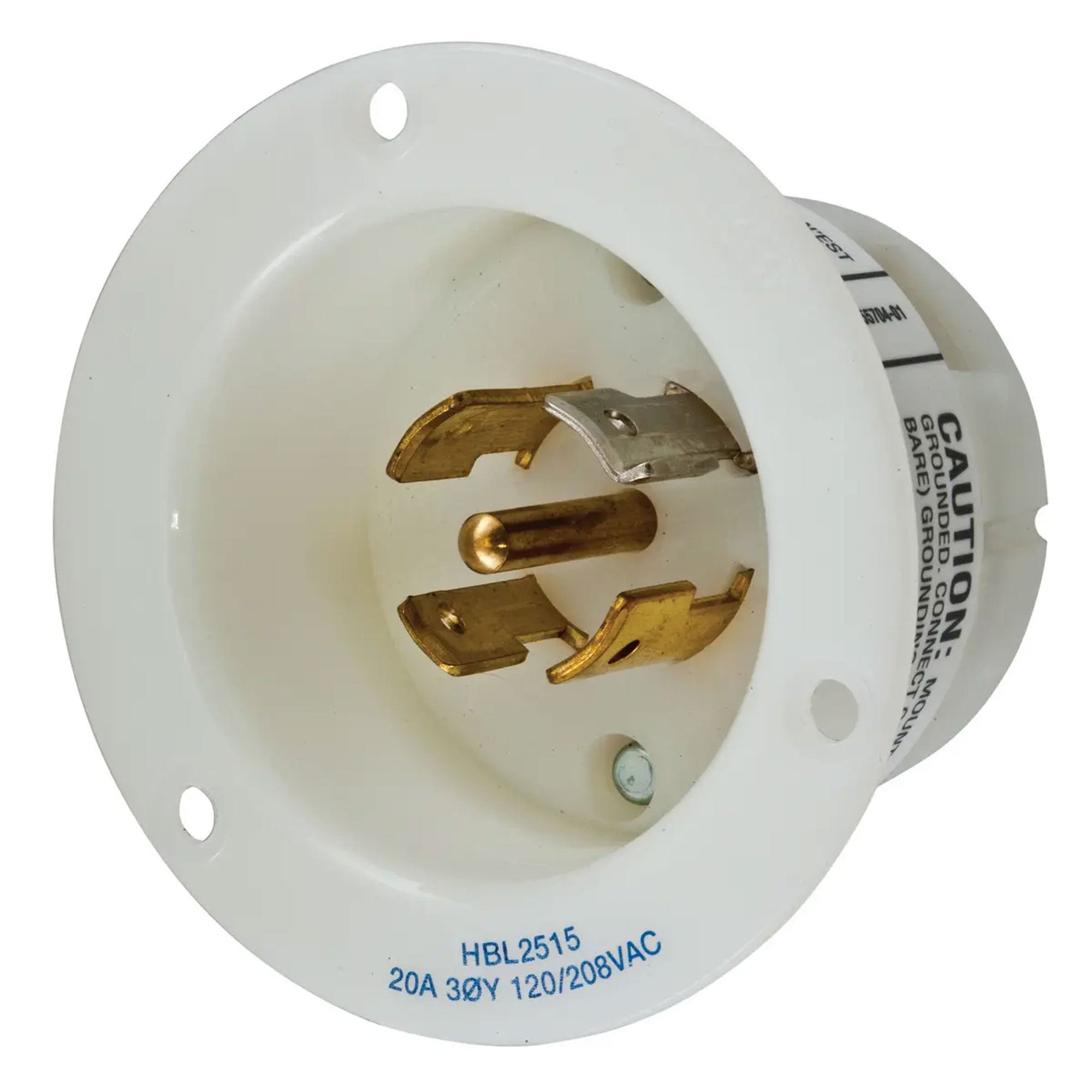

Whirlwind Hubbell HBL2515 Twist-Lock Nema L21-20P Flanged Male AC Electrical Power Inlet

Locking Devices, Twist-Lock, Industrial, Insulgrip Flanged Inlet, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-20P, Screw Terminal, Nylon casing, Back wired, White

Locking Devices, Twist-Lock, Industrial, Insulgrip Flanged Inlet, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-20P, Screw Terminal, Nylon casing, Back wired, White. Back wired terminations for ease of installation. #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson). Mounting screws included.

Specifications:

• General
• Insulation: Insulated Body
• Item Type: 20A Insulgrip Flanged Inlet
• Number Of Poles: 4-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Performance:
  Electrical - Current Interrupting - Certified for current interrupting at full rated current
  Electrical - Dielectric Voltage - Withstands 2,000V minimum
  Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
  Environmental - Moisture Resistance - IP20 Suitability
  Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact)
  Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
  Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Type: Flanged Inlet
• UPC: 783585038575
• Dimensions
• Dimensions: 3.06 in x 3.06 in x 2.27 in
• Display Size: Standard Sized Product
• Height: 2.27 in
• Length: 3.06 in
• Weight: 0.30 lb
• Width: 3.06 in
• Electrical Ratings
• Amperage Rating: 20 A
• Connectivity: Back Wired Screw Terminals
• Current / Amperage Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: 3 Phase WYE
• Voltage Rating: 3 Phase WYE 120/208 VAC
• Voltage Rating Description: 3 Phase WYE 120/208 VAC
• Conductor Related
• Number Of Wires: 5-Wire
• Wire Size: #16 AWG to #8 AWG
• Certifications and Compliance
• Nema Rating: L21-20P
• Logistics
• Carton Quantity: 10
