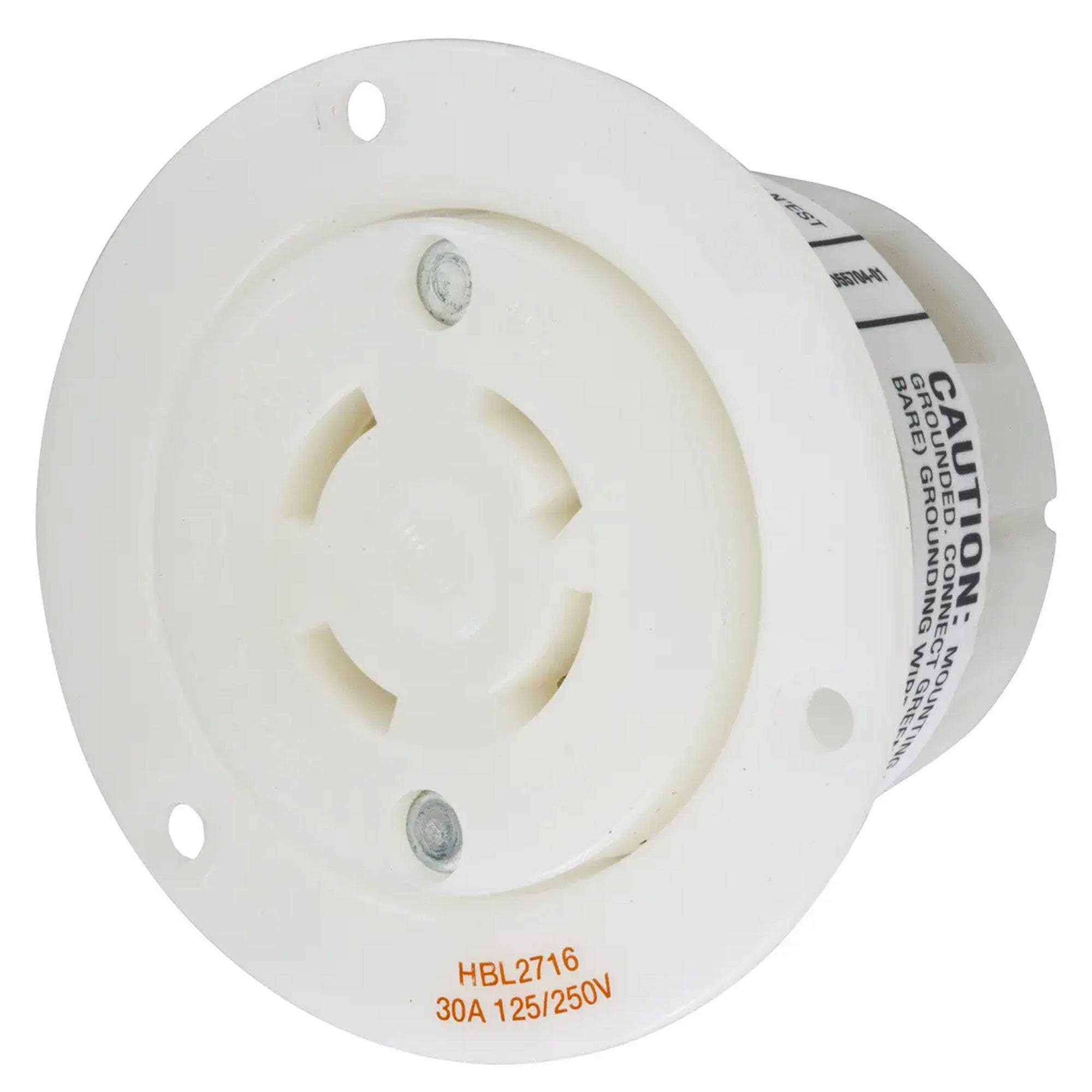

Whirlwind Hubbell HBL2716 Twist-Lock Nema L14-30R Flanged Female AC Electrical Power Receptacle

Twist-Lock Insulgrip 30A 250V 3P4W Plug, Black and White

Locking Devices, Twist-Lock, Industrial, Flanged Receptacle, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, White

Specifications:

• General
• Application: Heavy Duty Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 2(2)
• Item Type: 30A Grounding Insulgrip Flanged Receptacle
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Performance:
  Electrical - Current Interrupting - Certified for current interrupting at full rated current
  Electrical - Dielectric Voltage - Withstands 2,000V minimum
  Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
  Environmental - Moisture Resistance - IP20 Suitability
  Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
  Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
  Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Type: Flanged Receptacle
• UPC: 783585039213
• Dimensions
• Dimensions: 3.06 in x 3.06 in x 2.27 in
• Display Size: Standard Sized Product
• Height: 2.27 in
• Length: 3.06 in
• Weight: 0.35 lb
• Width: 3.06 in
• Electrical Ratings
• Amperage Rating: 30 A
• Connectivity: Back Wired Screw Terminals
• Current / Amperage Rating: 30 A
• Current Rating: 30 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250 VAC
• Conductor Related
• Number Of Wires: 4-Wire
• Wire Size: #16 AWG to #8 AWG
• Certifications and Compliance
• Industry Standard(s):
  Certified to CSA C22.2 No.42
  Fed.Spec. W-C-596
  Listed to UL 498
• Nema Rating: L14-30R
• Logistics
• Carton Quantity: 10
