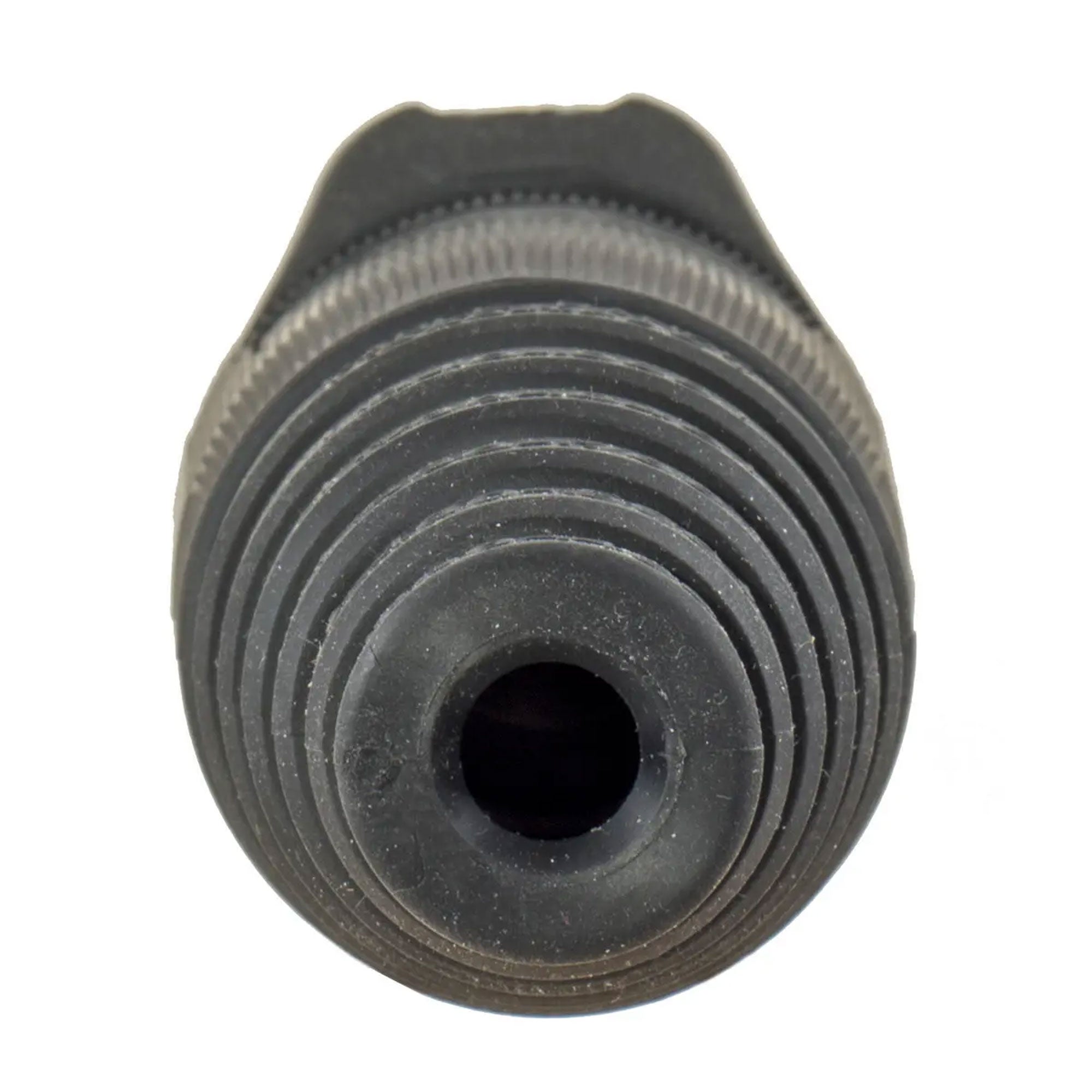

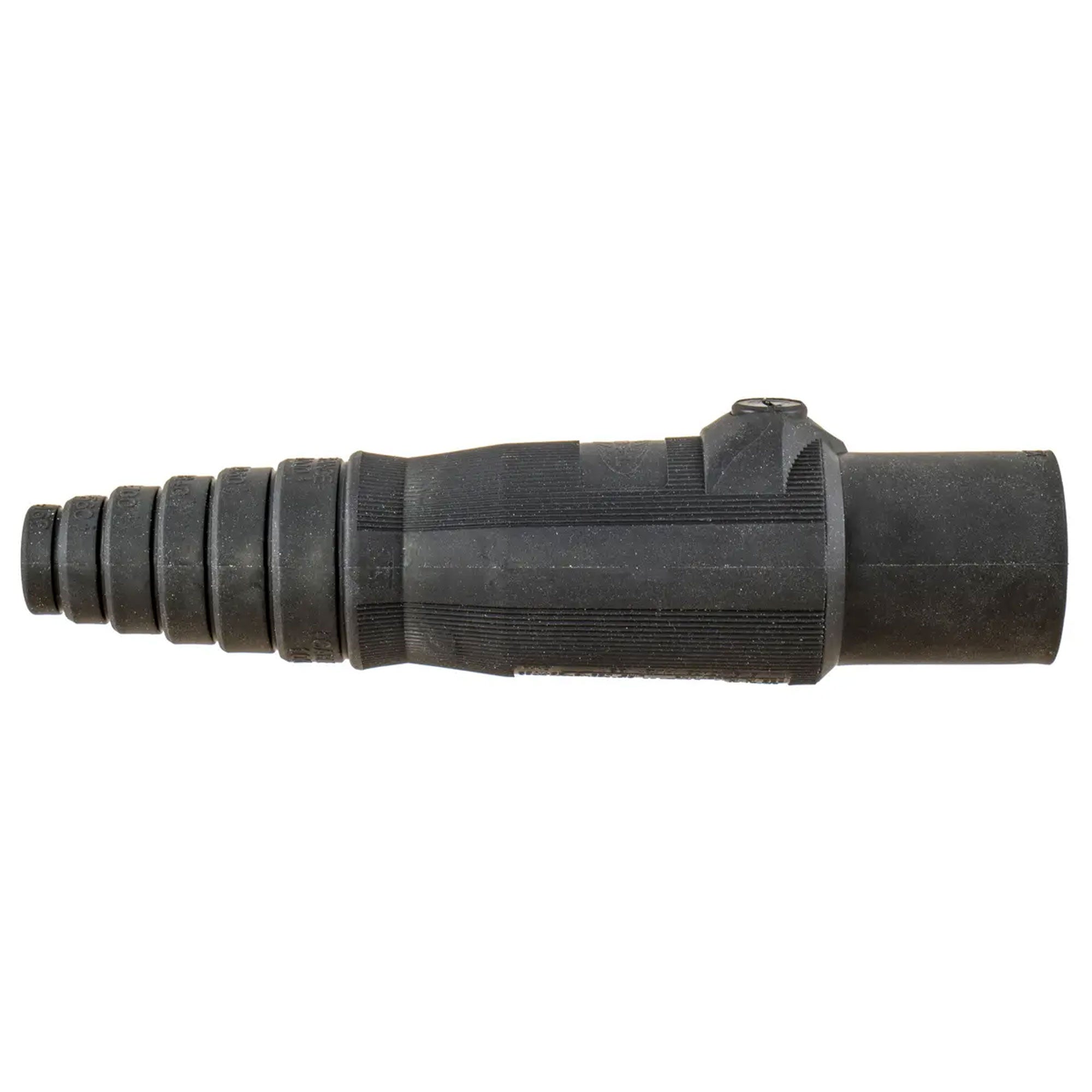

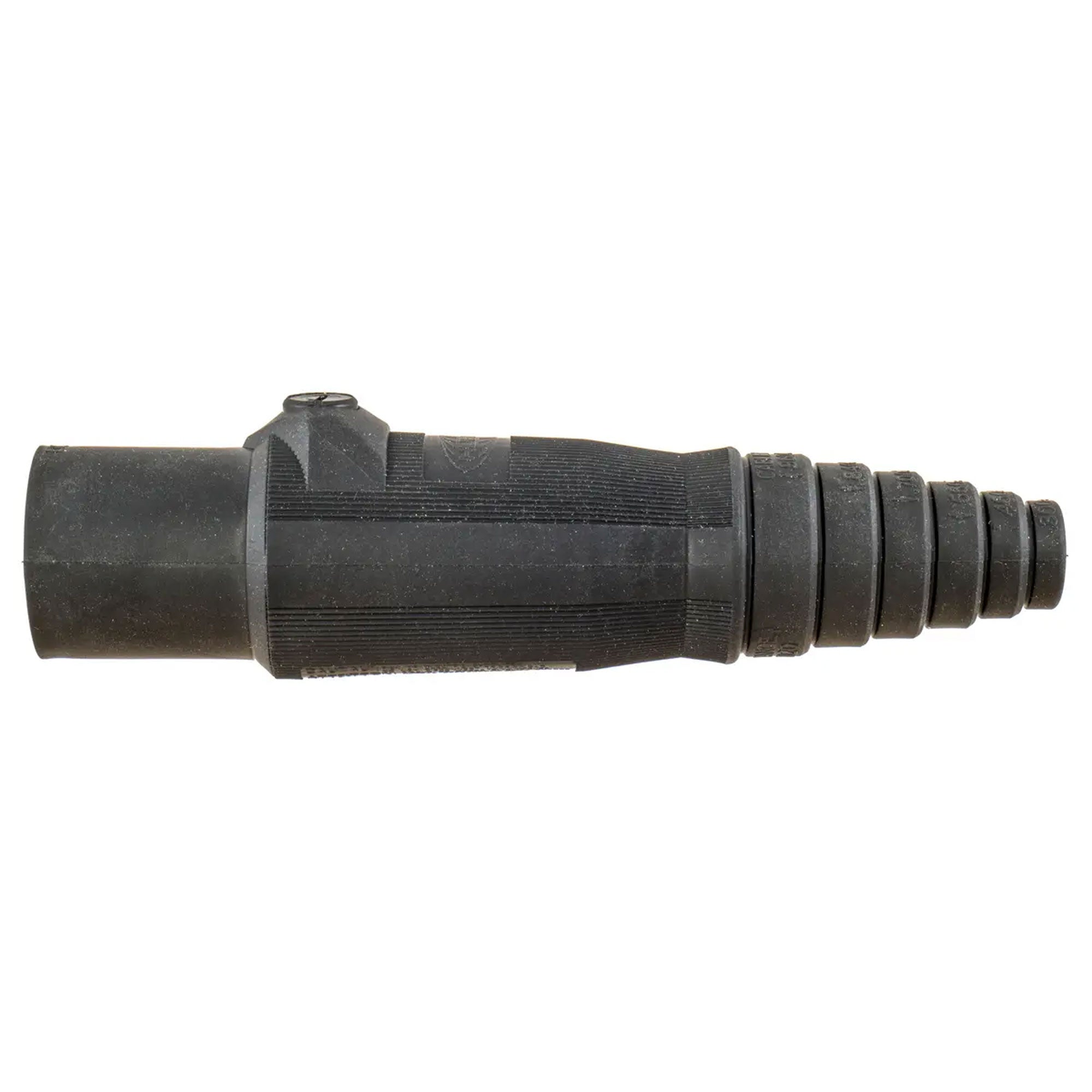

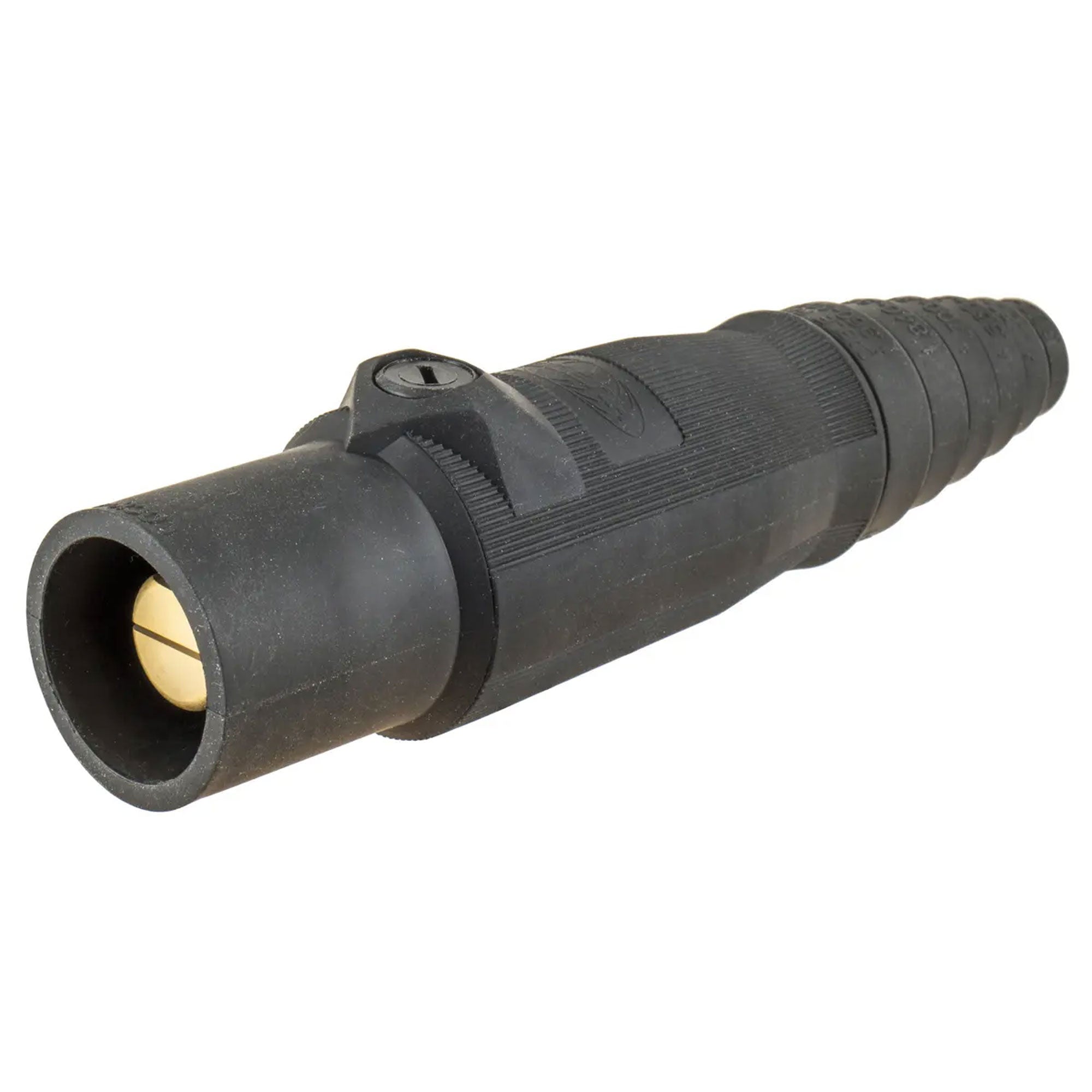

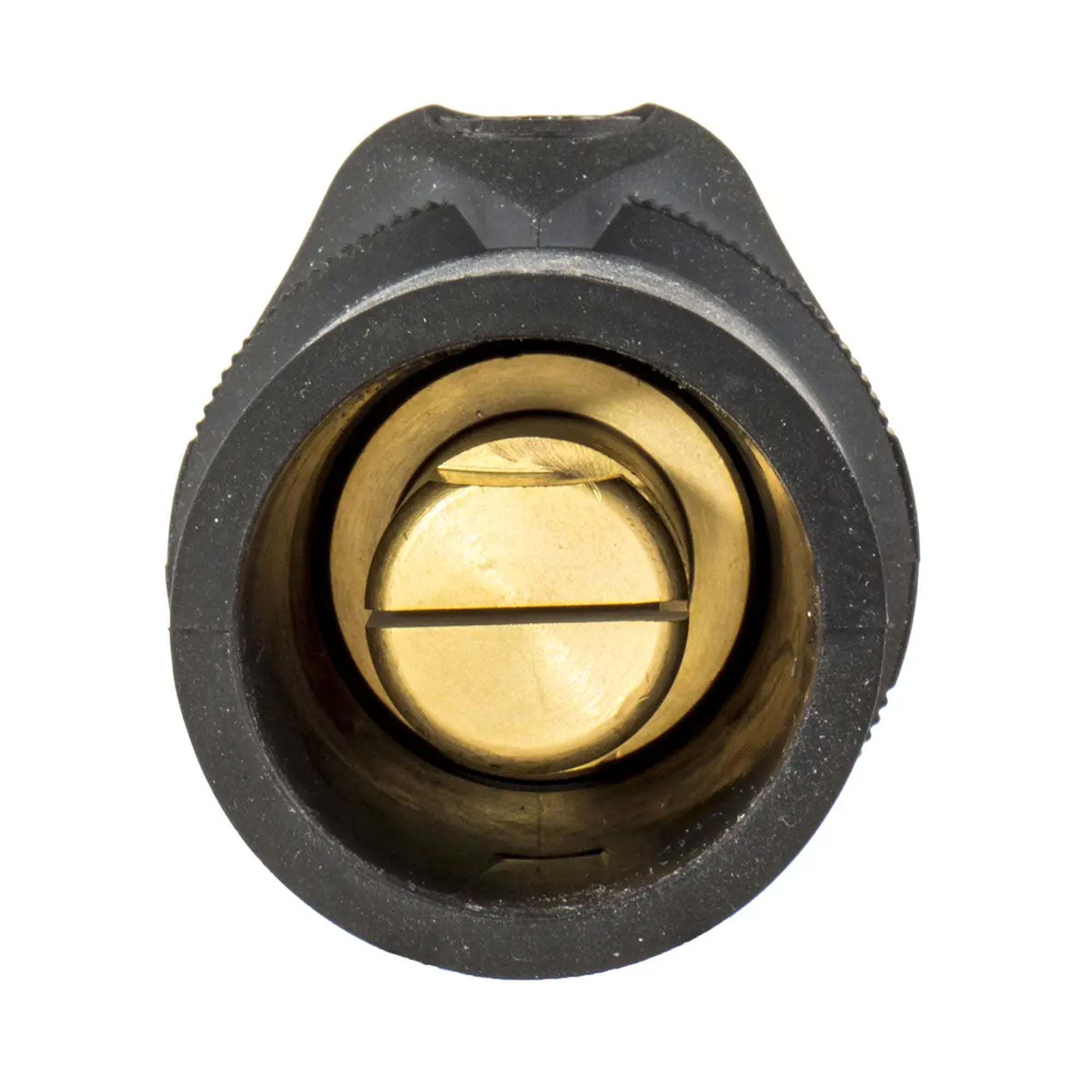

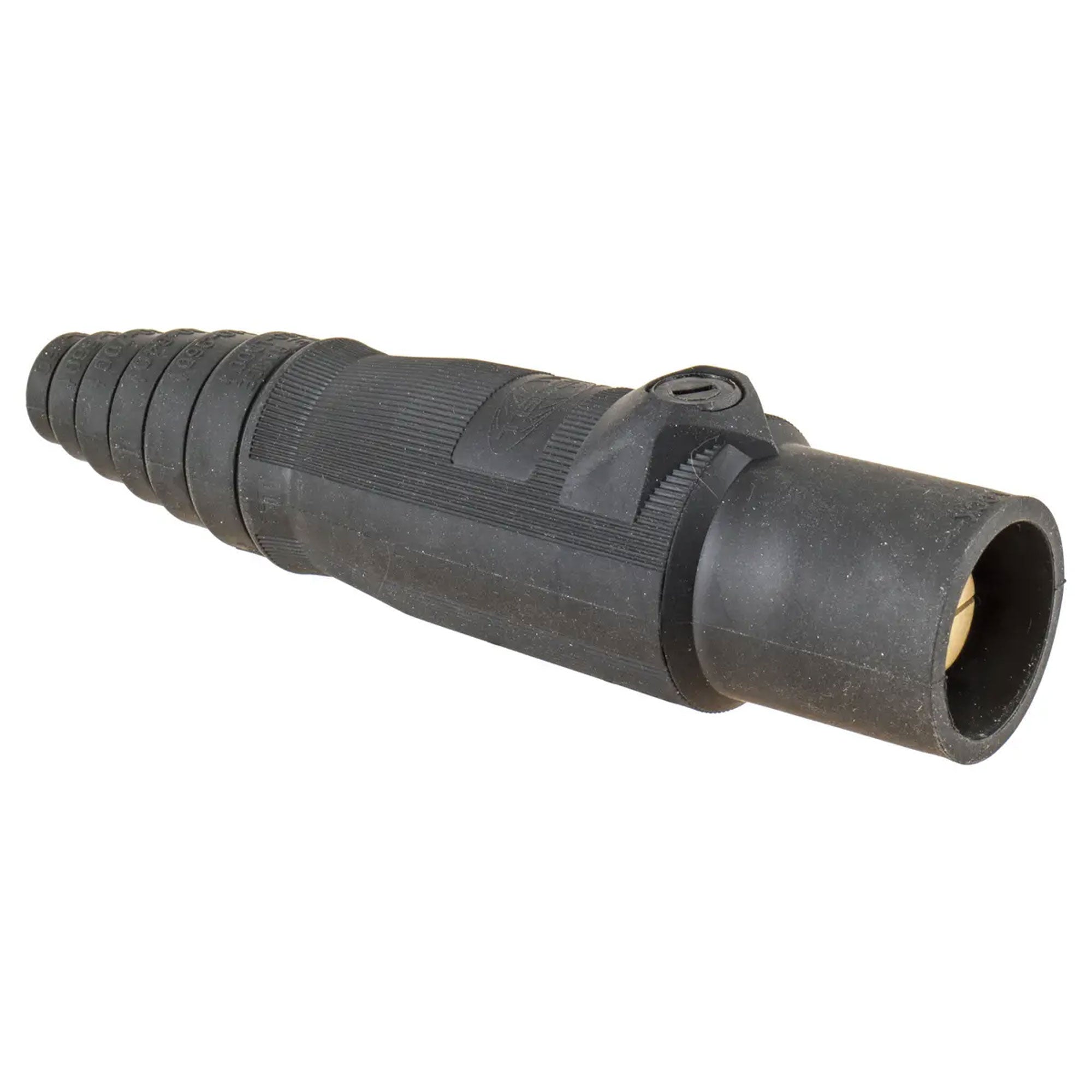

Whirlwind Hubbell HBL400MBK Single Pole Male Cam-Lock Connector (Black)

Cam-Lock Series 16 Single Pole Products, Male Plug, 400 Amps, 600V AC/250V DC - Black

HBL400MBK SINGLE POLE CONNECTOR

Available in black (HBL400MBK), blue (HBL400MBL), green (HBL400MGN), red (HBL400MR) and white (HBL400MW)

Product family: Hubbell
Type: Inline

Features:

• Housing Design
• Insulgrip style housing for superior gripping conforms to the user's hand making it easy to connect and disconnect, even with gloves on
• Easily identifiable cable cut off points for secure fit allows you to easily customize and cut the housing to the required/correct cable size
• Accommodates wide range of cables
• Safety
• Rounded corners reduce the possibility of catching or snagging on structures or equipment
• Non-conductive retaining screw locks contacts in place and allows for easy installation; prevents contact movement within housing
• Recessed mounting screw minimizes screwdriver slippage
• Identification
• Lock symbol aids in the mating of devices and provides a clear indication that the devices are properly connected
• With lock indicator symbol making mating clear and simple; devices can lock 180° to prevent unintended disconnects
• Contacts
• Provides high contact pressure and vibration resistant connection, which helps reduce operating temperatures and extends product life
• High conductivity brass contact provides improved performance by helping to reduce operating temperatures and extends life
• Assembly
• Special screw thread requires fewer turns than most competitors and reduces the risk of a conductive screw being substituted
• Extra long non-conductive inner sleeve reduces force required to install housing over contacts; easier to rotate contact in body for installing retaining screw
• Installation
• Engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved
• Strip gauge molded into every plug and receptacle housing; simplifies installation and saves time

Specifications:

• General
• Color: Black
• Performance:
  Electrical - Amperage Rating - 400A Maximum
  Electrical - Voltage Ratings - 600V AC Maximum
  250V DC Maximum
  Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17
  Mechanical - Product Identification - Ratings are a permanent part of device
  Mechanical - Terminal Accommodation - 2/0 to 4/0 AWG
• Series: Series 16
• Style: Male
• Type: Plugs
• UPC: 783585112268
• Electrical Ratings
• Amperage Rating: 400 A
• Current / Amperage Rating: 400 A
• Voltage Rating Description: 600V AC/DC
• Certifications and Compliance
• Industry Standard(s):
  National Electric Code (NEC), ANSI/NFPA 70
  UL and cUL Listed
  UL Enclosure Types 3R, 4X, 12
• Logistics
• Carton Quantity: 10
