Key Features
- 1/4" In/Out Jacks
- Battery or Phantom Powered
- Ground Lift Switch
- 20 dB Pad
- LED Power Indicator
Description

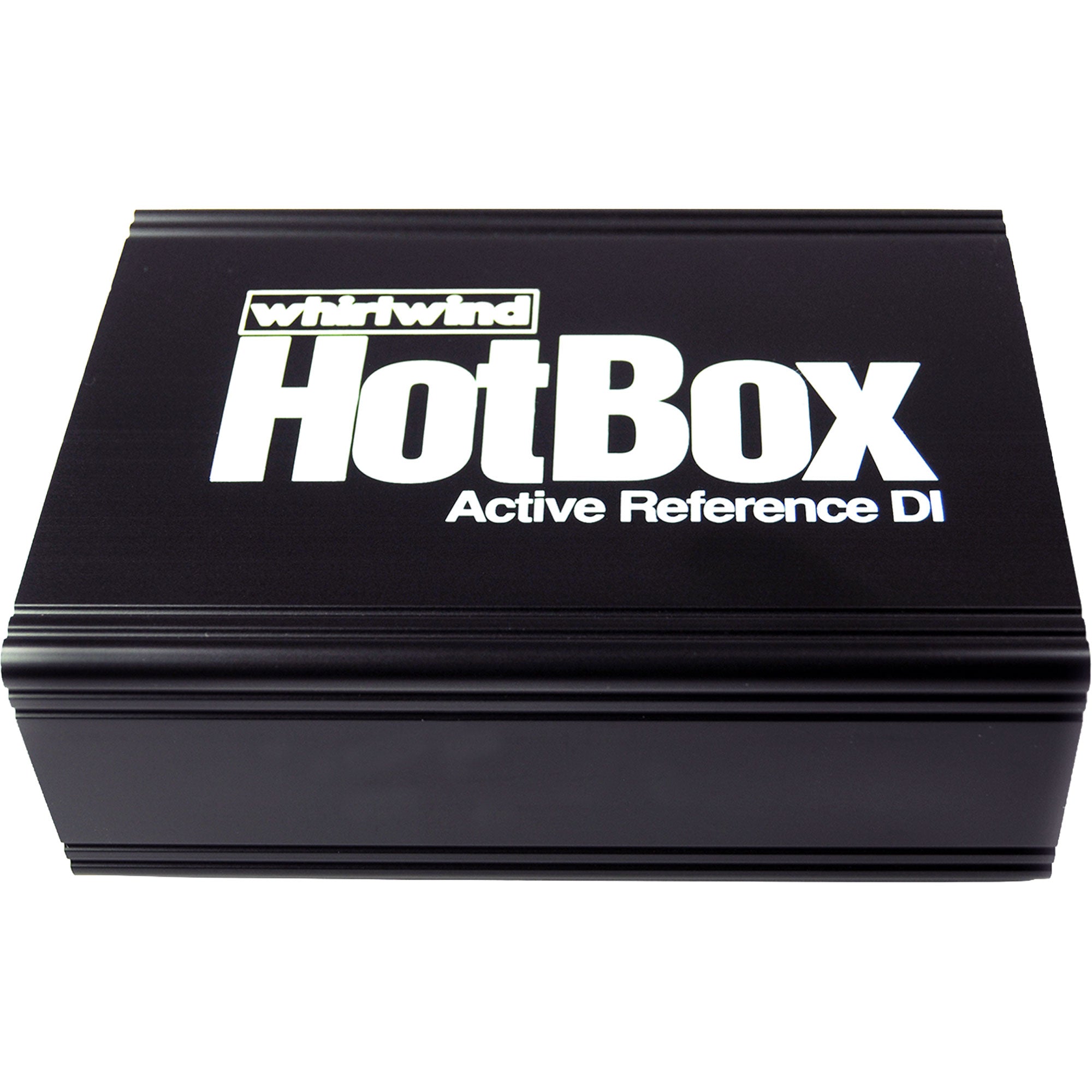

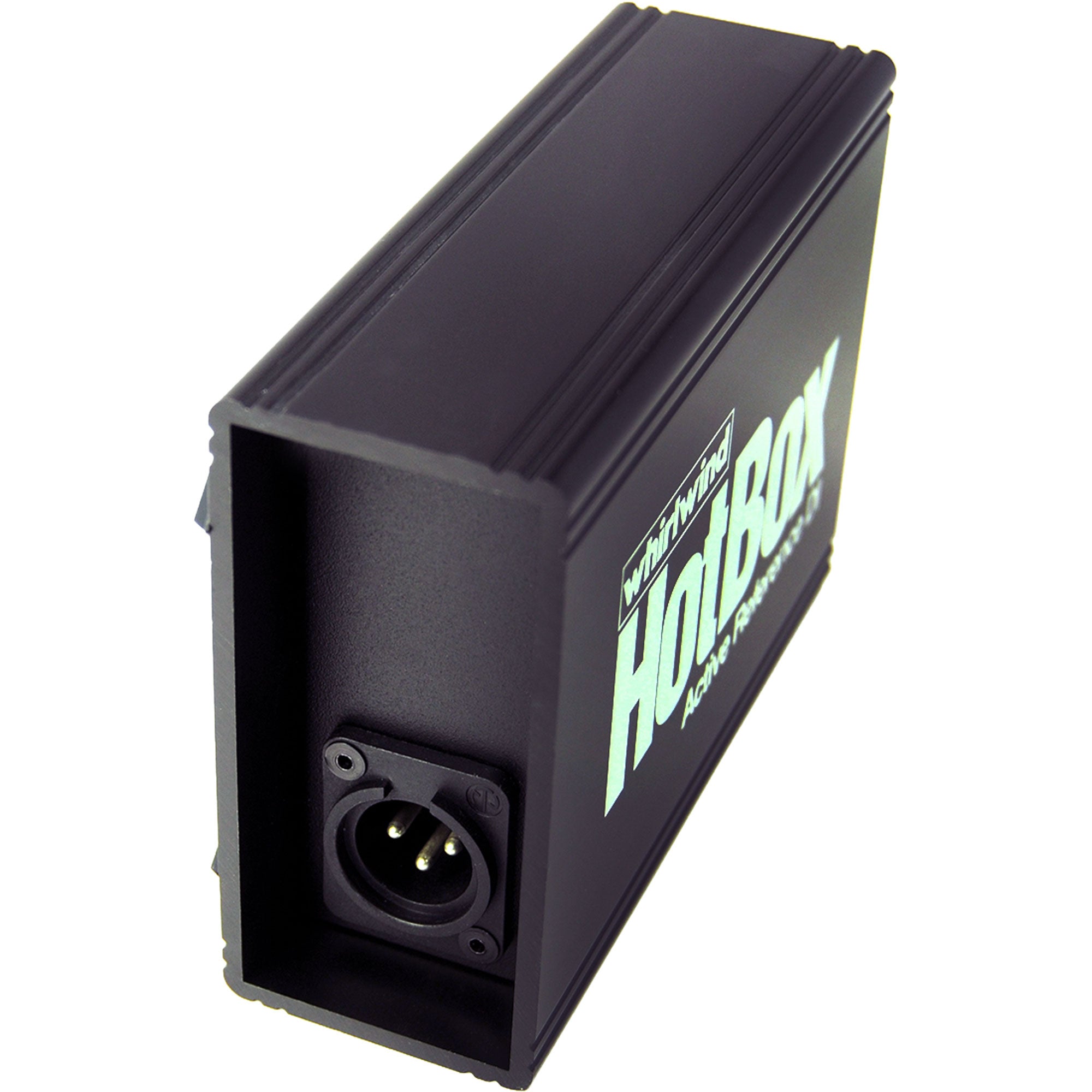

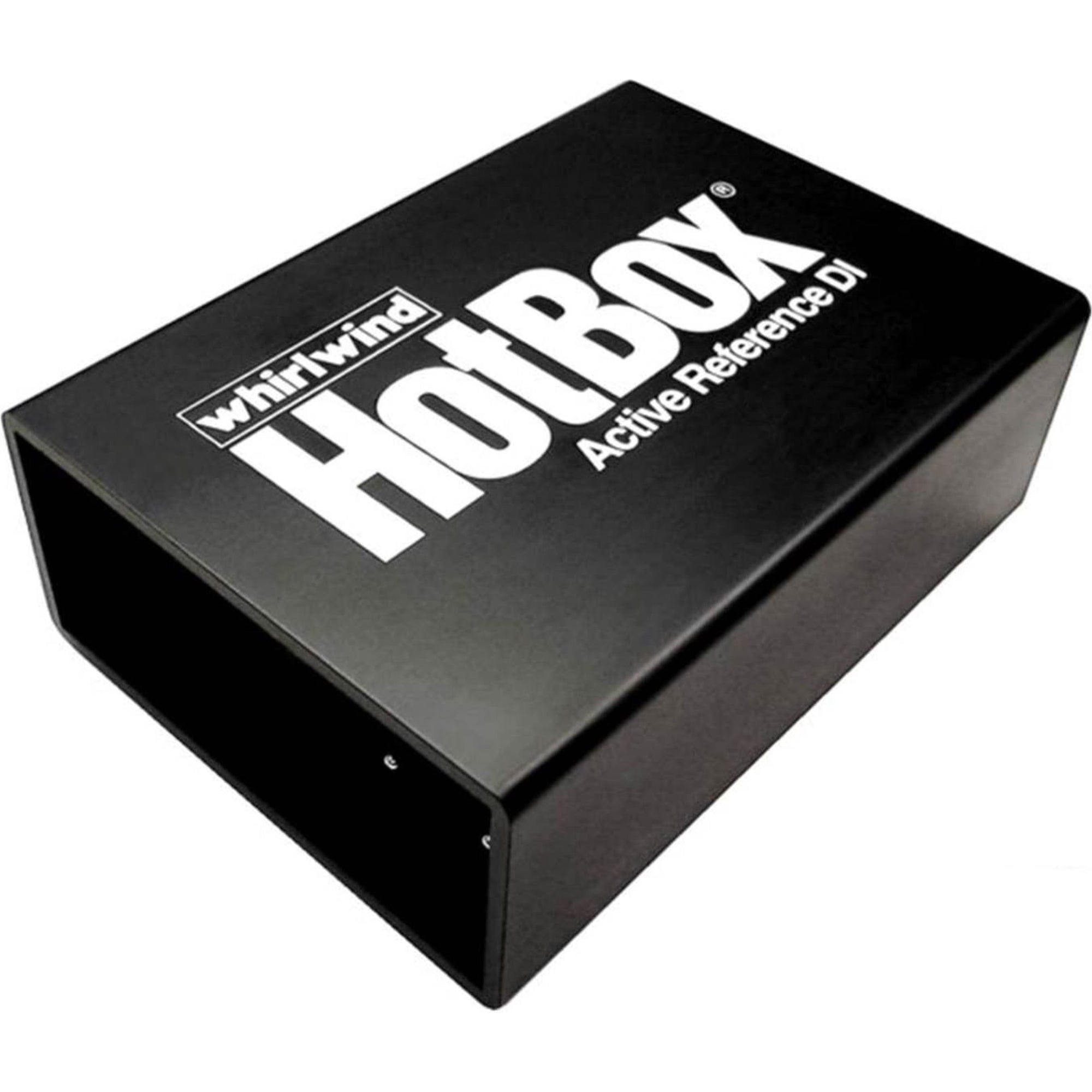

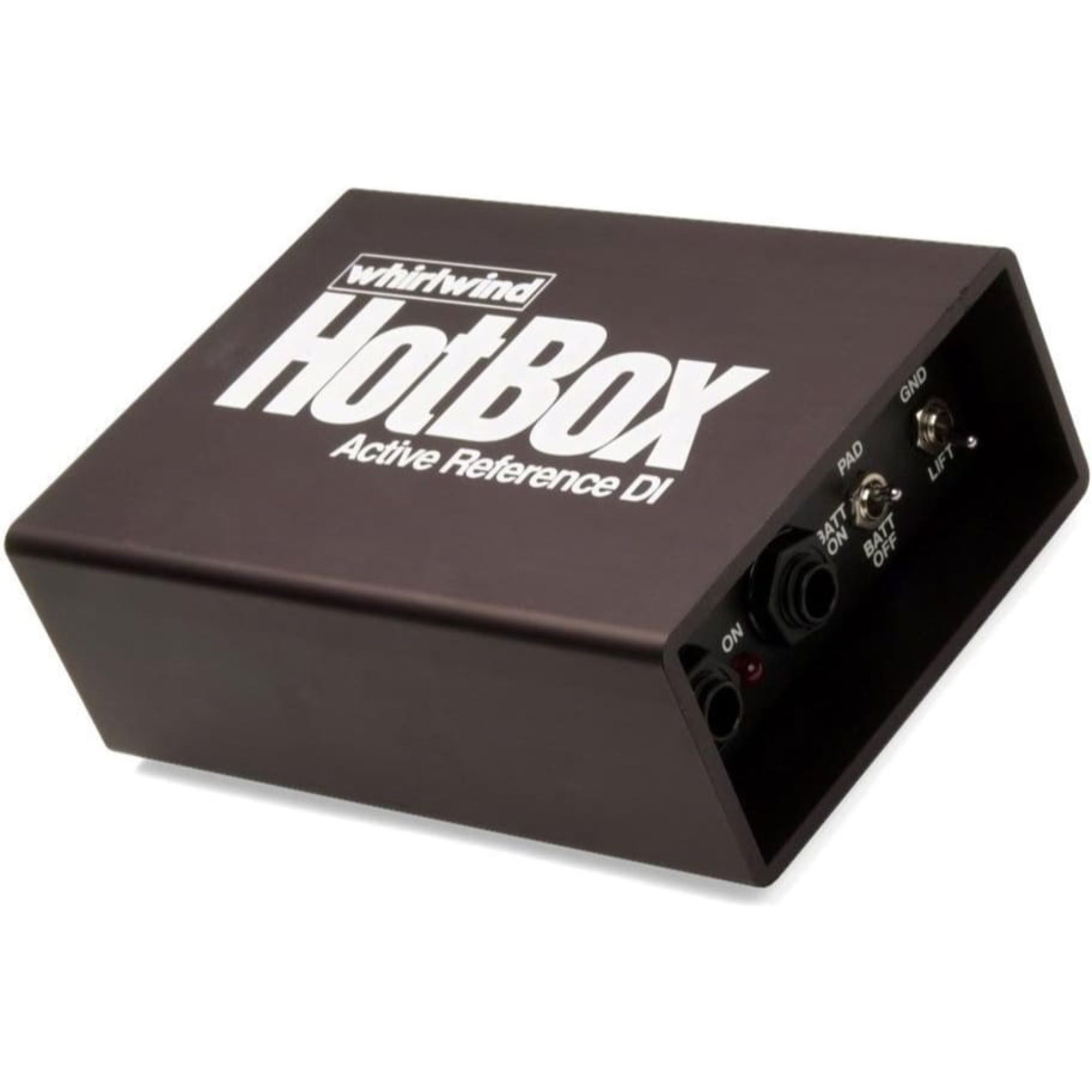

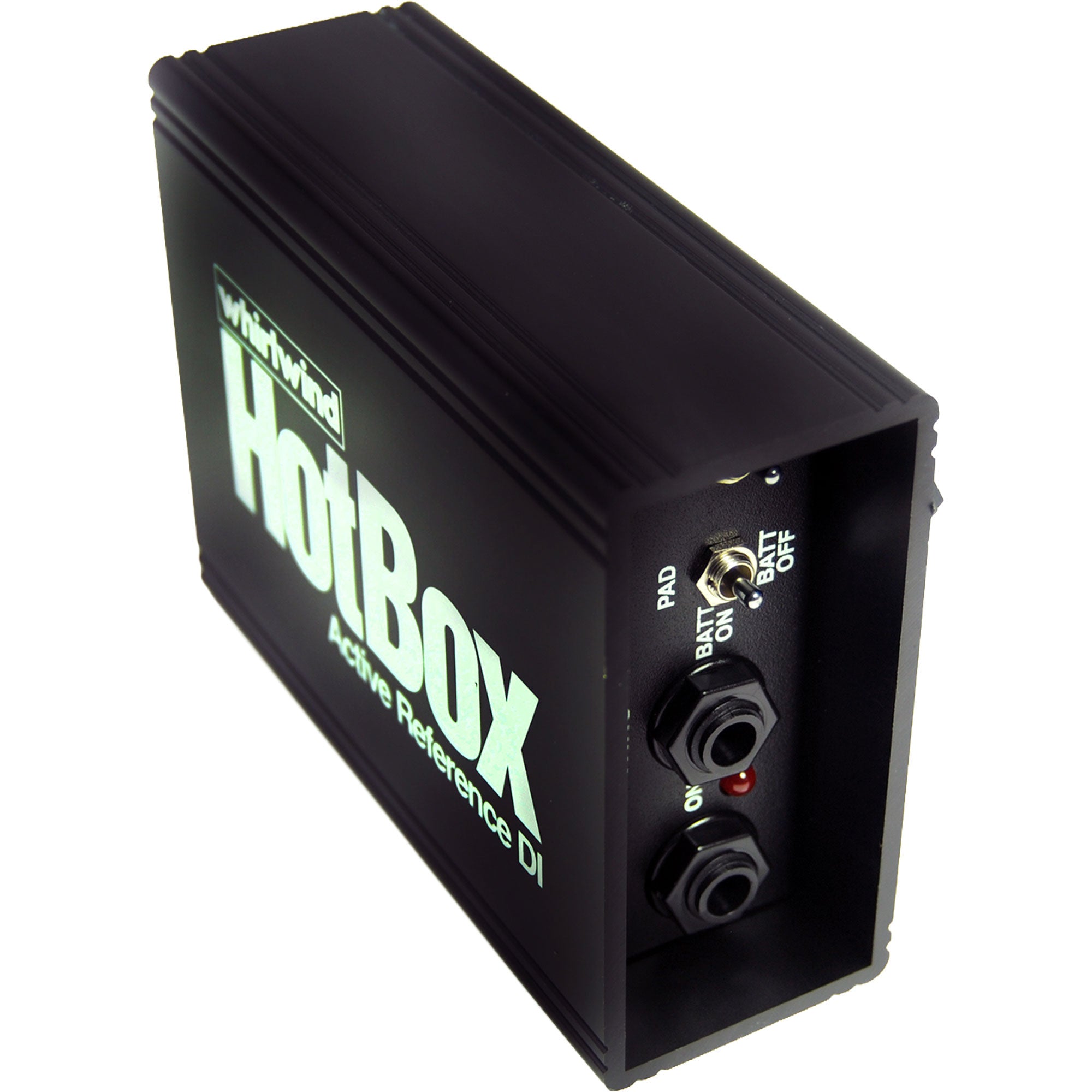

Active Direct Box - Battery or Phantom Powered
Our top-of-the-line DI is an active direct box that operates with batteries or phantom power.
Its super-clean front-end circuitry delivers extremely wide and flat frequency response and will reveal hidden harmonics from guitars and basses with high-output passive pickups.
Features:
- 1/4" parallel wired in/out jacks
- Ground Lift switch to help eliminate hum and buzz
- Input switch selects between OFF, ON or ON with 20 dB PAD engaged for connecting to strong line or speaker level signals.
- LED indicates "ON" status
Specifications:
- Input Impedance: 1 Meg Ohms
- Frequency Response: 20Hz-150kHz +/-3dB
- Residual Output Noise: -115dB
- Maximum Input Level: +15dBm - battery, +20dBm - 48V phantom. Add 20dBm with pad engaged
- Power Requirements: (2) 9V batteries or 48V phantom
- Battery Life: approximately 300 hours
- Current Draw: approximately 4.0mA DC
