Key Features
- Computer Applications
- Low-Capacitance Data
- 2 Pair 24 AWG
- CM Rated
- Belden 9842 Equivalent
- Full 1000' Spool
Description

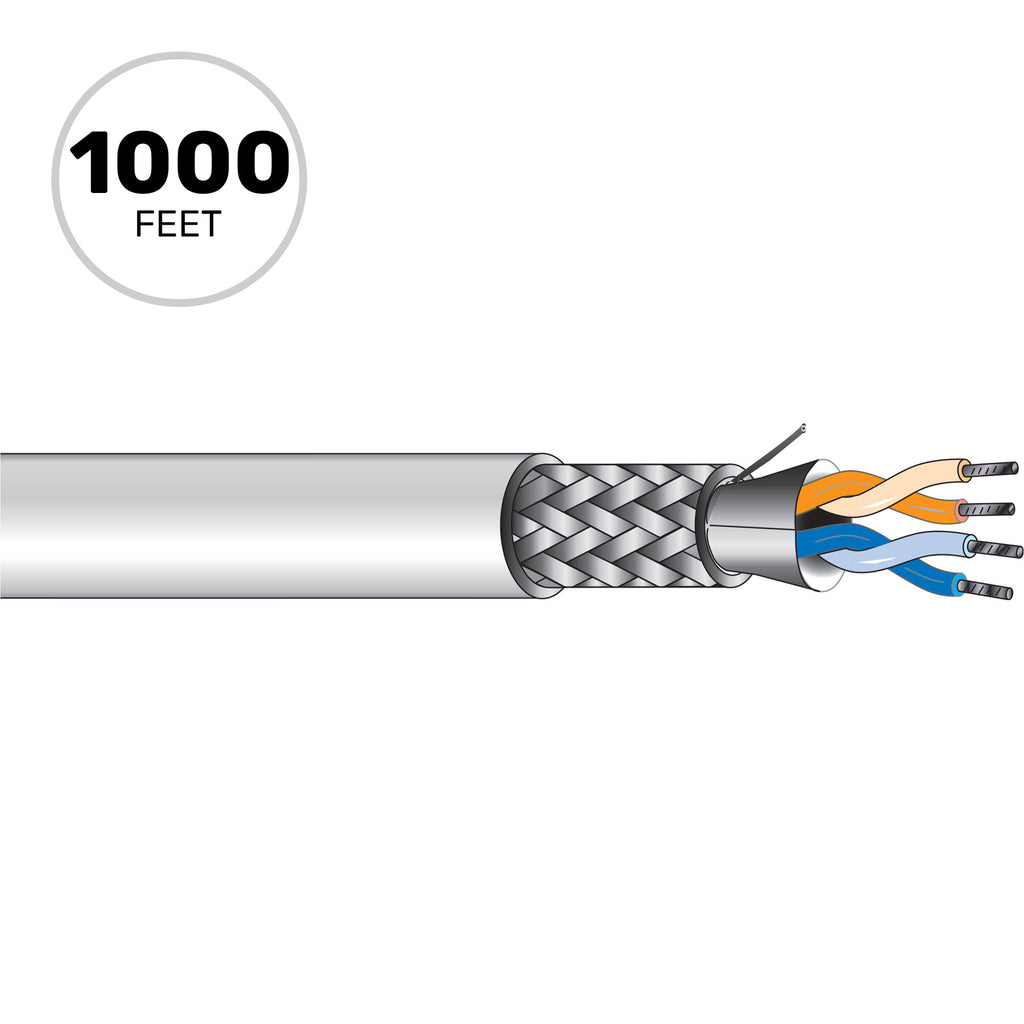

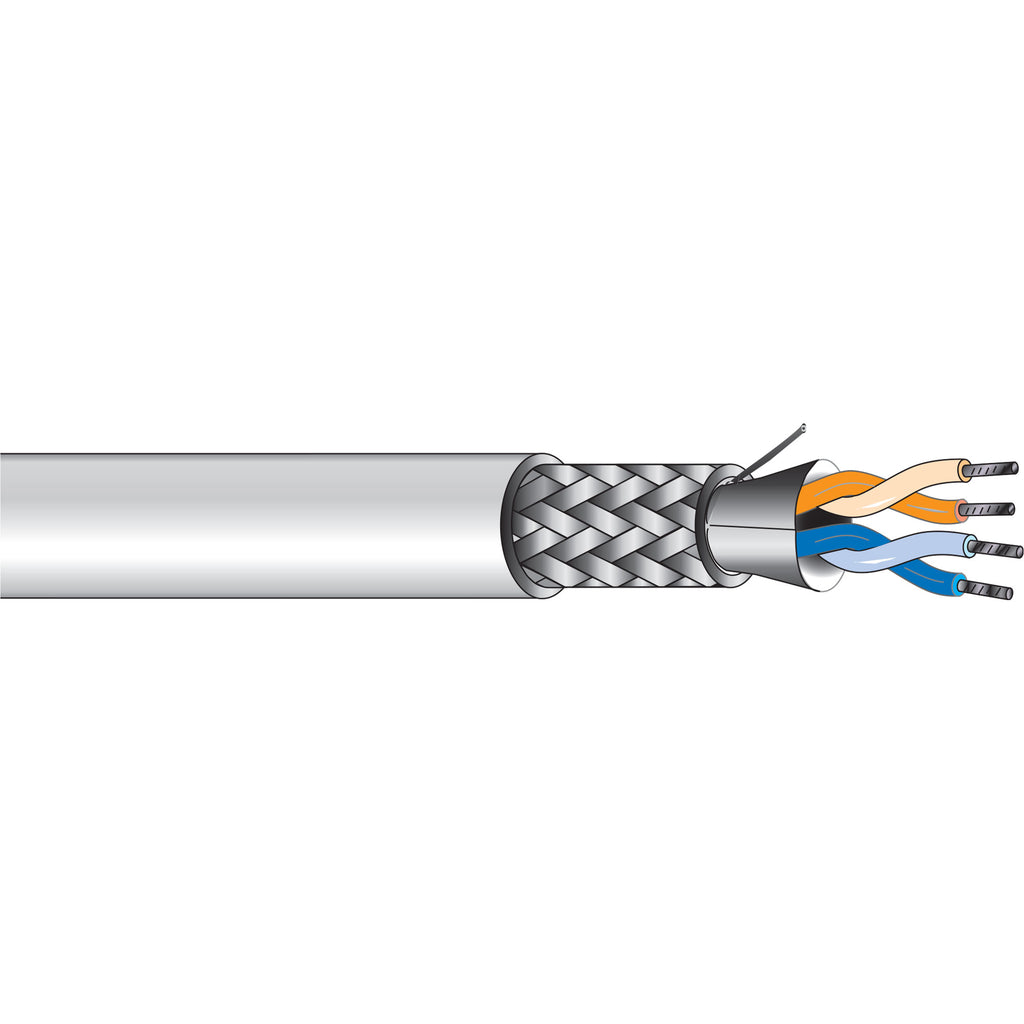

2 Pair 24 AWG Stranded Serial Data and Control Low Capacitance Cable - Grey - Full 1000' Spool
2 pair 24 AWG Stranded tinned copper conductors, shielded with an overall jacket. Ideal for indoor computer applications and low-capacitance data applications.
West Penn D4852 is a low capacitance serial cable used in EIA RS-485 applications. This cable has a nominal impedence of 120 Ohm and comes with 2 pairs of 24 AWG stranded tinned copper conductors. The conductors are insulated with polyethlyene PVC. This cable is protected from RFI and EMI interference by a 100% Aluminum foil-Polyester tape Beldfoil® shield, plus a 90% tinned copper braid. The jacket is CM rated PVC.
Specifications:
- CONSTRUCTION & DIMENSIONS
- CONDUCTOR PARAMETER
- Number of Pairs: 2
- AWG Size: 24
- Conductor Stranding: 7x32
- Conductor Type: Tinned Copper
- Nominal DCR: 26 Ohm/1000ft
- INSULATION PARAMETER
- Insulation Type: Polyethylene - PE
- Insulation Thickness: 0.022 in
- Insulation Color Code: 1. Blue-White, Blue 2. Orange, White/Orange
- SHIELDING PARAMETER
- Shield Type: Overall 100% Aluminum Foil
- Shield Type 2: 90% Tinned Braid
- Drain Wire Type: Tinned Copper
- Drain Wire AWG: 24 AWG
- ELECTRICAL CHARACTERISTICS
- Nominal Impedance: 120 Ohm
- Nom. Cap. Between Conductors: 12.8 pF/ft
- Nom. Cap. Conductor to Shield: 23 pF/ft
- OVERALL CONSTRUCTION PARAMETERS
- Total Number of Conductors: 4
- Jacket Type: PVC
- Jacket Thickness: 0.034 in
- Nominal Cable O.D.: 0.340 in
- Plenum: No
- NEC UL Rating: CM
- RoHS Compliant: Yes
- Pull Tension: 72 lbs
- Bend Radius: 3.00 in
- Cable Weight: 45 lbs
- Belden: 9842
