Key Features
- Amphenol RF 112533
- Crimp/Solder Style
- 50 Ohm Resistance
- For RG-8X Coax Wire

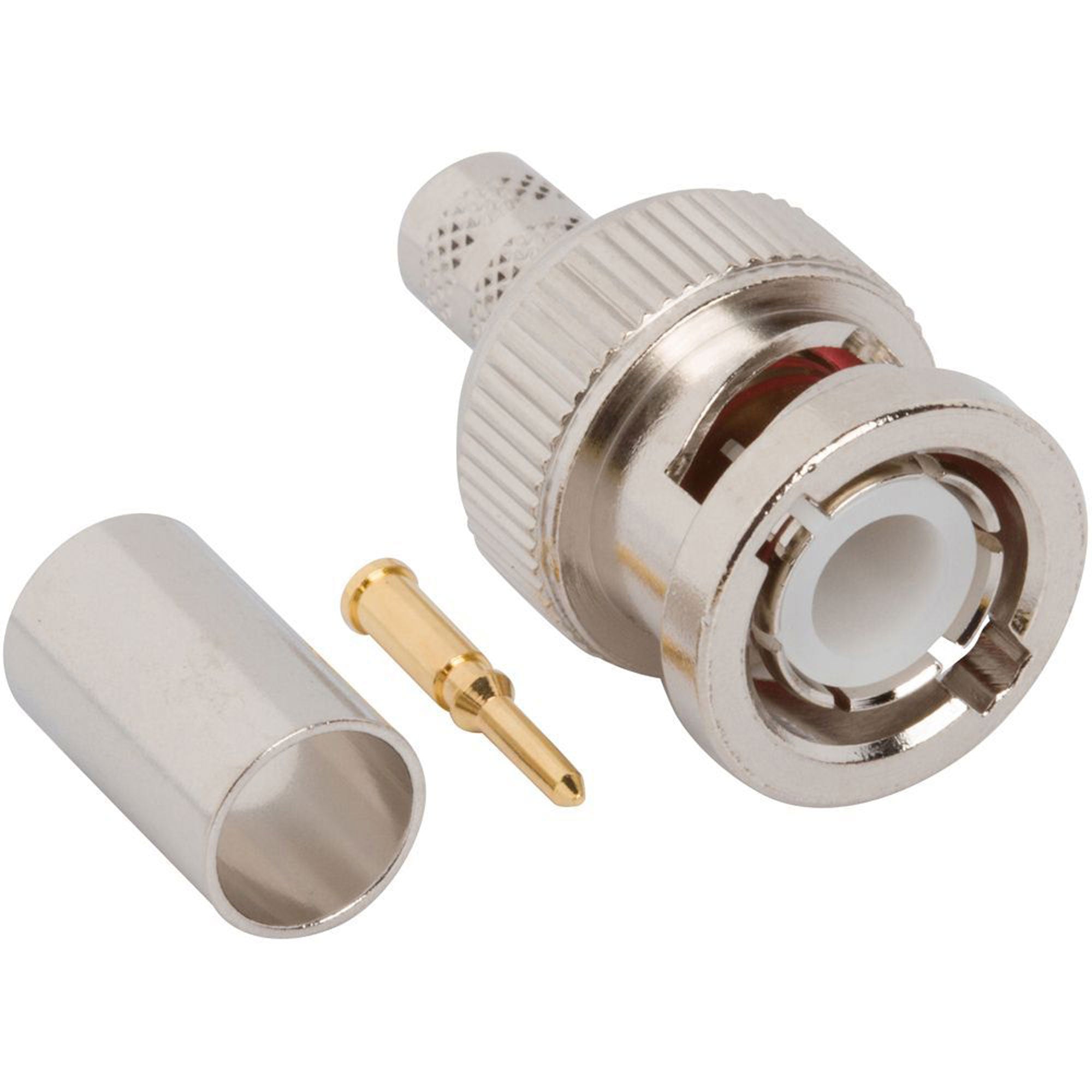

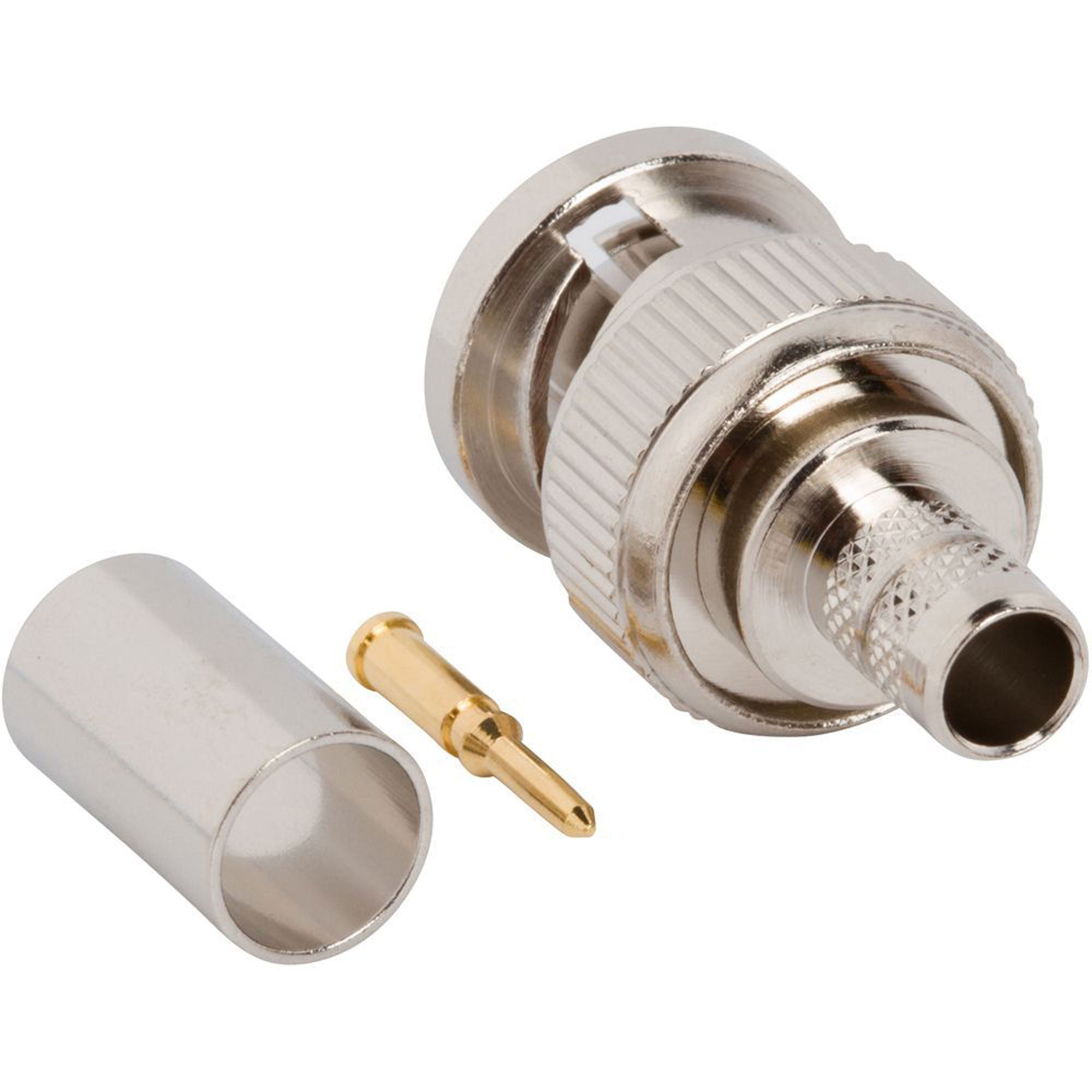

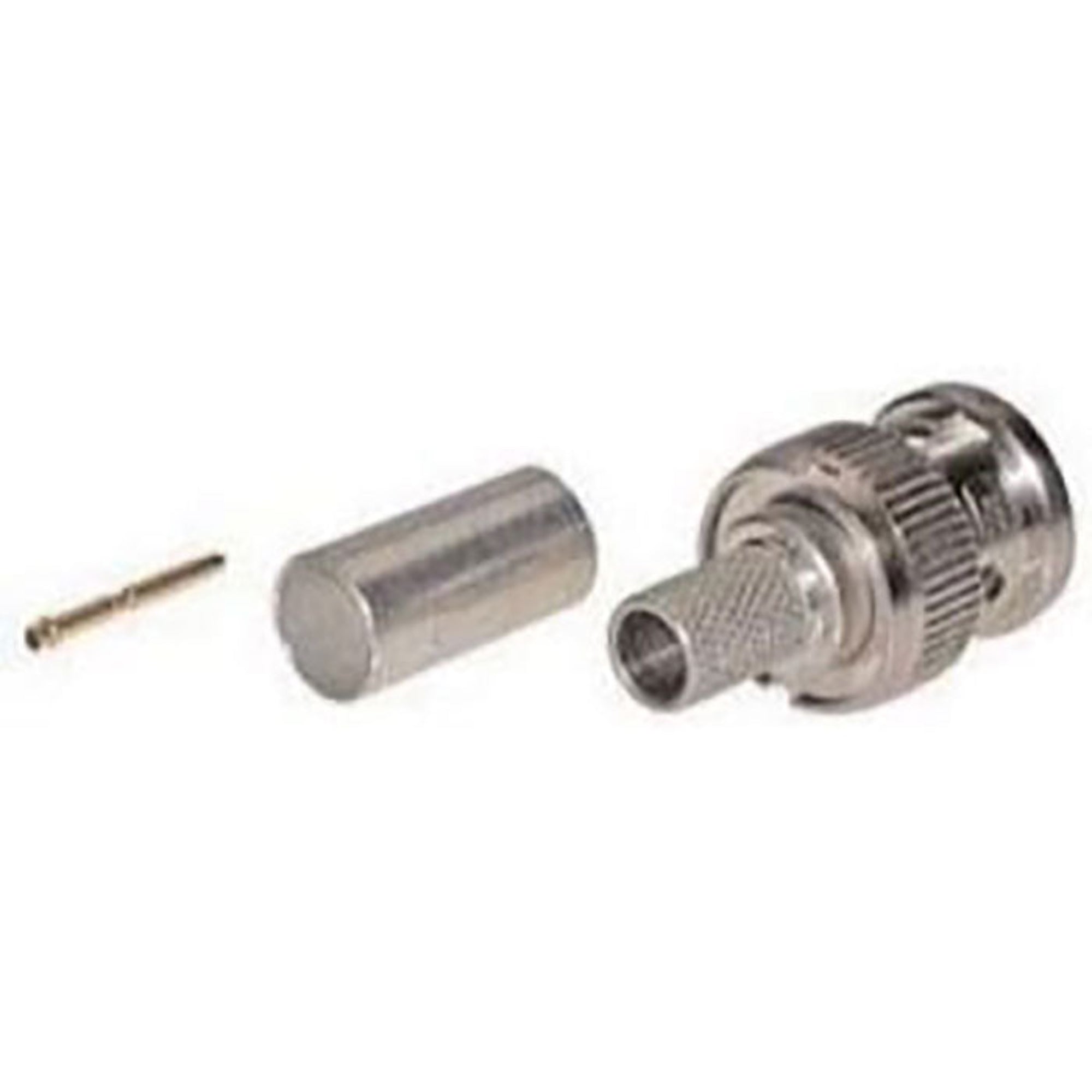

- 3-Piece Connector
Description

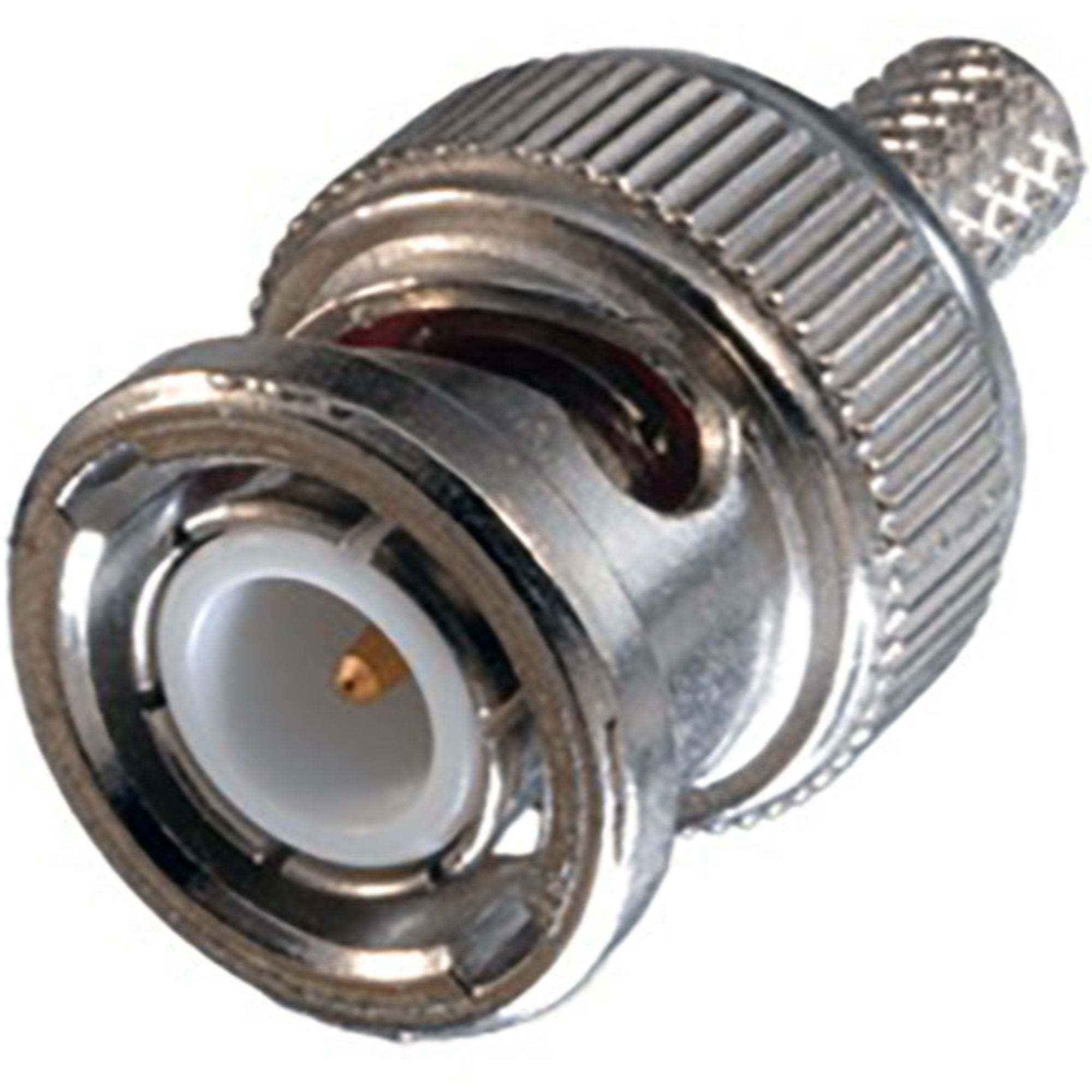

The CN-BM53-8X from West Penn is a 50 ohm RG8X BNC Crimp/Solder Style 3 piece connector.
Amphenol RF 112533 - BNC Straight Crimp Plug RG-8X Times LMR-240 50 Ohm
RF Connector BNC Straight Crimp Plug RG-8X Times LMR-240 50 Ohm
Specifications:
- Alias: B1121AA-ND3G-8X-50
- Body Finish: Nickel
- Body Material: Brass
- Cable Type (Terminates to): RG-8X, Times LMR-240, Times LMR-240 UltraFlex, Belden 9258
- Contact Finish: Gold
- Contact Material: Brass
- Contact Termination: Crimp
- Coupling Mechanism: Bayonet
- Crimp Tool: 47-10070
- Export Control Classification Number: EAR99
- Frequency (Max GHz): 4
- Gender: Plug
- IP Rating: Not Rated
- Impedance (Ohms): 50
- Insulator Material: Delrin
- Isolated: No
- Low PIM: No
- Mil Qualified: No
- Non Magnetic: No
- Orientation: Straight
- Panel Mounting Feature: Not Applicable
- Ports: 1 (Single Port)
- Size Category: Miniature
- Temp (Max Degrees Celsius): 85
- Temp (Min Degrees Celsius): -40
- Termination Style: Cable - Crimp
Details
- Manufacturer: West Penn
- MPN: CN-BM53-8X
- Model Number: CN-BM53-8X
- UPC: 612825010180
