Key Features
- For Large Venue Speaker Distribution
- 10 AWG Stranded Bare Copper Conductor
- Direct Burial
- Sunlight Resistant
- UL Listed
- Full 1000' Spool
Description

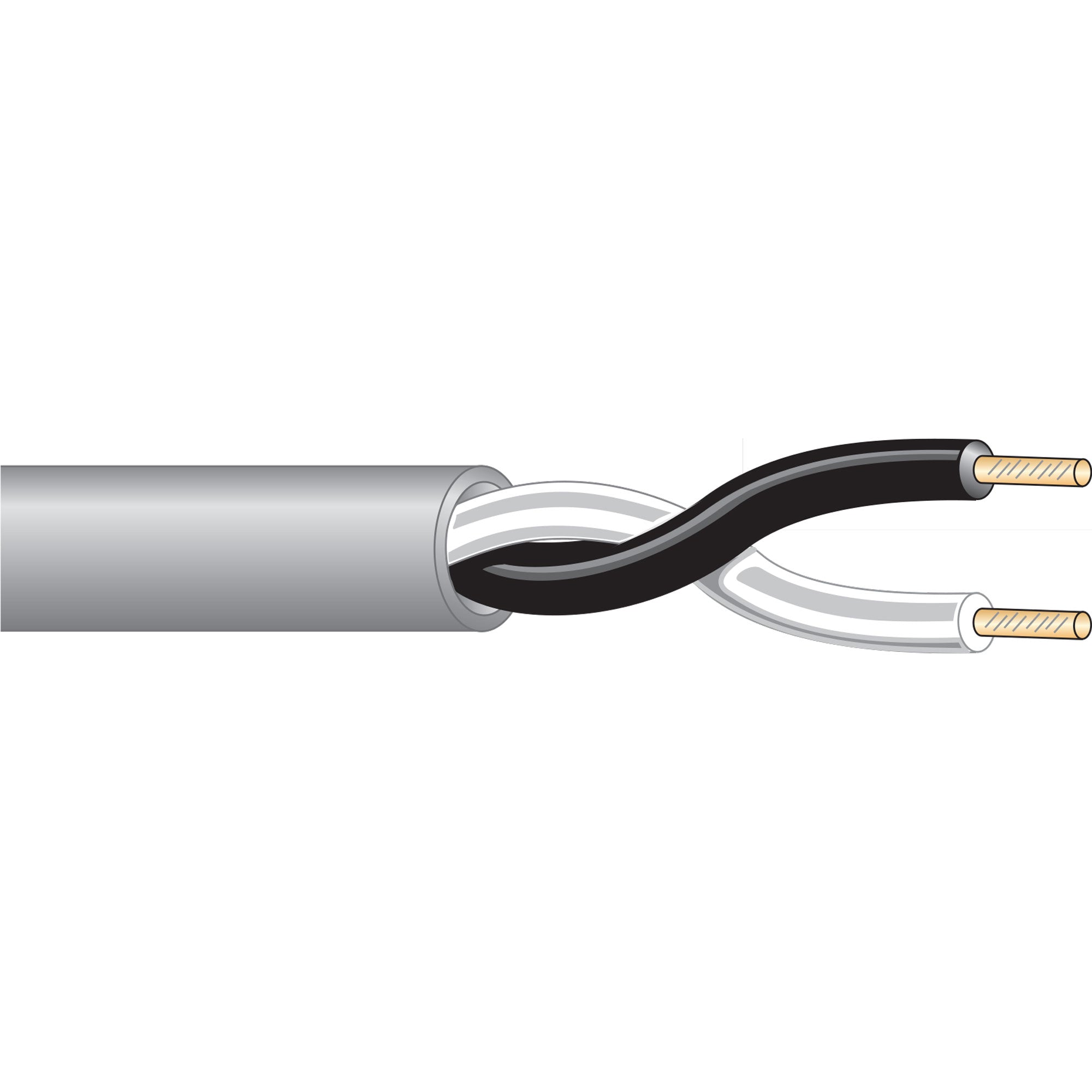

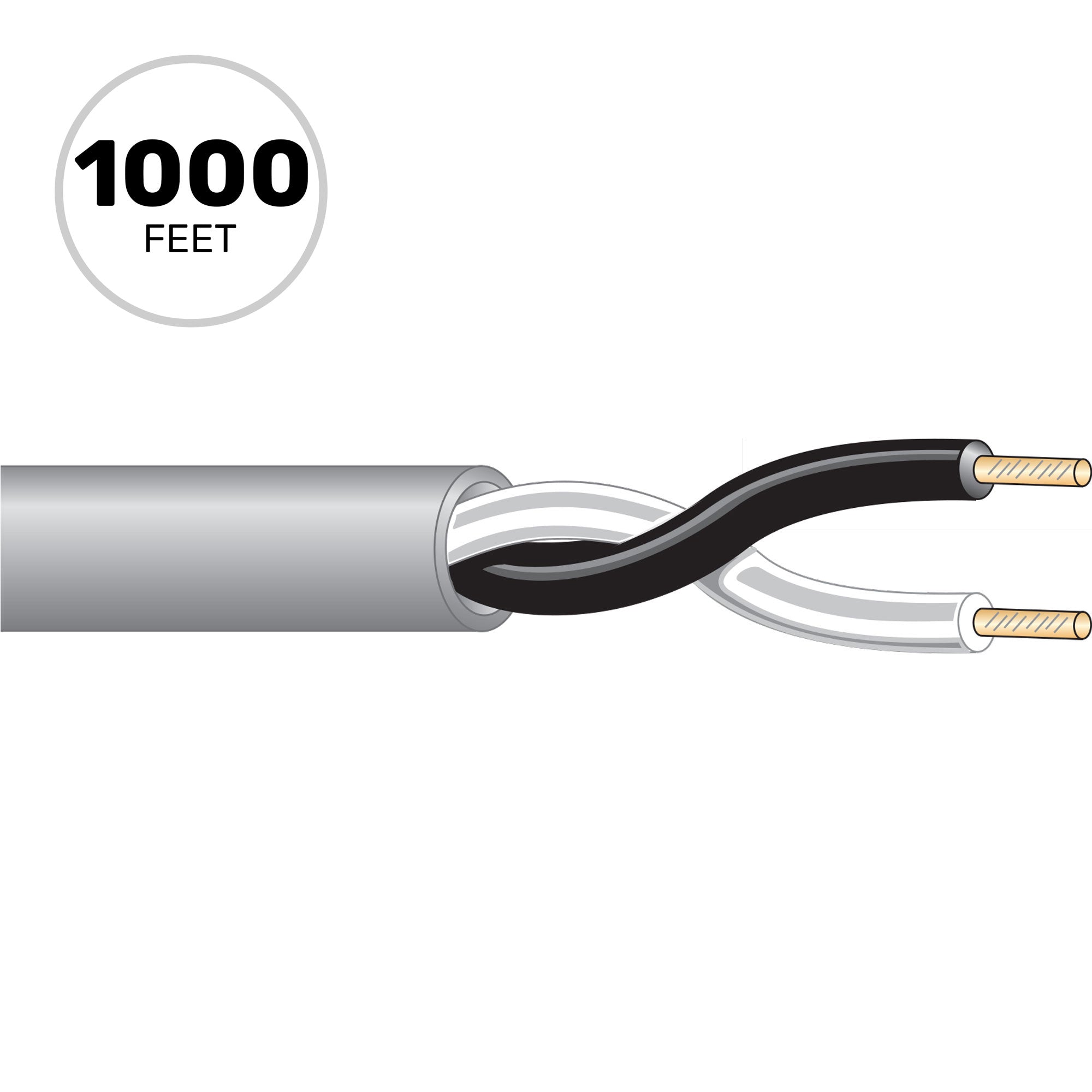

2 Conductor 10 AWG (65x28) Unshielded Outdoor TC Large Venue Speaker Distribution Cable - Grey - Full 1000' Spool
Cluster speaker cable for direct burial and outdoor use, 1000 ft. 10/2 stranded bare copper conductors, unshielded.
Specifications:
- CONSTRUCTION & DIMENSIONS
- CONDUCTOR PARAMETER
- Number of Conductors: 2
- AWG Size: 10
- Conductor Stranding: 65x28
- Conductor Type: Bare copper
- Nominal DCR: 1.1 Ohm/1000ft
- INSULATION PARAMETER
- Insulation Type: PVC-Nylon
- Insulation Thickness: 0.025 in
- Insulation Color Code: 1. Black 2. White
- SHIELDING PARAMETER
- Shield Type: None
- ELECTRICAL CHARACTERISTICS
- OVERALL CONSTRUCTION PARAMETERS
- Jacket Type: PVC
- Jacket Thickness: 0.047 in
- Nominal Cable O.D.: 0.422 in
- Plenum: No
- NEC UL Rating: TC Direct Burial Sunlight Resistant
- RoHS Compliant: Yes
- Pull Tension: 235 lbs
- Bend Radius: 3.213 in
- Cable Weight: 80 lbs
