Key Features
- 14AWG Stranded
- 2 Conductors
- Overall Foil Shield
- Aquaseal Water Blocking Tape
- Overall PVC Jacket
- Indoor & Outdoor Use
- Full 1000' Spool
Description

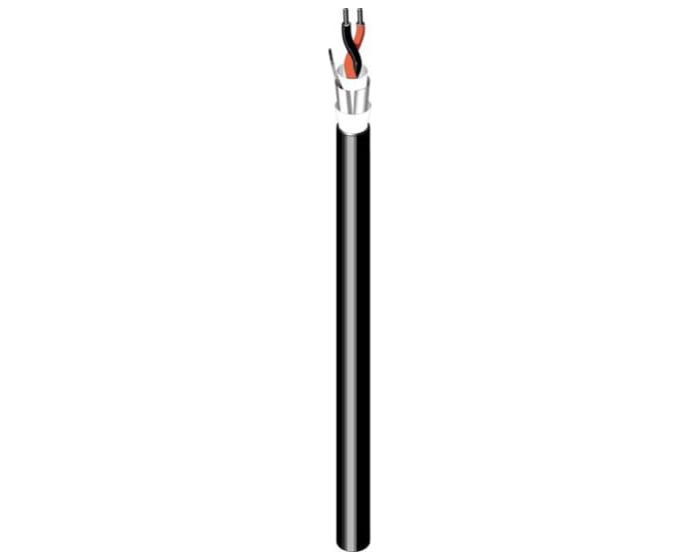

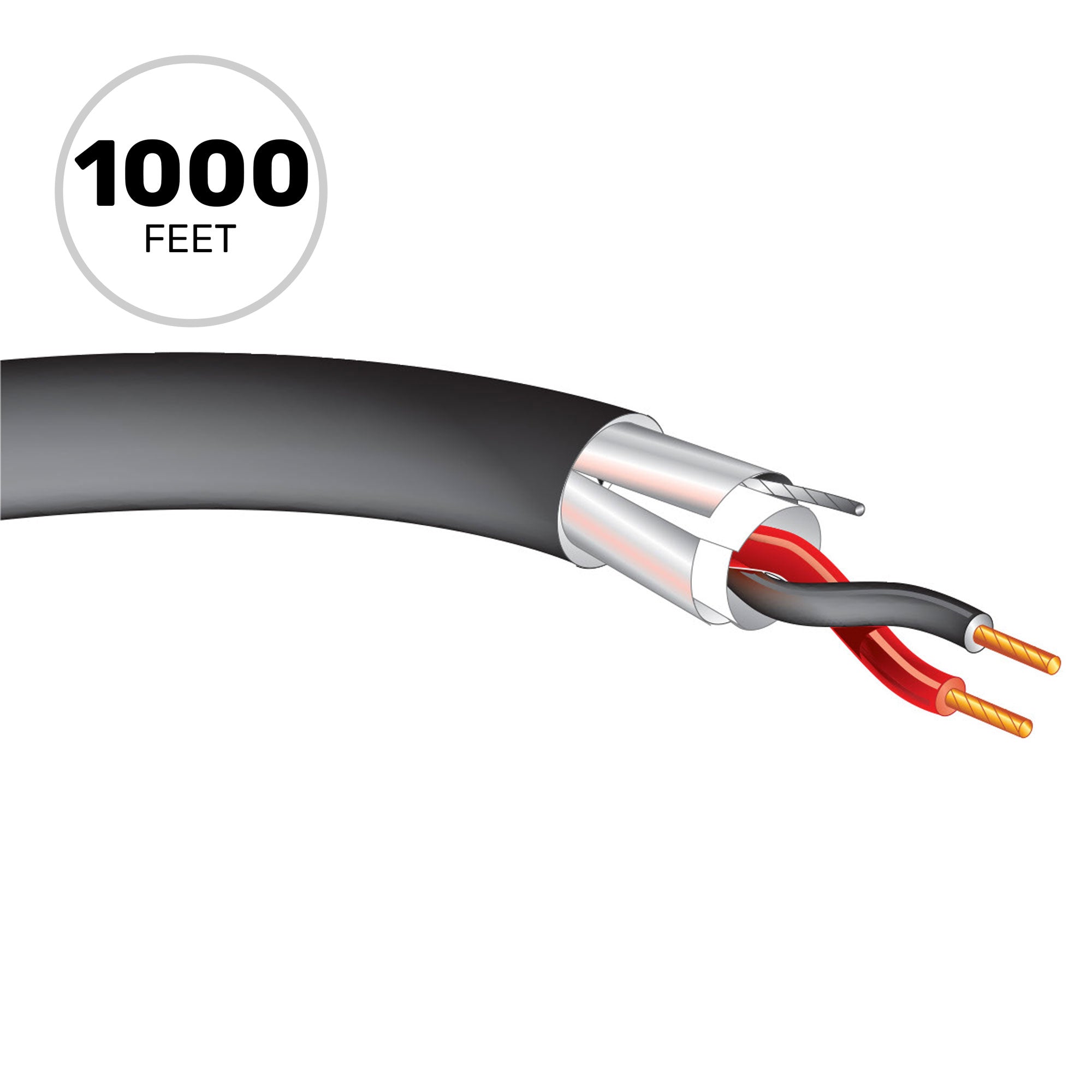

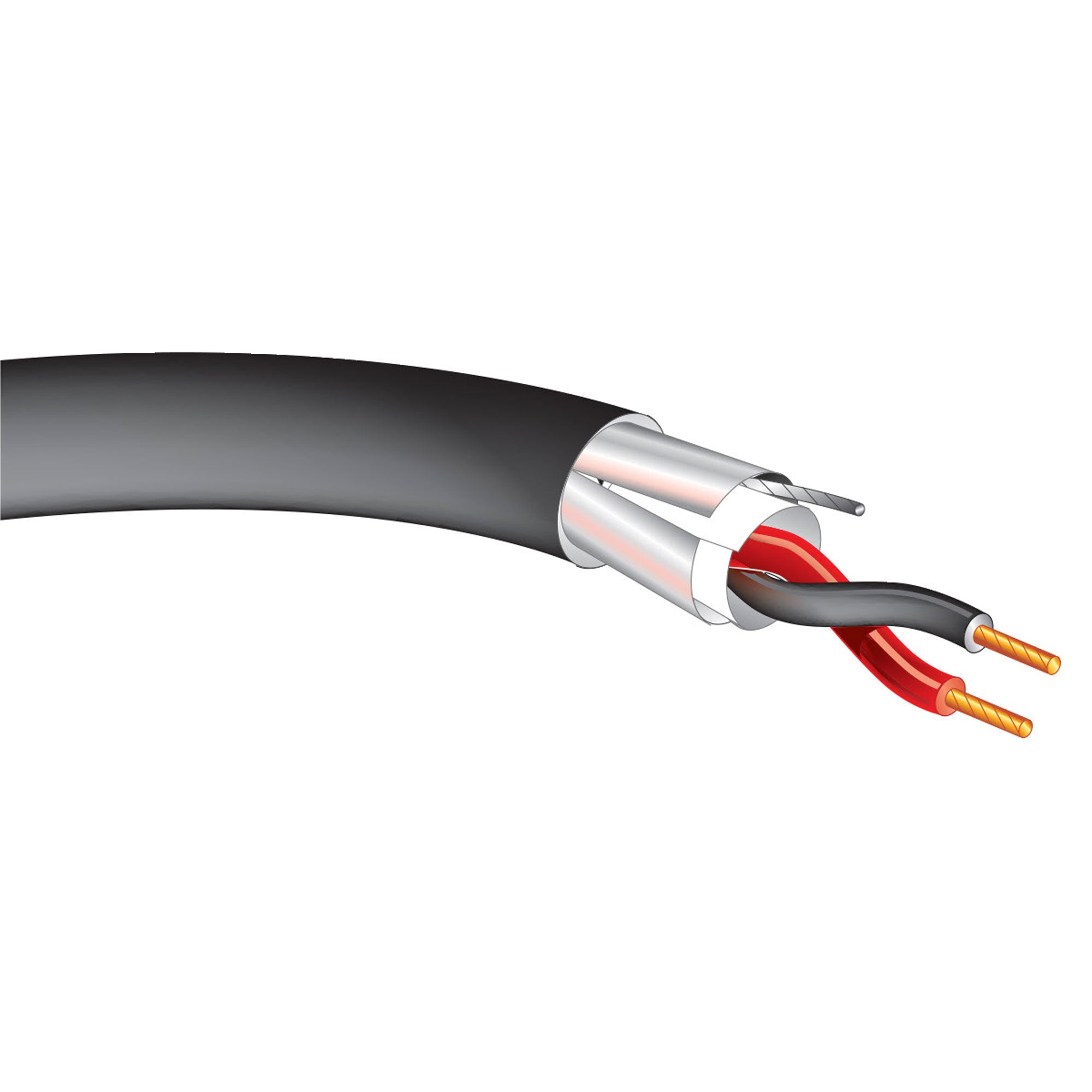

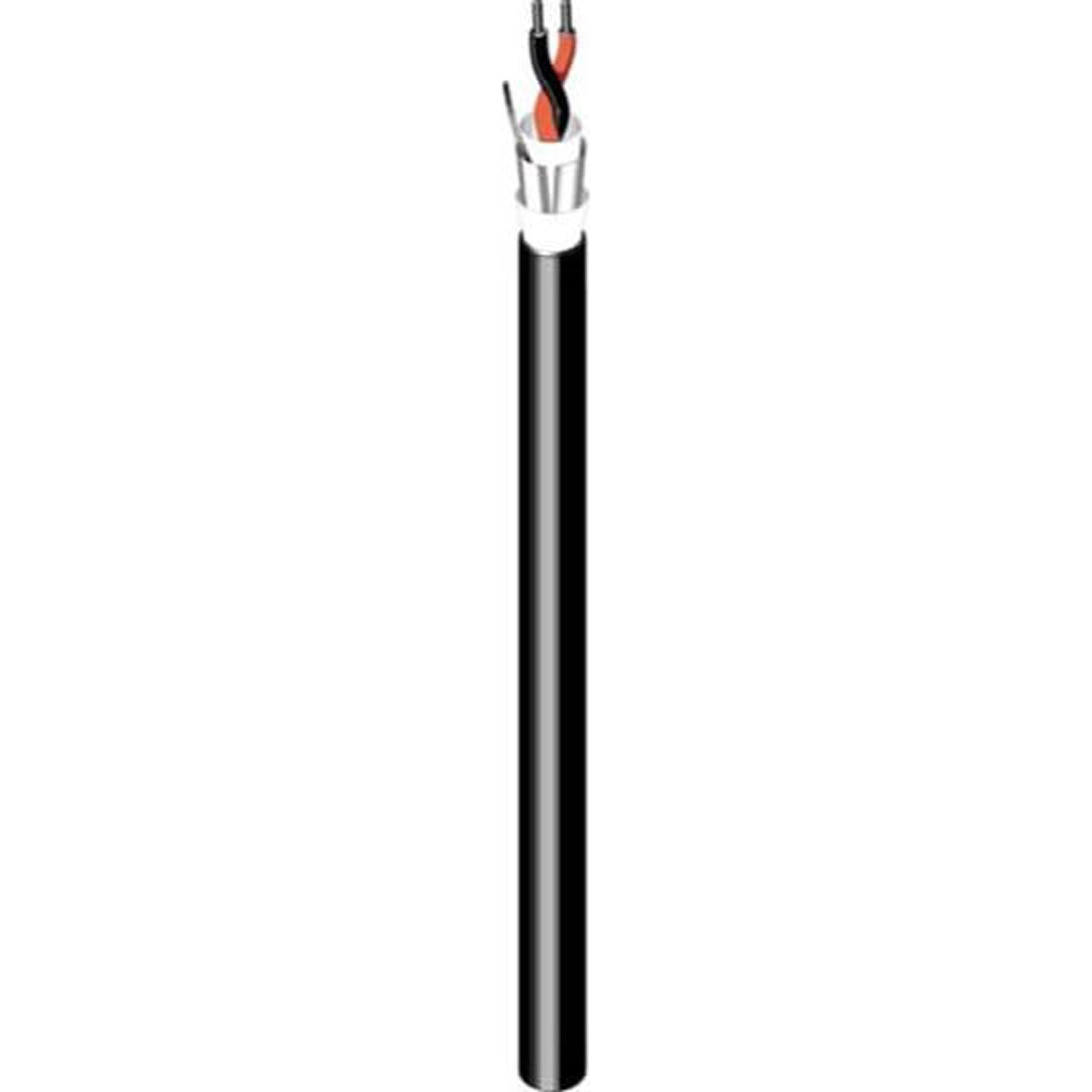

14/2 Shielded Indoor/Outdoor Direct Burial CL3/FPL Rated Audio, Control, Alarm Direct Burial Cable with Aquaseal Water Blocking Tape - Black - Full 1000' Spool
14/2 Stranded bare copper conductors, overall shield with Aquaseal tape and overall jacket.
APPLICATION: Materials suitable for outdoor use (direct burial), and indoor trays, allows a variety of uses for (Low voltage industrial process control circuits, Power-Limited circuits, Power-Limited fire alarm circuits, Power-Limited tray cable PLTC).
Specifications:
- OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
- UL Flammability: UL1685
- Operating Range: -20 to 90 Deg C
- CONDUCTOR PARAMETER
- Number of Conductors: 2
- AWG Size: 14
- Conductor Stranding: 19x27
- Conductor Type: Bare copper
- Nominal DCR: 2.7 Ohm/1000ft
- INSULATION PARAMETER
- Insulation Type: PVC-Nylon
- Insulation Thickness: 0.02 in
- Insulation Color Code: 1. Black 2.Red
- SHIELDING PARAMETER
- Shield Type: Overall 100% Aluminum Foil
- Shield Type 2: Aquaseal Water Blocking Tape
- Drain Wire Type: Tinned Copper
- Drain Wire AWG: 24 AWG
- ELECTRICAL CHARACTERISTICS
- Nom. Cap. Between Conductors: 46 pF/ft
- Nom. Cap. Conductor to Shield: 83 pF/ft
- OVERALL CONSTRUCTION PARAMETERS
- Jacket Type: UV Resistant PVC
- Jacket Thickness: 0.04 in
- Nominal Cable O.D.: 0.35 in
- Plenum: No
- NEC UL Rating: CL3, FPL, PLTC
- RoHS Compliant: Yes
- TIA Test: TIA455-82 Water Penetration Test
- Pull Tension: 99 lbs
- Bend Radius: 3.15 in
- Cable Weight: 67 lbs
