Key Features
- 50 Ohm Nominal Impedance
- 10 AWG Solid Bare Copper Conductor
- 100% Aluminum Foil Shield
- 90% Tinned Braid Shield
- UL Listed
- Full 1000' Spool
Description

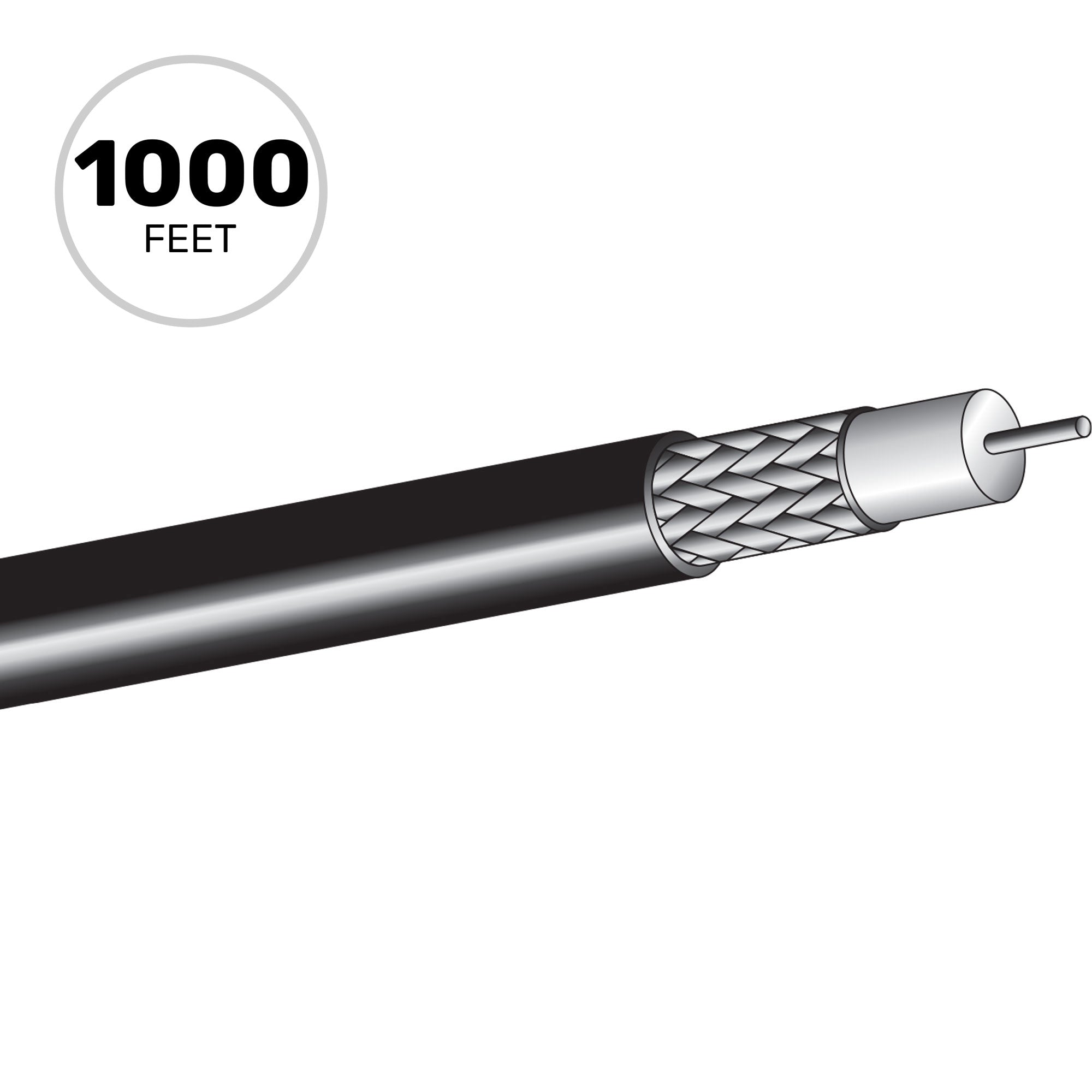

CM Rated RG-8/U Type 10 AWG 50 Ohm Solid Bare Copper Coaxial Cable - Black - Full 1000' Spool

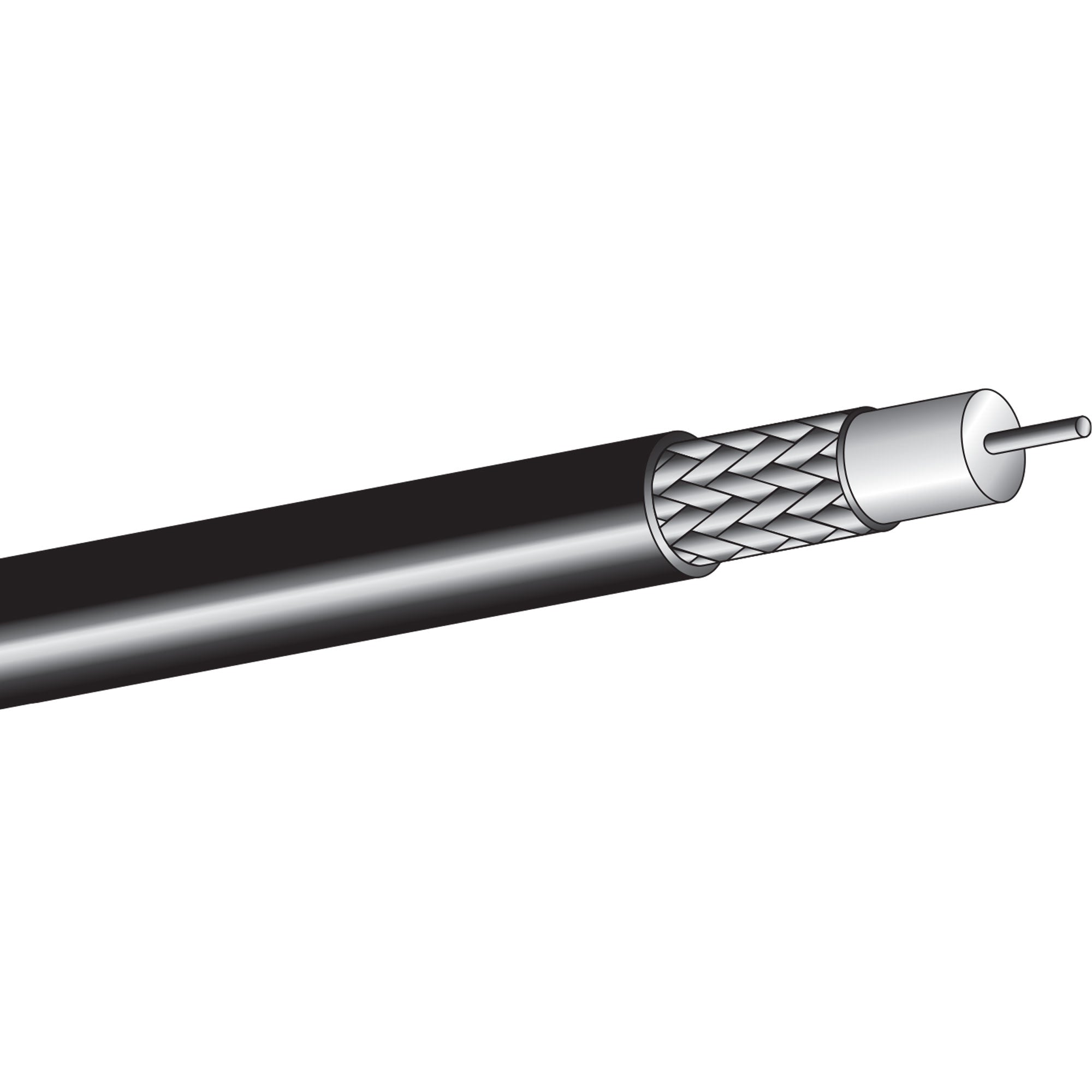

West Penn 98G8 is an UL listed RG8/U cable. It is a low loss, 50 ohm coaxial cable used for wireless, antenna, and RF applications It features a semi-solid foam polyethylene insulation around an 10 AWG, solid bare copper conductor with a PVC jacket. Internally this cable is protected from RFI and EMI interference by a 100% Aluminum Foil shield, plus a 90% tinned copper braid shield.
Specifications:
- CONDUCTOR PARAMETERS
- Number Of Conductors: 1
- AWG Size: 10
- Conductor Stranding: Solid
- Conductor Type: Bare copper
- Nominal DCR: 0.9 Ohm/1000ft
- INSULATION PARAMETERS
- Insulation Type: Foam Polyethylene
- Insulation Thickness: 0.286 in
- SHIELDING PARAMETERS
- Shield Type: Overall 100% Aluminum Foil
- Shield Type 2: 90% Tinned Braid
- ELECTRICAL CHARACTERISTICS
- Nominal Impedance: 50 Ohm
- Nominal Capacitance Between Conductors: 25 pF/ft
- OVERALL CONSTRUCTION PARAMETERS
- Jacket Type: PVC
- Nominal Cable O.D.: 0.405 in
- Plenum: No
- NEC UL Rating: CM
- RoHS Compliant: Yes
- Pull Tension: 300 lbs
- Bend Radius: 4.05 in
- Cable Weight: 107 lbs
- Belden: 9913
